MULTIFUNCTION SCREENS
53
MONOCHROME SCREEN C
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature (this fl ashes if
there is a risk of ice),
- openings check (if a doors or the
boot is open),
- parking sensor information,
- current audio source,
- telephone or Bluetooth system in-
formation,
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can be
cleared by pressing the "ESC"
button. From the control panel of your audio
system, you can press:
)
button A
to chooses between the
display of audio information in full
screen or the shared display of au-
dio and trip computer information,
)
the "MENU"
button for access to
the main menu
,
)
the "
" or "
" buttons to scroll
through the items on the screen,
)
the "
" or "
" buttons to change a
setting value,
)
the "OK"
button to confi rm,
or
)
the "ESC"
button to abandon the
operation in progress.
Controls
)
Press the "MENU"
button for ac-
cess to the main menu
:
- "Multimedia",
- "Telephone",
- "Trip computer",
- "Bluetooth connection",
- "Personalisation-confi guration",
)
Press the "
" or "
" button to se-
lect the menu required, then confi rm
by pressing the "OK"
button.
Main menu
"Multimedia" menu
With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB/FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.
Page 56 of 332
2
MULTIFUNCTION SCREENS
54
Defi ne the vehicle parameters
This menu allows you to activate or de-
activate the following equipment, clas-
sifi ed in different categories:
- "Access to the vehicle" (see the
"Access" section):
●
"Plip action" (Selective unlocking
of the driver's door),
●
"Unlocking boot only" (Selective
unlocking of the boot).
"Telephone" menu
With the audio system switched on, this
menu allows you to make a call or view
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section. This menu allows you to view informa-
tion on the status of the vehicle.
Warning log
This summarises the status and warn-
ing messages for systems (active, not
active or faulty), displaying them in suc-
cession in the multifunction screen.
)
Press the "MENU"
button for ac-
cess to the main menu.
)
Press the arrows, then the "OK"
button to select the " Trip computer
" menu.
)
In the " Trip computer
" menu, select
the "Warning log" line and confi rm.
"Bluetooth connection"
menu
"Trip computer" menu
Wit the audio system on, this menu al-
lows a Bluetooth device (telephone,
media player) to be connected or dis-
connected and the connection mode to
be defi ned (hands-free, playing audio
fi les).
For more information on the "Bluetooth
connection" application, refer to the
"Audio and Telematics" section.
"Personalisation-
configuration" menu
This menu gives access to the following
functions:
- "Defi ne the vehicle parameters",
- "Choice of language",
- "Display confi guration",
- "Choice of sounds".
Page 57 of 332
2
MULTIFUNCTION SCREENS
55
Choice of language
Once this menu has been selected, you
can choose the language used by the
display from a pre-defi ned list.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"
box and confi rm or press the "ESC"
button to cancel.
For example: setting of the duration of
the "follow-me-home" lighting
)
Press the "
" or "
" buttons, to se-
lect the "Defi ne the vehicle param-
eters" menu, then the " OK
" button.
)
Press the "
" or "
" buttons to
select the "Interior lighting" line,
then the "OK"
button; then follow
the same procedure to select the
"Follow-me-home headlamps" line.
Display confi guration
This menu gives access to the following
settings:
- "Choice of units",
- "Date and time adjustment",
- "Display parameters",
- "Brightness".
Choice of sounds
This menu allows you to choose a family
of polyphonic sounds from the four avail-
able. These sounds are grouped togeth-
er in a family and are adapted to suit the
situation and context (alert, confi rmation,
rejection, direction indicators, lighting left
on, key in ignition...).
- "Driving assistance":
●
"Parking brake automatic" (Auto-
matic electric parking brake; see
the "Driving" section),
●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear;
see the "Visibility" section),
●
"Speeds memorised" (Memorising
speeds; see the "Driving" section).
- "Vehicle lighting" (see the "Visibility"
section):
●
"Directional headlamps" (Main/
additional directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see the "Visibility"
section:
●
"Follow-me-home headlamps"
(Automatic operation of headlam-
ps after switching off the ignition),
●
"Welcome lighting" (Exterior and
interior welcome lighting).
Page 58 of 332
2
MULTIFUNCTION SCREENS
56
COLOUR SCREEN AND MAP
From the navigation system control
panel, to select one of the applications:
)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"PHONE"
or "SETUP"
button for
access to the corresponding menu,
)
turn the dial A
to select a function,
an item in a list,
)
press button B
to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display.
For more information on these applica-
tions, refer to the "Audio and Telematics"
section.
Controls
"SETUP" menu
)
Press the "SETUP"
button for ac-
cess to its menu. You can choose
from the following functions:
- "Display confi guration",
- "Voice synthesis".
Display confi guration
This menu is used to set the bright-
ness of the screen, the screen colour
scheme and the date and time.
Voice synthesis
This menu is used to adjust the volume
for guidance messages and to select
the type of voice (male or female).
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
Displays in the screen
It displays the following information au-
tomatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- parking sensor information,
- audio functions,
- directory and telephone information,
- satellite navigation system information.
Page 59 of 332
2
MULTIFUNCTION SCREENS
57
This group of controls allows:
- when stationary
, confi guration of
the vehicle, central screen and in-
strument panel parameters (driving
and comfort systems, language,
units, sounds...),
- when stationary and while driv-
ing
, scrolling the active functions
available (trip computer, navigation-
guidance...).

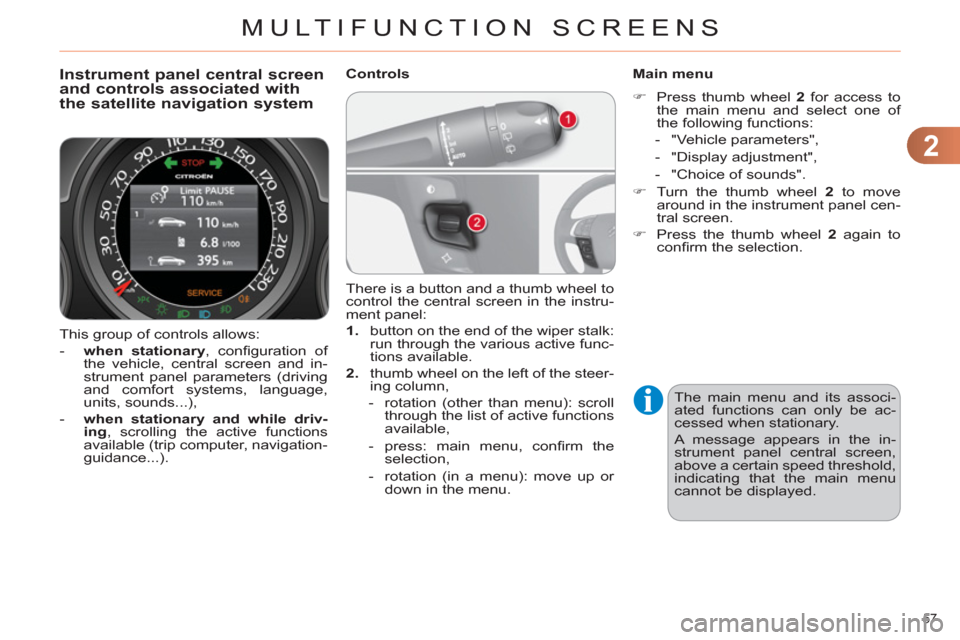

Instrument panel central screen
and controls associated with
the satellite navigation system
Controls
Main menu
)
Press thumb wheel 2
for access to
the main menu and select one of
the following functions:
- "Vehicle parameters",
- "Display adjustment",
- "Choice of sounds".
)
Turn the thumb wheel 2
to move
around in the instrument panel cen-
tral screen.
)
Press the thumb wheel 2
again to
confi rm the selection.
There is a button and a thumb wheel to
control the central screen in the instru-
ment panel:
1.
button on the end of the wiper stalk:
run through the various active func-
tions available.
2.
thumb wheel on the left of the steer-
ing column,
- rotation (other than menu): scroll
through the list of active functions
available,
- press: main menu, confi rm the
selection,
- rotation (in a menu): move up or
down in the menu.
The main menu and its associ-
ated functions can only be ac-
cessed when stationary.
A message appears in the in-
strument panel central screen,
above a certain speed threshold,
indicating that the main menu
cannot be displayed.
Page 60 of 332
2
MULTIFUNCTION SCREENS
58
Vehicle parameters
This menu is used to activate or deac-
tivate certain driving and comfort sys-
tems, classifi ed in different categories:
- "Access to the vehicle" (see
"Access" section):
●
"Plip action" (Selective unlocking
of the driver's door),
●
"Unlocking only boot" (Selective
unlocking of the boot).
- "Driving assistance":
●
"Parking brake automatic" (Auto-
matic electric parking brake; see
"Driving" section),
●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear;
see "Visibility" section),
●
"Speeds memorised" (Memoris-
ing speeds; see "Driving" sec-
tion).
- "Vehicle lighting" (see "Visibility"
section):
●
"Directional headlamps" (Main/
additional directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see "Visibility"
section):
●
"Follow-me-home " (Automatic
timed operation of headlamps),
●
"Welcome lighting" (Interior/exte-
rior welcome lighting).
Display confi guration
This menu is used to confi gure:
- the display language of the central
screen, from a pre-defi ned list,
- the units: temperature (°Celsius or
°Fahrenheit) and fuel consumption
(l/100 km, mpg or km/l),
- the graphical presentation of the
central screen, from a pre-defi ned
list.
Choice of sounds
This menu allows you to choose a fam-
ily of polyphonic sounds from the four
available. These sounds are grouped
together in a family and are adapted
to suit the situation and context (alert,
confi rmation, rejection, direction indica-
tors, lighting left on, key in ignition...).
Page 61 of 332
2
MULTIFUNCTION SCREENS
59
TRIP COMPUTER
Monochrome screen A
Information displays The trip computer provides the follow-
ing information:
- range,
- current fuel consumption,
- Stop & Start time counter,
- distance travelled,
- average fuel consumption,
- average speed.
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer infor-
mation in succession.
System that gives you current informa-
tion on your journey (range, fuel con-
sumption…).
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Zero reset
)
The next press then returns you to
the normal display.
Page 62 of 332
2
MULTIFUNCTION SCREENS
60
Monochrome screen C
You can choose between two types of
display by pressing button A
:
-
the trip computer information appears
temporarily above the audio informa-
tion, displayed permanently in full
screen,
or
- the trip computer and audio infor-
mation both appear permanently in
a shared screen.
Information displays
- the current information tab
with:
●
the range,
●
the current fuel
consumption,
●
the Stop & Start time
counter,
- the trip "1"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the fi rst trip.
- the trip "2"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the second trip.
)
Press the button, located at the end
of the wiper stalk
, to display the
various trip computer tabs in suc-
cession.
)
When the trip required is displayed,
press the button on the end of the wiper
stalk for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.
Trip zero reset
Page 63 of 332
2
MULTIFUNCTION SCREENS
61
Central instrument panel screen
associated with the satellite
navigation system
- Display of instantaneous informa-
tion with:
●
the range,
●
the current fuel consumption,
●
Stop & Start time counter,
- Display of trip "1"
with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the fi rst trip.
- Display of trip "2"
with:
●
the distance travelled,
●
the average fuel consumption,
●
the average speed,
for the second trip.
)
Press the button, located at the end
of the wiper stalk
or
)
turn the thumb wheel, located on
the left of the steering wheel
,
to display the following information
in turn:
●
reminder of the speed,
●
instantaneous information,
●
trip "1"
,
●
trip "2"
,
●
information on the current audio
source,
●
black screen,
●
navigation-guidance messages.
Information displays
)
When the required trip is displayed,
press the thumb wheel located on
the left of the steering wheel
or the
button on the end of the wiper stalk
for more than two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures and trip "2"
for monthly
fi gures.
Trip zero reset
Page 64 of 332
2
MULTIFUNCTION SCREENS
62

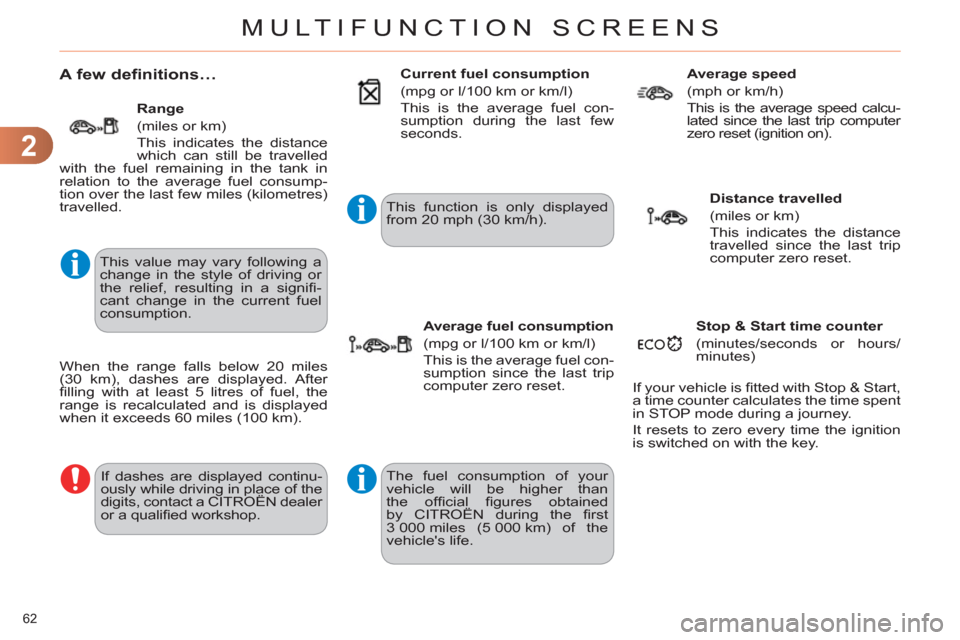

A few definitions…
This value may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current fuel
consumption.
If dashes are displayed continu-
ously while driving in place of the
digits, contact a CITROËN dealer
or a qualifi ed workshop. This function is only displayed
from 20 mph (30 km/h).
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled.
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset.
Average speed
(mph or km/h)
This is the average speed calcu-
lated since the last trip computer
zero reset (ignition on).
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/
minutes)
If your vehicle is fi tted with Stop & Start,
a time counter calculates the time spent
in STOP mode during a journey.
It resets to zero every time the ignition
is switched on with the key.
The fuel consumption of your
vehicle will be higher than
the offi cial fi gures obtained
by CITROËN during the fi rst
3 000 miles (5 000 km) of the
vehicle's life.
