CD player Citroen C4 DAG 2014.5 2.G User Guide

09
280
C4-2_en_Chap13b_RT6_ed01-2014
AUDIO SETTINGS
They are accessible by the MUSIC
button   in   the   control   panel   or   by   a   long
press on

RADIO
according

to

the

source

in

  use.
-

"

Equalizer"   (choice   of   6   musical   ambiences)
-

"

Bass "
-

"

Treble"
-

"

Loudness"   (Activate/Deactivate)
-

"

Distribution " ("Driver", "All passengers")
-

"

Le-Ri balance"   (Left/Right)
-

"

Fr-Re balance"   (Front/Rear)
-

"

Auto. Volume"   depending   on   road   speed   (Activate/Deactivate)
The

distribution   (or   spatialisation   using   the
Arkamys© system) of sound is

an

audio

process

that

allows

the

audio

quality

to

be   adapted   to   the
number


of

listeners

in

the

vehicle. On-board
  audio:
Arkamys© Sound Staging.
With

Sound

Staging,

the

driver   and   passengers   are   immersed   in   an
"audio


scene"

recreating

the   natural   atmosphere   of   an   auditorium:
truly


a

part

of

the

scene

and   its   surroundings.
This

new

sensation

is

made   possible   by   software   in   the   audio   system
which


processes

the

digital   signals   from   the   media   players   (radio,
CD,


MP3…)

without

changing   the   audio   settings.
This
  processing
takes


account

of

the

characteristics   of   the   passenger   compartment   to
produce


optimum

results.
The

Arkamys© software installed in your audio system processes the

digital

signal   from   the   media   players   (radio,   CD,   MP3,   …)   and
recreates


a

natural   musical   scene,   with   harmonious   placement   of
instruments


and   voices   in   the   space   in   front   of   passengers,   level   with
the


windscreen.
The

audio

settings   (
Equalizer, Bass, Treble   and   Loudness) are
different

and

independent   for   each   sound   source.
The

settings

for   distribution   and   balance   are   common   to   all   sources.

288
C4-2_en_Chap13b_RT6_ed01-2014
FREqUENTLY ASKED q UESTIONS
qUESTION ANSWER SOLUTION
Some

contacts   are
duplicated

  in   the   list. The
  options   for   synchronizing   contacts   are   synchronizing   the   contacts
on

  the   SIM   card,   the   contacts   on   the   telephone,   or   both.   When   both
synchronizations

  are   selected,   some   contacts   may   be   duplicated.Select
  "Display   SIM   card   contacts"   or   "Display
telephone

  contacts".
Contacts are not shown
in

alphabetical   order. Some
  telephones   offer   display   options.   Depending   on   the   settings
chosen,

  contacts   can   be   transferred   in   a   specific   order.Modify
  the   display   setting   in   the   telephone
directory

.
The system does not receive SMS  text   messages.The Bluetooth mode does not permit sending SMS text messages to the system.
The

CD

is

ejected

automatically


or

is

not

played


by

the

player. The
  CD   is   inserted   upside   down,   is   unplayable,   does   not   contain   any
audio

  data   or   contains   an   audio   format   which   the   player   cannot   play.-

Check that the CD is inserted in the player the right way  up.
- Check   the   condition   of   the   CD:   the   CD   cannot   be played
  if   it   is   too   damaged.
- Check  the   content   in   the   case   of   a   recorded   CD: refer
  to   the   information   and   advice   in   the   "MUSIC MEDIA

PLAYERS"   section.
- The  audio   system's   CD   player   does   not   play   DVDs.
- Some  recorded   CDs   will   not   be   played   by   the   audio system
  because   they   are   not   of   the   correct   quality.
The CD has been recorded in a format that is not compatible with the player  (udf,   ...).
The
  CD   is   protected   by   an   anti-pirating   protection   system   which   is   not
recognised

  by   the   audio   system.
There is a long waiting period  following   the   insertion of a C

d or connection of a
USB
  memory   stick.When a new medium is inserted, the system reads a certain amount of data  (directory,   title,   artist,   etc.).  This   may   take   from   a   few   seconds   to   a
few

  minutes. This
  phenomenon   is   normal.
The

CD

player

sound

is

poor

. The
  CD   used   is   scratched   or   of   poor   quality. Insert
  good   quality   CDs   and   store   them   in   suitable
conditions.
The

  audio   equipment   settings   (bass,   treble,   ambiences)   are   unsuitable. Set   the   treble   or   bass   level   to   0,   without   selecting
an

  ambience.

291
C4-2_en_Chap13b_RT6_ed01-2014
FREqUENTLY ASKED q UESTIONS
qUESTION ANSWER SOLUTION
With

the   engine   off,   the
system

  switches   off   after
a


few

minutes   of   use. When
  the   engine   is   switched   off,   the   system's   operating   time   depends   on
the

  state   of   charge   of   the   battery.
The
  switch-off   is   normal:   economy   mode   is   activated   automatically   to
maintain

  the   state   of   charge   of   the   vehicle's   battery,   needed   for   engine
starting.

  (See   the   "Energy   economy   mode"   section).Start
  the   vehicle's   engine   to   increase   the   battery
charge.
Playback

  of   my   USB
memory

  stick   starts   only
after


a
  very   long   wait
(around

  2   to   3   minutes). Some
  files   supplied   with   the   memory   stick   may   greatly   slow   down   access
to

  reading   the   memory   stick   (multiplication   by   10   of   the   catalogue   time).Delete
  the   files   supplied   with   the   memory   stick
and

  limit   the   number   of   sub-folders   in   the   file
structure

  on   the   memory   stick.
When

I   connect   my
iPhone

  as   telephone   and
to


the

USB   port   at   the
same


time,   I   am   unable
to


play
  the   music   files.When
  the   iPhone   connects   automatically   as   a   telephone,   it   forces   the
streaming

  function.
The
  streaming   function   takes   the   place   of   the   USB
function

  which   is   then   not   useable,   there   is   a   period   without   sound   of   the
track

  being   played   with
Apple® players. Disconnect   and   reconnect   to   the   USB   port   (the
USB

  function   takes   priority   over   streaming).

04
302
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
Audio CD
Insert 12 cm diameter circular compact discs only.
Some   anti-pirating   systems,   on   original   discs   or   CDs   copied   using   a
personal

  recorder,   may   cause   faults   which   are   no   reflection   on   the
quality

  of   the   original   player.
Without
  pressing   the   E j ECT button, insert a C d in the player, play
begins
  automatically.
To
  play   a   disc   which   has   already   been
inserted,

  press   the   SOURCE or SRC
button
  several   times   in   succession   and
select "

CD".
Press one of the buttons to select a
track
  on   the   CD.
Playing a CD
Press LIST  to   display   the   list   of   tracks
on

  the   CD.
Press
  and   hold   one   of   the   buttons   for
fast

  forward   or   backward.

04
303
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
CD, USB
Information and adviceOn   a   single   disc,   the   CD   player   can   read   up   to   255   MP3   files   spread
over

  8   directory   levels.   However,   it   is   recommended   that   this   be   kept
to

  2   levels   so   as   to   limit   the   time   taken   to   access   and   play   the   CD.
During
  play,   the   folder   structure   is   not   observed.
In
  order   to   be   able   to   play   a   recorded   CDR   or   CDRW,   when   recording
it

  is   preferable   to   select   standards   ISO   9660   level   1.2   or   Joliet.
If
  the   disc   is   recorded   in   another   format,   it   may   not   be   played   correctly.
It
  is   recommended   that   the   same   recording   standard   is   always   used
for

  an   individual   disc,   with   as   low   a   speed   as   possible   (4x   maximum)
for

  optimum   sound   quality.
In
  the   particular   case   of   a   multi-session   CD,   the   Joliet   standard   is
recommended.
Do

  not   connect   a   hard   disk   or   USB   device   other   than   audio   players   to
the

  USB   port.
This
  may   cause   damage   to   your   installation.
The
  audio   system   will   only   play   files   with   extension   ".mp3"   or   ".wma"
and

  a   compression   rate   that   is   constant   or   variable   between   32   Kbps
and

  320   Kbps.
It
  is   advisable   to   restrict   file   names   to   20   characters   without   using
special

  characters   (e.g.   "   ? ;   ù)   to   avoid   any   playing   or   displaying
problems.
The

  playlists   accepted   are   types   .m3u   and   .pls.
The
  number   of   files   is   limited   to   5   000   in   500   directories   on   a
maximum

  of   8   levels.

04
304
C4-2_en_Chap13c_RD5_ed01-2014
CD, USB
AUDIO
Playing a compilationInsert   an   MP3   compilation   in   the   CD   player   or
connect

  a   memory   stick   to   the   USB   port,   directly   or
via

  an   extension   lead.
The
  system   creates   playlists   (temporary   memory)   the   creation   time
for

  which   can   take   from   a   few   seconds   to   several   minutes.
The
  playlists   are   updated   every   time   the   ignition   is   switched   off   or   a
USB

  memory   stick   is   connected.
Play
  starts   automatically   after   a   period   which   depends   on   the
capacity

  of   the   USB   memory   stick.
Use
  only   USB   memory   sticks   formatted   FAT32   (File
Allocation

T

able). At
  a   first   connection,   the   order   suggested   is   by   folder.
When

  connecting   again,   the   order   previously   chosen   is
retained.T

o   play   a   disc   or   memory   stick
which

  has   already   been   inserted,
press

SOURCE or SRC   several   times   in
succession

  and   select   "CD" or "USB". Press one of the buttons to select the
next
  or   previous   track.
Press one of the buttons to select the
next
  or   previous   folder   in   the   order
chosen.
Press

  and   hold   one   of   the   buttons   for
fast

  forwards   or   backwards.
Press LIST


to   display   the   menu   of
folders

  in   the   compilation.

04
C4-2_en_Chap13c_RD5_ed01-2014
306
AUDIO

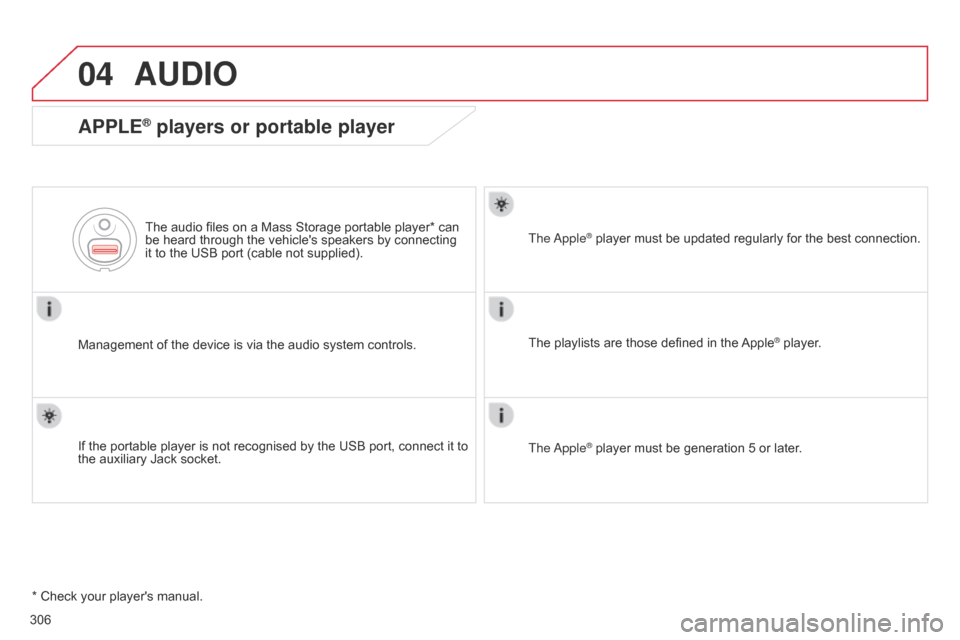

APPLE® players or portable player
Management of the device is via the audio system controls.
The   audio   files   on   a   Mass   Storage   portable   player*   can
be

  heard   through   the   vehicle's   speakers   by   connecting
it

  to   the   USB   port   (cable   not   supplied).
If   the   portable   player   is   not   recognised   by   the   USB   port,   connect   it   to
the

  auxiliary   Jack   socket. The
a

pple
® player
 must  be  updated  regularly  for  the  best  connection.
The

playlists   are   those   defined   in   the
Apple® player.
The
a
pple
® player must be generation 5 or later.
*

Check

your

player's

manual.

04
307
C4-2_en_Chap13c_RD5_ed01-2014
AUDIO
Auxiliary socket (AUX)
Auxiliary jack socket
Do   not   connect   a   device   to   the   USB   port   and   to   the   auxiliary   Jack
socket

  at   the   same   time.
The
  auxiliary   Jack   socket   permits   the   connection   of   a   portable   non-
mass
  storage   device   or   an
Apple® player if not recognised by the USB

port.
Connect

the

portable

device

to

the   auxiliary   Jack   socket   using   a
suitable


cable

(not

supplied). Press the SOURCE or SRC button
several
  times   in   succession   and
select

"AUX".
First
  adjust   the   volume   on   your   portable   device.
Then
  adjust   the   volume   of   the   audio
system.
The

  display   and   management   of   controls   is   on   the
portable

  device.

05

3 11
C4-2_en_Chap13c_RD5_ed01-2014

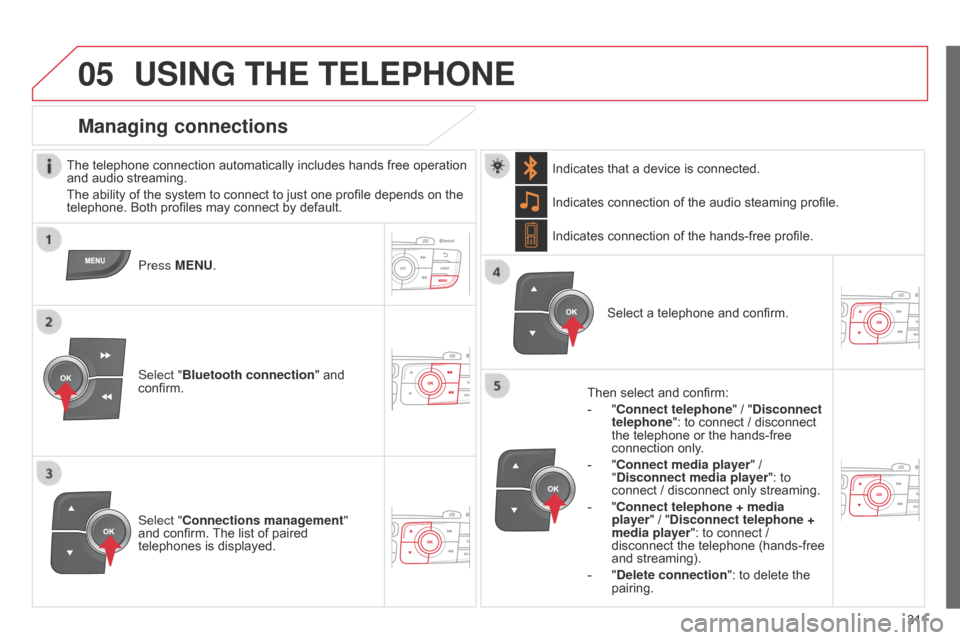

USING THE TELEPHONE
The telephone connection automatically includes hands free operation and  audio   streaming.
The
  ability   of   the   system   to   connect   to   just   one   profile   depends   on   the
telephone.

  Both   profiles   may   connect   by   default.
Press MENU.
Select "Bluetooth connection "
  and
confirm. Indicates

  connection   of   the   audio   steaming   profile.
Managing connections
Select "Connections management"
and  confirm.  The   list   of   paired
telephones

  is   displayed. Select
  a   telephone   and   confirm.
Indicates   connection   of   the   hands-free   profile.
Then   select   and   confirm:
-
"
Connect telephone
"   /   "
Disconnect
telephone":   to   connect   /   disconnect
the

  telephone   or   the   hands-free
connection

  only.
-
"
Connect media player"   /
"

Disconnect media player":   to
connect

  /   disconnect   only   streaming.
-  " Connect telephone + media
player"   /   "Disconnect telephone +
media player":   to   connect   /
disconnect

  the   telephone   (hands-free
and

  streaming).
-

"
Delete connection":   to   delete   the
pairing.
Indicates

  that   a   device   is   connected.

06
318
C4-2_en_Chap13c_RD5_ed01-2014

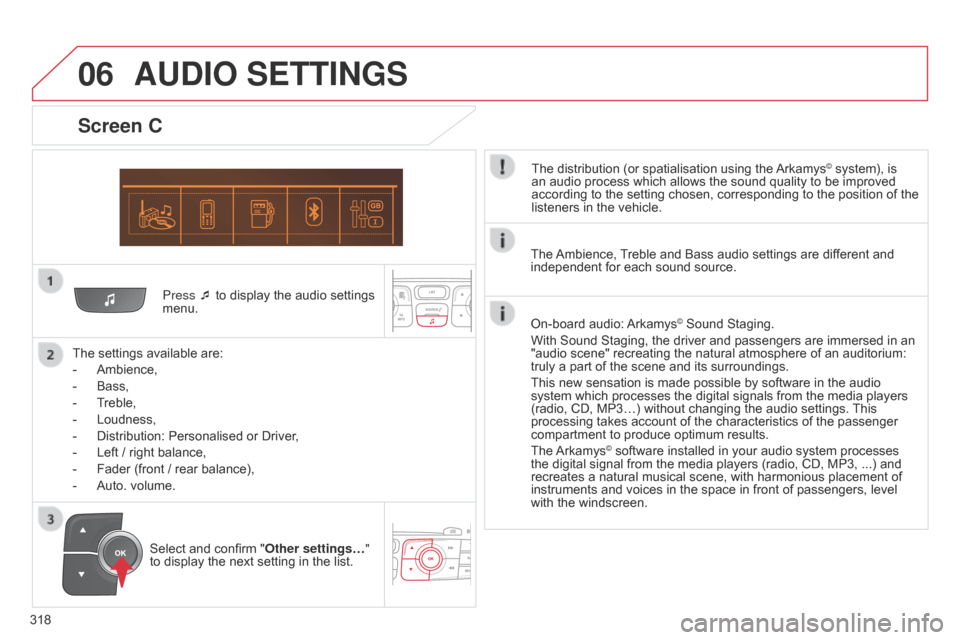

Press ¯ to display the audio settings menu.
The

settings

available   are:
-

Ambience,
-


Bass,
-


T

reble,
-

Loudness,
-


Distribution:
  Personalised   or   Driver,
-

Left


/

right

balance,
-

Fader


(front   /   rear   balance),
-

Auto.


volume.
Screen C
The distribution (or spatialisation using the Arkamys© system), is an

audio

process

which

allows

the

sound

quality

to

be   improved
according


to

the

setting

chosen,

corresponding

to

the   position   of   the
listeners


in

the

vehicle.
AUDIO SETTINGS
Select and confirm " Other settings… "
to   display   the   next   setting   in   the   list. The

Ambience,

T
reble   and   Bass audio   settings   are   different   and
independent

  for   each   sound   source.
On-board   audio:
Arkamys© Sound Staging.
With

Sound

Staging,

the

driver   and   passengers   are   immersed   in   an
"audio


scene"

recreating

the   natural   atmosphere   of   an   auditorium:
truly


a

part

of

the

scene

and   its   surroundings.
This

new

sensation

is

made   possible   by   software   in   the   audio
system


which

processes

the   digital   signals   from   the   media   players
(radio,


CD,

MP3…)

without   changing   the   audio   settings.
This

processing


takes

account

of   the   characteristics   of   the   passenger
compartment


to

produce

optimum   results.
The

Arkamys© software installed in your audio system processes the

digital

signal   from   the   media   players   (radio,   CD,   MP3,   ...)   and
recreates


a

natural   musical   scene,   with   harmonious   placement   of
instruments


and   voices   in   the   space   in   front   of   passengers,   level
with


the

windscreen.
