Reactivating the front
passenger airbag
do not forget to reactivate the air -
bag function.
For that, with the ignition switched
off, insert and turn the key to the
« oN » position. The airbag is
activated.
The passenger airbag can be
deactivated. Deactivation of the front
passenger airbag
To be able to use a “rear-facing”
child seat in the front passenger
seat position, it is imperative to
deactivate the passenger airbag.
For that :
- With the ignition switched off,
insert the key into the switch A
located in the glovebox.
- Turn the key to the « OFF »
posi-
tion, the passenger airbag is de-
activated.
The front passenger airbag de -
activation warning lamp comes
on permanently on the display.
In the event of a malfunction, the « airbag fault » warning lamp comes on and a message displays.
In the front passenger’s seat position, it is imperative to deactivate the front
passenger’s airbag if you are installing a “rear-facing” child seat there.
Otherwise the child risks being killed or seriously i njured should the airbag deploy.
A i R B A G S

B
III
145
The rear pneumatic suspension enhances driving
comfort by maintaining a constant body height what-
ever the vehicle load.
OPERATION
- if there is an increase in vehicle load, a sinking of the rear of the vehicle is detected and the pneumatic
springs inflate in order to compensate for the extra
weight.
- if there is an decrease in load, a rising of the rear of the vehicle is detected and so the pneumatic springs
deflate to return the vehicle to its nominal height.
- if the vehicle has been unused for a long period, the pneumatic springs may inflate if necessary when you
unlock or open a door, so as to return the vehicle to
its nominal height. Note
: if you do not reactivate the system manually,
the automatic correction will be activated as soon as
the vehicle starts to move. during the correction, the
SERViCE warning lamp lights up and a message on the
screen reminds you not to exceed 10 km/h (6 mph).
Note : the automatic correction does not function if the
doors or the tailgate are open.
The automatic correction operates even if your vehicle
is in economy mode.
ACTIVATION / DEACTIVATION
The automatic correction can be deactivated :
- Press on the button B for approximately two seconds.
-
Release the button when you hear a beep. deactivati on
is confirmed by the lighting of the LED on the butto n B.
it is essential that you should deactivate the system in the following instances :
- working under the vehicle,
- changing a wheel,
- transporting the vehicle on a truck or on a boot.
To reactivate the automatic correction :
- Press again on the button B for approximately
two seconds.
- Release the button when you hear a beep. Activati on is
confirmed by the extinction of the LED on the button B .
In the event of the system malfunctioning, alert
messages, always in association with the SERVICE warning lamp, will display in the instrument panel.
Contact a CITROËN dealer as soon as possible
.
Grand C4 Picasso C4 Picasso
P N E U M AT i C S U S P E N S i o N

22
1
9
11
53
8
6724
10

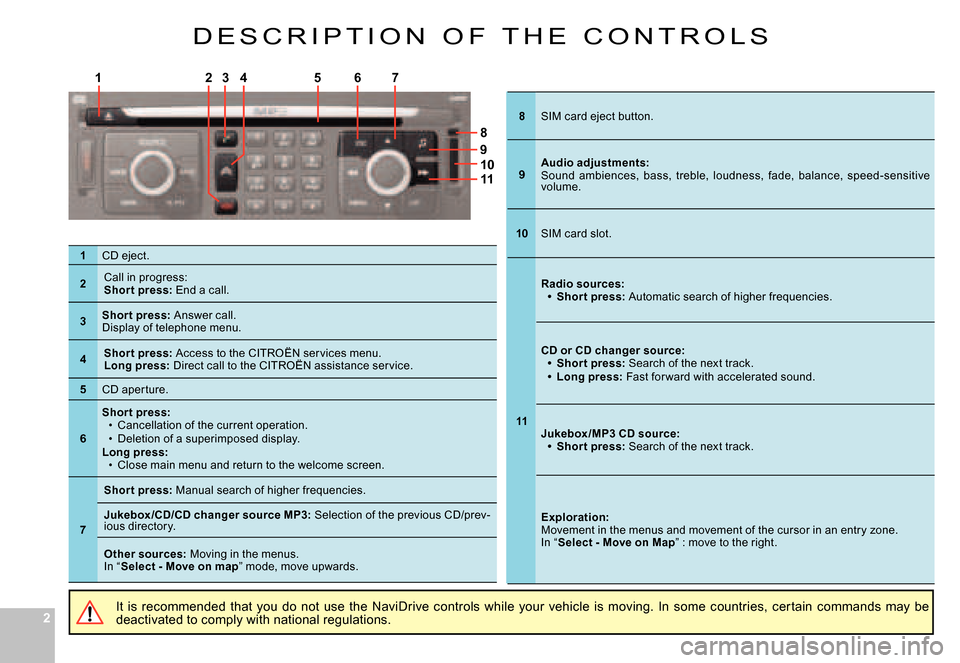

d E S C R i P T i o N o F T H E C o N T R o L S
it is recommended that you do not use the Navidrive controls while your vehicle is moving. in some countries, certain commands may be deactivated to comply with national regulations.
1Cd eject.
2Call in progress:Shor t press: End a call.
3Shor t press: Answer call.display of telephone menu.
4Shor t press: Access to the CiTRoËN ser vices menu.Long press: direct call to the CiTRoËN assistance ser vice.
5Cd aper ture.
6
Shor t press:Cancellation of the current operation.deletion of a superimposed display.Long press:Close main menu and return to the welcome screen.

44
21
192018
2223
24
17

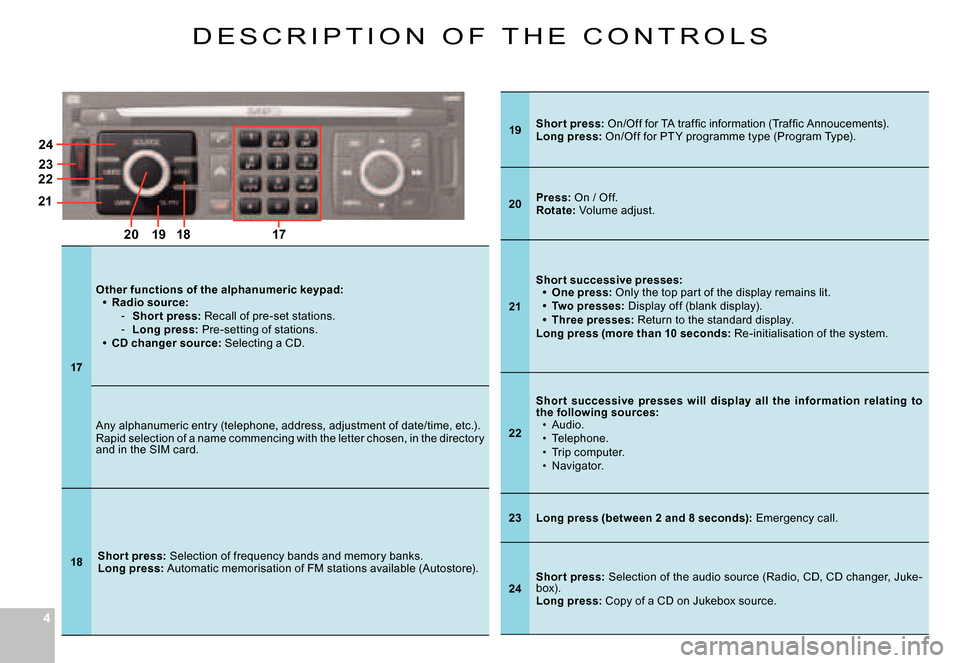

d E S C R i P T i o N o F T H E C o N T R o L S
19Shor t press: On/Off for TA traffi c information (Traffi c Annoucements).Long press: on/off for PT Y programme type (Program Type).
20Press: on / off.Rotate: Volume adjust.
21
Shor t successive presses:One press: only the top par t of the display remains lit.Two presses: display off (blank display).Three presses: Return to the standard display.Long press (more than 10 seconds: Re-initialisation of the system.

77
Press on the end of the lighting control stalk to start voice recognition and say “Help” or “What can i say ” to display the list of voice commands that are available.
Cd playerdetail page 35
Cd player
Randomdetail page 28ListTrack number1-20Previous trackNext trackScandetail page 28detail page 28
FolderRepeatNextPreviousJukeboxdetail page 37detail page 37
Jukebox
Randomdetail page 28detail page 28ListTrack number1-20Previous trackNext trackScandetail page 28detail page 28
FolderRepeatNextPreviousCd changerdetail page 41
Cd changer
disc number1-5detail page 41detail page 41Previous discNext discRandomdetail page 28detail page 28ListTrack number1-20detail page 41detail page 41Previous trackdetail page 41detail page 41Next trackdetail page 41detail page 41RepeatScandetail page 28
display
Audiodetail page 27Navigatordetail page 11Trip computerTelephonedetail page 44
Telephone
Voice maildetail page 44Redial
Adress book“Pre-recorded label”detail page 44
Call“Pre-recorded label”detail page 46
Messagedisplaydetail page 47Readdetail page 47
Navigator
Stopdetail page 11
Adress book“Pre-recorded label”detail page 12
Restar tdetail page 11
Showdestinationdetail page 24Vehicledetail page 24Zoom outdetail page 18Zoom indetail page 18Guide to“Pre-recorded label”
Traf fi c Infodisplaydetail page 24Readdetail page 24Radiodetail page 33
Radio
Autostoredetail page 31Listdetail page 31Memor y1- 6detail page 30Previousdetail page 30Nextdetail page 30
L i S T A N d S T R U C T U R E o F V o i C E
C o M M A N d S
HOW TO ACCESS THE LIST OF PRE -RECORDED VOICE COMMANDS ?

88
M A i N M E N U
To keep the display clean, it is recommended to wipe with a soft, non-abrasive cloth (e.g. for spectacles) without any cleaning product added.
HOW TO ACCESS THE MAIN MENU ?
Press on the MENU button.
TR AFFIC INFORMATION: TMC in-formation, messages, etc
AUDIO: radio, Cd, Jukebox source , options, etc
T E L E M A T I C S : t e l e p h o n e , directory, SiM, services, etc
CONFIGUR ATION: vehicle param-eters, display, time, languages, voice, auxiliary socket, etc
VIDEO: activation, parameters, etc
VEHICLE DIAGNOSIS: log of alerts, etc
NAVIGATION - GUIDANCE: GPS, stages, options, etc
M AP: or ientation, details, display, etc

101010
I
e
abc
fgh
d
i

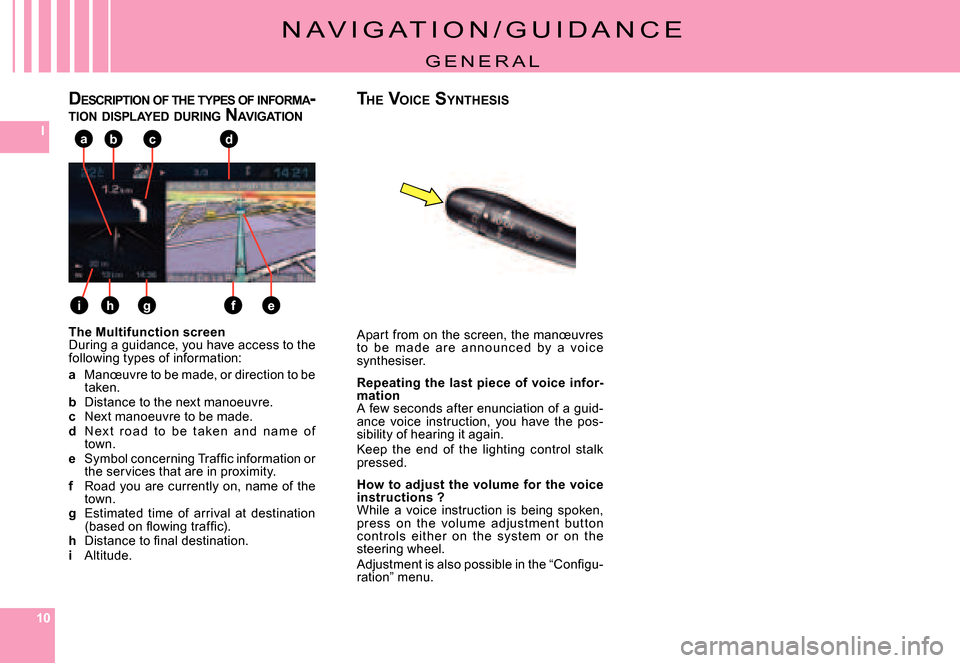

N A V i G A T i o N / G U i d A N C E
G E N E R A L
The Multifunction screenduring a guidance, you have access to the following types of information:
a Manœuvre to be made, or direction to be taken.b distance to the next manoeuvre.c Next manoeuvre to be made.d N ex t r o a d t o b e t a ke n a n d n a m e o f town.e Symbol concerning Traffi c information or the services that are in proximity.f Road you are currently on, name of the town.g Estimated time of arrival at destination (based on fl owing traffi c).h Distance to fi nal destination.i Altitude.
Apart from on the screen, the manœuvres t o b e m a d e a r e a n n o u n c e d by a vo i c e synthesiser.
Repeating the last piece of voice infor-mationA few seconds after enunciation of a guid-ance voice instruction, you have the pos-sibility of hearing it again.Keep the end of the lighting control stalk pressed.
How to adjust the volume for the voice instructions ?While a voice instruction is being spoken, press on the volume adjustment but ton c ontrols either on the system or on the steering wheel.Adjustment is also possible in the “Confi gu-ration” menu.
DESCRIPTION OF THE TYPES OF INFORMA -TION DISPLAYED DURING NAVIGATIONTHE VOICE SYNTHESIS

181818

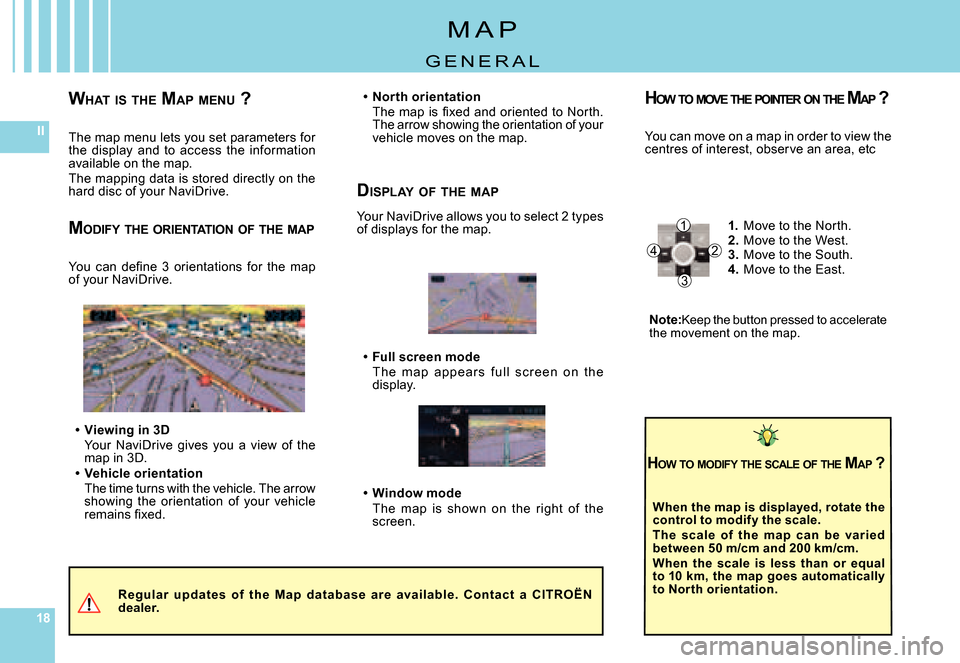

IIThe map menu lets you set parameters for the display and to access the information available on the map.The mapping data is stored directly on the hard disc of your Navidrive.
Regular up d at es of t h e M ap d at aba se are availabl e. Cont ac t a CITRO ËN dealer.
M A P
G E N E R A L
DISPLAY OF THE MAP
Your Navidrive allows you to select 2 types of displays for the map.
Window modeThe map is shown on the right of the screen.

191919
II
A1A2A3
ABCD
A1
A2
A3
C1
C2C2
C1
D
B
A
C
A

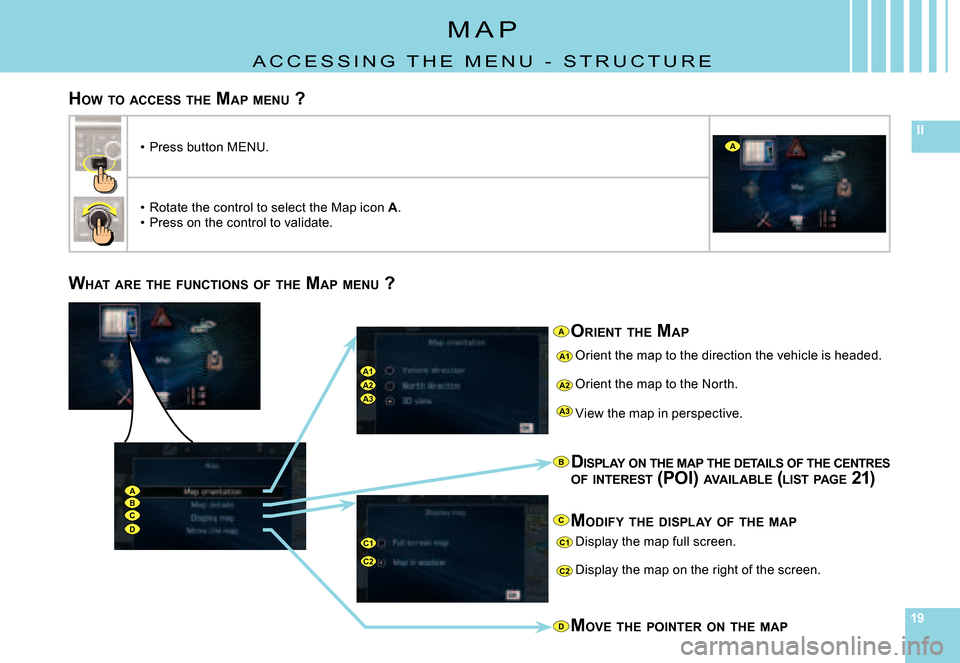

WHAT ARE THE FUNCTIONS OF THE MAP MENU ?
ORIENT THE MAP
orient the map to the direction the vehicle is heade d.
orient the map to the North.
View the map in perspective.
DISPLAY ON THE MAP THE DETAILS OF THE CENTRES OF INTEREST (POI) AVAILABLE (LIST PAGE 21)
MODIFY THE DISPLAY OF THE MAP
display the map full screen.
display the map on the right of the screen.
M OVE THE POINTER ON THE MAP
M A P
A C C E S S i N G T H E M E N U - S T R U C T U R E
H OW TO ACCESS THE MAP MENU ?
Press button MENU.

232323
IIi
C
B1B2
B3
D1D2D3
B1
B2
B3
C2
D1
D2
D3
C1
C2
C1AB
D
A
B
C
D
A
ACCESSING THE LIST OF MESSAGES
Select the information relating to a geographical a rea.
Select the information relating to traffi c.
Select the information relating to built-up areas.
SETTING PARAMETERS FOR MESSAGE ANNOUNCEMENTS
Activate or deactivate the reading of new messages by the Navidrive voice.Activate or deactivate the display of new TMC mes-sages (do not select the tab for the regions with dens e traffi c).
CHOOSING A TMC STATION
Select an automatic TMC search.
Select a manual TMC search.
Access the list of TMC stations.
FILTERING TMC INFORMATION
T R A F F i C i N F o R M A T i o N
A C C E S S i N G T H E M E N U - S T R U C T U R E
HOW TO ACCESS THE TRAFFIC INFORMATION MENU ?
Press button MENU.
