Page 103 of 330
88
V I S I B I L I T Y
V
Linked with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the duration of main-taining of the lighting for 15, 30
or 60 seconds in the vehicle
parameters on the multifunc-
t i o n d i s p l a y c o n fi g u r a t i o n m e n u
(in the case of the monochrome
s c r e e n A , t h e d u r a t i o n i s fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction display, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. EXTERIOR SIDE LIGHTERS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front
doors.
Switching on
The side lighters come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automati-
cally.
THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum autho-
rised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 104 of 330
89
V I S I B I L I T Y
V

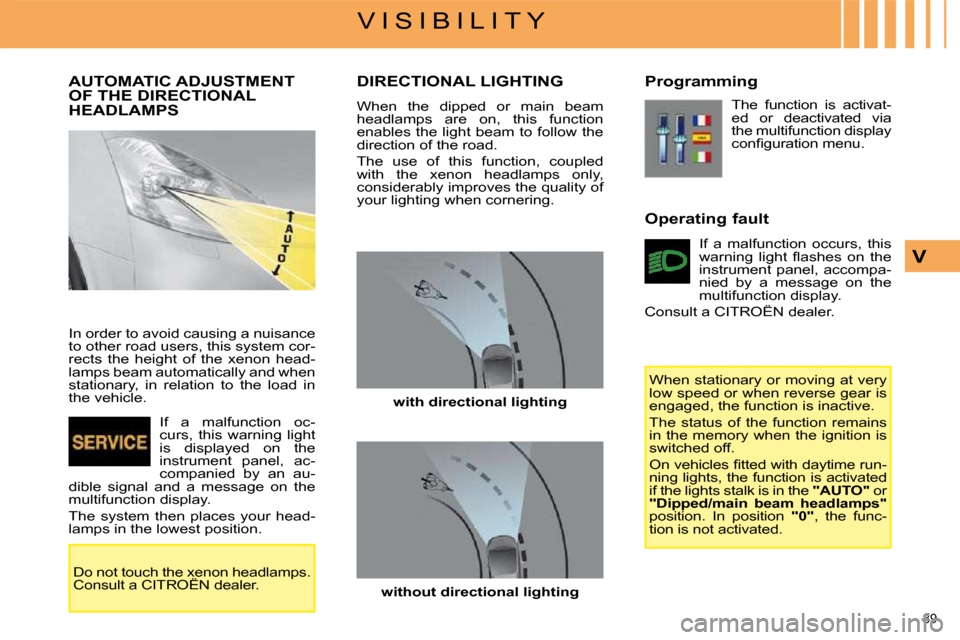

AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction oc-
curs, this warning light
is displayed on the
instrument panel, ac-
companied by an au-
dible signal and a message on the
multifunction display.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon headlamps.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function
enables the light beam to follow the
direction of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction display
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l i g h t fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction display.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated
if the lights stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the func-
tion is not activated.
Page 105 of 330
89
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction oc-
curs, this warning light
is displayed on the
instrument panel, ac-
companied by an au-
dible signal and a message on the
multifunction display.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon headlamps.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function
enables the light beam to follow the
direction of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction display
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l i g h t fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction display.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated
if the lights stalk is in the "AUTO" or
"Dipped/main beam headlamps"
position. In position "0" , the func-
tion is not activated.
Page 107 of 330
91
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction display
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at

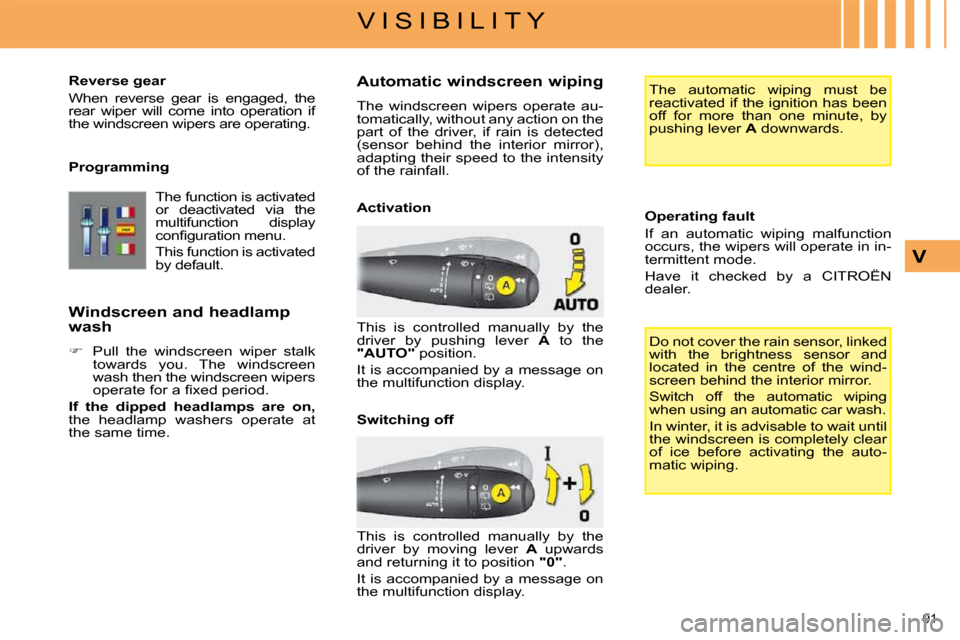

the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing lever
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction display. The automatic wiping must be
reactivated if the ignition has been
off for more than one minute, by
pushing lever
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving lever
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction display.
Page 109 of 330
91
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction display
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing lever
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction display. The automatic wiping must be
reactivated if the ignition has been
off for more than one minute, by
pushing lever
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving lever
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction display.
Page 194 of 330
160
X
C H E C K S

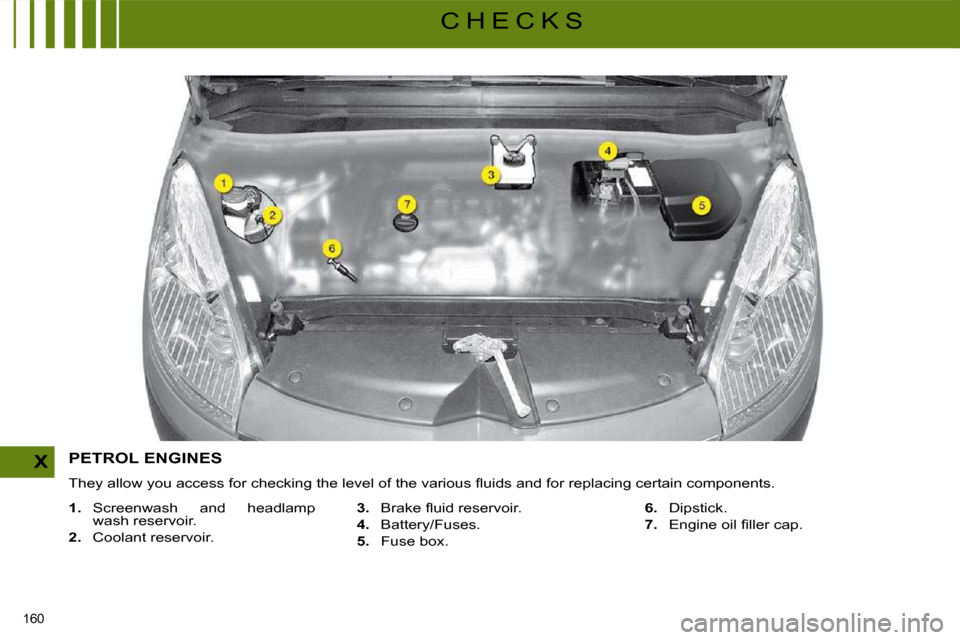

PETROL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
Page 195 of 330
161
X
C H E C K S * According to engine.
DIESEL ENGINES
T h e y a l l o w y o u a c c e s s f o r c h e c k i n g t h e l e v e l o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r r e p r i m i n g t h e f u e l .
1. Screenwash and headlamp
wash reservoir.
2. Coolant reservoir.
3. B r a k e fl u i d r e s e r v o i r .
4. Battery/Fuses.
5. Fuse box.
6. Dipstick.
7. E n g i n e o i l fi l l e r c a p .
8. Repriming pump * .
9. Degas screw * . As the diesel circuit is pres-
surised, any work on this
circuit is prohibited.
Page 197 of 330
163
X
C H E C K S
Screenwash and headlamp
wash fluid
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e
topped up or replaced with water.
Reservoir capacities:
- screenwash: approximately 3 litres,
- screenwash and headlamp wash: approximately 6 litres. Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level is indicated by
lighting of the service warning light,
accompanied by an audible warning
and a message on the multifunction
display.
Topping up
This additive must be topped up by
a CITROËN dealer without delay.

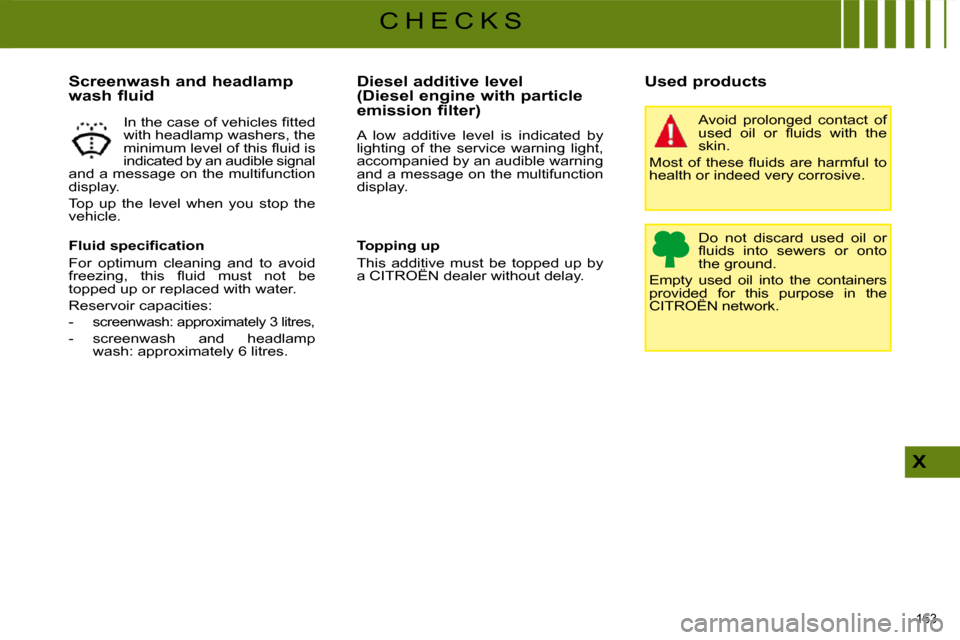

Used products
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e
skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
Do not discard used oil or
fl u i d s i n t o s e w e r s o r o n t o
the ground.
Empty used oil into the containers
provided for this purpose in the
CITROËN network.
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible signal
and a message on the multifunction
display.
Top up the level when you stop the
vehicle.
Page 208 of 330
173
XI
P R A C T I C A L I N F O R M A T I O N

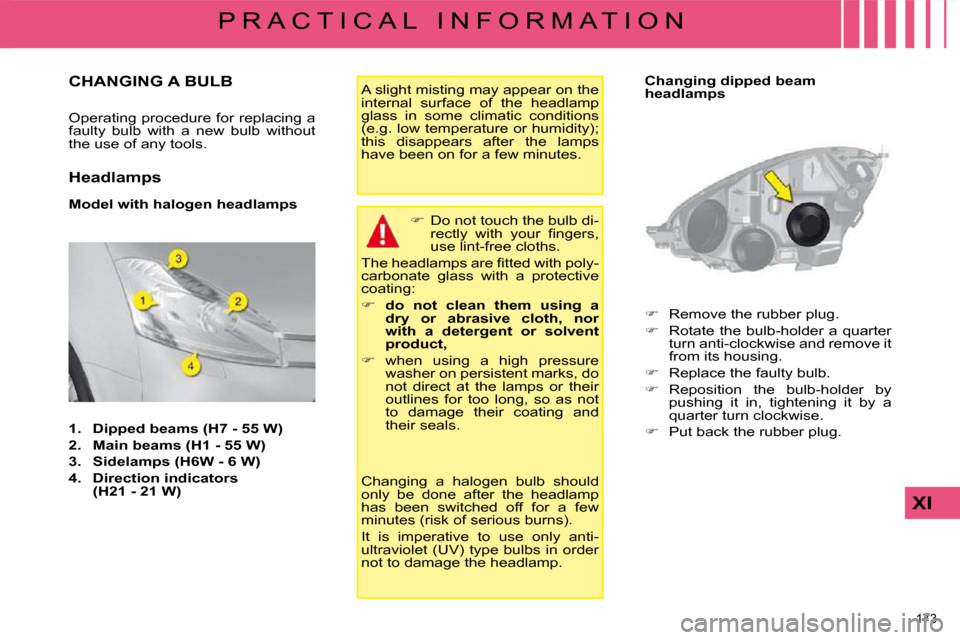

CHANGING A BULB
O p e r a t i n g p r o c e d u r e f o r r e p l a c i n g a
f a u l t y b u l b w i t h a n e w b u l b w i t h o u t
t h e u s e o f a n y t o o l s .
Headlamps
Model with halogen headlamps
1. Dipped beams (H7 - 55 W)
2. Main beams (H1 - 55 W)
3. Sidelamps (H6W - 6 W)
4. Direction indicators
(H21 - 21 W) A s l i g h t m i s t i n g m a y a p p e a r o n t h e
i n t e r n a l s u r f a c e o f t h e h e a d l a m p
glass in some climatic conditions
( e . g . l o w t e m p e r a t u r e o r h u m i d i t y ) ;
t h i s d i s a p p e a r s a f t e r t h e l a m p s
h a v e b e e n o n f o r a f e w m i n u t e s .
D o n o t t o u c h t h e b u l b d i -
r e c t l y w i t h y o u r fi n g e r s ,
u s e l i n t - f r e e c l o t h s .
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
c a r b o n a t e g l a s s w i t h a p r o t e c t i v e
c o a t i n g :
do not clean them using a
dry or abrasive cloth, nor
with a detergent or solvent
product,
w h e n u s i n g a h i g h p r e s s u r e
w a s h e r o n p e r s i s t e n t m a r k s , d o
not direct at the lamps or their
o u t l i n e s f o r t o o l o n g , s o a s n o t
to damage their coating and
t h e i r s e a l s .
Changing a halogen bulb should
o n l y b e d o n e a f t e r t h e h e a d l a m p
h a s b e e n s w i t c h e d o f f f o r a f e w
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
I t i s i m p e r a t i v e t o u s e o n l y a n t i -
u l t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
n o t t o d a m a g e t h e h e a d l a m p . Changing dipped beam
headlamps
R e m o v e t h e r u b b e r p l u g .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
q u a r t e r t u r n c l o c k w i s e .
P u t b a c k t h e r u b b e r p l u g .
Page 209 of 330
1 7 4
XI
P R A C T I C A L I N F O R M A T I O N

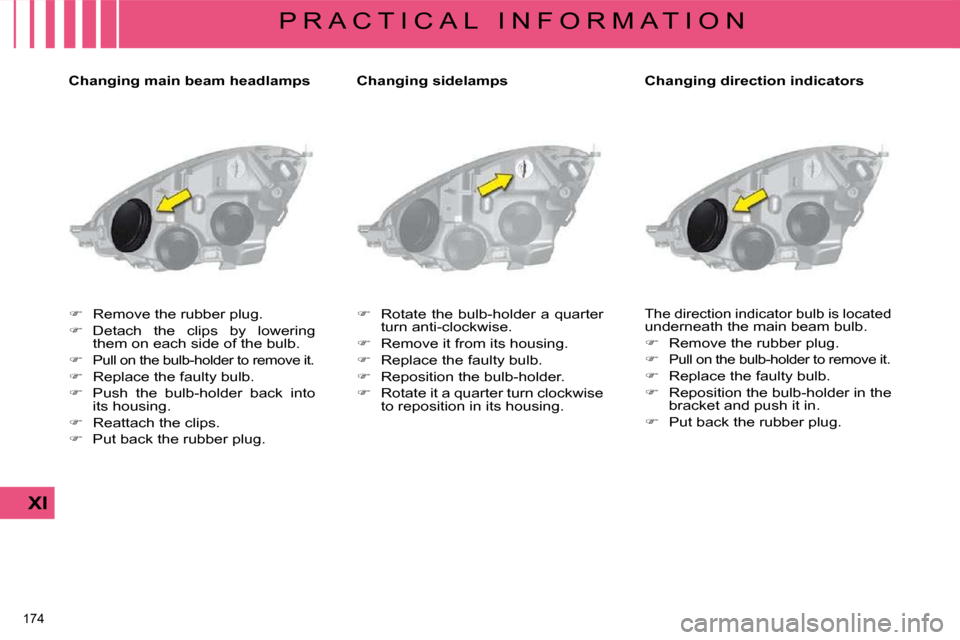

Changing main beam headlamps Changing sidelamp s
R e m o v e t h e r u b b e r p l u g .
D e t a c h t h e c l i p s b y l o w e r i n g
t h e m o n e a c h s i d e o f t h e b u l b .
P u l l o n t h e b u l b - h o l d e r t o r e m o v e i t .
R e p l a c e t h e f a u l t y b u l b .
P u s h t h e b u l b - h o l d e r b a c k i n t o
i t s h o u s i n g .
R e a t t a c h t h e c l i p s .
P u t b a c k t h e r u b b e r p l u g .
R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e .
R e m o v e i t f r o m i t s h o u s i n g .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r .
R o t a t e i t a q u a r t e r t u r n c l o c k w i s e
t o r e p o s i t i o n i n i t s h o u s i n g . Changing direction indicators
The direction indicator bulb is located
u n d e r n e a t h t h e m a i n b e a m b u l b .
R e m o v e t h e r u b b e r p l u g .
P u l l o n t h e b u l b - h o l d e r t o r e m o v e i t .
R e p l a c e t h e f a u l t y b u l b .
R e p o s i t i o n t h e b u l b - h o l d e r i n t h e
b r a c k e t a n d p u s h i t i n .
P u t b a c k t h e r u b b e r p l u g .
