Page 210 of 330
175
XI
P R A C T I C A L I N F O R M A T I O N
Changing integrated direction
indicator side repeaters
T o c h a n g e t h e r e p e a t e r , p r e s s d o w n -
w a r d s ļ¬ r m l y o n t h e z o n e i n d i c a t e d
b y t h e a r r o w , t h e n p u l l t h e r e p e a t e r .
R e p e a t e r s c a n b e o b t a i n e d f r o m a
C I T R O Ć N d e a l e r . Model with Xenon headlamps
and directional headlamps
1. Dual-function Xenon
headlamps (dipped/main beam)
2. Additional main beams
(H7 - 55 W)
3. Sidelamps (H6 W - 6 W)
( s e e p r e v i o u s p a g e )
4. Direction indicators
(H21 - 21 W)
( s e e p r e v i o u s p a g e ) Changing dual-function Xenon
headlamps (dipped/main beam)
Changing additional main
beams
ļ R e m o v e t h e r u b b e r p l u g .
ļ R o t a t e t h e b u l b - h o l d e r a q u a r t e r
t u r n a n t i - c l o c k w i s e a n d r e m o v e i t
f r o m i t s h o u s i n g .
ļ R e p l a c e t h e f a u l t y b u l b .
ļ R e p o s i t i o n t h e b u l b - h o l d e r b y
p u s h i n g i t i n , t i g h t e n i n g i t b y a
q u a r t e r t u r n c l o c k w i s e .
ļ P u t b a c k t h e r u b b e r p l u g .
I f t h e h e a d l a m p b e a r s t h i s
s y m b o l , a n y o p e r a t i o n t o
c h a n g e t h e X e n o n d u a l -
f u n c t i o n d i r e c t i o n a l h e a d -
l a m p ( D 1 S - 3 5 W ) m u s t b e c a r r i e d
o u t b y p r o f e s s i o n a l s ( r i s k o f e l e c t r o -
c u t i o n ) .
C o n s u l t a C I T R O Ć N d e a l e r .
It is recommended to change both
b u l b s a t t h e s a m e t i m e i f o n e o f
t h e m i s f a u l t y .
W h e n u s i n g a h i g h - p r e s -
s u r e w a s h e r o n p e r s i s t e n t
m a r k s , d o n o t d i r e c t a t t h e
l a m p s o r t h e i r o u t l i n e s f o r t o o l o n g ,
so as not to damage their coating
a n d t h e i r s e a l s .
Page 218 of 330
181
XI
P R A C T I C A L I N F O R M A T I O N

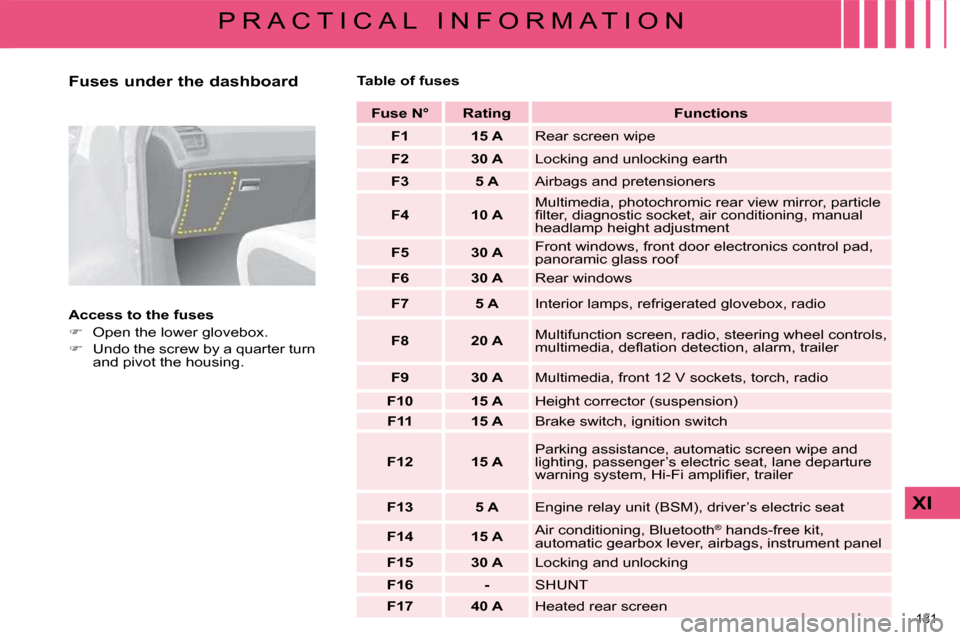

Fuses under the dashboard
Access to the fuses
ļ O p e n t h e l o w e r g l o v e b o x .
ļ U n d o t h e s c r e w b y a q u a r t e r t u r n
a n d p i v o t t h e h o u s i n g . Table of fuses
Fuse NĀ° Rating Functions
F1 15 A R e a r s c r e e n w i p e
F2 30 A Locking and unlocking earth
F3 5 A Airbags and pretensioners
F4 10 A M u l t i m e d i a , p h o t o c h r o m i c r e a r v i e w m i r r o r , p a r t i c l e
ļ¬ l t e r , d i a g n o s t i c s o c k e t , a i r c o n d i t i o n i n g , m a n u a l
headlamp height adjustment
F5 30 A F r o n t w i n d o w s , f r o n t d o o r e l e c t r o n i c s c o n t r o l p a d ,
p a n o r a m i c g l a s s r o o f
F6 30 A R e a r w i n d o w s
F7 5 A I n t e r i o r l a m p s , r e f r i g e r a t e d g l o v e b o x , r a d i o
F8 20 A M u l t i f u n c t i o n s c r e e n , r a d i o , s t e e r i n g w h e e l c o n t r o l s ,
m u l t i m e d i a , d e ļ¬ a t i o n d e t e c t i o n , a l a r m , t r a i l e r
F9 30 A M u l t i m e d i a , f r o n t 1 2 V s o c k e t s , t o r c h , r a d i o
F10 15 A H e i g h t c o r r e c t o r ( s u s p e n s i o n )
F11 15 A B r a k e s w i t c h , i g n i t i o n s w i t c h
F12 15 A P a r k i n g a s s i s t a n c e , a u t o m a t i c s c r e e n w i p e a n d
l i g h t i n g , p a s s e n g e r ā s e l e c t r i c s e a t , l a n e d e p a r t u r e
w a r n i n g s y s t e m , H i - F i a m p l i ļ¬ e r , t r a i l e r
F13 5 A E n g i n e r e l a y u n i t ( B S M ) , d r i v e r ā s e l e c t r i c s e a t
F14 15 A A i r c o n d i t i o n i n g , B l u e t o o t h
Ā®
h a n d s - f r e e k i t ,
a u t o m a t i c g e a r b o x l e v e r , a i r b a g s , i n s t r u m e n t p a n e l
F15 30 A Locking and unlocking
F16 - SHUNT
F17 40 A Heated rear screen
