139
D R I V I N G

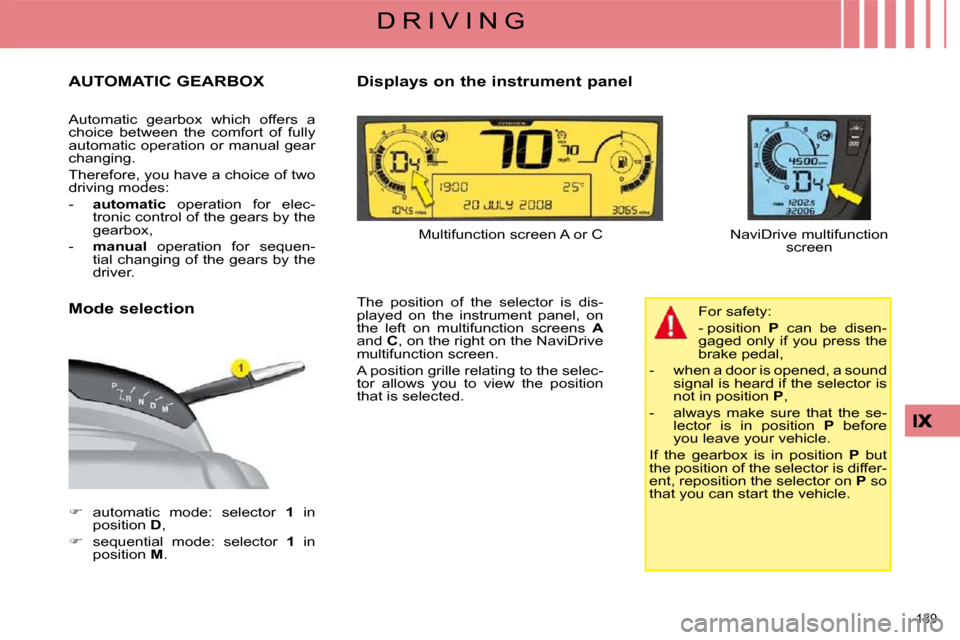

AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation or manual gear
changing.
Therefore, you have a choice of two
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- manual operation for sequen-
tial changing of the gears by the
driver.

 automatic mode: selector 1 in
position D ,

 sequential mode: selector 1 in
position M . The position of the selector is dis-
played on the instrument panel, on
the left on multifunction screens
A
and C , on the right on the NaviDrive
multifunction screen.
A position grille relating to the selec-
tor allows you to view the position
that is selected. For safety:
- position
P can be disen-
gaged only if you press the
brake pedal,
- when a door is opened, a sound signal is heard if the selector is
not in position P ,
- always make sure that the se- lector is in position P before
you leave your vehicle.
If the gearbox is in position P but
the position of the selector is differ-
ent, reposition the selector on P so
that you can start the vehicle.
Displays on the instrument panel
Multifunction screen A or C NaviDrive multifunction screen
Mode selection

142
D R I V I N G
Manual operation
Position of the selector for manual
gear changing.
 Move the selector to po-
sition M .
 Pull the lever " + " to change up a
gear.

 Pull the lever " - " to change down
a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically
to fi rst gear.
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes.
- A request to change gear is ac- cepted only if the engine speed
permits it. - For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in auto-
matic mode) to position M (driv-
ing in sequential mode) or vice
versa.
The fl ashing of the warn-
ing lamp for the position
requested signals that this
position is not yet obtained.
If the warning lamp is on fi xed, the
position is confi rmed.
Display of a dash in the rev counter
indicates a malfunction. Consult a
CITROËN dealer.
Lighting of the service warning
lamp accompanied by a message
and a sound signal indicates a
functioning anomaly. In this case :
- a marked snatching may be felt when selecting R for reverse
gear,
- the gearbox is locked on a gear,
- do not exceed a speed of 100 km/h (approx. 60 mph).
Consult a CITROËN dealer.

144
IX
D R I V I N G
Optional function controls

1. Pick up/Hang up the telephone
(see "NaviDrive" instructions).

2. Rheostat for dashboard lighting.

3. Start of voice recognition (see
chapter "Audio" or "NaviDrive"
instructions).

4. Personalisation button:
- courtesy light on/off or
- diagnostics or
- personalisation of the display- ing of information on the in-
strument panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.

5. Air recirculation. Multifunction screen controls

A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.

B. Access to the "Main Menu" * .

C. Validation of the function chosen
or of the value modifi ed.
Pick up/Hang up (see chapter "Audio").

D. Scrolling in the multifunction
screen.

E. Cancellation of the current opera-
tion or return to the previous dis-
play.
* To comply with legislation in certain countries, the "Menu" control may
be deactivated while the vehicle is
in motion.

145
D R I V I N G
SPEED LIMITER
System which prevents the vehi-
cle from exceeding the speed pro-
grammed by the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched
on manually: a speed of at least
30 km/h (around 20 mph) must be
programmed.
The speed limiter controls are located
on the left-hand side of the steering
wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Steering wheel controls Displays on the instrument
panel
Programming
Rotate the control
1 to the "LIM" po-
sition. With the engine running, you can
adjust the memorised maximum
speed , by means of short or long
presses on:

 button 4 to increase the memo-
rised maximum speed,

 button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph.
Activation
When the desired maximum speed
is displayed, press button 3 so that
the limitation is activated.
On selection of the
function, the previous
memorised speed and
the information "OFF"
are displayed: The information
"OFF"
then disappears from
the instrument panel
display.
While the function is active, press-
ing the accelerator pedal will not en-
able the programmed speed to be
exceeded, except if you press the
pedal hard down to beyond the end-
of-travel switch.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
The speed limiter cannot, in any
circumstances, take the place of
the observance of speed limits or
of the vigilance and responsibility
of the driver.

146
IX
D R I V I N G
Deactivation
Press on button 3 .
This action causes the
information "OFF" to
appear on the instru-
ment panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl ashes.
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again. Return to normal driving

 By moving the control 1 from po-
sition "LIM" to position 0 .

 By the engine stopping.
The speed previously chosen is still
memorised. Operating fault
If there is a speed limiter malfunction,
a message will display accompanied
by a sound signal and lighting of the
service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for ex-
ample on a steep descent or under
heavy acceleration) then the speed
fl ashes. Adapt your speed as neces-
sary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
Use of fl oor mats that are not ap-
proved by CITROËN may hinder
access to the accelerator pedal
and thus interfere with the function-
ing of the speed limiter.
To avoid any risk of interfering with
the pedals:
- check that the fl oor mat is cor- rectly positioned,
- never use more than one fl oor mat.

147
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or auto-
matic gearbox,
-
position A on an electronic gearbox
or D on an automatic gearbox.
Steering wheel controls
The cruise control commands are
located on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Displays on the instrument
panel
Activation You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:

 button 4 to increase the speed,

 button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Deactivation

 Either by pressing on the brake
pedal or on the clutch pedal.

 Or by pressing button 3 .

 Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
On selection of the
function via control
1,
no cruise speed has
yet been memorised.
Programming
Rotate the control
1 to the "REG"
position.
Once the desired speed has been
reached via action on the accelera-
tor, press button 2 or button 4 . The
cruise speed is then memorised. It
is displayed in zone A of the instru-
ment panel. These actions cause
the information
"OFF"
to appear on the instru-
ment panel display.
These manoeuvres do
not cancel the cruise
speed which remains
displayed in the instru-
ment panel.
The cruise control cannot, in any
circumstances, take the place of
the observance of speed limits or
of the vigilance and responsibility
of the driver.

148
IX
D R I V I N G
Reactivation

 By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.

 By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display.
Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to action
the accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone A fl ashes.
You have only to release the accel-
erator pedal to return to the cruise
speed. If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
then the speed fl ashes. Adapt your
speed as necessary.
Return to normal driving Operating fault
If there is a malfunction, a message
will display accompanied by a sound
signal and lighting of the service
warning lamp.
Have it checked by a CITROËN
dealer.
Cruise control should only
be used when the driving
conditions allow you to drive
at a constant speed.
Do not use it in heavy traffi c, or on
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals :
- check that the fl oor mat is cor- rectly positioned,
- never use more than one fl oor mat.

 By an action on the control 1 from
position "REG" to position 0 .

 By the engine stopping.
The cruise speed previously chosen is no longer memorised.

149
IX
D R I V I N G

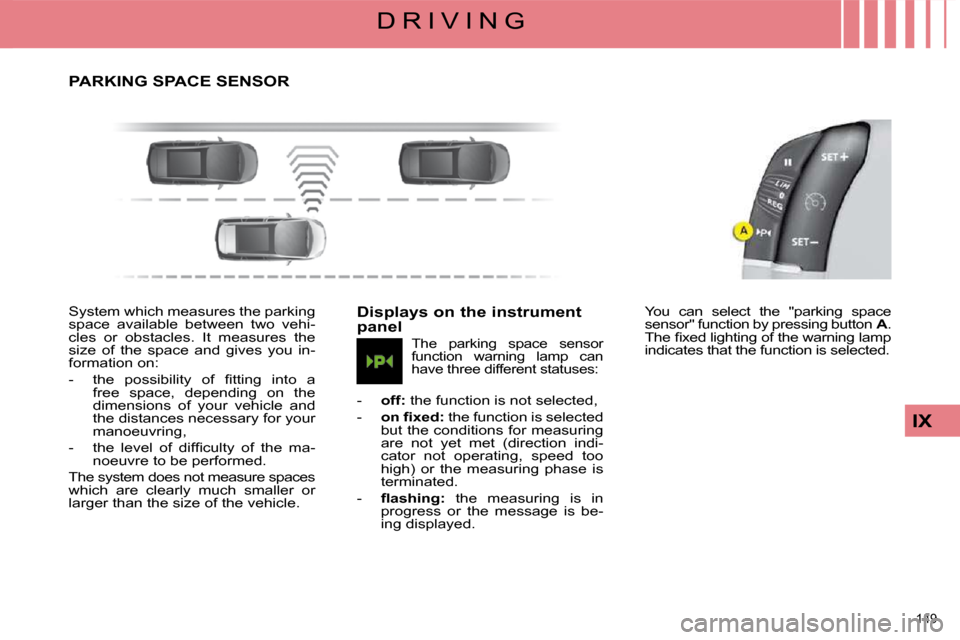

PARKING SPACE SENSOR
System which measures the parking
space available between two vehi-
cles or obstacles. It measures the
size of the space and gives you in-
formation on:
- the possibility of fi tting into a free space, depending on the
dimensions of your vehicle and
the distances necessary for your
manoeuvring,
- the level of diffi culty of the ma- noeuvre to be performed.
The system does not measure spaces
which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor
function warning lamp can
have three different statuses:
-
off: the function is not selected,
- on fi xed: the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measuring phase is
terminated.
- fl ashing: the measuring is in
progress or the message is be-
ing displayed. You can select the "parking space
sensor" function by pressing button
A.
The fi xed lighting of the warning lamp
indicates that the function is selected.

150
IX
D R I V I N G
Operation
You have identifi ed a parking
space:

 Press button A to select the func-
tion.

 Activate the direction indicator
on the side where the space is to
be measured.

 During the measuring, go for-
ward the length of the space, at
a speed less than 12 mph (ap-
prox. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.

 The system informs you of the
level of diffi culty of the manoeuvre
via a message on the multifunction
screen accompanied by a gong.

 Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre.

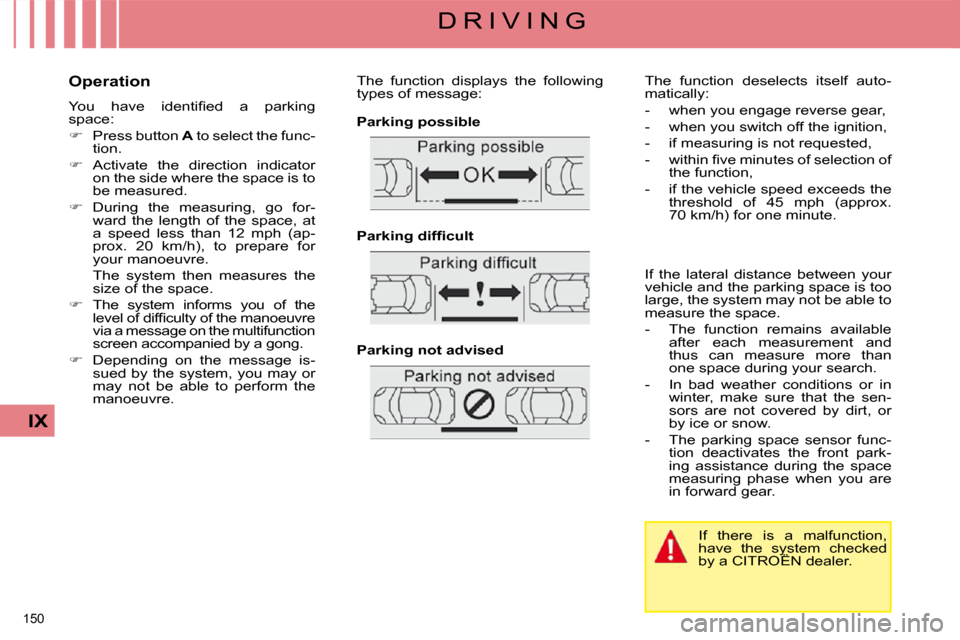

Parking possible

Parking diffi cult

Parking not advised
The function displays the following
types of message: The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- within fi ve minutes of selection of
the function,
- if the vehicle speed exceeds the threshold of 45 mph (approx.
70 km/h) for one minute.
If there is a malfunction,
have the system checked
by a CITROËN dealer.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
- The function remains available
after each measurement and
thus can measure more than
one space during your search.
- In bad weather conditions or in winter, make sure that the sen-
sors are not covered by dirt, or
by ice or snow.
- The parking space sensor func- tion deactivates the front park-
ing assistance during the space
measuring phase when you are
in forward gear.

151
IX
D R I V I N G
LANE DEPARTURE WARNING SYSTEM
System which detects the involun-
tary crossing of longitudinal traffi c
lane markings on the ground (con-
tinuous or discontinuous line).
Sensors, fi tted below the front
bumper, trigger a warning if the vehi-
cle drifts (speed higher than 50 mph
(80 km/h)).
This system operates to its full poten-
tial above all when used on motor-
ways and main roads. Activation

 Press button A , the indicator light
comes on.
Deactivation

 Press button A again, the indica-
tor light switches off.
The status of the system remains
in the memory when the ignition is
switched off.
Detection
You are warned by the vibration of
the driver's seat cushion:
- on the right-hand side, if the marking on the ground has been
crossed on the right,
- on the left-hand side, if the mark- ing on the ground has been
crossed on the left.
No warning is transmitted while the
direction indicator is active and for
approximately 20 seconds after the
direction indicator is switched off.
A warning may be transmitted if a di-
rection marking (arrow) or non-stand-
ard marking (graffi ti) is crossed. Operating fault In the event of a malfunction, the service
warning light comes on, accompanied
by an audible signal and a message on
the multifunction display.
Consult a CITROËN dealer.
The lane departure warning system
cannot, in any circumstances, re-
place the need for vigilance and re-
sponsibility on the part of the driver. The detection may be disrupted:
- if the sensors are dirty (mud,
snow, ...),
- if the markings on the ground are worn,
- if there is little contrast between the markings on the ground and
the road surface.
