Page 155 of 330
123
VIII
S A F E T Y
Deactivation
This warning light comes
on on the instrument panel
when the ignition is on and
until the air bag is re-armed.
To guarantee the safety of your child,
it is imperative that the passenger
air bag is disarmed when you install
a "rearwards-facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
air bag were triggered. Reactivation
When you remove the child seat,
turn switch
1 to the "ON" position to
re-arm the air bag and so guarantee
the safety of your front passenger in
the event of an impact.
Operating fault
If this warning light comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
display, contact a CITROËN dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a CITROËN dealer.
If both air bag warning lights come
on continuously, do not install a
"rearwards-facing" child seat on
the front passenger seat.
Have it checked by a CITROËN
dealer.
Only the front passenger's air bag
can be disarmed:
with the ignition off , insert the
key in the passenger air bag dis-
arming switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping
the switch in this position.
Page 157 of 330
124
VIII
S A F E T Y
* According to country.
Side air bags *
System which protects the driver
and front passenger in the event of
a serious side impact in order to limit
the risk of injury to the chest.
Each side air bag is incorporated
in the front seat back frame, on the
door side.
Activation
It is triggered unilaterally in the
event of a serious side impact ap-
plied to all or part of the side impact
zone
B , perpendicular to the longi-
tudinal centreline of the vehicle on
a horizontal plane and directed from
the outside towards the inside of the
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n
the front occupant of the vehicle and
the corresponding door trim pad. Impact detection zones
A. Front impact zone.
B. Side impact zone.
Curtain air bags *
System which protects the driver
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
event of a serious side impact in or-
der to limit the risk of head injuries.
Each curtain air bag is incorporated
in the pillars and the upper part of
the passenger compartment. Activation
It is triggered at the same time as
the corresponding side air bag in the
event of a serious side impact applied
to all or part of the side impact zone
B ,
perpendicular to the longitudinal cen-
treline of the vehicle on a horizontal
plane and directed from the outside
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
the front or rear occupant of the ve-
hicle and the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Operating fault If this warning light comes
on on the instrument panel,
accompanied by an audible
signal and a message on
the multifunction display, contact a
CITROËN dealer to have the sys-
tem checked. The air bags may no
longer be triggered in the event of a
serious impact.
Page 159 of 330
126
IX
D R I V I N G
ELECTRONIC PARKING BRAKE
The electronic parking brake com-
bines 2 operational modes:
- AUTOMATIC
Automatic application when the engine stops and automatic re-
lease on use of the accelerator
(automatic operation by default),
- MANUAL
Permanent manual application/ release of the parking brake is
possible by pulling control A
while pressing the brake pedal. Automatic operation
Application with the engine off
With the vehicle stationary, the park-
ing brake
is automatically applied
when the engine is switched off.
The application of the parking brake
i s c o n fi r m e d b y : Application with the engine
running
With the engine running and the vehi-
cle stationary, in order to immobilise the
vehicle you need to manually apply the
parking brake by
pulling on control A .
The application of the parking brake
i s c o n fi r m e d b y :
- the lighting of warning
lamp P on control A and
on the instrument panel,
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "parking
brake applied" on the multifunc-
tion screen (except NaviDrive).
A n o p e r a t i o n s o u n d w i l l c o n fi r m t o
you the application/release of your
electronic parking brake. - the lighting of warning
lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P
on the instrument panel is
permanently lit.
Page 160 of 330
127
IX
D R I V I N G
Release
The electronic parking brake releas-
es automatically and progressive-
ly when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic
release when you press the accelerator
can be deactivated. Activation/deactiva-
t i o n i s p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n
menu of the multifunction screen. To do
s o , s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold condi-
tions (ice) and during towing
(breakdown, caravan...)
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
Page 161 of 330
127
IX
D R I V I N G
Release
The electronic parking brake releas-
es automatically and progressive-
ly when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged) ,
press down fully on the clutch
pedal then press on the accel-
erator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
with an electronic gearbox , ac-
celerate with the selector in posi-
tion A , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the extinction of warning lamp P on control A and
on the instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen. Activation/Deactivation of the
automatic functions
The automatic application when the en-
gine is switched off and the automatic
release when you press the accelerator
can be deactivated. Activation/deactiva-
t i o n i s p e r f o r m e d u s i n g t h e c o n fi g u r a t i o n
menu of the multifunction screen. To do
s o , s e l e c t " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n /
D e fi n e t h e V e h i c l e p a r a m e t e r s / D r i v i n g
assistance/Automatic handbrake".
The deactivation of these
f u n c t i o n s i s c o n fi r m e d b y t h e
lighting of this warning lamp
on the instrument panel.
With the automatic functions deacti-
vated, the application and release of
the parking brake are done manually.
The deactivation of the auto-
matic functions is recommend-
ed in particularly cold condi-
tions (ice) and during towing
(breakdown, caravan...)
Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off, pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "park- ing brake applied" on the multi-
function screen.
When the driver’s door is
opened with the engine
running, a beep is heard
and a message displayed
if the parking brake has not been
applied.
Page 162 of 330
128
IX
D R I V I N G
Release
With the ignition on or the engine run-
ning, to release the parking brake,
press on the brake pedal, pull then
release control A .
The full application of the parking
b r a k e i s c o n fi r m e d b y : - the extinction of the warn-ing lamp on control A and
of warning lamp P on the
instrument panel,
- the display of a message "park- ing brake released" on the multi-
function screen.
If you pull control A without pressing
the brake pedal, the parking brake
will not be released and the "Foot on
brake" warning lamp will light up on
the instrument panel.
When stationary, with the
engine running, do not
press the accelerator pedal
unnecessarily, as you may release
the parking brake. Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of
a long pull on control A , until you
see the message "parking brake ap-
plied" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing),
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park,
- after a maximum application, the release time will be longer. Particular situations
In certain situations (e.g. starting
the engine), the parking brake can
automatically alter its force. This is
normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the park-
ing brake
by pulling then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e e x t i n c t i o n o f
warning lamp P (red) on the instru-
ment panel and the display of a
message "parking brake released"
on the multifunction screen.
If the parking brake malfunctions
while applied or if the battery runs
fl a t , a n e m e r g e n c y r e l e a s e i s a l w a y s
possible.
Page 163 of 330
129
IX
D R I V I N G
Dynamic emergency braking
In the event of a failure of the ve-
hicle’s main braking system or in
an exceptional situation (e.g. driver
taken ill, under instruction, etc) a
continuous pull on control A will stop
the vehicle.
The electronic stability programme
(ESP) provides stability during dy-
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed on the
multifunction screen:
- "Parking brake faulty".
- "Parking brake control faulty". If a failure of the ESP sys-
tem is signalled by the light-
ing of this warning lamp,
then braking stability is not
guaranteed. In this event, stability
must be assured by the driver by
repeating alternate "pull release" ac-
tions on control A .
The dynamic emergency
braking must only be used in
exceptional circumstances.
Page 165 of 330
131
IX
D R I V I N G

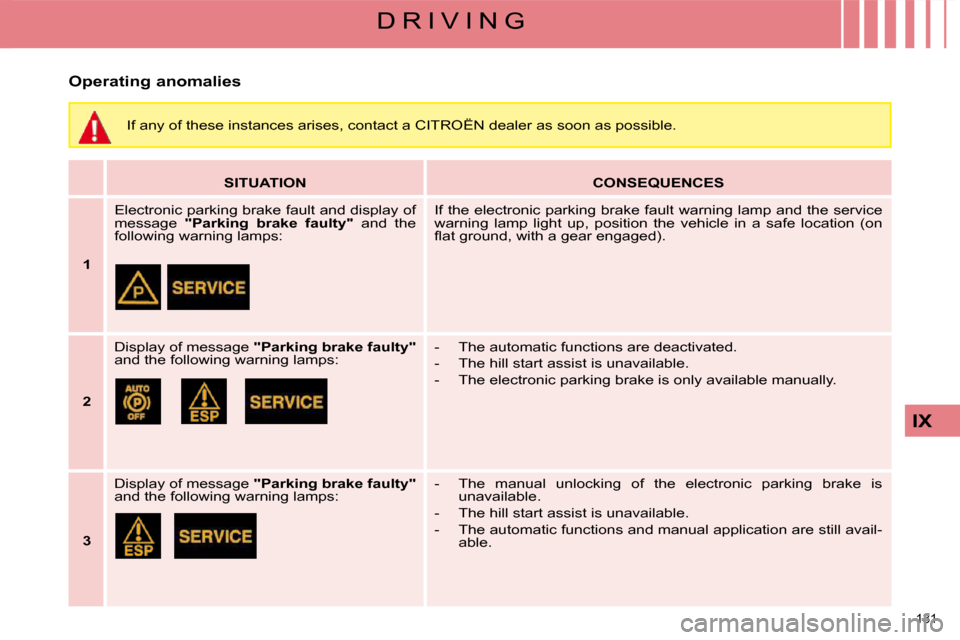

Operating anomalies
SITUATION
CONSEQUENCES
1 Electronic parking brake fault and display of
message
" Parking brake faulty" and the
following warning lamps: If the electronic parking brake fault warning lamp and the
service
warning lamp light up, position the vehicle in a safe loca tion (on
fl a t g r o u n d , w i t h a g e a r e n g a g e d ) .
2 Display of message
"
Parking brake faulty
"
and the following warning lamps: - The automatic functions are deactivated.
- The hill start assist is unavailable.
- The electronic parking brake is only available manually.
3 Display of message
"
Parking brake faulty
"
and the following warning lamps: - The manual unlocking of the electronic parking brake is
unavailable.
- The hill start assist is unavailable.
- The automatic functions and manual application are stil l avail-
able.
If any of these instances arises, contact a CITROËN dealer as
soon as possible.
Page 166 of 330
132
IX
D R I V I N G
4
SITUATION
CONSEQUENCES
5 Display of message
"
Parking brake faulty
"
and the following warning lamps:
a n d / o r fl a s h i n g - The automatic functions are deactivated.
- The hill start assist is unavailable.
To apply the electronic parking brake:
Immobilise the vehicle and switch off the ignition
Pull the control lever for at least 5 seconds or until maximum
application.
Switch on the ignition and check that the electronic parkin g
brake warning lamps are on.
- Application may take longer than in normal operation.
- If warning lamp P fl a s h e s o r i f t h e w a r n i n g l a m p s d o n o t c o m e
on when the ignition is switched on, this method does not work.
Have it checked by a CITROËN dealer.
To release the electronic parking brake:
Switch on the ignition.
Pull the control lever and hold it for approximately 3 second s.
Display of message "
Parking brake control
faulty – automatic mode activated" and
the following warning lamps:
a n d / o r fl a s h i n g - Only the functions for automatic application on switchi
ng off
the engine and automatic release on acceleration are avail-
able.
- Manual application/release of the electronic parking brake and
dynamic emergency braking are unavailable.
6 Battery fault - Lighting of the battery warning lamp ma
kes it essential to stop
t h e v e h i c l e a s s o o n a s t r a f fi c a l l o w s . S t o p a n d i m m o b i l i s e y o u r
vehicle.
- Apply the electronic parking brake before switching off the
engine.
Page 170 of 330
135
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector al-
lows you to view the position se-
lected.
When the ignition is on,
lighting of the service
warning lamp, accompa-
nied by a sound signal and the
message "Gearbox faulty" indi-
cates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is dif-
ferent, reposition the selec-
tor on N in order to be able to
start. Moving off
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Action the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and ac-
celerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure. Reverse gear
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to change to reverse
gear when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Neutral
Changing to neutral
To change to neutral, move the se-
lector to N . If the vehicle is moving,
do not select this position even mo-
mentarily.
