5
F A M I L I A R I S A T I O N
A. Central locking
B. Unlocking
C. Guide-me-home lighting
D. Key release/storage
Press on control A , located on the
control panel to the right of the dash-
b o a r d . T h e f u e l fl a p a u t o m a t i c a l l y o p e n s
up fully.
Insert the nozzle so as to push in the
metallic gate valve B .
P u s h t h e f u e l fl a p t o r e c l o s e i t .
After switching off the ignition, con-
trol A is only active for a few minutes.
If necessary, switch on the ignition
again to reactivate it.
Bonnet stay: detach the stay and
pivot it upwards to insert it into the
notch.
69 Bonnet opening/closing
To unlock, pull the control located on the
right-hand side under the dashboard
towards you.
157
83
Opening
Using the multifunction screen, you can
choose from the following options when
opening your vehicle with the remote
control:
- either all of the doors and the tail-
gate,
- o r t h e d r i v e r ’ s d o o r w i t h a fi r s t p r e s s , then all of the other doors with a
second press.
To close: move the stay back to
its initial position, lower the bon-
net, then allow it to slam shut at
the end of its travel.
Remote control key Fuel tank
Capacity: approximately 60 litres.
Page 6 of 330
9
F A M I L I A R I S A T I O N
Fold the concertina plates ( 1 2 3 )
arranged on each of the third-row
seats.
Pull on the black belt F , located on the
seat backrest.
64
Before moving the third-row seats,
do not forget to lock in the rigid
p l a t e s fi r s t ( l o c a t e d a t t h e b a s e o f t h e
second-row seat backrests).
Installing the seats
Put the three sections of the concertina
plates ( 1 2 3 ) to their vertical position,
then pull on the red belt G .
Before moving the third-row seats,
return the rigid plates to the upright
position and lock them. Pull on control
E , located at the top of
the second-row seats backrest.
63
I N T E R I O R
Stowing the seats Access to third-row seats
Do not leave objects either on or
underneath the second-row seats
when you are folding them. THIRD - ROW SEATS – GRAND C4 PICASSO
Page 7 of 330
10
F A M I L I A R I S A T I O N
Folding the seats
From the boot - whilst loading,
for example (Grand C4 Picasso)
Take care to attach the third-row pas-
senger seat belts on the rings provided
for this purpose.
Do not attach the belts on the an-
choring points marked with a red
cross (see illustration above).
Stowing the tongue of the third-row
seat belt
SECOND - ROW SEATS
120
Requirements for third-row
passenger seat belts
From outside
P u l l fi r m l y u p w a r d s o n s t r a p C , as
indicated by the red arrow, to unlock
the seat; maintain the pressure until
the seat is fully folded.
Slide latch A of the plate down-
wards, to unlock it.
Return the plate to the upright posi-
tion, then slide latch A upwards to
lock it.
Before deploying the rigid plates, check
that the second row seats are slid as far
back as possible.
62
I N T E R I O R
THIRD - ROW SEATS – GRAND C4 PICASSO
H a v i n g fi r s t l y f o l d e d t h e t h i r d - r o w
seats.
Pull on control D to unlock the
r e q u i r e d s e a t .
Repositioning the seats
Return the rigid plates of the second-row
seats to their initial (upright) position and
lock them in position (Grand C4 Picasso).
Raise the backrest and push it backwards
until it locks in position. Rigid plate (Grand C4 Picasso)
A rigid plate is attached to each
second-row seat backrest.
Unlocking/Locking the rigid plate
Page 12 of 330
15
F A M I L I A R I S A T I O N
Adjusting the steering wheel
The steering wheel can be adjusted in
terms of height and reach.
Unlock the steering wheel by pulling
control A towards you.
Adjust the position of the steering
wheel then lock it pushing the control
back fully.
68 T h i s m o d i fi e s i t s r o l e a u t o m a t i c a l l y a n d
progressively between day use and
night use.
It can be deactivated using control
1 . This operates with the ignition switched
on.
From the driver’s seat, select the rear
view mirror by moving control
1 to the
left or right, then adjust the rear view
m i r r o r a s r e q u i r e d i n t h e 1 d i r e c t i o n s
using control 2 .
Demisting-deicing of the rear view mir-
rors is linked to that of the rear screen.
94
67
For safety reasons, these adjust-
ments must not be carried out whilst
driving. Child monitoring mirror
This device
2 allows you to monitor the
rear passengers. It can be folded away
to eliminate dazzle.
Rear view mirrors foldback
When the vehicle is parked, the rear
view mirrors can be folded back either
manually or automatically.
G E T T I N G S T A R T E D
Automatic photochromic
interior rear view mirror Rear view mirrors adjustment
68
Page 60 of 330
56
III
C O M F O R T

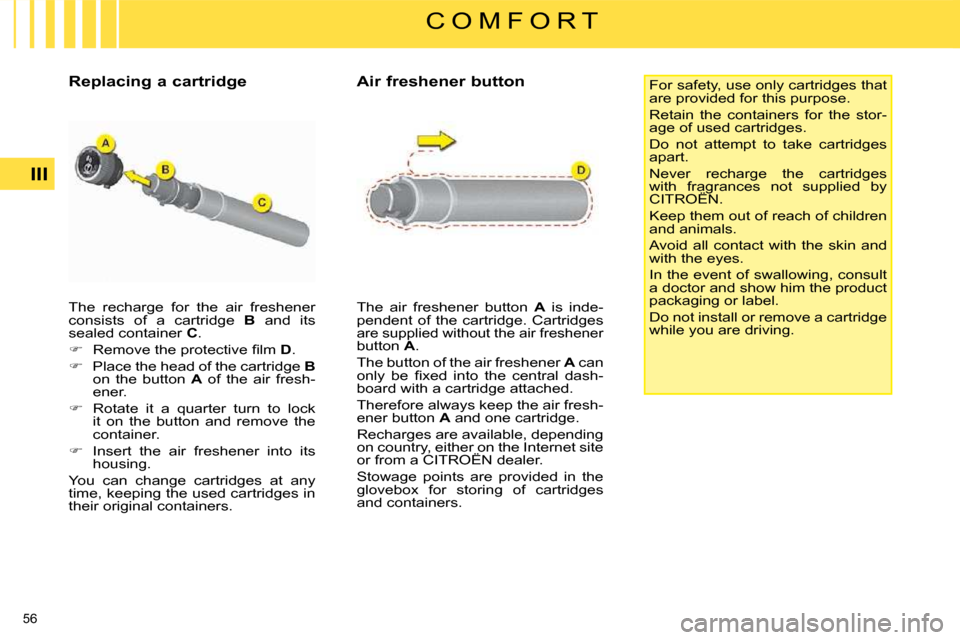

The recharge for the air freshener
consists of a cartridge B and its
sealed container C .
R e m o v e t h e p r o t e c t i v e fi l m D .
Place the head of the cartridge B
on the button A of the air fresh-
ener.
Rotate it a quarter turn to lock
it on the button and remove the
container.
Insert the air freshener into its
housing.
You can change cartridges at any
time, keeping the used cartridges in
their original containers. The air freshener button
A is inde-
pendent of the cartridge. Cartridges
are supplied without the air freshener
button A .
The button of the air freshener A can
o n l y b e fi x e d i n t o t h e c e n t r a l d a s h -
board with a cartridge attached.
Therefore always keep the air fresh-
ener button A and one cartridge.
Recharges are available, depending
on country, either on the Internet site
or from a CITROËN dealer.
Stowage points are provided in the
glovebox for storing of cartridges
and containers. For safety, use only cartridges that
are provided for this purpose.
Retain the containers for the stor-
age of used cartridges.
Do not attempt to take cartridges
apart.
Never recharge the cartridges
with fragrances not supplied by
CITROËN.
Keep them out of reach of children
and animals.
Avoid all contact with the skin and
with the eyes.
In the event of swallowing, consult
a doctor and show him the product
packaging or label.
Do not install or remove a cartridge
while you are driving.
Replacing a cartridge Air freshener button
Page 68 of 330
63
III
C O M F O R T

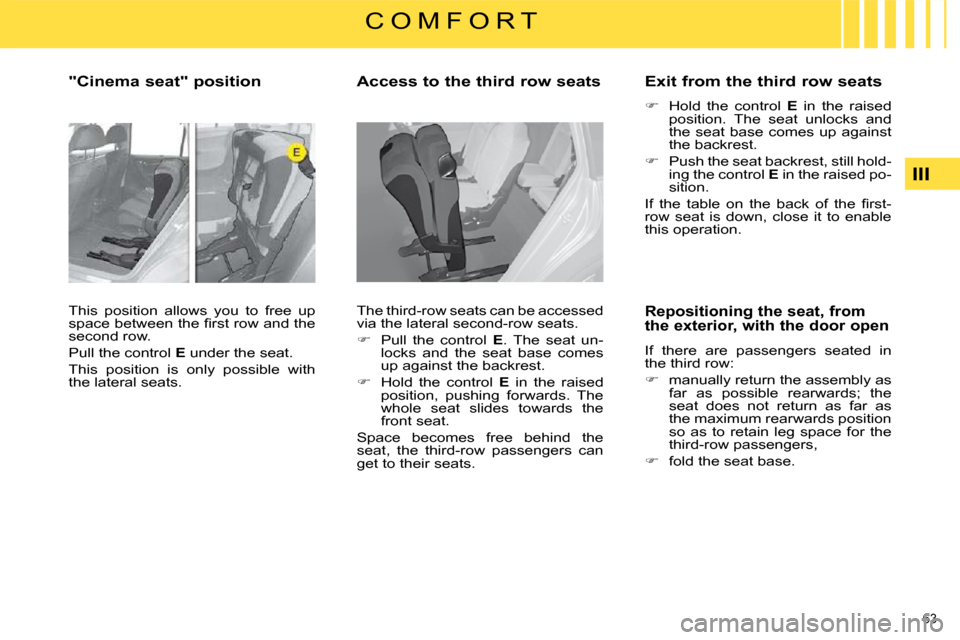

"Cinema seat" position
This position allows you to free up
s p a c e b e t w e e n t h e fi r s t r o w a n d t h e
second row.
Pull the control E under the seat.
This position is only possible with
the lateral seats. Access to the third row seats
The third-row seats can be accessed
via the lateral second-row seats.
Pull the control E . The seat un-
locks and the seat base comes
up against the backrest.
Hold the control E in the raised
position, pushing forwards. The
whole seat slides towards the
front seat.
Space becomes free behind the
seat, the third-row passengers can
get to their seats. Exit from the third row seats
Hold the control E in the raised
position. The seat unlocks and
the seat base comes up against
the backrest.
Push the seat backrest, still hold-
ing the control E in the raised po-
sition.
I f t h e t a b l e o n t h e b a c k o f t h e fi r s t -
row seat is down, close it to enable
this operation.
Repositioning the seat, from
the exterior, with the door open
If there are passengers seated in
the third row:
manually return the assembly as
far as possible rearwards; the
seat does not return as far as
the maximum rearwards position
so as to retain leg space for the
third-row passengers,
fold the seat base.
Page 69 of 330
64
III
C O M F O R T
THIRD ROW SEATS (GRAND C4 PICASSO)

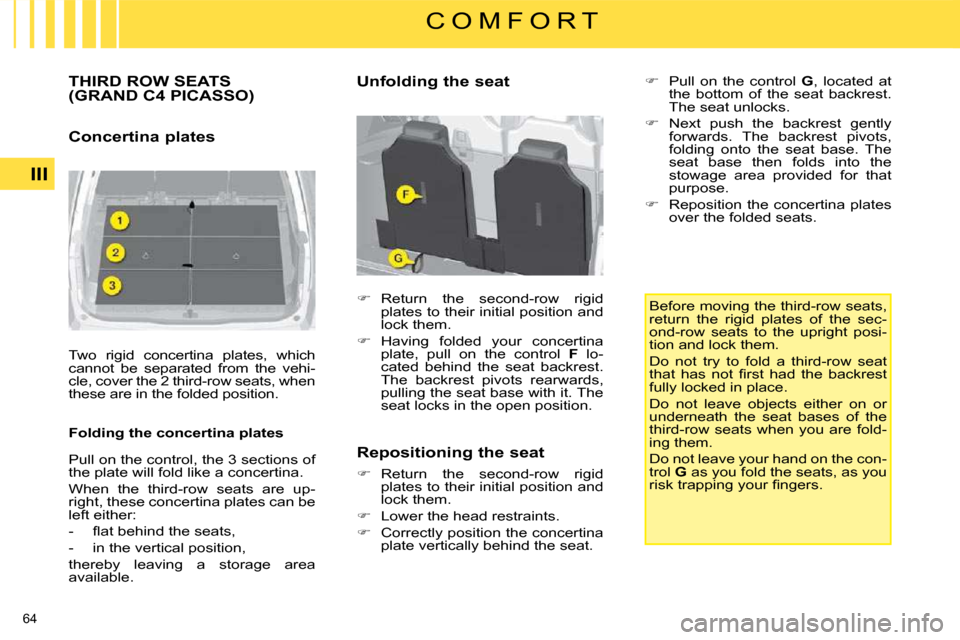

Concertina plates
Two rigid concertina plates, which
cannot be separated from the vehi-
cle, cover the 2 third-row seats, when
these are in the folded position.
Folding the concertina plates
Pull on the control, the 3 sections of
the plate will fold like a concertina.
When the third-row seats are up-
right, these concertina plates can be
left either:
- fl a t b e h i n d t h e s e a t s ,
- in the vertical position,
thereby leaving a storage area
available. Unfolding the seat
Return the second-row rigid
plates to their initial position and
lock them.
Having folded your concertina
plate, pull on the control F lo-
cated behind the seat backrest.
The backrest pivots rearwards,
pulling the seat base with it. The
seat locks in the open position.
Repositioning the seat
Return the second-row rigid
plates to their initial position and
lock them.
Lower the head restraints.
Correctly position the concertina
plate vertically behind the seat. Before moving the third-row seats,
return the rigid plates of the sec-
ond-row seats to the upright posi-
tion and lock them.
Do not try to fold a third-row seat
t h a t h a s n o t fi r s t h a d t h e b a c k r e s t
fully locked in place.
Do not leave objects either on or
underneath the seat bases of the
third-row seats when you are fold-
ing them.
Do not leave your hand on the con-
trol
G as you fold the seats, as you
r i s k t r a p p i n g y o u r fi n g e r s .
Pull on the control G , located at
the bottom of the seat backrest.
The seat unlocks.
Next push the backrest gently
forwards. The backrest pivots,
folding onto the seat base. The
seat base then folds into the
stowage area provided for that
purpose.
Reposition the concertina plates
over the folded seats.
Page 70 of 330
65
III
C O M F O R T

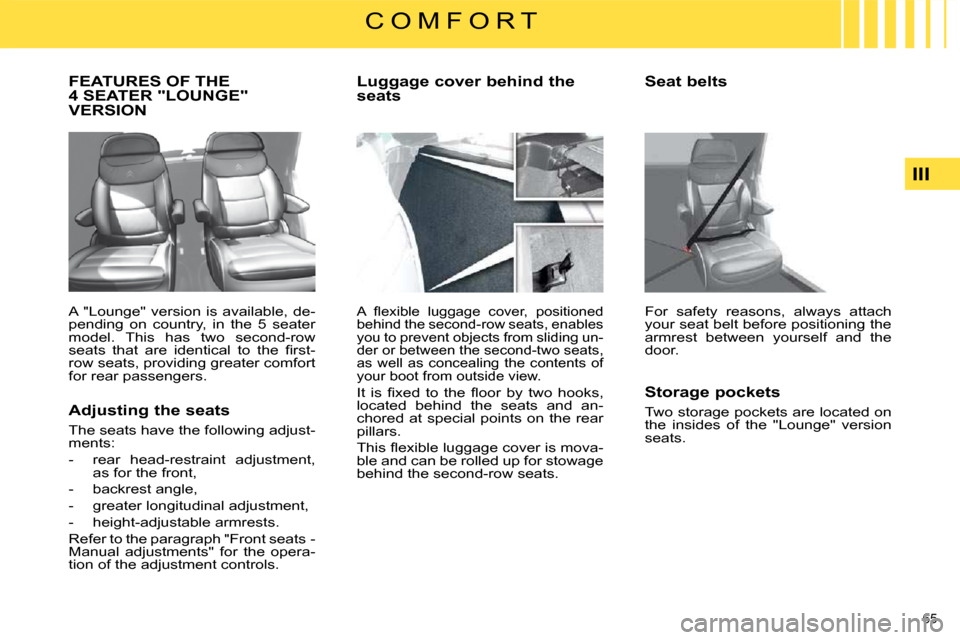

FEATURES OF THE 4 SEATER "LOUNGE" VERSION
A "Lounge" version is available, de-
pending on country, in the 5 seater
model. This has two second-row
s e a t s t h a t a r e i d e n t i c a l t o t h e fi r s t -
row seats, providing greater comfort
for rear passengers.
Adjusting the seats
The seats have the following adjust-
ments:
- rear head-restraint adjustment, as for the front,
- backrest angle,
- greater longitudinal adjustment,
- height-adjustable armrests.
Refer to the paragraph "Front seats -
Manual adjustments" for the opera-
tion of the adjustment controls. Luggage cover behind the
seats A fl e x i b l e l u g g a g e c o v e r , p o s i t i o n e d
behind the second-row seats, enables
you to prevent objects from sliding un-
der or between the second-two seats,
as well as concealing the contents of
your boot from outside view.
I t i s fi x e d t o t h e fl o o r b y t w o h o o k s ,
located behind the seats and an-
chored at special points on the rear
pillars.
T h i s fl e x i b l e l u g g a g e c o v e r i s m o v a -
ble and can be rolled up for stowage
behind the second-row seats.
Seat belts
For safety reasons, always attach
your seat belt before positioning the
armrest between yourself and the
door.
Storage pockets
Two storage pockets are located on
the insides of the "Lounge" version
seats.
Page 107 of 330
91
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction display
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing lever
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction display. The automatic wiping must be
reactivated if the ignition has been
off for more than one minute, by
pushing lever
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving lever
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction display.
Page 109 of 330
91
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activated
or deactivated via the
multifunction display
c o n fi g u r a t i o n m e n u .
This function is activated
by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on
,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing lever
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction display. The automatic wiping must be
reactivated if the ignition has been
off for more than one minute, by
pushing lever
A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer. Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Activation
Switching off
This is controlled manually by the
driver by moving lever
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction display.
