Page 207 of 338
1 7 3
XI
P R A C T I C A L I N F O R M A T I O N
Wheel for temporary use
I f y o u r v e h i c l e i s e q u i p p e d w i t h a
s p a r e w h e e l f o r t e m p o r a r y u s e o n l y ,
w h e n fi t t i n g t h i s i t i s n o r m a l t o o b s e r v e
t h a t t h e w h e e l b o l t s d o n o t c o m e t o
b e a r d i r e c t l y o n t h e w h e e l r i m .
T h e s p a r e w h e e l i s s e c u r e d b y t h e
c o n i c a l t a p e r i n g o f t h e w h e e l b o l t ’ s
shaft.
W h e n r e fi t t i n g t h e o r i g i n a l w h e e l , e n -
s u r e t h a t t h e w h e e l b o l t s a n d w a s h -
e r s a r e c l e a n a n d i n g o o d c o n d i t i o n . Fitting a wheel
Position the wheel with the aid of
t h e c e n t r i n g g u i d e 3 .
D o u p t h e 3 b o l t s b y h a n d , t h e n
r e m o v e t h e c e n t r i n g g u i d e 3 .
P o s i t i o n t h e 4 t h b o l t .
P r e - t i g h t e n t h e w h e e l b o l t s , u s -
i n g t h e w h e e l b r a c e 4 .
Retract the jack 5 a n d d i s e n g a g e i t .
T i g h t e n t h e w h e e l b o l t s , u s i n g
the wheelbrace 4 .
E n s u r e t h a t t h e t y r e p r e s s u r e i s
correct.
D e fl a t i o n d e t e c t i o n
S u c h w h e e l s h a v e t y r e p r e s s u r e
s e n s o r s . I t i s e s s e n t i a l t o h a v e r e -
p a i r s c a r r i e d o u t b y a C I T R O Ë N
d e a l e r . T h e s p a r e w h e e l d o e s n o t
have a sensor.
Security bolts (alloy wheels)
E a c h w h e e l m a y b e e q u i p p e d w i t h
o n e s e c u r i t y b o l t .
T o r e m o v e i t :
R e m o v e t h e p r o t e c t o r t h a t i s c o v -
e r i n g i t b y m e a n s o f t h e t o o l f o r
r e m o v i n g t h e c h r o m e c o v e r s 2 .
U s e t h e s e c u r i t y b o l t s o c k e t 6
with the wheelbrace 4 . Dimension of the spare
wheel
I f y o u r s p a r e w h e e l h a s d i m e n s i o n s
d i f f e r e n t f r o m t h o s e o f t h e n o r m a l
v e h i c l e w h e e l s ( i d e n t i fi e d b y a l a -
b e l ) , i t i s i m p e r a t i v e t o u s e t h e s p a r e
w h e e l o n l y t e m p o r a r i l y , t o d r i v e
w i t h c a u t i o n , n o t t o e x c e e d 8 0 k m / h
( 5 0 m p h ) a n d t o h a v e t h e t y r e r e -
p a i r e d a n d t h e n o r m a l w h e e l r e fi t t e d
a s s o o n a s p o s s i b l e .
Tyre pressures
These are indicated on the label
o n t h e f r o n t r i g h t - h a n d d o o r p i l -
l a r ( s e e s e c t i o n " T e c h n i c a l D a t a -
§ I d e n t i fi c a t i o n m a r k i n g s " ) .
T h e w h e e l b o l t s a r e s p e c i f -
i c t o e a c h t y p e o f w h e e l .
I f n e w w h e e l s a r e fi t t e d ,
c h e c k w i t h y o u r C I T R O Ë N d e a l e r
t h a t t h e w h e e l b o l t s a r e c o m p a t -
ible with the new wheels.
N o t e : t a k e c a r e t o n o t e d o w n
t h e c o d e n u m b e r o n t h e h e a d o f
t h e s e c u r i t y b o l t s o c k e t . T h i s w i l l
e n a b l e y o u t o o b t a i n a r e p l a c e -
m e n t s e c u r i t y b o l t s o c k e t f r o m a
C I T R O Ë N d e a l e r s h i p .
Page 338 of 338
304
05

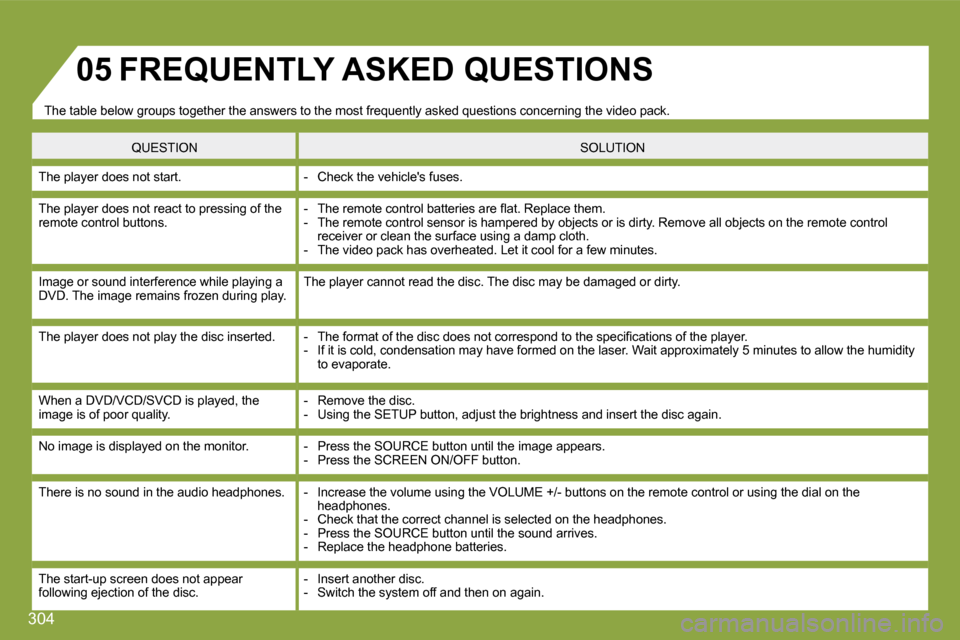

The table below groups together the answers to the most frequently asked questions concerning the vi deo pack.
FREQUENTLY ASKED QUESTIONS
QUESTION SOLUTION
The player does not start. - Check the vehicle's fuses.
The player does not react to pressing of the remote control buttons. - T h e r e m o t e c o n t r o l b a t t e r i e s a r e fl a t . R e p l a c e t h e m . - The remote control sensor is hampered by objec ts or is dirty. Remove all objects on the remote control receiver or clean the surface using a damp cloth. - The video pack has overheated. Let it cool for a few minutes.
Image or sound interference while playing a DVD. The image remains frozen during play. The player cannot read the disc. The disc may be d amaged or dirty.
The player does not play the disc inserted. - T h e f o r m a t o f t h e d i s c d o e s n o t c o r r e s p o n d t o t h e s p e c i fi c a t i o n s o f t h e p l a y e r . - If it is cold, condensation may have formed on the laser. Wait approximately 5 minutes to allow t he humidity to evaporate.
When a DVD/VCD/SVCD is played, the image is of poor quality. - Remove the disc. - Using the SETUP button, adjust the brightness and insert the disc again.
No image is displayed on the monitor. - Press the SOURCE button until the image appea rs. - Press the SCREEN ON/OFF button.
There is no sound in the audio headphones. - Increase the volume using the VOLUME +/- buttons on the remote control or using the dial on the headphones. - Check that the correct channel is selected on the headphones. - Press the SOURCE button until the sound arrive s. - Replace the headphone batteries.
The start-up screen does not appear following ejection of the disc. - Insert another disc. - Switch the system off and then on again.
