ESP Citroen C4 PICASSO 2016 2.G Owner's Manual

12
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
MenusUpper bar
Certain information is always present in the
upper  bar   of   the   touch   screen   tablet:
-

R
epeat   of   the   air   conditioning   information,
a

nd   direct   access   to   the   corresponding
m

enu.
-

R
epeat of information from the Radio
Media , Telephone


menus   and   navigation
i

nstructions*.
*
  Depending   on   equipment.
Air conditioning.
Allows

control

of

the

settings

for

t

emperature,

air

flow...
Connected navigation or Mirror
Scre en*.
See

more

in

"Audio

and

telematics".
Radio Media.
See

more

in

"Audio

and

telematics". Telephone.
See

more

in

"Audio

and

telematics".
Driving.
Allows the activation, deactivation and
adjustment   of   settings   for   certain   functions.
Applications.
Allows the display of the trip
computer, with the type 1 instrument
panel.
See
  more   in   "Audio   and   telematics". Volume
  /   mute.
See   more   in   "Audio   and   telematics".
- A ccess to Configuration
.
For more information on Heating
, Manual
air conditioning and Automatic air
conditioning ,

refer

to

the

corresponding

s

ections.
The functions accessible from this menu are
arranged

under   two   tabs:   "Settings " and
" Driving assistance ".
Instruments

13
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Driving menu
Settings tab
The functions are grouped into 4 families:
- L ighting .
-

V
ehicle access .
-

C
omfort .
-

D
riving assistance . Button
Comments
Lighting -
 " Directional   headlamps":   activation/deactivation   of   cornering   lighting   /
d

irectional
 l
ighting.
-

"
LED   daytime   running   lamps"   (depending   on   the   country   of   sale).
Vehicle
access -

"
Driver   plip   action":   activation/deactivation   of   selective   unlocking   of   the
d

river's
 do
or.
-

"
Unlock   boot   only":   activation/deactivation   of   unlocking   at   the   tailgate.
-

"
Motorized   tailgate":   activation/deactivation   of   motorized   operation   of   the
t

ailgate.
-

"
Hands-Free   Tailgate   Access":   activation/deactivation   of   the   hands-free
t

ailgate   access   system.
Comfort -

"
Rear   wiper   in   reverse":   activation/deactivation   of   the   rear   wiper   coupled
w

ith   reverse   gear.
-

"
Guide-me-home   lighting":   activation/deactivation   of   automatic   guide-me-
home
  lighting.
-

"
Welcome   lighting":   activation/deactivation   of   exterior   welcome   lighting.
-

"
Mood   lighting":   activation/deactivation   of   mood   lighting.
-

"
Auto   mirror   dipping   in   reverse":   activation/deactivation   of   automatic   dipping
o

f   door   mirrors   in   reverse   gear.
Driving
assistance -

"
Collision   risk   alert   and   automatic   braking":   activation/deactivation   of
c

ollision   risk   alert.
-

"
Recommended   speed   display":   activation/deactivation   of   the   speed   limit
r

ecognition   system.
-

"
Fatigue   Detection   System":   activation/deactivation   of   the   driver   fatigue
d

etection   system.
For more information on one of these
functions,
  refer   to   the   corresponding
s

ection.
1
Instruments

14
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Driving assistance tab
Corresponding functionComments
Speed settings Memorisation
  of   speed   settings   for   the   speed   limiter,   cruise   control,   dynamic   cruise   control   or   dynamic
c

ruise   control   with   stop   function.
Under-inflation initialization Reinitialization
  of   the   under-inflation   system.
Diagnostic List
  of   current   alerts.
Lane departure warning Activation/deactivation
 o

f
 th
e
 f
unction.
Parking sensors Activation/deactivation
 o

f
 th
e
 f
unction.
Automatic illumination
of headlamps activated Activation/deactivation
 o

f
 th
e
 f
unction.
Stop & Star t Activation/deactivation
 o

f
 th
e
 f
unction.
Blind spot monitoring Activation/deactivation
 o

f
 th
e
 f
unction.
Panoramic visual aid Activation/deactivation
  of   the   function   then   choice   of   options.
Dynamic cruise control Choice
  of   the   standard   cruise   control   or   the   dynamic   cruise   control.
Wheel anti-slip regulation Activation/Deactivation
 o

f
 th
e
 f
unction
For
  more   information   on   one   of   these   functions,   refer   to   the   corresponding   section.
Instruments

16
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
ButtonCorresponding function Comments
Screen configuration Adjustment
  of   the   display   settings   (scrolling   of   text,   animations...)   and   brightness.
Ambience Select
  a   colour   scheme   for   the   type   2   instrument   panel.
Instrument panel perso Select
  the   type   of   information   displayed   in   the   type   2   instrument   panel.
System configuration Choice
  of   units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance   and   fuel   consumption   (l/100   km,   mpg   or   km/l).
Languages Choice
  of   language   used   for   the   touch   screen   tablet   and   the   type   2   instrument   panel.
Time/Date Setting
  the   date   and   time.
Instruments

19
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016

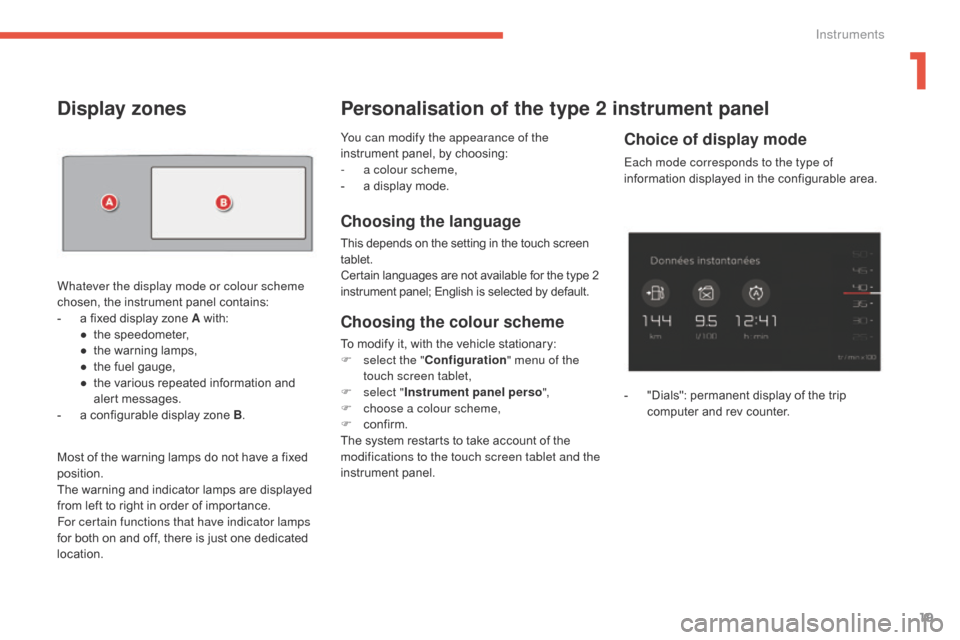

You can modify the appearance of the
instrument  panel,   by   choosing:
-

a c
olour scheme,
-

a
  display   mode.
Choosing the language
This depends on the setting in the touch screen tablet.
Certain
  languages   are   not   available   for   the   type   2
 i

nstrument   panel;   English   is   selected   by   default.Each mode corresponds to the type of
information
  displayed   in   the   configurable   area.
Personalisation of the type 2 instrument panel
Choice of display mode
- "Dials":
  permanent   display   of   the   trip  c
omputer   and   rev   counter.
Display zones
Whatever the display mode or colour scheme
chosen,  the   instrument   panel   contains:
-

a
  fixed   display   zone   A
w
ith:
●

t
he   speedometer,
●

t
he   warning   lamps,
●

t
he   fuel   gauge,
●

t
he   various   repeated   information   and
a

lert
 m
essages.
-

a
  configurable   display   zone   B.
Most
  of   the   warning   lamps   do   not   have   a   fixed
p

osition.
The
  warning   and   indicator   lamps   are   displayed
f

rom   left   to   right   in   order   of   importance.
For certain functions that have indicator lamps
for
  both   on   and   off,   there   is   just   one   dedicated
lo

cation.
Choosing the colour scheme
To modify it, with the vehicle stationary:
F s elect the " Configuration " menu of the
touch screen tablet,
F

s
elect " Instrument panel perso ",
F

c
hoose a colour scheme,
F

c
onfirm.
The
  system   restarts   to   take   account   of   the
m

odifications to the touch screen tablet and the
instrument
 pan

el.
1
Instruments

22
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Operation indicator lamps
If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.
W arning / indicator lamp StateCause Action / Observations
Left-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   down.
Right-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   up.
Sidelamps fixed. The
  lighting   stalk   is   in   the
"

Sidelamps"
 p
osition.
Dipped beam
headlamps fixed.
The
  lighting   stalk   is   in   the   "Dipped
b

eam   headlamps"   position.
Main beam
headlamps fixed.
The
  lighting   stalk   is   pulled   towards
yo

u. Pull
  the   stalk   to   return   to   dipped   beam   headlamps.
Instruments

23
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Automatic
headlamp
dippingfixed.
The   lighting   control   stalk   is   in   the  "
AUTO" position, pulled towards you,
and the function is activated ( Driving
m e n u).
The system is in dipped beam mode
as
  there   is   sufficient   ambient   light
a

nd/or   the   traffic   conditions   do   not
a

llow   illumination   of   main   beam.The camera, located at the top of the windscreen,
manages
  the   operation   of   main   beam,   depending   on
t

he   ambient   lighting   and   driving   conditions.
Pulling
  the   lighting   stalk   again   to   deactivate.
For more information on Automatic headlamp
dipping ,
  refer   to   the   corresponding   section.
fixed. The
  lighting   control   stalk   is   in   the
"

AUTO" position, pulled towards you,
and the function is activated ( Driving
m e n u).
The system is in main beam mode
as
  the   ambient   lighting   and   traffic
c

onditions   allow   it.
Warning / indicator lamp
StateCause Action / Observations
Rear foglamps fixed. The
  rear   foglamps   are   on.Turn
  the   ring   on   the   stalk   rear ward   to   switch   off   the
r

ear
 fo
glamps.
Front foglamps
fixed. The
  front   foglamps   are   switched   on
u

sing   the   ring   on   the   lighting   control
st

alk.Turn
  the   ring   on   the   lighting   control   stalk   rear ward
o

nce   to   switch   off   the   front   foglamps.
For more information on the Lighting control stalk ,
  refer   to   the   corresponding   section.
1
Instruments

24
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Electric parking
brake fixed.
The
  electric   parking   brake   is   applied. Release   the   electric   parking   brake   to   switch   off   the
w

arning   lamp:   with   your   foot   on   the   brake   pedal,
b

riefly   push   the   electric   parking   brake   control   lever.
Observe
  the   safety   recommendations.
For more information on the Electric parking brake ,
refer
  to   the   corresponding   section.
Diesel engine
pre-heating
fixed.
The "START/STOP " switch has been
pressed
  (ignition   on).Wait
  until   the   indicator   lamp   goes   off   before   starting.
Once
  it   goes   off,   starting   is   immediate,   on   condition
t

hat   you   maintain   pressure   on   the   brake   pedal   for   an
a

utomatic   gearbox,   or   the   clutch   pedal   is   pressed   fully
d

own   for   a   manual   gearbox.
The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty
  seconds   in   extreme   conditions).
If
  the   engine   does   not   start,   switch   the   ignition   off   and
t

hen   on,   wait   until   the   indicator   lamp   goes   off   again,
t

hen   start   the   engine.
Blind spot
monitoring
system fixed.
The
  blind   spot   monitoring   system   has
b

een   activated.For more information on the Blind spot monitoring
system,
  refer   to   the   corresponding   section.
Park Assist fixed. The
  Park   Assist   function   has   been
a

ctivated.For more information on Park Assist
, refer to the
corresponding
 s

ection.
Instruments

25
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Automatic
wiping fixed.
The wiper control is pushed
downwards. Automatic
  front   wiping   is   activated.
To
  deactivate   automatic   wiping,   operate   the   control
s

talk   downwards   or   put   the   stalk   into   another   position.
Passenger
airbag system fixed.
The control switch, located at the
passenger's
  end   of   the   dashboard,   is   in t

he "ON "
 p

osition.
The
 p

assenger's
 f
ront
 a
irbag
 i
s
 a
ctivated.
In this case, do not install a rear ward
facing
  child   seat   on   the   front   passenger
 sea

t.Turn the control switch to the "OFF " position to
deactivate   the   passenger's   front   airbag.
You
  can   install   a   rear ward   facing   child   seat,   unless   there
 i

s   a   fault   with   the   airbags   (airbag   warning   lamp   on).
Stop & Star t fixed. When

the

vehicle

stops

(red

lights,
 t

raffic

jams,

...)

the

Stop

&

Start

system
 h

as

put

the

engine

into

STOP

mode. The
  warning   lamp   goes   off   and   the   engine   restarts
a

utomatically in START mode, as soon as you want to
move
  off.
flashes for a few
seconds,

then

goes

off. STOP mode is temporarily
unavailable,
or
START

mode

is

invoked

au

tomatically. For more information on Stop & Star t
, refer to the
corresponding
 s

ection.
1
Instruments

26
C4-Picasso-II_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Passenger's
airbag system fixed.
The control switch, located at the
right
  hand   end   of   the   dashboard   is
s

et to the OFF
 p
osition.
The
  passenger's   front   airbag   is
d

eactivated.
You
  can   install   a   rear ward   facing
c

hild seat, unless there is an
operating
  fault   with   the   airbags
(

Airbag   warning   lamp   on).Turn the control switch to the "ON"
position to activate
the
  passenger's   front   airbag.
In this case, do not fit a child seat in the rear ward
facing
  position   on   the   front   passenger   seat.
Wheel anti-slip fixed,
 a

ccompanied
 b

y the display of a
message. The
  wheel   anti-slip   regulation   (ASR)
i

s
 d
eactivated.The
  anti-slip   regulation   is   automatically   reactivated
f

rom   around   30   mph   (50   km/h)   or   at   the   next   engine
st

art.
Reactivate
  the   system   manually   by   pressing   the
bu

tton
 ag
ain.
For more information on the Electronic stability
programme


and   wheel   anti-slip   regulation,   refer   to
t

he   corresponding   section.
Stop & Star t fixed. The Stop & Start
has been
deactivated. Reactivate the function in the Driving


menu.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
T his   is   may   be   accompanied   by   an   audible   signal   and   the   display   of   a   message.
