CITROEN C4 PICASSO 2017 Owners Manual

89

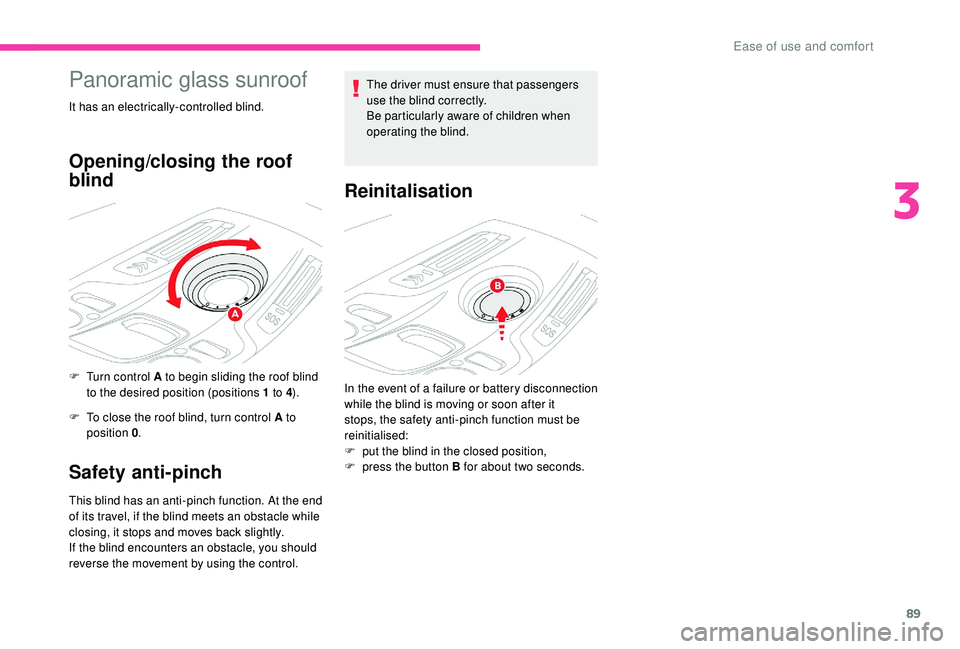

Panoramic glass sunroof
It has an electrically-controlled blind.
Opening/closing the roof
blind
F Turn control A to begin sliding the roof blind to the desired position (positions 1 to 4).
F

T
o close the roof blind, turn control A to
position 0 .
Safety anti-pinch
This blind has an anti-pinch function. At the end
of its travel, if the blind meets an obstacle while
closing, it stops and moves back slightly.
If the blind encounters an obstacle, you should
reverse the movement by using the control. The driver must ensure that passengers
use the blind correctly.
Be particularly aware of children when
operating the blind.
Reinitalisation
In the event of a failure or battery disconnection
w hile the blind is moving or soon after it
stops, the safety anti-pinch function must be
reinitialised:
F

p
ut the blind in the closed position,
F

p
ress the button B for about two seconds.
3
Ease of use and comfort

90
Lighting control stalk
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a few minutes.
If one or more lamps fails, a message
asks you to check the lamp or lamps
concerned.
Driving abroad
Halogen headlamps
If planning to use your vehicle in a
country
that drives on the other side of the road,
the dipped beam headlamps must be
adjusted to avoid dazzling on-coming
drivers. Contact a
CITROËN dealer or
qualified workshop.
Xenon headlamps
The design of the dipped beam headlamps
allows, without modification, driving in
a
country that drives on the other side
of the road to the country in which your
vehicle was sold.
Main lighting
Without AUTO lighting
With AUTO lighting
Selection of main lighting mode
Turn the ring to align the desired symbol with
the marking. Lighting off (ignition off)/Daytime
running lamps (engine running). Automatic illumination of headlamps.
Daytime running lamps/Dipped
beam/Main beam.
Sidelamps.
Dipped or main beam headlamps.
Headlamp dipping
Pull the stalk towards you to switch between
dipped and main beam headlamps or to
activate automatic headlamp dipping.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash"), for as long as
the stalk is kept pulled.
Displays
Illumination of the corresponding indicator
lamp in the instrument panel confirms that the
lighting selected is switched on.
Lighting and visibility

91
Foglamps
They operate with the dipped and main beam
headlamps.
With rear foglamps only
Rear foglamps
F

T

urn the sensor ring for wards to switch on
the foglamps.
F

T

urn the sensor ring backwards to switch off
the foglamps.
If the dipped beam headlamps are
switched off manually, the rear foglamps
also switch off.
With front and rear foglamps
Front and rear foglamps
Turn and release the ring:
F

o

nce for wards to switch on the front
foglamps,
F

f

or wards a second time to switch on the rear
foglamps. If the lights are switched off automatically or
the dipped beam headlamps are switched off
manually, the foglamps and sidelamps remain
on.
F

T
urn the ring backwards to switch off the
foglamps, the sidelamps will then switch off.
Opening the tailgate prevents the
foglamps lighting up.
Opening the tailgate when the lamps are
on switches them off automatically along
with the indicator lamp in the instrument
panel. On closing the tailgate, they do not
light up automatically: it will be necessary
to use the control.
The sidelamps and the rear direction
indicators are situated on the tailgate.
During lighting, the opening of the tailgate
provokes the automatic switching of these
lamps towards the fitted lamps in the rear
bumpers to maintain the safety of the
vehicle. F
o
nce backwards to switch off the rear
foglamps,
F
b
ackwards a second time to switch off the
front foglamps.
4
Lighting and visibility

92
In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams may
dazzle other drivers. They should only be
used in fog or falling snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped headlamps manually as the
sunshine sensor may detect sufficient
light.
Switch off the front and rear foglamps
when they are no longer necessary.
Switching off of the lighting when the
ignition is switched off
On switching off the ignition, all of the
lighting turns off immediately, except for
dipped beam headlamps if automatic
guide-me-home lighting is activated.Switching on the lighting after the
ignition is switched off
To reactivate the lighting control stalk,
rotate ring A to the 0
position – lamps off,
then to the desired position.
On opening the driver's door a
temporary
audible signal warns the driver that the
lighting is on.
It will go off automatically after a
period of
time that depends on the state of charge
in battery (entering energy economy
m o d e).
Direction indicators (flashers)
F Left: lower the lighting control stalk passing the point of resistance.
F

R
ight: raise the lighting control stalk passing
the point of resistance.
Three flashes
F Press briefly upwards or downwards, without going beyond the point of
resistance; the direction indicators will flash
3


times.
Parking lamps
Vehicle side marking by illumination of the
sidelamps on the traffic side only.
F

D
epending on version, within one minute
of switching off the ignition, operate the
lighting control stalk up or down depending
on the traffic side (for example, when
parking on the right, push the lighting
control stalk downwards; the left-hand
sidelamps come on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator lamp in the instrument panel.
Lighting and visibility

93
Guide-me-home headlamps
Manual
Activation
F W ith the ignition off, "flash" the headlamps
using the lighting control stalk.
F

A
nother "headlamp flash" switches the
function off.
Deactivation
Manual guide-me-home lighting goes off
automatically at the end of a given period of time.
Automatic
With the "Automatic headlamp illumination"
function activated (lighting control stalk
in the AUTO position), under low ambient
light, the dipped beam headlamps come on
automatically when the ignition is switched off.
Activation, deactivation and the duration of the
guide-me-home lighting are set in the touch
screen's Driving menu.
Select " Guide-me-home lighting " to activate
or deactivate the function.
To set the duration, select the icon of the
" Guide-me-home lighting " function.
Automatic illumination of
headlamps
To switch off the parking lamps, return the
lighting control stalk to the central position.
When the ring is at the "AUTO" position and
a
low level of ambient light is detected by the
sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver. They can also come
on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to
a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.Operating fault
In the event of a malfunction of the
s unshine sensor, the lighting comes
on, this warning lamp is displayed in
the instrument panel accompanied
by an audible signal and/or
a


message.
Contact a
CITROËN dealer or a qualified
workshop.
In fog or snow, the sunshine sensor may
detect sufficient light. In this case, the
lighting will not come on automatically.
Do not cover the sunshine sensor,
integrated with the rain sensor and located
at the top of the windscreen behind the
rear view mirror; the associated functions
would no longer be controlled.
Front daytime running
lamps (LEDs)
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
4
Lighting and visibility

94
Switching on
When the courtesy lamp is in this
position, the spotlamps come on
automatically:-

w
hen you use the remote control to locate
the vehicle.
Switching off
They go off automatically after 30 seconds.
Exterior welcome lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated when the lighting control
stalk is in the " AUTO" position and the level of
light detected by the sunshine sensor is low.
Switching on
F Press the open padlock on the remote control or one of
the front door handles with the
"Keyless Entry and Starting"
system.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.
Programming
Door mirror spotlamps
They come on automatically when the engine
is started, when the lighting control stalk is in
position " 0" or " AUTO ".
To make your approach to the vehicle easier,
these illuminate:
-

t
he zones facing the driver's and
passenger's doors,
-

t
he zones for ward of the door mirrors and
rear ward of the front doors.
-

w
hen you unlock the vehicle,
-

when removing the electronic key from the reader,- when opening a door, The activation, deactivation and choice of
welcome lighting duration are done in the
Driving
menu of the touch screen.
Select " Welcome lighting " on the "Vehicle
settings " tab.
Use the arrows or the slider to adjust the
lighting duration.
Automatic headlamp
dipping
System which automatically changes between
dipped and main beam according to the
exterior light level and the traffic conditions,
using a
camera located at the top of the
windscreen.
This system is a
driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility,
traffic and obser vation of driving and
vehicle regulations.
The system will be operational as soon as
you have exceeded 16
mph (25 km/h).
If the speed drops below 9
mph (15 km/h),
the system no longer operates.
Lighting and visibility

95
Activation/Deactivation
F Turn the lighting control stalk ring to the " AUTO" position.
F

I

n the Driving menu, select the " Driving
functions " tab then " Automatic headlamp
dip ".
Operation
If the ambient light level is sufficient and/or if
the traffic conditions do not allow illumination of
the main beam headlamps:
-

d
ipped beam is kept on, these
indicator lamps come on in the
instrument panel. If the ambient light level is very low and the
traffic conditions permit:
-
m
ain beam comes on
automatically: these indicator
lamps come on in the instrument
panel.
The system is deactivated when you switch on
the foglamps or when the system detects thick
fog.
When you switch off the foglamps or as soon
as the vehicle leaves the area of thick fog, the
function reactivates automatically.
This indicator lamp goes off while
the function is deactivated.
Pause
If the situation requires a change of headlamp
b eam, the driver can take over at any time.
F

F
lashing the headlamps pauses the function
and the system changes to "automatic
illumination of headlamps" mode:
-

i
f the "AUTO" and "Dipped beam"
indicator lamps were on, the system
changes to main beam,
-

i
f the "AUTO" and "Main beam" indicator
lamps were on, the system changes to
dipped beam.
4
Lighting and visibility

96
To reactivate the system, flash the headlamps
again.The system may suffer inter ference or not
work correctly:
-

u
nder poor visibility conditions (snow,
heavy rain, etc.),
-

i
f the windscreen is dirty, misted or
obscured (by a
sticker, etc.) in front of
the camera,
-

i
f the vehicle is facing highly reflective
signs.
When the system detects thick fog, it
temporarily deactivates the function.
The system is not able to detect:
-

r
oad users that do not have their own
lighting, such as pedestrians,
-

v
ehicles whose lighting is obscured
(for example: vehicles running behind
a
safety barrier on a motor way),
-

v
ehicles at the top or bottom of
a
steep slope, on winding roads, on
crossroads. Clean the windscreen regularly,
particularly the area in front of the camera.
The internal sur face of the windscreen can
also become misted around the camera.
In humid and cold weather, demist the
windscreen regularly.
Do not allow snow to accumulate on the
bonnet or roof of the vehicle as this could
conceal the detection camera.
Clean the front bumper, especially around
the radar, removing mud, snow, etc.
Headlamp adjustment
To avoid causing a nuisance to other road
u sers, the headlamp beams should be adjusted
for height according to the vehicle's load.
0. 1
or 2 people in the front seats.
-. Intermediate setting. 1.
5 people + maximum authorised load.
-. Intermediate setting.
2. Driver + maximum authorised load.
-. Intermediate setting.
3. 5 people + maximum authorised load in
the boot.
The initial setting is position 0 .
Cornering lighting
If your vehicle is equipped with it, this system
makes use of the beam from a
front foglamp
to illuminate the inside of a
bend, when the
main or dipped beam headlamps are on and
the vehicle speed is below 25
mph (40 km/h)
(urban driving, winding road, junctions, parking
manoeuvres, etc.).
Lighting and visibility

97
with cornering lighting
without cornering lighting
Switching on
This system starts:
- w hen the corresponding direction indicator
is switched on,
or
-

f
rom a certain angle of rotation of the
steering wheel.
Switching off
The system does not operate:
- b elow a certain angle of rotation of the
steering wheel,
-

a
bove 25 mph (40 km/h),
-
w

hen reverse gear is engaged.
The cornering lighting can be activated or
deactivated in the Driving menu.
F

Sel
ect the " Vehicle settings " tab, then
" Driving lighting " and "Directional
headlamps ".
Directional lighting
When the dipped or main beams are on, this
function allows the light beam to better follow
the road.
Associated with xenon lamps, this function
improves the quality of your lighting while
cornering.
The system does not operate:
-

w
hen stationary or at very low speeds,
-
w

hen reverse gear is engaged. with directional lighting
without directional lighting
Operating fault
If a fault occurs, these warning
l amps are displayed on the
instrument panel, accompanied by
an audible signal and a


message.
4
Lighting and visibility

98
Wiper control stalk
Programming
Your vehicle may also include some functions
that can be configured:
-
a
utomatic rain sensitive windscreen wipers,
-
r

ear wiping on engaging reverse gear.
In wintry conditions, remove snow, ice or
frost present on the windscreen, around
the wiper arms and blades and the
windscreen seal, before operating the
wipers. Do not operate the wipers on a
dry
windscreen. Under extremely hot or cold
conditions, ensure that the wiper blades
are not stuck to the windscreen before
operating the wipers.
Manual controls
Without AUTO wiping
With AUTO wiping Windscreen wipers
The front windscreen wiper system is
fitted with a
safety device that inhibits its
function when detecting an obstacle such
as ice or snow.
The directional lighting can be activated or
deactivated in the touch screen.
In the Driving menu, select the "
Vehicle
settings " tab, then " Driving lighting " and
" Directional headlamps ".
Contact a

CITROËN dealer or a

qualified
workshop.
The windscreen wipers are controlled directly
by the driver.Wiping speed selection control: raise or lower
the stalk to the desired position.
Fast wiping (heavy rain).
Normal wiping (moderate rain).
Intermittent wiping (proportional to
the speed of the vehicle).
Of f.
Single wipe (press downwards or
pull the stalk briefly towards you,
then release).
or Automatic wiping (press down,
then release).
Single wipe (pull the stalk briefly
towards you).
Lighting and visibility
