CITROEN C4 PICASSO 2017 Owners Manual

129
Starting/switching off the
engine with Keyless Entry
and Starting
Starting the engine
The Keyless Entry and Starting electronic
key must be inside the vehicle.
If the electronic key is not detected in this
zone, a message is displayed.
Move the electronic key into this zone so
that the engine can be started.
If there is still a problem, refer to the "Key
not detected – Back-up starting" section.
F

P
ress the " START/STOP " button while
maintaining pressure on the pedal until the
engine starts.
The steering column unlocks and the engine
starts.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
For Diesel engines , when the temperature is
negative and/or the engine is cold, the start
will only take place once the preheater warning
lamp is off. F
W ith an automatic gearbox
, you should
keep the brake pedal fully depressed and
not press the " START/STOP" button again
until the engine is running.
If one of the starting conditions is not met,
a reminder message is displayed in the
instrument panel.
In some circumstances, it is necessary to turn
the steering wheel slightly while pressing the
" START/STOP " button to assist unlocking of
the steering column.
With petrol engines , after a
cold start,
preheating the catalytic converter can
cause noticeable engine vibrations for
up to 2
minutes while stationary with the
engine running (accelerated idle speed).
As a
safety measure, never leave the
vehicle while the engine is running.
Switching off the engine
F Immobilise the vehicle, engine at idle.
F W ith a manual gearbox , preferably put the
gear lever into neutral.
F

W

ith a

manual gearbox
, put the gear lever
into neutral.
F

W

ith the electronic key inside the vehicle,
fully depress the clutch pedal.
or
F

W

ith an automatic gearbox
, place the gear
selector in mode P or N .
F

W

ith the electronic key inside the vehicle,
press the brake pedal.
If this warning lamp comes on after
pressing the "START/STOP " button:
F
W
ith a

manual gearbox , you should keep
the clutch pedal fully depressed and not
press the " START/STOP " button again until
the engine is running.
6
Driving

130
F With the electronic key inside the vehicle, press the " START/STOP " button.
The engine stops and the steering column
locks.
In some circumstances, it is necessary to turn
the steering wheel to lock the steering column.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock, but the gearbox locks in mode P .
If the vehicle is not immobilised, the
engine will not stop.
Never leave your vehicle with the
electronic key still inside.
Switching off the engine leads to a
loss of
braking assistance.
Key not detected
Back-up starting
When the electronic key is in the recognition
zone and after pressing the "START/STOP"
button, the engine does not start:
F

P
lace the gear selector at P or N for
vehicles with an automatic gearbox or
neutral for vehicles with a


manual gearbox.
F

P
lace the electronic key in the back-up
reader.
F

P
ress the brake pedal on vehicles with an
automatic gearbox, or fully depress the
clutch pedal with a


manual gearbox.
F

P
ress the "START/STOP" button.
The engine starts.
F

W

ith an automatic gearbox
, preferably
select mode P or N .
Back-up switch-off
F To confirm the instruction to switch off the
engine, press the " START/STOP" button for
about three seconds.
In the event of a
fault with the electronic key,
contact a
CITROËN dealer or a qualified
workshop.
Emergency switch-off
In the event of an emergency only, the engine
can be switched off without conditions (even
when driving).
Press the " START/STOP " button for about
three seconds.
In this case, the steering column locks as soon
as the vehicle stops. When the electronic key is not detected or is
no longer in the recognition zone, a message
appears in the instrument panel when closing
a door or trying to switch off the engine.
Driving

131
Switching the ignition on
(without starting)
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals, allows the
ignition to be switched on.
F

P
ress the "START/STOP" button, the
instrument panel comes on but the engine
does not start.
F

P
ress the button again to switch off the
ignition and allow the vehicle to be locked.
With the ignition on, the system
automatically changes to energy economy
mode when required to maintain an
adequate state of charge of the battery.
On certain versions with the automatic gearbox
(EAT6/EAT8), the steering column does not
lock.
Electric parking brake
The technology adopted for the electric
parking brake does not allow the fitment of
15-inch wheels.
Indicator lamp
This indicator lamp comes on in the
instrument panel and in the control
lever to confirm the application of
the parking brake. It goes off to confirm the release of the parking
brake.
The indicator lamp in the control lever flashes
during manual application or release.
After applying the parking brake, the
simultaneous flashing of the indicator lamps
in the instrument panel and in the control lever
warns you to secure the immobilisation of the
vehicle by engaging a
gear (with a manual
gearbox or by placing the selector at position
P with an automatic gearbox or by placing
a chock against one of the wheels (e.g. parking
on a very steep slope or a steep slope with
a weak battery).
In the event of a battery failure, the
electric parking brake no longer works.
As a safety measure, if the parking brake
is not applied, immobilise the vehicle by
engaging a

gear (with a

manual gearbox)
or placing a chock against one of the
wheels.
Call a CITROËN dealer or a qualified
workshop.
The system provides, in automatic operation,
the application of the parking brake on
switching off the engine and release as the
vehicle moves off.
The driver can take over at any time to apply
or release the parking brake, by operating the
control lever:
-

b

y briefly pulling
the control lever to apply
the brake,
-

b

y briefly pushing
the control lever, while
pressing the brake pedal, to release it.
Automatic mode is activated by default.
6
Driving

132
Label on door panel
Before leaving the vehicle, check that the
parking brake is applied: the indicator
lamps in the instrument panel and the
control lever must be on fixed.
If the parking brake is not applied, there
is an audible signal and a message is
displayed on opening the driver's door.
Never leave a
child alone inside the
vehicle with the ignition on, as they could
release the parking brake. When towing, parking on a
steep slope,
or if your vehicle is heavily laden, turn
the wheels towards the kerb and engage
a gear (with a manual gearbox) or place
the gear selector at position P with an
automatic gearbox.
For towing, you vehicle is approved for
parking on slopes of up to 12%.
Manual operation
Manual release
With the ignition on or the engine running, to
release the parking brake:
F

p
ress the brake pedal,
F

w
hile maintaining pressure on the brake
pedal, briefly push the control lever.
The complete release of the parking brake is
confirmed by the brake indicator lamp and the
P indicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".
If you push the control lever without
pressing the brake pedal, the parking
brake will not be released and a
message
is displayed.
Manual application
With the vehicle stationary:
F p ull briefly on the control lever.
Confirmation of the instruction is signalled by
flashing of the indicator lamp in the control
l eve r.
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Automatic operation
Automatic release
Ensure first that the engine is running and the
driver's door is properly closed.
The electric parking brake releases
automatically and progressively when the
vehicle moves off .
With a
manual gearbox
F

F
ully depress the clutch pedal, engage 1
st
gear or reverse.
F

P

ress the accelerator pedal and release the
clutch pedal.
With an automatic gearbox
F

P

ress the brake pedal.
F

R

elease the brake pedal and press the
accelerator pedal.
Driving

133
With an automatic gearbox, if the brake
does not release automatically, check that
the front doors are correctly closed.
The complete release of the parking brake is
confirmed by the brake indicator lamp and the
P indicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".
When stationary with the engine running, do not
depress the accelerator pedal unnecessarily,
you risk releasing the parking brake.
Automatic application
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off .
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Automatic application does not take place
if the engine stalls or goes into STOP
mode of Stop & Start. With automatic operation, you can also
manually apply or release the parking
brake at any time using the control lever.
Special cases
In some situations, you may need to operate
the parking brake manually.
Immobilisation of the vehicle
with the engine running
To immobilise the vehicle with the engine
running, briefly pull the control lever.
Application of the parking brake is confirmed
by illumination of the brake indicator lamp
and the P indicator lamp in the control lever,
accompanied by the display of the message
"Parking brake applied".
Parking the vehicle with the
brake released
In very cold conditions (ice), it is
recommended that the parking brake not
be applied.
To immobilise your vehicle, engage a
gear
or fit the chocks against one of the wheels. Immobilisation of the vehicle with the
parking brake released
F

S
witch off the engine.
Application of the parking brake is
confirmed by illumination of the indicator
lamps in the instrument panel and the
control lever.
F
S
witch on the ignition again, without starting
the engine.
F
R
elease the parking brake manually by
pushing the control lever while keeping your
foot on the brake pedal.
The complete release of the parking brake is
confirmed by the brake indicator lamp and the
P indicator lamp in the control lever going off,
accompanied by the display of the message
"Parking brake released".
F
S
witch off the ignition.
Deactivating automatic
operation
In some situations, for example when it is
extremely cold or during towing (caravan,
recovery), it may be necessary to deactivate
automatic operation of the system.
F

S
tart the engine.
F

A
pply the parking brake with the control
lever, if it is released.
6
Driving

134
F Take your foot fully off the brake pedal.
F P ush and hold the control lever in the
release direction for at least 10
seconds and
no more than 15
seconds.
F

R
elease the control lever.
F

P
ress and hold the brake pedal.
F

P
ull the control lever in the application
direction for 2


seconds.
Deactivation of the automatic
functions is confirmed by
illumination of this indicator lamp in
the instrument panel.
F

R
elease the control lever and the brake
pedal.
From now on, the parking brake can only
be applied and released manually using the
control lever.
Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.
Emergency braking
The emergency braking should only be
used in an exceptional situation. In the event of a
failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc.), a continuous
pull on the control lever will brake the vehicle.
Braking takes place while the control lever is
being pulled. It is interrupted if the control lever
is released.
The ABS and DSC systems ensure stability of
the vehicle during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake fault" will be
displayed.
If the ABS and DSC systems malfunction,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.
Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a
gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal. This system only operates when:
-

t
he vehicle is completely stationary, with
your foot on the brake pedal,
-
c
ertain slope conditions are met,
-
t
he driver's door is closed.
The hill start assist system cannot be
deactivated.
Do not leave the vehicle while it is being
held temporarily by hill start assist.
If you need to get out of the vehicle with
the engine running, apply the parking
brake manually. Then verify that the
parking brake warning lamp (and the
warning lamp P on the electric parking
brake control lever) are on continuously.
Operation
Uphill, with the vehicle stationar y, the
vehicle is held for a shor t time when you
release the brake pedal:
-

p
rovided you are in first gear or neutral with
a


manual gearbox.
Driving

135

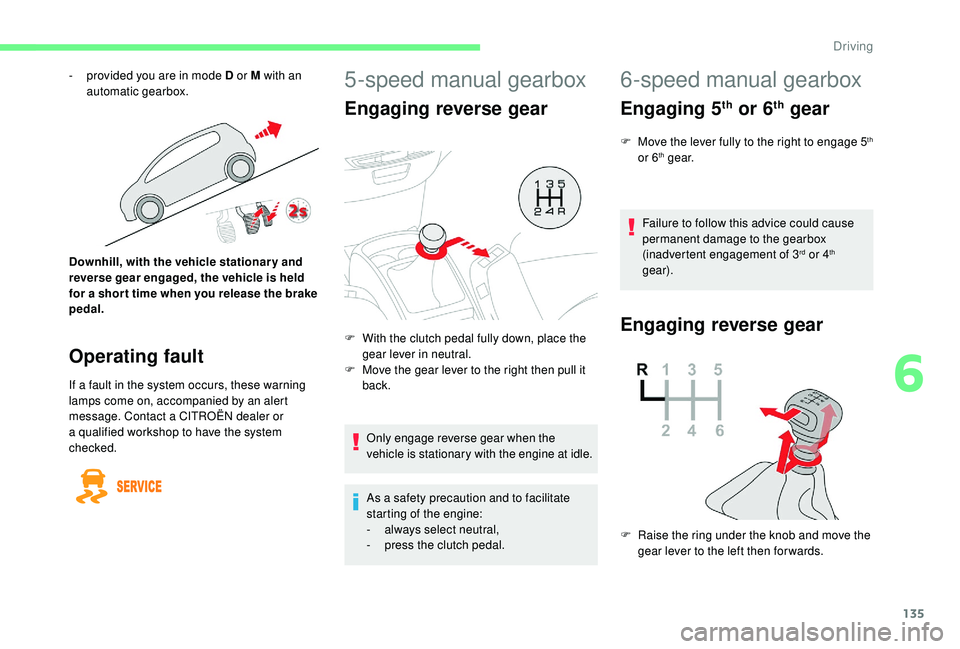

5-speed manual gearbox
Engaging reverse gear
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
s tarting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
Downhill, with the vehicle stationary and
reverse gear engaged, the vehicle is held
for a

shor t time when you release the brake
pedal.
Operating fault
- provided you are in mode D or M with an automatic gearbox.
If a
fault in the system occurs, these warning
lamps come on, accompanied by an alert
message. Contact a
CITROËN dealer or
a
qualified workshop to have the system
checked.6-speed manual gearbox
Engaging 5th or 6th gear
F Move the lever fully to the right to engage 5th
or 6th g e a r.
Failure to follow this advice could cause
permanent damage to the gearbox
(inadvertent engagement of 3
rd or 4th
gear).
Engaging reverse gear
F Raise the ring under the knob and move the gear lever to the left then for wards.
F

W

ith the clutch pedal fully down, place the
gear lever in neutral.
F

M

ove the gear lever to the right then pull it
back.
6
Driving

136
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
s tarting the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
Automatic gearbox
Six or eight-speed automatic gearbox with
steering wheel-mounted selector. It also offers
a manual mode with gear changes via steering
mounted paddles located behind the steering
wheel.
Gear selector
P. Park.
-
I mmobilisation of the vehicle, parking
brake applied or released.
-
S

tarting the engine.
R. Reverse.
-

R
eversing manoeuvres, vehicle
stationary, engine at idle.
N. Neutral.
-

I
mmobilisation of the vehicle, parking
brake applied.
-
S

tarting the engine.
D. Automatic operation.
M. Manual operation with sequential
changing of the gears.
To come out of position P , shift the
selector to the right to the required
position, while pressing the brake pedal to
t h e f l o o r.
Steering mounted controls
To select position P , move the selector to
the uppermost position (towards R ), then
push it for wards, then to the left.
Only engage it when the vehicle is
completely stationary. In this position, the
front wheels are locked. Ensure that the
selector is positioned correctly. To move the selector, switch on the
ignition or start the engine.
When the battery charge is too low, it will
not be possible to move the selector.
+. Control paddle to change up, to the right
of the steering wheel.
F
P
ull the "
+" control paddle towards you to
change up.
-. Control paddle to change down, to the left
of the steering wheel.
F

P
ull the "-" control paddle towards you to
change down.
The steering mounted paddles do not
allow neutral to be selected, nor reverse
gear to be engaged or disengaged.
Driving

137
Displays on the instrument panel
Starting the vehicle
F With your foot on the brake pedal, select position P or N.
F

S
tart the engine. If these conditions are not met, an audible
signal is issued together with a
message.
If P is displayed on the instrument panel
but the gear selector is in another position,
move the selector to position P to allow
the engine to be started.
F
W
ith the engine running, press the brake
pedal.
F
Sel
ect automatic mode (position D
),
sequential mode (position M ) or reverse
(position R ).
If you do not press the brake
pedal when trying to move
the gear selector out of
position P , this warning lamp
or this symbol appears on
the instrument panel with the
message "Shift automatic
gearbox to P", the P symbol
flashes and a

beep sounds.F
I
f the parking brake is released, the vehicle
moves off.
If the parking brake is applied and automatic
mode is activated, accelerate gradually.
If the parking brake does not release
automatically, check that the front doors
are properly closed.
Never press the brake and accelerator
pedals at the same time. Braking or
accelerating must be done with the
right foot only. Pressing the two pedals
simultaneously risks damaging the
gearbox.
If position R , D or M is selected when the
engine is running at idle, with the brakes
released, the vehicle moves even without
the accelerator being pressed.
Never leave children unattended in the
vehicle when the engine is running.
When carrying out maintenance with the
engine running, apply the parking brake
and select position P .
When you move the selector, the indicator
corresponding to its position is displayed on the
instrument panel.
F C heck that the display on the instrument
panel agrees with the position engaged.
F

G
radually release the brake pedal.
P.
Parking.
R. Reverse.
N. Neutral.
D. Drive (Automatic operation).
1 to 6 or 8.
Gears engaged during manual
operation.
-. Invalid value during manual
operation.
6
Driving

138
Never select position N while the vehicle
is moving. If position N is selected by
mistake while driving, allow the engine
to return to idle, then select position D to
accelerate.
Never select position P or R unless the
vehicle is completely stationary.
If you wish to engage reverse gear,
to prevent jolting, do not accelerate
immediately after selecting R.
Selection of position R is accompanied by
the sound of a
beep.
In the event of a
battery failure, you
must place the chocks supplied with the
vehicle tools against one of the wheels to
immobilise the vehicle.
If your vehicle has an automatic gearbox,
never try to start the engine by pushing
the vehicle.Automatic mode
F Select position D .
D and the gear engaged appear in the
instrument panel.
The gearbox operates in auto-adaptive mode,
without any action by the driver. It continuously
selects the gear best suited to the following
parameters:
-
o

ptimisation of fuel consumption,
-

s

tyle of driving,
-

r

oad conditions,
-

v

ehicle load.
For maximum acceleration without touching
the selector, press the accelerator fully down
(kick-down). The gearbox changes down
automatically or holds the gear selected until
the maximum engine speed is reached.
When braking, the gearbox changes down
automatically to provide effective engine
braking.
If you release the accelerator sharply, the
gearbox will not change to a
higher gear for
safety reasons.
Temporary control of gear
changing
You can temporarily take control of gear
changes using the steering mounted control
paddles " +" and " -". The gear change
instruction is acted on if the engine speed
permits.
This function allows you to anticipate certain
situations, such as overtaking another vehicle
or approaching a
bend in the road.
After a
few moments with no action on the
control paddles, the gearbox returns to
automatic operation.
Manual mode
F Select position M .
F U se the steering mounted control paddles
" + " and " -" to change gears.
The gears engaged are displayed in sequence
in the instrument panel.
When the vehicle is stationary or moving very
slowly, the gearbox automatically selects gear 1 .
Driving
