Alarm
System which protects and provides a deterrent
a gainst theft and break-ins. It provides the
following types of monitoring:
-

E
xterior perimeter :
T

he system checks whether the vehicle is
opened. The alarm is triggered if anyone
tries to open a
door, the boot or the bonnet.
-

I
nterior volumetric:
T

he system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a


window, enters the passenger
compartment or moves inside the vehicle.
Self-protection function : the system
checks for the putting out of ser vice of its
own components. The alarm is triggered
if the siren's battery, button or wiring is
disconnected or damaged. For all work on the alarm system,
contact a
CITROËN dealer or a qualified
workshop.
Locking the vehicle with full
alarm system
Activation
F Lock the vehicle using the remote control.
or
F

L

ock the vehicle using the "
K
eyless Entry
and Starting" system.
The monitoring system is active: the indicator
lamp for the button flashes once per second
and the direction indicators come on for about
2


seconds.
After an instruction to lock the vehicle using
the remote control or the "
K

eyless Entry
and Starting" system, the exterior perimeter
monitoring is activated after 5
seconds, the
interior volumetric monitoring after 45
seconds.
If an opening (door, boot, bonnet, etc.) is
incorrectly closed, the vehicle is not locked
but the exterior perimeter monitoring will be
activated after 45
seconds at the same time as
the interior volumetric monitoring.
Deactivation
F Press one of the remote control unlocking buttons.
or
F

U
nlock the vehicle with the "
K
eyless Entry
and Starting" system.
The monitoring system is deactivated: the
indicator lamp for the button goes off and the
direction indicators flash for about 2
seconds.
When the vehicle automatically locks itself
again (as happens if a
door or boot is not
opened within 30
seconds of unlocking),
the monitoring system is automatically
reactivated.
Locking the vehicle
with exterior perimeter
monitoring only
Deactivate the interior volumetric monitoring
to avoid unwanted triggering of the alarm in
certain cases such as:
-

l
eaving a pet in the vehicle,
F

Switch off the ignition and get out of the vehicle.
Short press
Long press
2
Access

54
Deactivating the interior
volumetric monitoring
F Switch off the ignition and within ten seconds, press the alarm button until the
indicator lamp is on continuously.
-
l

eaving a

window partially open,
-
w
ashing your vehicle,
-
c
hanging a

wheel,
-
h
aving your vehicle towed,
-
t
ransport by ship.
F
G
et out of the vehicle.
F

I
mmediately lock the vehicle using the
remote control or the "Keyless Entry and
Starting" system.
The exterior perimeter monitoring alone is
activated: the indicator lamp for the button
flashes once per second.
To take effect, this deactivation must be carried
out each time the ignition is switched off.
Reactivating the interior
volumetric monitoring
F Deactivate the exterior perimeter monitoring by unlocking the vehicle using the remote
control or the "
K

eyless Entry and Starting"
system. The indicator lamp for the button goes off.
F

R
eactivate the full alarm system by locking
the vehicle using the remote control or the
"Keyless Entry and Starting" system.
The indicator lamp for the button flashes once
per second again.
Triggering of the alarm
This results in sounding the siren and flashing
the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the "
K

eyless Entry and Starting"
system, rapid flashing of the indicator lamp
for the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.
Failure of the remote
control
To deactivate the monitoring functions:
F U nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F

O
pen the door; this sets off the alarm.
F

U
pon switching on the ignition the alarm
stops. The indicator lamp for the button
goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral to the remote control) in the driver's
door lock.
Operating fault
When the ignition is switched on, fixed
illumination of the indicator lamp for the button
indicates a
fault with the system.
Have it checked by a
CITROËN dealer or
a


qualified workshop.
Automatic activation
(Depending on the country where the product
is sold.)
The system is activated automatically 2 minutes
after the last door or the boot is closed.
F

T
o avoid triggering the alarm on entering
the vehicle, first press the unlocking button
on the remote control or unlock the vehicle
using the "
K

eyless Entry and Starting"
system.
Access

69
Automatic tilting in reverse gear
System which provides a view of the ground
d uring parking manoeuvres in reverse gear.
They return to their initial position:
- a f ew seconds after coming out of reverse gear,
-

o
nce the speed of the vehicle exceeds 6 mph
(10


km/h),
-

o
n switching off the engine.
This function can be activated/deactivated in
the Driving menu of the touch screen.
F

Sel
ect the " Vehicle settings " tab, then
" Comfort " and "Mirror adaptation in
reverse ".
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles, etc.
Manual model
Adjustment
F
A djust the mirror so that the glass is
directed correctly in the "day" position. F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome " model
This system automatically and progressively
changes between day and night use by means
of a

s
ensor measuring the light coming from the
rear of the vehicle.
In order to ensure optimum visibility during
your manoeuvres, the mirror lightens
automatically when reverse gear is
engaged.
Child surveillance mirror
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Unfolding
F From outside: unlock the vehicle using the
electronic key or the " K eyless Entry and
Starting" system.
F

F
rom inside: with the ignition on, pull
the control A from the central position
rearwards.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a
CITROËN dealer or
a


qualified workshop.
If necessary, the mirrors can be folded
manually.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
Day/night position
F P ull the lever to change to the "night" anti-
dazzle position.
3
Ease of use and comfort

94
Switching on
When the courtesy lamp is in this
position, the spotlamps come on
automatically:-

w
hen you use the remote control to locate
the vehicle.
Switching off
They go off automatically after 30 seconds.
Exterior welcome lighting
The remote switching on of the lighting makes
your approach to the vehicle easier in poor
light. It is activated when the lighting control
stalk is in the " AUTO" position and the level of
light detected by the sunshine sensor is low.
Switching on
F Press the open padlock on the remote control or one of
the front door handles with the
"Keyless Entry and Starting"
system.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Switching off
The exterior welcome lighting switches off
automatically after a set time, when the ignition
is switched on or on locking the vehicle.
Programming
Door mirror spotlamps
They come on automatically when the engine
is started, when the lighting control stalk is in
position " 0" or " AUTO ".
To make your approach to the vehicle easier,
these illuminate:
-

t
he zones facing the driver's and
passenger's doors,
-

t
he zones for ward of the door mirrors and
rear ward of the front doors.
-

w
hen you unlock the vehicle,
-

when removing the electronic key from the reader,- when opening a door, The activation, deactivation and choice of
welcome lighting duration are done in the
Driving
menu of the touch screen.
Select " Welcome lighting " on the "Vehicle
settings " tab.
Use the arrows or the slider to adjust the
lighting duration.
Automatic headlamp
dipping
System which automatically changes between
dipped and main beam according to the
exterior light level and the traffic conditions,
using a
camera located at the top of the
windscreen.
This system is a
driving aid.
The driver remains responsible for the
vehicle's lighting, its correct use for the
prevailing conditions of light, visibility,
traffic and obser vation of driving and
vehicle regulations.
The system will be operational as soon as
you have exceeded 16
mph (25 km/h).
If the speed drops below 9
mph (15 km/h),
the system no longer operates.
Lighting and visibility

199
Engine compartment
This engine is shown as an example.
The positions of the following elements may
change:
-
A
ir filter.
-

E
ngine oil dipstick.
-

E
ngine oil filler cap.
-
P

riming pump.
Petrol
Diesel
5.Fusebox.
6. A i r f i l t e r.
7. Engine oil dipstick.
8. Engine oil filler cap.
9. Remote earth point.
10. Priming pump*
The Diesel fuel system operates under
very high pressure.
All work on this circuit must be carried out
only by a
CITROËN dealer or a qualified
workshop.
Checking levels
Check all of these levels regularly, in line with
the manufacturer's service schedule. Top them
up if necessary, unless other wise indicated.
If a
level drops significantly, have the
corresponding system checked by a
CITROËN
dealer or a
qualified workshop.
The liquid must comply with the
manufacturer's recommendations and with
the vehicle's engine. Take care when working under the bonnet,
as certain areas of the engine may be
extremely hot (risk of burns) and the
cooling fan could start at any time (even
with the ignition off).
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to health
or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a
CITROËN dealer or
a
qualified workshop and dispose of
it in the containers reser ved for this
purpose.
Engine oil level
The check is carried out either when
the ignition is switched in using the
oil level indicator in the instrument
panel for vehicles equipped with an
electric gauge, or using the dipstick.
*
D

epending on engine.
1. Screenwash and headlamp wash
reservoir.
2. Engine coolant reservoir.
3. Brake fluid reser voir.
4. Battery/Fuses.
7
Practical information

231

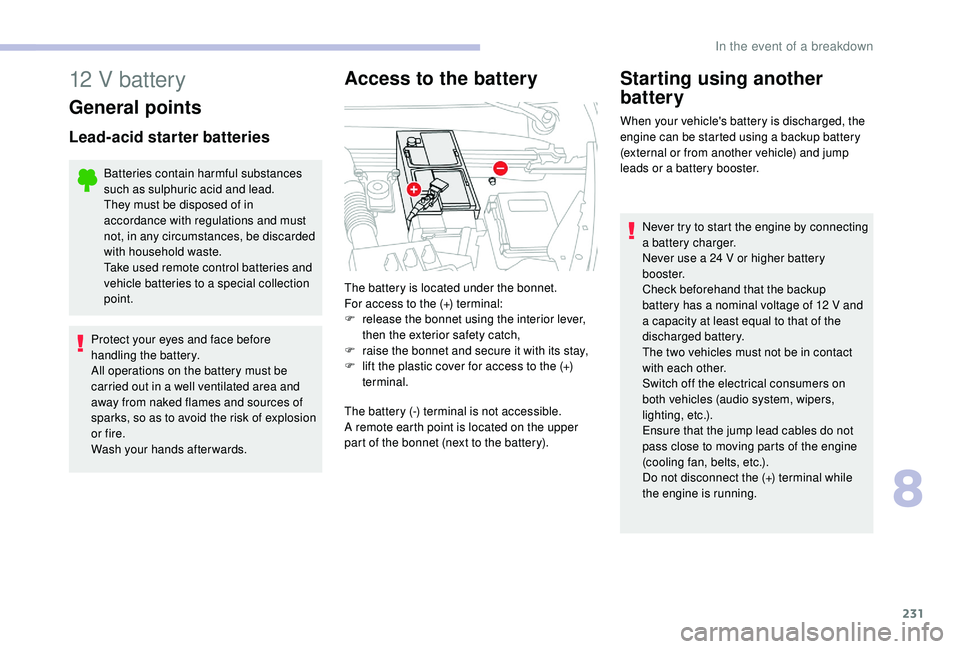

12 V battery
General points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a
special collection
point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a
well ventilated area and
away from naked flames and sources of
sparks, so as to avoid the risk of explosion
or fire.
Wash your hands afterwards.
Access to the battery
The battery (-) terminal is not accessible.
A remote earth point is located on the upper
part of the bonnet (next to the battery).
Starting using another
battery
When your vehicle's battery is discharged, the
engine can be started using a backup battery
(external or from another vehicle) and jump
leads or a
battery booster.
Never try to start the engine by connecting
a
battery charger.
Never use a
24 V or higher battery
b o o s t e r.
Check beforehand that the backup
battery has a
nominal voltage of 12 V and
a
capacity at least equal to that of the
discharged battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, etc.).
Ensure that the jump lead cables do not
pass close to moving parts of the engine
(cooling fan, belts, etc.).
Do not disconnect the (+) terminal while
the engine is running.
The battery is located under the bonnet.
For access to the (+) terminal:
F

r

elease the bonnet using the interior lever,
then the exterior safety catch,
F

r

aise the bonnet and secure it with its stay,
F

l

ift the plastic cover for access to the (+)
terminal.
8
In the event of a breakdown

234
Reconnecting the (+) terminalDo not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems. If
minor problems nevertheless persist following
this operation, contact a
CITROËN dealer or
a


qualified workshop. Versions equipped with Stop & Start are
fitted with a
12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a

continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of the
battery (up to about 8 hours).
F
Ra
ise the lever A fully.
F
R
efit the open clamp B on the (+)
terminal.
F
P
ush the clamp B fully down.
F
L
ower the lever A to lock the clamp B
.Referring to the corresponding section, you
must yourself reinitialise (depending on
version):
-
t
he remote control key,
-
t
he electric blind(s),
- etc.
To w i n g
Procedure for having your vehicle towed or for
towing another vehicle using the towing eye.
Access to tooling
The towing eye is installed in the boot under
t h e f l o o r.
The tool for opening the front protective cover
is fixed to the towing eye.
To access it:
F

o
pen the boot,
F

l
ift the floor and remove it,
F

r
emove the towing eye from the holder.
In the event of a breakdown

307
Maintenance, routine ........................................ 6
Map reading lamps ......................................... 88
M
arkings, identification

.................................244
Massage function
........................................... 60
Mat


............................................................ 82- 83
Memorising a
speed
..................................... 14

4
Menu


............................................................... 12
Menus (audio)


........................................ 4-5, 3-5
Messages


........................................................ 28
Messages, quick
............................................. 28
M

irror, child surveillance

.................................69
Mirror, rear view
.............................................. 69
Mirrors, door ............................... 6 8 - 6 9, 173 -174
Misfuel prevention


......................................... 191
Modularity, seats


............................................. 67
Motorised tailgate
..................................... 4

8 - 51
Mountings, ISOFIX


....................................... 11 9M
N
Net ............................................................. 86 - 87
Number plate lamps ...................................... 226
L
Labels, identification ..................................... 244
Lamps, parking ............................................... 92
Lane Departure Warning System (LDWS)


......................................... 23, 169, 175
LEDs – Light-emitting diodes
....................... 2

20
Leg rest, electric

..............................
...............60
Level, AdBlue
® .............................................. 2 01
Level, brake fluid ........................................... 201
Level, Diesel additive


............................ 201-202
Level, engine coolant


.............................. 2 7, 2 0 1
Level, engine oil
.............................. 2 7, 1 9 9 - 2 0 0
Level, headlamp wash


.................................. 201
Level, screenwash fluid

................................ 2

01
Levels and checks

..............................
..19 9, 201
Light-emitting diodes – LEDs
....................... 2

20
Lighting


............................................................ 88
Lighting, ambient ............................................. 88
Lighting, directional


................................... 96 -97
Lighting, guide-me home


................................ 93
Lighting, interior
...............................

.........87- 8 8
Lighting, welcome


........................................... 94
Loading


............................................................. 6
Load reduction mode


.................................... 195
Locating your vehicle


...................................... 41
Locking
...............................

....................... 44-45
Locking from the inside
............................. 43-44
IIdentification, vehicle .................................... 244
Ignition ................ ..................................... 131, 28
Ignition on ...................................................... 131
Immobiliser, electronic


............................4 5, 127
Indicator, AdBlue
® range ................................. 28
Indicator, coolant temperature ........................ 27
Indicator, engine oil level
................................ 27
Indicators, direction


........................................ 92
Inflating tyres


................................................ 203
Inflating tyres (using the kit)
.................. 2

08 -210
Instrument panels


......................................... 8-9
Intelligent Traction Control


............................ 104
Internet browser
.............................................. 16
I

SOFIX


................................................... 120 -121
ISOFIX mountings ......................................... 11 9Key


................................................
40-42, 44-46
Key, electronic

.....................................
40-43, 45
Keyless Entry and Starting
.........
4
1- 43, 45, 129
Key not recognised
...............................
1
28, 13 0
Key with remote control
................................
12
7
Kit, hands-free
............................... 1
3 -14, 25 -2 6
Kit, temporary puncture repair
.............. 2
08 -210
K
JJack ...............................
...............211-216, 9, 23
Jump starting ................................................ 231
Headlamps, main beam


............
25, 90, 220-222
Headlamps, Xenon

.......................................
220
Headlamp wash
..............................
..............
10 0
Head restraints, front ................................
59-60
Head restraints, rear .......................................
63
Heating
........................................................ 6
, 72
Hill start assist ........................................
13 4 -13 5
Hooks

..............................................................
85
Horn ............................................................... 102 Locking the doors
.....................................
42
- 44
Low fuel level
................................................
19
0
Lumbar

............................................................
60
.
Alphabetical index

308
Scented air freshener ................................7 7-78
Screen, cold climate ..................................... 19
7
Screen menu map


........................................... 12
Screenwash, front


......................................... 10 0
Screenwash, rear


............................................ 99
Seat belts


................................. 15, 10 6 -108, 117
Seats, electric


........................................... 58-59
Seats, front
...............................

.................57- 5 9
Seats, heated


.................................................. 61
Seats, rear


................................................. 62- 66
Selective Catalytic Reduction (SCR)


............204
Selector, gear


......................................... 13 6 -13 9
Serial number, vehicle


..................................244
Service (warning lamp)


...................................17
Service indicator


............................................. 26
Servicing
......................................................... 26
S

ettings, equipment

.......................31-33, 35-36
Settings, system


........................................ 16, 30
Sidelamps
................................. 9

0, 92, 220 -225
Side repeater


................................................ 222
Snow chains


........................................... 191-192
Socket, 12
V accessory ......................79, 81, 85
Socket, 230
V
...............................
...................81
Socket, auxiliary
.......................................... 9

, 23
Socket, Jack


.......................................... 82, 9, 23
Sockets, audio
................................................ 8

2
Speed limiter
.................................. 14

4, 14 6 -148
Speed limit recognition
.......................... 14

4 -145
Spotlamps, door mirror


...................................94
Starting a


Diesel engine
............................... 18

9
Starting the vehicle
............... 1

4 -17, 21, 12 6 -13 0
Starting using another battery


..............13 0, 231
Station, radio
...............................

...........6, 21-22
Stay, bonnet


.................................................. 198
Steering mounted controls, audio
................ 3

, 3
Steering wheel, adjustment
............................ 68
S

TOP (warning lamp)

...................................... 13
Stopping the vehicle


.............14 -17, 21, 12 6 -13 0
Stop & Start


............................. 23 -24, 39, 71, 77,
140 -141, 190, 198, 202, 234RRadio ................................................. 6, 9, 21, 24
Radio, digital (Digital Audio Broadcasting – DAB)
................................8, 22
Range


........................................................ 38-39
Range, AdBlue


.......................................... 28-29
RDS
................

........................................ 7, 2 1 - 2 2
Reading lamps, rear


........................................ 84
Rear screen, demisting


...................................77
Recharging the battery


.........................232-233
Recirculation, air


................................. 72, 75 -76
Reduction of electrical load


..........................195
Regeneration of the particle filter
.................202
Reinitialisation of the under- inflation detection system


...........................143
Reinitialising the remote control
............... 4

6 - 47
Remote control


.......................................... 40-45
Removing a
wheel ................................. 217-219
Removing the mat


..................................... 82- 83
Replacing bulbs
............................ 22

0, 223-225
Replacing fuses


............................ 226-228, 230
Replacing the air filter
................................... 2

02
Replacing the oil filter
................................... 2

02
Replacing the passenger compartment filter


...................................... 202
Resetting the service indicator


.................26-27
Resetting the trip recorder


........................3 0 - 31
Reversing camera
...............................

..........178
Reversing lamp


..................................... 223-225
Roof bars


....................................................... 19 6
Running out of fuel (Diesel)
..........................236
SSafety, children ......................11 0 , 112 -114 , 11 8 ,
120 -121, 123 -124
Saturation of the particle filter (Diesel)
.........202
O
Obstacle detection ........................................ 176
Oil, engine ............................................. 19 9 -20 0
Oil change
............................................. 19

9 -20 0
Oil consumption


.................................... 19 9 -20 0
Opening the bonnet


...................................... 198
Opening the boot


...........................40-41, 47-48
Opening the doors


.................................... 41, 47
Opening the panoramic sunroof blind
............ 89
P

ads, brake

........................................... 203-204
Paint colour code
.......................................... 244
Panoramic glass roof


...................................... 89
Parcel shelf, rear


....................................... 84-85
Park Assist

...............................
......181-182, 185
Parking brake


........................................ 203-204
Parking brake, electric
.......... 1

4 -17, 21, 131-13 4
Parking sensors, audible and visual


.............176
Parking sensors, front


...................................17 7
Parking sensors, rear .................................... 17 7
Plates, identification ...................................... 244
Player, Apple
® ........................................... 10 , 24
Player, MP3

CD ............................... ................23
Player, USB

................................................. 9, 23
Port, USB

.............................................. 82, 9, 23
Pre-heater, Diesel


........................................... 22
Pressures, tyres


.................... 203, 211, 219, 244
Pre-tensioning seat belts


.............................. 108
Priming the fuel system
................................ 236
Profiles


...................................................... 16, 30
Protecting children


................. 11 0 , 112 -114 , 11 8 ,
120 -121, 123 -124
Puncture


................................................ 20 8 -214
P
Alphabetical index
