For safety reasons, only use the
cartridges designed for the system.
Retain the cartridge sealed covers which
ser ve as packaging if the cartridge is not
used.
Never refill or disassemble the cartridges.
Keep cartridges out of the reach of
children or pets.
Avoid contact with the skin or eyes.
In the event of ingestion, consult a doctor,
showing them the product packaging or
label.
Never install or remove a
cartridge while
driving.Front fittings1. Sun visor.
2. Ticket holder.
3. Glove box.
4. Central storage.
It includes the electric and audio sockets.
5. High console with closed storage box, low
console or removable console.
6. C u p h o l d e r.
7. Door pockets.
8. Storage compartment below the steering
wheel.
(Vehicle documentation.)
Sliding sun visors
Sliding window blinds
The sliding window blinds can protect you from
brightness and sunlight. They can be adjusted
manually.
F

S
lide the window blind to the required
position by pushing zone A .
3
Ease of use and comfort

80
Do not attach or hang heavy objects on
the slide rail of the sun visor blinds.
Glove box
Depending on the equipment, it may include
a CD player.
F

T
o open the glove box, raise the handle.
It is illuminated when the lid is opened.
It is cooled by a
ventilation nozzle that can be
closed manually.
It is directly linked to your vehicle's air
conditioning system and is supplied with
fresh air whatever the setting required in the
passenger compartment.
The cooling of your glove box only functions
when the engine is running and the air
conditioning is on.
Portable console
The portable console is a removable storage
space fixed to the low centre console.
It includes a
sliding flap, an open storage
compartment and two cup holders.
Taking out the portable console
Sun visor supports
The window blinds are extended via the sun
visor supports.
Fold the support downwards to avoid glare from
ahead.
In case of glare through the door windows,
release the support from its central fixing and
turn it to the side.
The supports are fitted with a
locking system
on their central fixing when rolling up the
window blind. To remove or replace the
support, it must be positioned vertically.
If it is not fixed to its support, the portable
console must be stored in the boot. It
could turn into a
projectile in the event of
sudden braking or serious impact.
F

P
ull the unlocking control located at the
front of the console.
F

W
ith one hand, lift the front part of the
console.
F

W
ith the other hand, take the rear part to
free the portable console.
Ease of use and comfort

81
AC 230V
50Hz120W
Putting the portable console
back in place
Central storage 230 V/50 Hz socket
Connect only one device at a time to
t he socket (no extension or multi-way
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a
device with a metal case
(electric shaver,etc.).
As a
safety measure, when electrical
consumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will be
cut off; the green indicator lamp goes off.
12 V socket
F To connect a 12 V accessory (max. power:
120 W), lift the cover and connect a suitable
adaptor.
Do not exceed the maximum power rating
of the socket (other wise this could cause
damage to your portable device).
F

Pe

r form the steps in reversed order. Check
that the console is properly locked.
F

P

ull the handle and lower the lid to open the
central storage.
It is illuminated when opened. Deactivate the lighting by pressing the button
at the top.
Depending on equipment, this may include:
-

1


x 230

V socket,
-

1


x 12

V socket,
-

1


x USB port,
-

1


x JACK socket.
A 230

V/50

Hz socket (max. power: 120

W) is
fitted in the central storage.
To use the socket:
F

ope

n the central storage,
F

c

heck that the indicator lamp is on green,
F

c

onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, baby food warmer, etc.).
This socket works with the engine running, as
well as in STOP mode with Stop & Start.
In the event of a

fault with the socket, the green
indicator lamp flashes.
Have it checked by a

CITROËN dealer or
a


qualified workshop.
3
Ease of use and comfort

82
The connection of an electrical device
not approved by CITROËN, such as
a USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays in
the screens.
JACK socket
To connect a portable device so that you
c an listen to your music files via the vehicle's
speakers.
The management of the files is done using your
portable device.
For more information on Audio and
telematics and in particular the use of
this equipment, refer to the corresponding
section.
USB port
When the USB port is used, the portable
device charges automatically.
A message is displayed if the power drawn
by the portable device exceeds the current
supplied by the vehicle.
Mats
Fitting
The USB port is located in the central storage.
It allows the connection of a portable device or
a
USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted or touch screen controls.
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Ease of use and comfort

83
Removing
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

p
ut on the fixings again by pressing,
F

c
heck that the mat is secured correctly.
To avoid any risk of jamming of the pedals:
-

o
nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of the
cruise control/speed limiter.
The mats approved by CITROËN have two
fixings located below the seat.
Storage boxes
Depending on equipment, there are storage
boxes located under the front seats.
Opening
F Lift the handle and lower the storage box c ove r.
Do not place heavy objects in the storage
boxes.
Storage compartment
below the steering wheel
This storage below the steering wheel is used
to store the vehicle's on-board documentation.
3
Ease of use and comfort

84
Rear fittings
Aircraft trays
Closed tray
Open tray
These trays, fixed to the back of the front
seats, includes a recessed cup holder A and
a retaining strap B . For security reasons, these trays retract
downwards if excessive pressure is exerted.
Individual reading lamp
Side blinds
F Pull the tab A and anchor the blind on the
hook B .
Fitted to the windows in row 2, they protect the
passenger compartment from the sun's rays.
The reading lamps C may be integrated into
the backrests of the front seats, behind the
trays. They illuminate the top of the tray without
disturbing the other passengers.
They are only accessible when the tray is
lowered.
F

P

ress the "On/Off " button to switch the
reading lamp on or off.
F

P

ull the tray to lower it.
F

T

o fold the tray away, pull it up to the locking
latch.
Storage boxes
There are two storage boxes located beneath
the rear passenger footwells.
To open them, lift the cover by the notch.
Ease of use and comfort

85

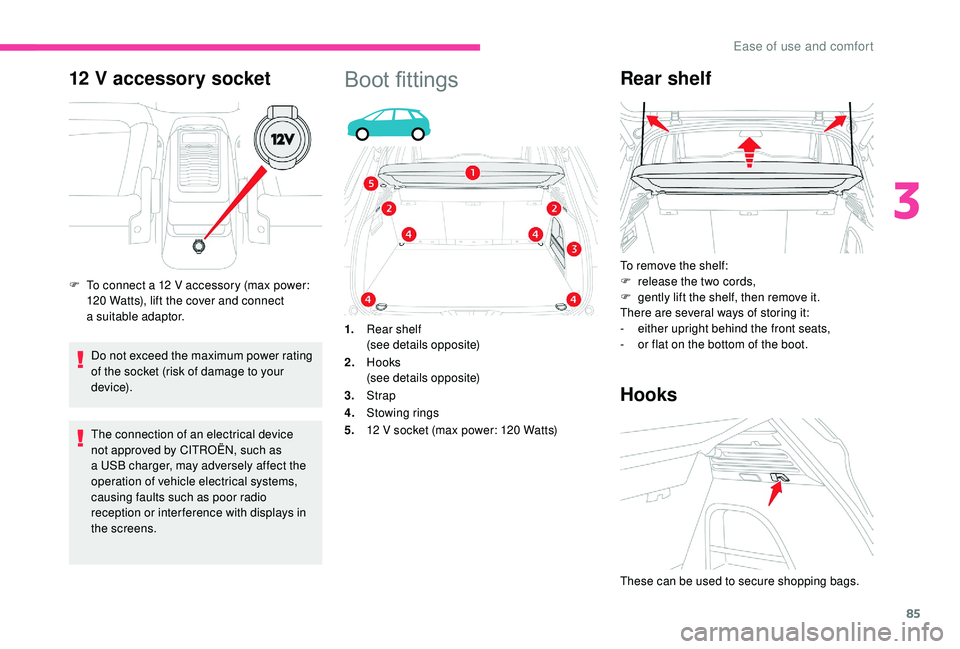

12 V accessory socket
Do not exceed the maximum power rating
of the socket (risk of damage to your
device).
The connection of an electrical device
not approved by CITROËN, such as
a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays in
the screens.
Boot fittings
1. Rear shelf
(see details opposite)
2. Hooks
(see details opposite)
3. Strap
4. Stowing rings
5. 12
V socket (max power: 120 Watts)
Rear shelf
To remove the shelf:
F r elease the two cords,
F

g
ently lift the shelf, then remove it.
There are several ways of storing it:
-
ei

ther upright behind the front seats,
-

o
r flat on the bottom of the boot.
Hooks
F To connect a 12 V accessory (max power:
120 Watts), lift the cover and connect
a


suitable adaptor.
These can be used to secure shopping bags.
3
Ease of use and comfort

86
Boot fittingsLoad space cover
Installation
The mobile flap avoids inter ference with
the second row passengers when the
seats are in the "comfort" position.
Removal
In 5 -seat configuration, it is installed behind
the second row seats, with the third row seats
stored folded away.
In 7-seat configuration, it is stored behind the
third row seats.
F
P
osition the left and right ends of the roller
in cut-outs A , with the mobile flap at the
front.
F

P
ull out the roller until it reaches the boot
pillars.
F

I
nsert the guides of the roller into the rails in
pillars B . F

R
emove the guides of the roller from the
rails in pillars B .
F

G
uide the roller as it reels in.
F

U
nlock the roller by pressing one of the
handles located at the ends of the roller
bracket.
1.
Load space cover
2. Concertina boards
3. 12

V socket (max power: 120

Watts)
4. Armrest with cup holder and storage
compartment
5. Storage area of the load space cover
6. Open storage compartment
7. Low stowing rings
Ease of use and comfort

87
To fold the 3rd row seats with the roller stored at
the back, it is necessary to raise the concertina
boards in order to give access to the seat
unlocking controls (red straps). When sharp deceleration occurs, objects
placed on the load space cover can turn
into projectiles.
Courtesy lampsFront – rear courtesy lamps
In this position, the courtesy lamp
comes on gradually:
-

w

hen you unlock the vehicle,
-

w

hen the electronic key is removed from the
reader,
-
w

hen opening a

door,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
It will only be possible to switch on the door
mirror spotlamps if the courtesy lamp is in this
position.
It switches off gradually:
-

w

hen the vehicle is locked,
-

w

hen the ignition is switched on,
-

3

0

seconds after the last door is closed. Permanently off.
Permanent lighting.
Storage behind the 3rd row seats
F Make sure that the 3rd row seats are folded.
F
F
old the first two concertina boards.
F

P

osition the roller in the space located
above the armrest, side by side, tilting it
s l i g ht l y.
F

S

lide the roller to the stop position, until it
reaches the notches arranged at the back of
the boot, with the two hinges facing down.
F

U

nfold the third row seats.
The folded concertina boards can be placed in
the horizontal or upright position. 1.
Front courtesy lamp
2. Front map reading lamps
3. Rear courtesy lamp
4. Rear map reading lamps
3
Ease of use and comfort

88
Front – rear map reading
lamps
F With the ignition on, operate the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.
In "permanent lighting" mode, the lighting
time varies according to the circumstances:
-
w
hen the ignition is off, approximately
ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-
w

ith the engine running, unlimited.
Interior ambient lighting
The dimmed passenger compartment lighting
improves visibility in the vehicle when the light
i s p o o r.
Switching onFootwell lighting
The soft lighting provided by the footwell lamps
improves visibility in the vehicle when the light
i s p o o r.
Switching on
Its operation is the same as the courtesy
lamps. The lamps come on when one of the
doors is opened.
At night, the dashboard, centre console and
courtesy lamps come on automatically once
the sidelamps are lit.
The interior ambient lighting switches off
automatically when the sidelamps are switched
of f.
The interior ambient lighting can be activated or
deactivated in the Driving
menu by selecting
the " Vehicle settings " tab, then "Comfort"
and " Mood lighting ".
Ease of use and comfort
