key Citroen C4 PICASSO DAG 2008 1.G Owner's Manual

A
B
C
D
B
A
IN BRIEF
I
5
O P E N I N G
Remote control key
A. Central locking
B. Unlocking
C. Guide-me-home lighting
D. Key release/storage
Fuel tank (60 litres)
Press on control A located on the control panel to the left of the dashboard. The fuel fl ap automati-cally opens up fully.
Insert the nozzle so as to push in the metallic gate valve B.
Push the fuel fl ap to reclose it.
After switching off the ignition, control A is only active for a few Aminutes. If necessary, switch on the ignition again to reactivate it.
Bonnet stay : detach the stay and pivot it upwards to insert it into the notch.
To close : move the stay back to its initial position, lower the bonnet until it is horizontal, then allow it to slam shut.
Bonnet opening/closing
To unlock, pull the control locat-ed under the dashboard towards you.
Opening
Using the multifunction screen, you can choose from the following options when opening your vehi-cle with the remote control :
- either all of the doors and the tailgate,
- or the driver’s door with a fi rst press, then all of the other doors with a second press.

+–
IN BRIEF
I
16

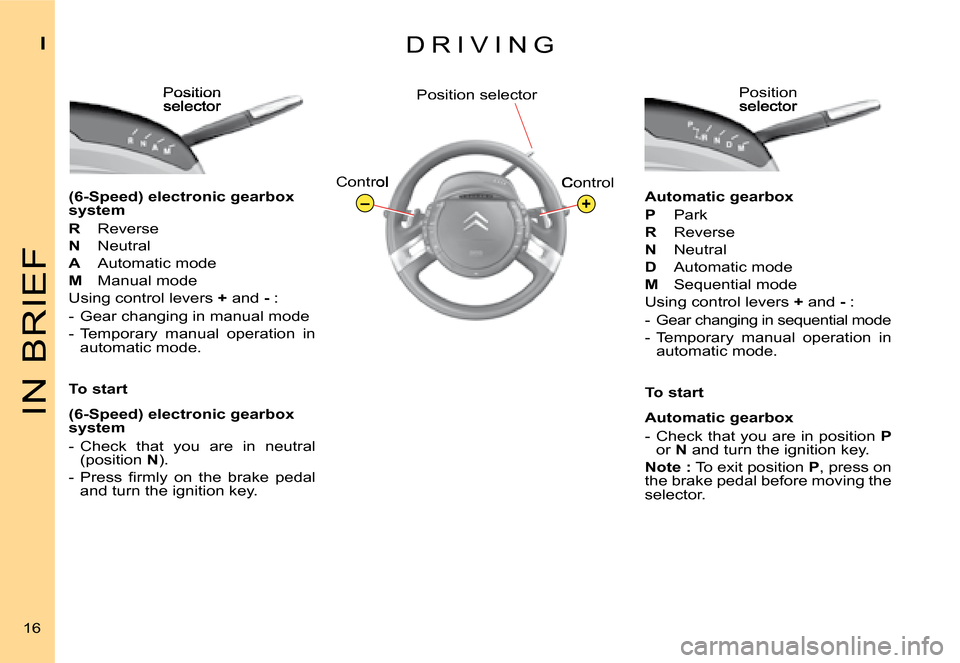

D R I V I N G
(6-Speed) electronic gearbox system
R Reverse
N Neutral
A Automatic mode
M Manual mode
Using control levers + and - :
- Gear changing in manual mode
- Temporary manual operation in automatic mode.
To start
(6-Speed) electronic gearbox system
- Check that you are in neutral (position N).
- Press fi rmly on the brake pedal and turn the ignition key.
Position Position
Automatic gearbox
P Park
R Reverse
N Neutral
D Automatic mode
M Sequential mode
Using control levers + and - :
- Gear changing in sequential mode
- Temporary manual operation in automatic mode.
To start
Automatic gearbox
- Check that you are in position Por N and turn the ignition key.
Note : To exit position P, press on the brake pedal before moving the selector.
ControlControl
Position selector

AC
BA
IN BRIEF
I
21
P A S S E N G E R S A F E T Y
Deactivation of front passenger airbag
1. Insert key into (A).2. Select «OFF» position.3. Remove key.
CHILD SAFETY
Manual control
The rear doors are locked by op-erating the lever (aperture at an angle).
ISOFIX fi xing system
The 3 second-row rear seats and the front passenger seat of your vehicle are fi tted with regu-lation ISOFIX anchoring points, with 3 rings for each seat position (A B C).
This fi xing system is designed for children weighing up to 18 kg.
Electric control
Pressing on the button prohibits operation of the electric windows and opening of the rear doors from the rear of the vehicle.

AA
B
C
D
22
II
R E M O T E C O N T R O L
Central unlocking
- A short press on button B un-locks your vehicle.
The unlocking is confi rmed by the fl ashing of the direction indicators, and by the disarming of the alarm if the vehicle has one.
The unlocking activates:
- the deployment (to the last po-sition registered) of the exterior rear view mirrors,
- the direction indicator side re-peaters (located underneath the exterior rear view mirrors),
- the timed lighting of the interior lamps and the sill lighting for around 30 seconds,
- the timed lighting of the exterior side lighters (located underneath the exterior rear view mirrors) for around 30 seconds.
It is dangerous to operate the deadlocking when someone is inside the vehicle because it is impossible to unlock the vehicle from the i nside (without the remote control).
When you are closing the windows and/or the panoramic glass roo f blind with the remote control, you must make sure that no-one is ob-structing them from closing properly.
Note : if none of the doors is opened within thirty seconds fol-lowing unlocking, the doors auto-matically relock.
Central locking - Deadlocking
- A short press on button A locks your vehicle.
- A long press on button A alsocloses the windows and the pan-oramic glass roof blind.
The locking is confi rmed by the continuous lighting of the direction indicators and the arming of the alarm.
The locking activates:
- folding of the exterior rear view mirrors,
- operation of the guide-me-home lighting, if it is activated,
- the exterior side lighters.
If any of the doors, or the boot, is open or not properly closed, a re-bound sound signals to you that it is impossible to lock the vehicle.
For vehicles equipped with dead-locking, two successive presses on button A deadlock the vehicle. It is then impossible to open the doors either from the inside or from the outside.
Selectivity of doors
Having selected “driver” in the “ac-cess to the vehicle” menu of the multifunction screen :
- a fi rst press on button B opens only the driver’s door,
- a second press opens all of the doors and the tailgate.
This function is not available using the key.

II
23
R E M O T E C O N T R O L
Guide-me-home lighting
A press on button C operates the guide-me-home lighting (lighting of the sidelamps, dipped beams, number plate lamps and side light-ers (located underneath the exte-rior rear view mirrors)).
A second press before the end of the timing cancels the guide-me-home lighting.
Vehicle location
To locate the vehicle on a carpark, press button A. The location of the vehicle is revealed by :
- the fl ashing of the direction indi-cators and side repeaters for a few seconds,
- the lighting of the interior lamps for around 30 seconds,
- the lighting of the side lighters.
The vehicle remains locked.
Foldaway and ejection of the key
Button D folds the key in and out of its housing in the remote control.
If you do not press on button D, you could damage the mechanism.
Simultaneous use of other high frequency equipment (mobile tele-phones, domestic alarms, etc.) may interfere temporarily with the opera-tion of the remote control. If it malfunctions on a permanent basis, you must re-initialise the remote control.
Except for re-initialisation, the remote control cannot function while the key is in the ignition, even with the ignition switched off.
Be aware that an inadvertent manipulation of the remote con trol in your pocket could cause the vehicle doors to unlock without your knowl -edge.
However, if no door is opened within thirty seconds following an unlock-ing, the doors will automatically relock.
Warning : there is a risk of damage if the replacement battery is not in conformity.
Use only those batteries that are identical or equivalent to those recom-mended by CITROËN.Use only those batteries that are identical or equivalent to those recom-Use only those batteries that are identical or equivalent to those recom-
Remote control battery spent
This information is given by a message on the multifunction screen, accompa-nied by a sound signal and the lighting of the SERVICE warning lamp.
Changing the remote control battery
Detach the housing to access the battery.
Battery : CR 0523, 3V.
Re-initialising the remote control
After a change of battery, it is necessary to re-initialise the remote control. For that, switch on the ignition and immediately press butto n A on your remote control until the action desired is triggered. This manœ uvre may take some ten seconds.
Note : Make a careful note of the numbers for your keys and remote con-trol on the ASSISTANCE card. Keep this in a safe place.
Do not throw away spent batteries. Return them to a CITROËN dealer or to an approved collection point (photo shops, etc.).

24
II
Electronic immobiliser key
The key locks and unlocks all the vehicle’s doors, as well as switch-ing on the engine.
Note : The key can also deacti-vate the front passenger airbag (see «Airbags»).
It is dangerous to op-erate the deadlocking when someone is inside the vehicle because it is impos-sible to unlock the vehicle from the inside (without the remote control).
The number of the key is on the label supplied with the key.
In the case of loss, only a CITROËN dealer can provide In the case of loss, only a In the case of loss, only a
you with new keys or remote controls.
Never attempt to modify the electronic immobiliser’s electri-cal circuit, as that could render your vehicle undriveable.
Central locking with the key
Turn the key briefl y in the door lock. The vehicle is locked.
Deadlocking : Central locking with the key
Turn the key a second time in the door lock. The vehicle is dead-locked. It is then impossible to open the doors from the inside or from the outside.
A long action with the key closes the windows.
Note : With thevehicle stationary and the engine switched off, lock-ing is signalled by the fl ashing of the warning lamp on the interior locking control.
If any of the doors, or the boot, is open or not properly closed, a re-bound sound signals to you that it is impossible to lock the vehicle.
K E Y S
All the vehicle keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue is established between the ignition key and the electronic im-mobiliser device.
If the key is not recognised, starting is impossible.
If this happens, leave your ve-hicle immobilised and contact a CITROËN dealer.
Electronic immobiliser
The ELECTRONIC IMMOBILISER locks the vehicle’s supply system.
The system activates automatically when the key is removed from the ignition.

AA
B
1
II
25

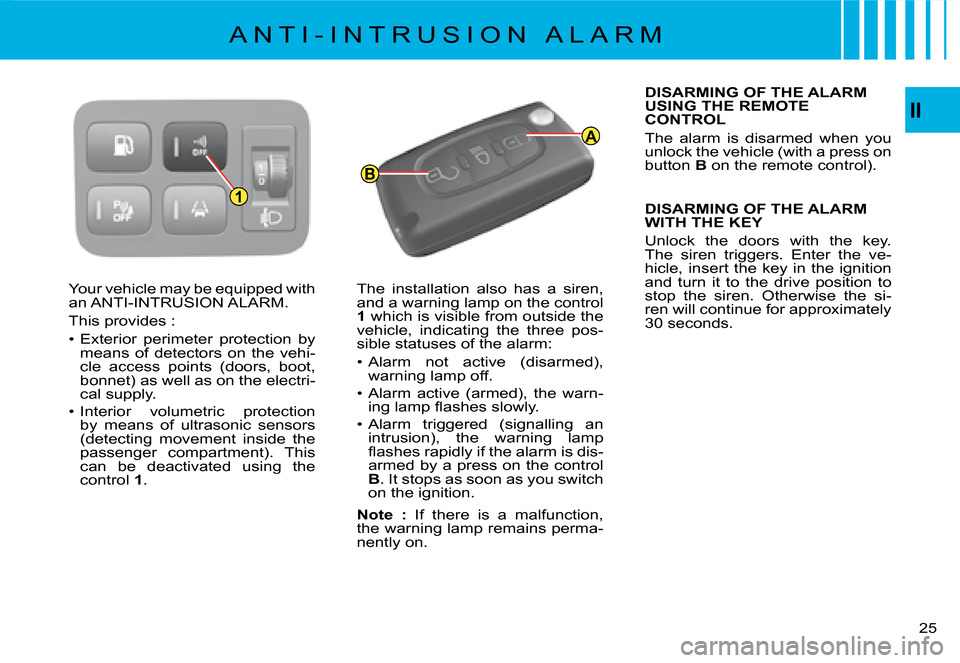

Your vehicle may be equipped with an ANTI-INTRUSION ALARM.
This provides :
• Exterior perimeter protection by means of detectors on the vehi-cle access points (doors, boot, bonnet) as well as on the electri-cal supply.
• Interior volumetric protection by means of ultrasonic sensors (detecting movement inside the passenger compartment). This can be deactivated using the control 1.
The installation also has a siren, and a warning lamp on the control 1 which is visible from outside the vehicle, indicating the three pos-sible statuses of the alarm:
• Alarm not active (disarmed), warning lamp off.
• Alarm active (armed), the warn-ing lamp fl ashes slowly.
• Alarm triggered (signalling an intrusion), the warning lamp fl ashes rapidly if the alarm is dis-armed by a press on the control B. It stops as soon as you switch on the ignition.
Note : If there is a malfunction, the warning lamp remains perma-nently on.
DISARMING OF THE ALARM USING THE REMOTE CONTROL
The alarm is disarmed when you unlock the vehicle (with a press on button B on the remote control).
DISARMING OF THE ALARM WITH THE KEY
Unlock the doors with the key. The siren triggers. Enter the ve-hicle, insert the key in the ignition and turn it to the drive position to stop the siren. Otherwise the si-ren will continue for approximately 30 seconds.
A N T I - I N T R U S I O N A L A R M

II
55
Manual gearbox
1.Check that you are in neutral.
2. Do not touch the accelerator.
3. For Diesel engines : turn the key as far as position M. Wait for the preheater warning lamp to go off if this has come on.
4. Action the starter by turning the key until the engine starts (not more than ten seconds).
5. In ambient temperatures low-er than 0°C, declutch during the action on the starter to fa-cilitate starting. Then remove your foot slowly from the clutch pedal.
NEVER RUN THE ENGINE IN A SPACE THAT IS ENCLOSED OR INSUFFICIENTLY VENTILATED.
Electronic Gearbox System (6-speed)
1.Check that you are in position N.
2.Press fi rmly on the brake pedal.
3. Do not touch the accelerator. 4.For Diesel engines : turn the key as far as position M. Wait for the preheater warning lamp to go off if this has come on.
5. Action the starter by turning the key until the engine starts (not more than ten seconds).
Note : After the vehicle has had a prolonged stop or if the brake pedal has been applied several times when stationary, it is necessary to press the brake pedal fully down in order to authorise starting of the engine.
Advice
Vehicles equipped with a turbocharger
Never stop the engine without having allowed it to run for a few seconds at idle, this being the time required for t he turbocharger to return to a normal speed.
«Flicking the accelerator» at the moment of switching off the ignition could cause serious damage.
Note : If the engine fails to start at the fi rst attempt, switch off the ignition. Wait ten seconds, then action the starte r again as indicated above.
Automatic gearbox
1. Check that you are in position P or N.
2. Do not touch the accelerator.
3. For Dieselengines: turn the key as far as position M. Wait for the preheater warning lamp to go off if this has come on.
4. Action the starter by turning the key until the engine starts (not more than ten seconds).
Note : To exit from position P, press on the brake pedal before moving the selector.
S T A R T I N G T H E E N G I N E

4
3
A
2 1II
79
All lamps off
LIGHTING CONTROL
1 Stop
2 Automatic lighting
3 Sidelamps
4 Dipped beams / Main beams
Sidelamps on
Dipped beams / main beams on
Turn the ring A forwards.
Turn the ring A forwards.
Automatic lighting of headlamps
The sidelamps and dipped beams come on automatically when the ambient light is insuffi cient or if the windscreen wipers are in continuous operation.
Pull the control stalk fully towards you to swap between dipped beams and main beams.
EXTERIOR SIDE LIGHTERS
These illuminate :
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front doors.
Illumination / extinction
The side lighters come on :
- when you unlock the vehicle or press on the lighting button on the remote control.
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control to locate your vehicle.
They are timed to go out automatically.
They go out as soon as the light is again suffi cient or approx. 5 minutes after the windscreen wipers have ceased.
To activate this function, place the control A on position 2.
Do not cover the sunlight sen-sor which is located behind the interior rear view mirror and visible from outside the wind-screen.
Turn the ring A forwards.
S I G N A L L I N G

4
3
A
2 1II
79
All lamps off
LIGHTING CONTROL
1 Stop
2 Automatic lighting
3 Sidelamps
4 Dipped beams / Main beams
Sidelamps on
Dipped beams / main beams on
Turn the ring A forwards.
Turn the ring A forwards.
Automatic lighting of headlamps
The sidelamps and dipped beams come on automatically when the ambient light is insuffi cient or if the windscreen wipers are in continuous operation.
Pull the control stalk fully towards you to swap between dipped beams and main beams.
EXTERIOR SIDE LIGHTERS
These illuminate :
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mirrors and rearward of the front doors.
Illumination / extinction
The side lighters come on :
- when you unlock the vehicle or press on the lighting button on the remote control.
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control to locate your vehicle.
They are timed to go out automatically.
They go out as soon as the light is again suffi cient or approx. 5 minutes after the windscreen wipers have ceased.
To activate this function, place the control A on position 2.
Do not cover the sunlight sen-sor which is located behind the interior rear view mirror and visible from outside the wind-screen.
Turn the ring A forwards.
S I G N A L L I N G
