71
IV
A C C E S S
Deadlocking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
This also triggers the timed switching
on of the exterior lateral lights and
guide-me-home lighting, if this is
activated.
First press button A to fold the
key.
Locating your vehicle
Press the closed padlock to lo-
cate your locked vehicle in a car
park.
This is indicated by lighting of the
courtesy lights and exterior side
l i g h t s a n d fl a s h i n g o f t h e d i r e c t i o n
indicators for a few seconds. Guide-me-home lighting
A press on button
B operates the
guide-me-home lighting (lighting of
the sidelamps, dipped beams, num-
ber plate lamps and exterior side
lighters (located underneath the ex-
terior rear view mirrors)).
A second press before the end of
the timing cancels the guide-me-
home lighting.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning light, an
audible signal and a
message on the multifunction display.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
Page 83 of 330
73
IV
A C C E S S
Remote control problem
Following disconnection of the
vehicle battery, replacement of the
remote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a
CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2
(Ignition) .
Press the closed padlock imme-
diately for a few seconds.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is avail-
able from CITROËN dealers.
I f t h e b a t t e r y i s fl a t ,
you are informed by
lighting of this warning
light, an audible signal
and a message on the
multifunction display.

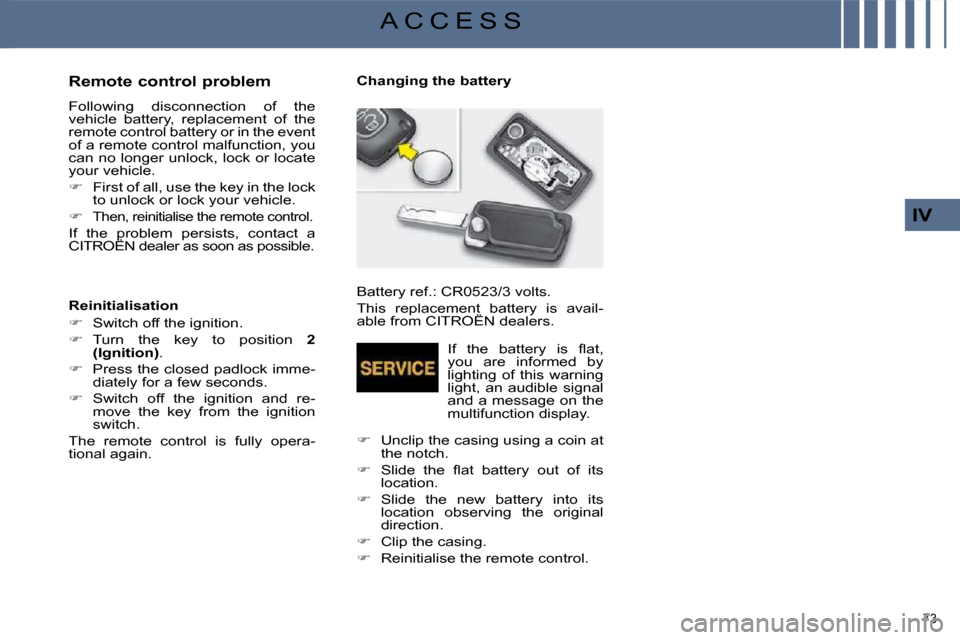

Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing.
Reinitialise the remote control.
Changing the battery
Page 89 of 330
80
IV
A C C E S S
Unlocking
Press button A again to unlock
the vehicle.
The red indicator light on the button
switches off.

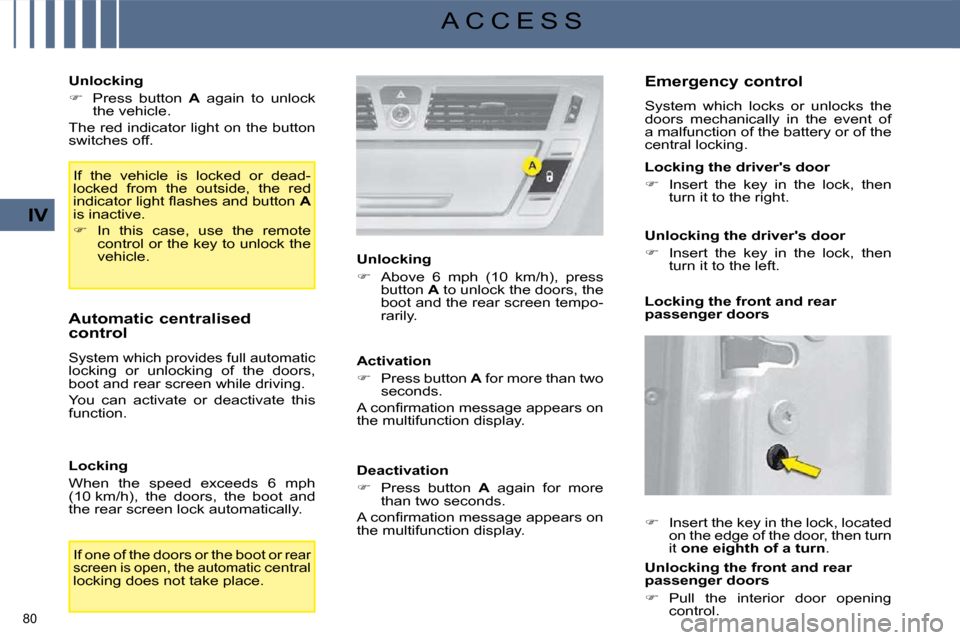

If the vehicle is locked or dead-
locked from the outside, the red
i n d i c a t o r l i g h t fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
Automatic centralised
control
System which provides full automatic
locking or unlocking of the doors,
boot and rear screen while driving.
You can activate or deactivate this
function.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and
the rear screen lock automatically. Unlocking
Above 6 mph (10 km/h), press
button A to unlock the doors, the
boot and the rear screen tempo-
rarily.
Activation
Press button A for more than two
seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction display.
Deactivation
Press button A again for more
than two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n
the multifunction display. Emergency control
System which locks or unlocks the
doors mechanically in the event of
a malfunction of the battery or of the
central locking.
Locking the driver's door
Insert the key in the lock, then
turn it to the right.
Unlocking the driver's door
Insert the key in the lock, then
turn it to the left.
Locking the front and rear
passenger doors
Insert the key in the lock, located
on the edge of the door, then turn
it one eighth of a turn .
Unlocking the front and rear
passenger doors
Pull the interior door opening
control.
If one of the doors or the boot or
rear
screen is open, the automatic central
locking does not take place.
Page 90 of 330
81
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning
this warning light
comes on, accompanied
by a message on the
multifunction display for
a few seconds,
-
when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives you enhanced
access to your boot, even if you are
parked close to a wall or another
vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning
, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open,
you
can access the boot by raising the rear
shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 92 of 330
81
A C C E S S
BOOT
After unlocking the vehicle com-
pletely using the remote control
or the key, with the rear screen
closed, pull on the handle 1 and
raise the tailgate.
Lower the tailgate using one of
the two handholds 3 , located on
the interior boot trim. -
when the engine is run-
ning
this warning light
comes on, accompanied
by a message on the
multifunction display for
a few seconds,
-
when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
If the tailgate is not closed correctly:
REAR SCREEN
This opening gives you enhanced
access to your boot, even if you are
parked close to a wall or another
vehicle. Closing
Lower the rear screen guiding
it with the wiper arm until it is
closed.
If the rear screen is not closed
correctly: - when the engine is run-
ning
, this warning light
comes on, accompanied
by a message on the mul-
tifunction display for a few
seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
this warning light comes on, ac-
companied by an audible signal
and a message on the multifunc-
tion display for a few seconds.
The boot and the rear screen
cannot both be open at the same
time.
When the rear screen is open,
you
can access the boot by raising the rear
shelf using its tab (C4 Picasso).
After unlocking the vehicle com-
pletely using the remote control
or the key, with the boot closed,
press the control 2 and raise the
rear screen using the base 4 of
the wiper arm.
Past the balancing point, allow
the tailgate to lower and close
itself (do not assist it or slow it
down).
Opening
Opening
Closing
Page 96 of 330
85
V I S I B I L I T Y
V
LIGHTING CONTROLS
System for selection and control of
the various front and rear lights pro-
viding the vehicle's lighting.
Main lighting
The various front and rear lights of
the vehicle are designed to adapt
the driver's visibility progressively in
relation to the climatic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear,
- directional headlamps for improved visibility when cornering.
Additional lighting
O t h e r l i g h t s a r e i n s t a l l e d t o f u l fi l t h e
requirements of particular driving
conditions:
- a rear fog lamp to be seen from a distance,
- front fog lamps for even better visibility,
- daytime lights to be seen during the day. Programming
Various automatic lighting control
modes are also available according
to the following options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting.
Manual controls
lights off,
automatic switching on of
the lights,
side lights only,
dipped headlamps or
main beam headlamps.
B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights
modes, the driver can switch on
the main beam headlamps directly
( " h e a d l a m p fl a s h " ) f o r a s l o n g a s h e
pulls the lever.
Displays
Lighting of the corresponding indi-
cator light on the instrument panel
c o n fi r m s t h e s e l e c t i v e s w i t c h i n g o n
of the lighting selected.
The lighting commands are issued
directly by the driver by means of
the ring
A and the lever B .
A. main lighting mode selection ring,
with:
Page 98 of 330
87
V I S I B I L I T Y
V
* According to country.
Daytime lights
System which permits automatic
switching on of the special lights at
the front, so that you can be seen
during the daytime.
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the corresponding lights come on
when the vehicle is started * .
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, except on switching to the auto-
matic switching on of the lights mode
or when the lights are switched on
manually.
Programming
Manual guide-me-home
lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle's ignition has been switched
off makes the driver's exit easier
when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lights stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home lighting
is also available by pressing the lights
button on the remote control (refer to
the section "Accesses - § Remote
c o n t r o l k e y " ) . Automatic lighting
The side lights and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is
accompanied by a message on
the multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction display.
In countries in which
this function is not
imposed by regula-
tions, you can activate
or deactivate it via the
multifunction display
c o n fi g u r a t i o n m e n u .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the side lights and the number plate lights are also switched on.
Page 99 of 330
88
V I S I B I L I T Y
V
Linked with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the duration of main-taining of the lighting for 15, 30
or 60 seconds in the vehicle
parameters on the multifunc-
t i o n d i s p l a y c o n fi g u r a t i o n m e n u
(in the case of the monochrome
s c r e e n A , t h e d u r a t i o n i s fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction display, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sensor,
linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror; the
associated functions would no longer
be controlled. EXTERIOR SIDE LIGHTERS
These illuminate:
- the zones facing the driver’s and passenger’s doors,
- the zones forward of the door mir- rors and rearward of the front doors.
Switching on
The side lighters come on:
- when you unlock the vehicle or press on the lighting button on
the remote control,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automatically.
MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the left of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum autho-
rised loads.
-. Intermediate setting.
3.
Driver + maximum authorised loads.
Initial setting is position "0" .
Page 100 of 330
89
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE DIRECTIONAL HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle. If a malfunction occurs,
this warning light is dis-
played on the instrument
panel, accompanied by
an audible signal and a
message on the multi-
function display.
The system then places your head-
lamps in the lowest position.
Do not touch the xenon headlamps.
Consult a CITROËN dealer.
DIRECTIONAL LIGHTING
When the dipped or main beam
headlamps are on, this function
enables the light beam to follow the
direction of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activated
or deactivated via the
multifunction display
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l i g h t fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction display.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n -
ning lights, the function is activated
if the lights stalk is in the "AUTO"
or "Dipped/main beam headlamps"
position. In position "0" , the func-
tion is not activated.
Page 101 of 330
87
V I S I B I L I T Y
V
* According to country.
Daytime lights
System which permits automatic
switching on of the special lights at
the front, so that you can be seen
during the daytime.
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the corresponding lights come on
when the vehicle is started * .
The instruments and controls (instru-
ment panel, multifunction display, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, except on switching to the auto-
matic switching on of the lights mode
or when the lights are switched on
manually.
Programming
Manual guide-me-home
lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle's ignition has been switched
off makes the driver's exit easier
when the light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lights stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
The manual guide-me-home lighting
is also available by pressing the lights
button on the remote control (refer to
the section "Accesses - § Remote
c o n t r o l k e y " ) . Automatic lighting
The side lights and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is
accompanied by a message on
the multifunction display.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction display.
In countries in which
this function is not
imposed by regula-
tions, you can activate
or deactivate it via the
multifunction display
c o n fi g u r a t i o n m e n u .
In countries in which it is imposed by
regulations:
- by default, this function is acti- vated,
- the side lights and the number plate lights are also switched on.
