135
IX
D R I V I N G
Displays on the instrument panel
- The selector position is displayed in the instrument panel, on the
left on multifunction screens A
and C and on the right on the
NaviDrive multifunction screen.
- A background-lit position grille associated with the selector
allows you to view the position
selected.
When the ignition is on,
lighting of the service
warning lamp, accompa-
nied by a sound signal and the
message "Gearbox faulty" indi-
cates a malfunction.
Consult a CITROËN dealer.
For safety:
Position N can only be disen-
gaged if you are pressing the
brake pedal.
If the gearbox is in position N
but the selector position is differ-
ent, reposition the selector on N
in order to be able to start. Moving off
To start the engine, the selector
has to be in position N .
P r e s s fi r m l y o n t h e b r a k e p e d a l .
Action the starter.
When the engine is running,
place the selector on R , A or M
as desired.
Check, in the instrument panel,
the position engaged.
Release the brake pedal and
accelerate.
If the selector is not in position N ,
and/or if the brake pedal is not
pressed, the corresponding warning
lamp(s) are displayed and a mes-
sage informs you that at least one of
these two conditions is not met.
In this case, the engine will not start,
recommence the above procedure. Reverse gear
Engaging reverse gear
To engage reverse gear, move the
selector to R .
Only attempt to change to reverse
gear when the vehicle is stationary.
If the vehicle is moving rapidly, if an in-
advertent attempt to engage reverse
gear is made, the warning lamp N will
fl a s h a n d y o u r v e h i c l e w i l l g o a u t o -
matically into neutral. To re-engage a
gear, you have only to reposition the
selector on A , M or R .
Neutral Changing to neutral
To change to neutral, move the
selector to N . If the vehicle is
moving, do not select this position
even momentarily.
Page 174 of 330
139
D R I V I N G

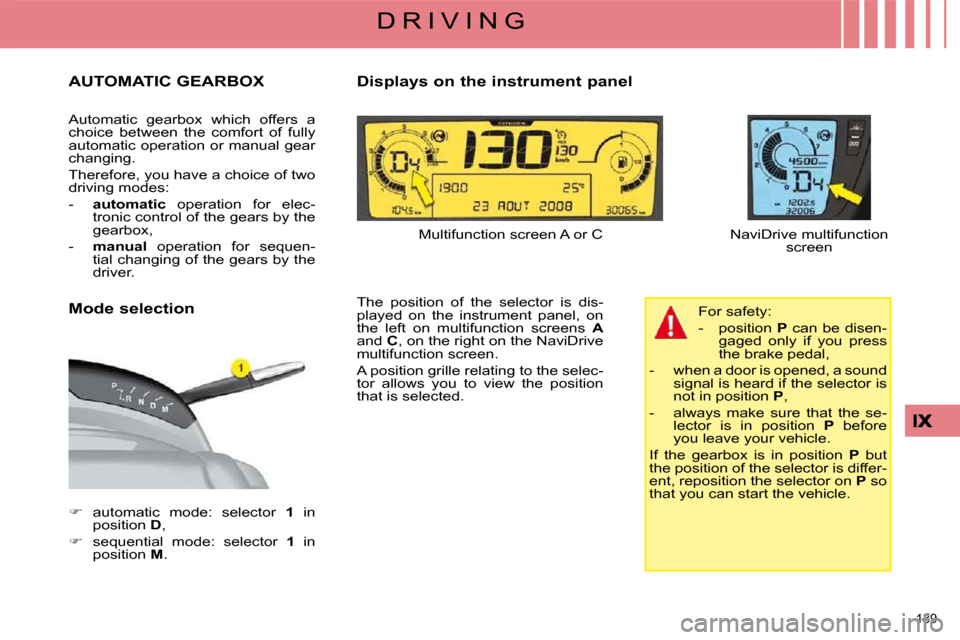

AUTOMATIC GEARBOX
Automatic gearbox which offers a
choice between the comfort of fully
automatic operation or manual gear
changing.
Therefore, you have a choice of two
driving modes:
- automatic operation for elec-
tronic control of the gears by the
gearbox,
- manual operation for sequen-
tial changing of the gears by the
driver.
automatic mode: selector 1 in
position D ,
sequential mode: selector 1 in
position M . The position of the selector is dis-
played on the instrument panel, on
the left on multifunction screens
A
and C , on the right on the NaviDrive
multifunction screen.
A position grille relating to the selec-
tor allows you to view the position
that is selected. For safety:
- position
P can be disen-
gaged only if you press
the brake pedal,
- when a door is opened, a sound signal is heard if the selector is
not in position P ,
- always make sure that the se- lector is in position P before
you leave your vehicle.
If the gearbox is in position P but
the position of the selector is differ-
ent, reposition the selector on P so
that you can start the vehicle.
Displays on the instrument panel
Multifunction screen A or C NaviDrive multifunction screen
Mode selection
Page 177 of 330
142
D R I V I N G
Manual operation
Position of the selector for manual
gear changing.
Move the selector to
position M .
Pull the lever "+" to change up a
gear.
Pull the lever "-" to change down
a gear.
- If the vehicle stops or reduces speed (for example when ap-
proaching a stop sign), the gear-
box changes down automatically
t o fi r s t g e a r .
- In sequential mode, it is not nec- essary to release the accelerator
during gear changes.
- A request to change gear is ac- cepted only if the engine speed
permits it. - For safety reasons, depending
on the engine speed, a change
up or down may be performed
automatically.
- It is possible at any time to move from position D (driving in
automatic mode) to position M
(driving in sequential mode) or
vice versa.
T h e fl a s h i n g o f t h e w a r n -
ing lamp for the position
requested signals that this
position is not yet obtained.
I f t h e w a r n i n g l a m p i s o n fi x e d , t h e
p o s i t i o n i s c o n fi r m e d .
Display of a dash in the rev counter
indicates a malfunction. Consult a
CITROËN dealer.
Lighting of the service warning
lamp accompanied by a message
and a sound signal indicates a
functioning anomaly. In this case:
- a marked snatching may be felt when selecting R for reverse
gear,
- the gearbox is locked on a gear,
- do not exceed a speed of 100 km/h (approx. 60 mph).
Consult a CITROËN dealer.
Page 179 of 330
144
IX
D R I V I N G
Optional function controls
1. Pick up/Hang up the telephone
(see "NaviDrive" instructions).
2. Rheostat for dashboard lighting.
3. Start of voice recognition (see
chapter "Audio" or "NaviDrive"
instructions).
4. Personalisation button:
- courtesy light on/off or
- diagnostics or
- personalisation of the display- ing of information on the in-
strument panel or
- choice of background colour for the instrument panel.
To view the personalisation menu via this button, press it
for more than two seconds.
5. Air recirculation. Multifunction screen controls
A. Selection of the type of informa-
tion to be displayed on the right
of the screen (radio, trip compu-
ter, navigation/guidance…).
For the multifunction screen A, choice of activation/deactivation
of your functions and adjustment
choices.
B. Access to the "Main Menu" * .
C. Validation of the function chosen
o r o f t h e v a l u e m o d i fi e d .
Pick up/Hang up (see chapter "Audio").
D. Scrolling in the multifunction
screen.
E. Cancellation of the current op-
eration or return to the previous
display.
* To comply with legislation in certain countries, the "Menu" control may
be deactivated while the vehicle is
in motion.
Page 180 of 330
145
D R I V I N G
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
Once the limit speed has been
reached, the accelerator pedal no
longer has any effect.
The speed limiter is switched on manu-
ally: a speed of at least 30 km/h (around
20 mph) must be programmed.
The speed limiter controls are located
on the left-hand side of the steering
wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Steering wheel controls Displays on the instrument
panel
Programming
Rotate the control
1 to the "LIM"
position. With the engine running, you can
adjust the memorised maximum
speed, by means of short or long
presses on:
button 4 to increase the memo-
rised maximum speed,
button 2 to decrease the memo-
rised maximum speed.
Successive presses will modify the
maximum speed in steps of 1 mph
and a sustained press in steps of
3 mph.
Activation
When the desired maximum speed
is displayed, press button 3 so that
the limitation is activated.
On selection of the
function, the previous
memorised speed and
the information "OFF"
are displayed: The information
"OFF"
then disappears from
the instrument panel
display.
While the function is active, pressing
the accelerator pedal will not enable
the programmed speed to be
exceeded, except if you press the
pedal hard down to beyond the end-
of-travel switch.
The speed of your vehicle may vary
slightly in relation to that memorised.
The speed limiter cannot, in any
circumstances, take the place of
the observance of speed limits or
of the vigilance and responsibility
of the driver.
Page 181 of 330
146
IX
D R I V I N G
Deactivation
Press on button 3 .
This action causes the
information "OFF" to
appear on the instru-
ment panel display.
This action does not cancel the
memorised maximum speed which
remains displayed in zone A of the
instrument panel.
Override of the programmed
speed
The accelerator pedal is equipped
with an end-of-travel switch. If you
action this switch by pressing the
pedal hard down, you can exceed
the memorised maximum speed at
any time.
During the time the speed is be-
ing exceeded, the displayed speed
fl a s h e s .
You have only to release the ac-
celerator pedal to return below the
maximum speed and render the
function active again. Return to normal driving
By moving the control 1 from
position "LIM" to position 0 .
By the engine stopping.
The speed previously chosen is still
memorised. Operating fault
If there is a speed limiter malfunc-
tion, a message will display accom-
panied by a sound signal and lighting
of the service warning lamp.
Have it checked by a CITROËN
dealer.
If during the operation of the speed
limiter, the system is unable to keep
within the maximum speed (for exam-
ple on a steep descent or under heavy
a c c e l e r a t i o n ) t h e n t h e s p e e d fl a s h e s .
Adapt your speed as necessary.
The function will re-engage when
your speed returns below the de-
sired maximum speed.
On a steep downhill gradi-
ent or on sharp accelera-
tion, the speed limiter will
not be able to prevent the vehicle
from exceeding the programmed
speed.
U s e o f fl o o r m a t s t h a t a r e n o t
approved by CITROËN may hinder
access to the accelerator pedal and
thus interfere with the functioning
of the speed limiter.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
Page 182 of 330
147
IX
D R I V I N G
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (approx. 40 km/h)
and you must engage:
- fourth gear on a manual gearbox,
- second gear, in sequential mode, on an electronic gearbox or
automatic gearbox,
- position A on an electronic gear-
box or D on an automatic gearbox.
Steering wheel controls
The cruise control commands are
located on the left-hand side of the
steering wheel. The programmed information is
grouped together in zone
A of the
instrument panel display.
Displays on the instrument
panel
Activation You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The speed of your vehicle may vary
slightly in relation to that memo-
rised.
You can adjust the memorised speed
on the instrument panel display by
pressing on:
button 4 to increase the speed,
button 2 to decrease the speed.
Successive presses modify the
cruise speed in steps of 1 mph and a
sustained press in steps of 3 mph.
Deactivation
Either by pressing on the brake
pedal or on the clutch pedal.
Or by pressing button 3 .
Or if either the ESP or the ASR
system is active.
The cruise control is not active if the
gear lever is in neutral.
On selection of the
function via control
1,
no cruise speed has
yet been memorised .
Programming
Rotate the control
1 to the "REG"
position.
Once the desired speed has been
reached via action on the accelera-
tor, press button 2 or button 4 . The
cruise speed is then memorised. It
is displayed in zone A of the instru-
ment panel. These actions cause
the information
"OFF"
to appear on the instru-
ment panel display.
These manoeuvres do
not cancel the cruise
speed which remains
displayed in the instru-
ment panel.
The cruise control cannot, in any
circumstances, take the place of
the observance of speed limits or
of the vigilance and responsibility
of the driver.
Page 183 of 330
148
IX
D R I V I N G
Reactivation
By recall of the memorised
speed
After a disengagement, press on button 3 . Your vehicle automati-
cally returns to the memorised
cruise speed which is displayed
in zone A .
If the memorised cruise speed is higher than the current speed,
the vehicle will accelerate to
reach the former.
By selection of the current
speed
Press on button 2 or 4 once the
desired speed has been reached.
The information "OFF" will then
disappear from the instrument
panel display.
Overriding the programmed
speed
During the operation of cruise con-
trol, it is always possible to action
the accelerator to go faster than the
cruise speed (for example to over-
take another vehicle). The speed
displayed in zone A fl a s h e s .
You have only to release the accel-
erator pedal to return to the cruise
speed. If during the operation of cruise
control, the system is unable to
keep within the memorised speed
(for example on a steep descent),
t h e n t h e s p e e d fl a s h e s . A d a p t y o u r
speed as necessary.
Return to normal driving Operating fault
If there is a malfunction, a message
will display accompanied by a sound
signal and lighting of the service
warning lamp.
Have it checked by a CITROËN dealer.
Cruise control should only
be used when the driving
conditions allow you to drive
at a constant speed.
D o n o t u s e i t i n h e a v y t r a f fi c , o r o n
dangerous or slippery roads.
The driver must remain attentive
and in full control of his vehicle.
You are recommended to keep your
feet within range of the pedals.
To avoid any risk of interfering with
the pedals:
- c h e c k t h a t t h e fl o o r m a t i s c o r - rectly positioned,
- n e v e r u s e m o r e t h a n o n e fl o o r mat.
By an action on the control 1 from
position "REG" to position 0 .
By the engine stopping.
The cruise speed previously chosen is no longer memorised.
Page 184 of 330
149
IX
D R I V I N G

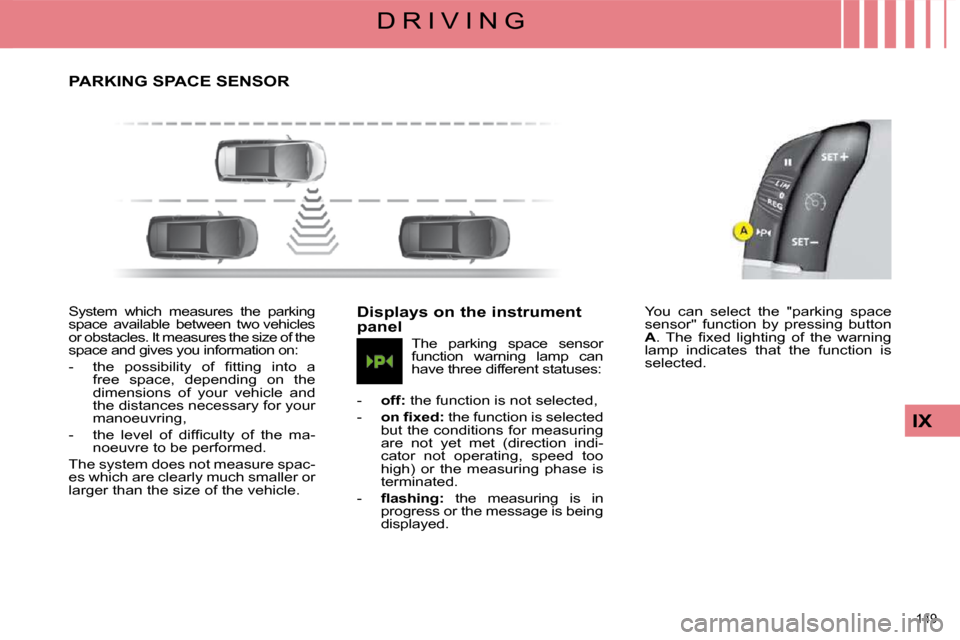

PARKING SPACE SENSOR
System which measures the parking
space available between two vehicles
or obstacles. It measures the size of the
space and gives you information on:
- t h e p o s s i b i l i t y o f fi t t i n g i n t o a free space, depending on the
dimensions of your vehicle and
the distances necessary for your
manoeuvring,
- t h e l e v e l o f d i f fi c u l t y o f t h e m a - noeuvre to be performed.
The system does not measure spac-
es which are clearly much smaller or
larger than the size of the vehicle. Displays on the instrument
panel
The parking space sensor
function warning lamp can
have three different statuses:
- off: the function is not selected,
- o n fi x e d : the function is selected
but the conditions for measuring
are not yet met (direction indi-
cator not operating, speed too
high) or the measuring phase is
terminated.
- fl a s h i n g : the measuring is in
progress or the message is being
displayed. You can select the "parking space
sensor" function by pressing button
A . T h e fi x e d l i g h t i n g o f t h e w a r n i n g
lamp indicates that the function is
selected.
Page 185 of 330
150
IX
D R I V I N G
Operation
Y o u h a v e i d e n t i fi e d a p a r k i n g s p a c e :
Press button A to select the function.
Activate the direction indicator
on the side where the space is to
be measured.
During the measuring, go
forward the length of the space,
at a speed less than 12 mph
(approx. 20 km/h), to prepare for
your manoeuvre.
The system then measures the size of the space.
The system informs you of the
l e v e l o f d i f fi c u l t y o f t h e m a n o e u v r e
via a message on the multifunction
screen accompanied by a gong.
Depending on the message is-
sued by the system, you may or
may not be able to perform the
manoeuvre. Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
The function displays the following
types of message: The function deselects itself auto-
matically:
- when you engage reverse gear,
- when you switch off the ignition,
- if measuring is not requested,
- w i t h i n fi v e m i n u t e s o f s e l e c t i o n o f
the function,
- if the vehicle speed exceeds the threshold of 45 mph (approx.
70 km/h) for one minute.
If there is a malfunction,
have the system checked
by a CITROËN dealer.
If the lateral distance between your
vehicle and the parking space is too
large, the system may not be able to
measure the space.
- The function remains available
after each measurement and
thus can measure more than
one space during your search.
- In bad weather conditions or in winter, make sure that the sensors
are not covered by dirt, or by ice or
snow.
- The parking space sensor function deactivates the front
parking assistance during the
space measuring phase when
you are in forward gear.
