Page 11 of 337
14
F A M I L I A R I S A T I O N

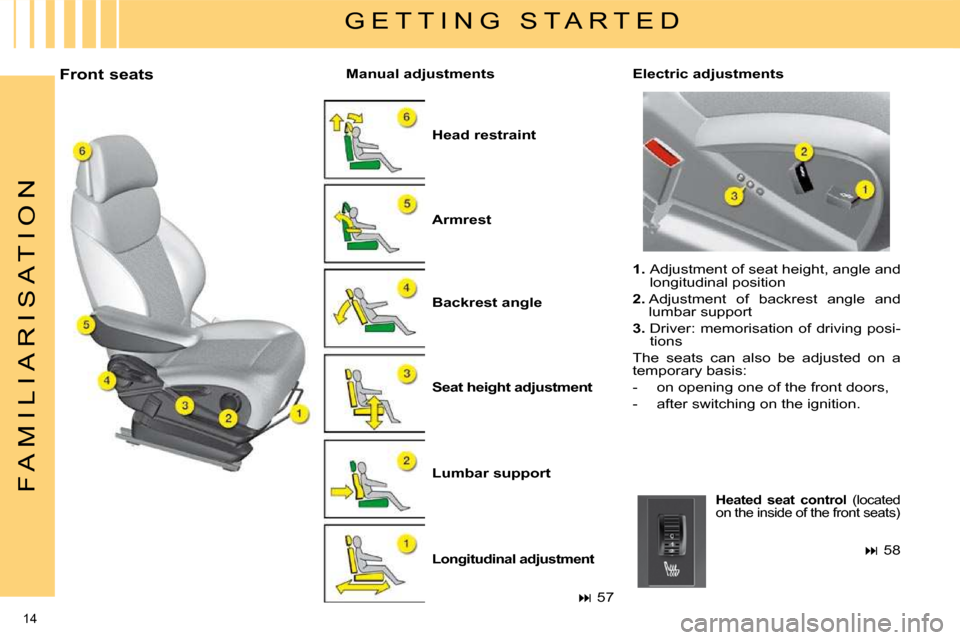

Front seats
Head restraint
Backrest angle
Seat height adjustment
Lumbar support
Longitudinal adjustment
Armrest Electric adjustments
Manual adjustments
58
Heated seat control (located
on the inside of the front seats)
57
1. Adjustment of seat height, angle and
longitudinal position
2. Adjustment of backrest angle and
lumbar support
3. Driver: memorisation of driving posi-
tions
The seats can also be adjusted on a
temporary basis:
- on opening one of the front doors,
- after switching on the ignition.
G E T T I N G S T A R T E D
Page 12 of 337
15
F A M I L I A R I S A T I O N
Adjusting the steering wheel
The steering wheel can be adjusted for
height and reach.
Unlock the steering wheel by pulling
control A towards you.
Adjust the position of the steering
wheel then lock it pushing the control
fuly back.
67 It automatically and progressively chang-
es between day use and night use.
It can be deactivated using control
1 .
This operates with the ignition switched on.
From the driver’s seat, select the rear
view mirror by moving control 1 to the
left or right, then adjust the rear view
m i r r o r a s r e q u i r e d i n f o u r d i r e c t i o n s u s -
ing control 2 .
Demisting-deicing of the rear view mir-
rors is linked to that of the rear screen.
93
66
For safety reasons, these adjust-
ments must not be carried out whilst
driving. Child monitoring mirror
This additional mirror
2 allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle.
Rear view mirrors foldback
When the vehicle is parked, the rear
view mirrors can be folded back either
manually or automatically.
G E T T I N G S T A R T E D
Automatic photochromic
interior rear view mirror Rear view mirrors adjustment
67
Page 13 of 337
16
F A M I L I A R I S A T I O N

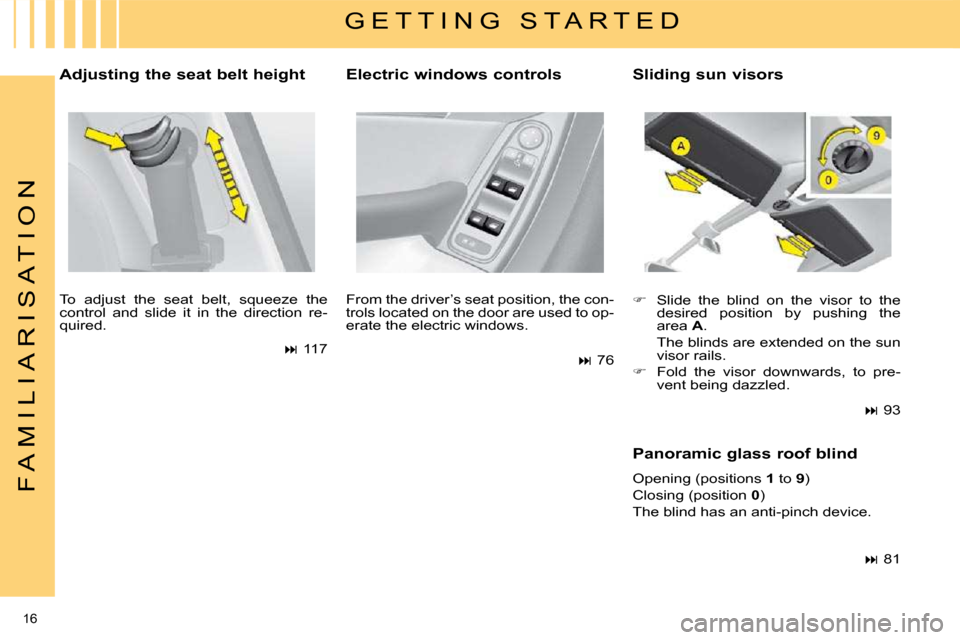

Adjusting the seat belt height
T o a d j u s t t h e s e a t b e l t , s q u e e z e t h e
control and slide it in the direction re-
q u i r e d .
117 From the driver’s seat position, the con-
trols located on the door are used to op-
erate the electric windows.
76
Slide the blind on the visor to the
desired position by pushing the
area A .
The blinds are extended on the sun visor rails.
Fold the visor downwards, to pre-
vent being dazzled.
Panoramic glass roof blind
Opening (positions 1 to 9 )
Closing (position 0 )
The blind has an anti-pinch device.
81
G E T T I N G S T A R T E D
Electric windows controls Sliding sun visors
93
Page 14 of 337
17
F A M I L I A R I S A T I O N
Ring B Ring D: rear screen wipe Stop.
Intermittent.
Timed wash and wipe. Fixed centred controls steering
wheel
Lighting control
Ring A
85 Control C: windscreen wipe
89
D R I V I N G
1. Off
2. Automatic lighting
3. Sidelamps
4. Dipped beam/Main beam
Front foglamps
Rear foglamp Wiper control
1. Optional function controls
2. Cruise control/speed limiter and
parking space sensor
3. Audio system controls
4. Multifunction screen controls
142
5. Horn
113
6. Warning lamps for direction indica-
tors and vehicle lamps
27
84 Switching on "AUTO" mode
Press the control down and release it.
Switching off "AUTO" mode
Press the control up and return it to
position "0" .
Automatic wipe must be reactivated
each time the vehicle is started.
Page 15 of 337
18
F A M I L I A R I S A T I O N

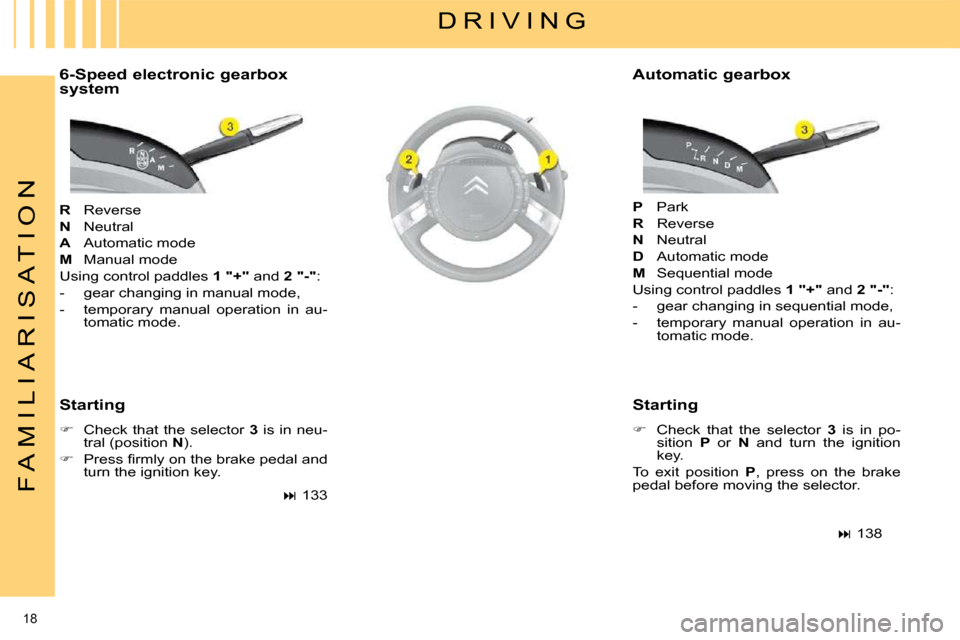

6-Speed electronic gearbox
system
R Reverse
N Neutral
A Automatic mode
M Manual mode
Using control paddles 1 "+" and 2 "-" :
- gear changing in manual mode,
- temporary manual operation in au- tomatic mode.
P Park
R Reverse
N Neutral
D Automatic mode
M S e q u e n t i a l m o d e
Using control paddles 1 "+" and 2 "-" :
- g e a r c h a n g i n g i n s e q u e n t i a l m o d e ,
- temporary manual operation in au- tomatic mode.
Starting
Check that the selector 3 is in neu-
tral (position N ).
P r e s s fi r m l y o n t h e b r a k e p e d a l a n d
turn the ignition key.
133 Starting
Check that the selector 3 is in po-
sition P or N and turn the ignition
key.
To exit position P , press on the brake
pedal before moving the selector.
138
D R I V I N G
Automatic gearbox
Page 16 of 337
19
F A M I L I A R I S A T I O N
148
Electric parking brake
Before leaving the vehicle, check
that the electric parking brake warn-
ing lamp P (red) is permanently on.
If you leave the vehicle with the en-
gine running, manually apply the
parking brake.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. Parking space sensor
You can select this function by pressing
on button
A .
Once the space has been measured, the
function displays the following messages:
< 20 km/h (12 mph)
Parking possible
P a r k i n g d i f fi c u l t
Parking not advised
This device combines:
- automatic functions: Automatic ap-
plication when the engine stops and
automatic release on use of the ac-
celerator (automatic operation by
default);
- manual use: Manual application/re- lease of parking brake is possible
by operating control A . Hill start assist
To aid starting on a gradient, your ve-
h i c l e i s e q u i p p e d w i t h a s y s t e m w h i c h
keeps it immobilised for about 2 sec-
onds, the approximate time it takes to
move your foot from the brake pedal to
the accelerator pedal.
132
D R I V I N G
125
Page 17 of 337
20
F A M I L I A R I S A T I O N
Driver's and front passenger's control panel
Automatic air conditioning
Rear passengers' control panel
V E N T I L A T I O N
1. Automatic comfort regulation.
2. Adjustment and display of driver's
temperature.
3. Adjustment of air blower speed.
Maintaining of ventilation with the engine switched off (REST).
4. Adjustment and display of air distri-
bution.
5. Air recirculation.
6. Mode of adjustment for rear pas-
sengers.
7. Panel and buttons display mode
(black panel).
8. Demisting/defrosting of rear screen
and rear view mirrors.
9. Rapid demisting/defrosting of wind-
screen and windows.
10. Air conditioning.
11. Adjustment and display of front pas-
senger's temperature.
49, 54
12. Adjustment of air blower speed.
52
13. Temperature adjustment (no warm
air distribution).
14. Adjustment of air blower speed.
53
Page 18 of 337
21
F A M I L I A R I S A T I O N

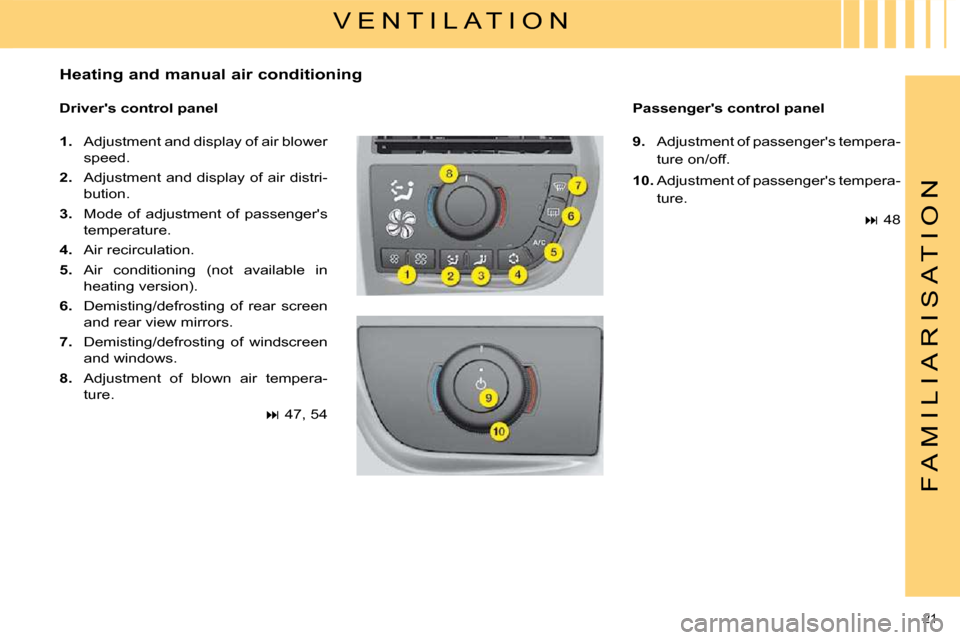

Heating and manual air conditioning Passenger's control panel
Driver's control panel
V E N T I L A T I O N
1. Adjustment and display of air blower
speed.
2. Adjustment and display of air distri-
bution.
3. Mode of adjustment of passenger's
temperature.
4. Air recirculation.
5. Air conditioning (not available in
heating version).
6. Demisting/defrosting of rear screen
and rear view mirrors.
7. Demisting/defrosting of windscreen
and windows.
8. Adjustment of blown air tempera-
ture.
47, 54
9. Adjustment of passenger's tempera-
ture on/off.
10. Adjustment of passenger's tempera-
ture.
48
Page 19 of 337
22
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you
if the driver’s or front passen-
ger’s seat belt is not fastened
(depending on model), and if
the front passenger’s (depend-
ing on model) or the second-
row passengers’ seat belts are
unfastened. The lit up positions
represent those whose seat belts are
not fastened/unfastened.
You can use electrical central locking or
unlocking by pressing on button A .
If one of the doors is open or is not
closed properly, central locking will not
work. Tyre deflation detection
This function warns you if a tyre is de-
fl a t e d o r p u n c t u r e d .
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp
lights up, and a vehicle out-
line is displayed, accompa-
nied by a message and an
audible signal.
D e fl a t i o n w a r n i n g
The
STOP warning lamp lights
up, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
30
114
Anti-intrusion security
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
reach approximately 10 km/h (approxi-
mately 6 mph).
This function can be deactivated by press-
ing button
A for more than two seconds.
78
M O N I T O R I N G
Locking from inside
Instrument panel
with multifunction screen A
24
with multifunction screen C
25
with NaviDrive multifunction screen
26
1. Instrument panel.
2. Multifunction screen.
3. Control buttons.
4. Warning lamps display zone.
Page 20 of 337
23
F A M I L I A R I S A T I O N

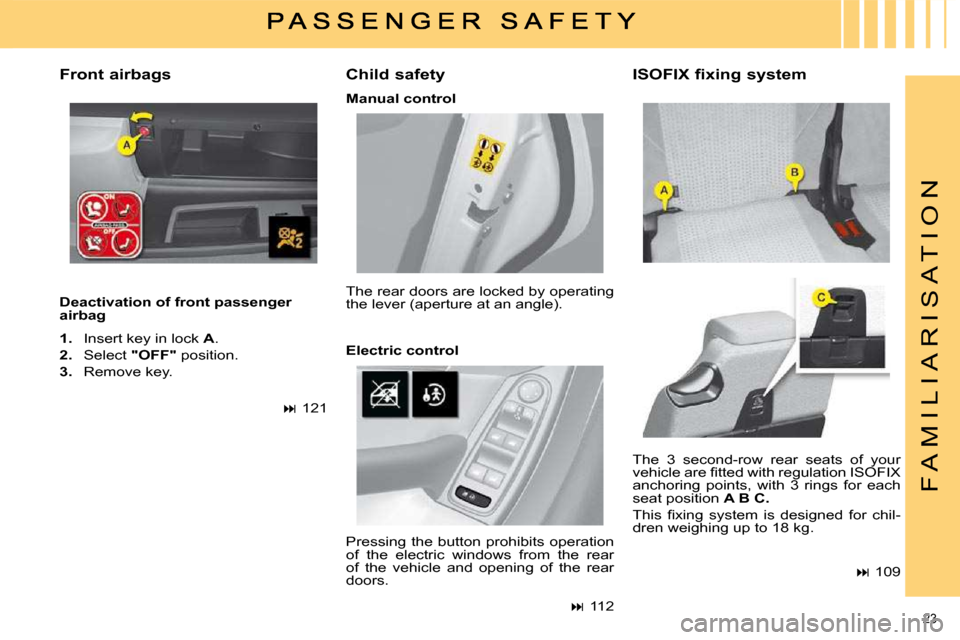

Deactivation of front passenger
airbag Child safety
The 3 second-row rear seats of your
v e h i c l e a r e fi t t e d w i t h r e g u l a t i o n I S O F I X
anchoring points, with 3 rings for each
seat position A B C.
T h i s fi x i n g s y s t e m i s d e s i g n e d f o r c h i l -
dren weighing up to 18 kg.
Electric control
121
112
109
Front airbags
Manual control
1. Insert key in lock A .
2. Select "OFF" position.
3. Remove key. The rear doors are locked by operating
the lever (aperture at an angle).
Pressing the button prohibits operation
of the electric windows from the rear
of the vehicle and opening of the rear
doors. ISOFIX fixing system
