TRIP COMPUTER
S y s t e m w h i c h p r o v i d e s c u r r e n t
i n f o r m a t i o n c o n c e r n i n g t h e r o u t e
t r a v e l l e d ( r a n g e , c o n s u m p t i o n . . . ) .
M o n o c h r o m e s c r e e n A Data displays
P r e s s t h e c o n t r o l f o r m o r e t h a n
t w o s e c o n d s t o r e s e t t o z e r o t h e
d i s t a n c e t r a v e l l e d , t h e a v e r a g e
c o n s u m p t i o n a n d t h e a v e r a g e
s p e e d .
Zero reset
T h e t r i p c o m p u t e r p r o v i d e s t h e f o l -
l o w i n g i n f o r m a t i o n : - range,
- c u r r e n t c o n s u m p t i o n ,
- d i s t a n c e t r a v e l l e d ,
- a v e r a g e c o n s u m p t i o n ,
- a v e r a g e s p e e d .
The next press then returns you
t o t h e n o r m a l d i s p l a y .
P r e s s t h e b u t t o n , l o c a t e d a t t h e
end of the wiper
s t a l k , to display
t h e v a r i o u s i t e m s o f t r i p c o m p u -
t e r d a t a i n s u c c e s s i o n .
Page 42 of 337
42
II
M U L T I F U N C T I O N S C R E E N S
TRIP COMPUTER
S y s t e m w h i c h p r o v i d e s c u r r e n t i n -
f o r m a t i o n c o n c e r n i n g t h e r o u t e t r a v -
e l l e d ( r a n g e , c o n s u m p t i o n , … ) .
M o n o c h r o m e s c r e e n C
N a v i D r i v e c o l o u r s c r e e n D i s p l a y o f i n f o r m a t i o n
Trip zero reset
P r e s s t h e b u t t o n , l o c a t e d a t t h e
end of the wiper
s t a l k , to display
t h e v a r i o u s t r i p c o m p u t e r i n f o r -
m a t i o n g r o u p s i n s u c c e s s i o n :
- t h e c u r r e n t i n f o r m a t i o n g r o u p w i t h :
Page 43 of 337
43
II
M U L T I F U N C T I O N S C R E E N S
" T r i p c o m p u t e r " m e n u
S y s t e m w h i c h p r o v i d e s g e n e r a l i n -
f o r m a t i o n c o n c e r n i n g t h e s t a t u s o f
c e r t a i n e q u i p m e n t w i t h w h i c h y o u r
v e h i c l e i s e q u i p p e d , s u c h a s t h e a l e r t
l o g , t h e s t a t u s o f t h e f u n c t i o n s . . .
A l e r t l o g
T h i s s u m m a r i s e s t h e a c t i v e w a r n i n g
m e s s a g e s , d i s p l a y i n g t h e m i n s u c -
c e s s i o n o n t h e m u l t i f u n c t i o n d i s p l a y .
S t a t u s o f f u n c t i o n s
T h i s s u m m a r i s e s t h e a c t i v e o r i n a c -
tive status of systems present on the
v e h i c l e .
Enter distance to destination
This enables you to enter an ap-
p r o x i m a t e v a l u e f o r t h e d i s t a n c e t o
t h e fi n a l d e s t i n a t i o n . M o n o c h r o m e s c r e e n C
" V e h i c l e D i a g n o s t i c s " m e n u
Press the "MENU" button to gain
a c c e s s t o t h e g e n e r a l m e n u .
Turn the dial and press it to
s e l e c t t h e " V e h i c l e D i a g n o s t i c s "
m e n u .
On the " V e h i c l e D i a g n o s t i c s "
m e n u , s e l e c t o n e o f t h e f o l l o w i n g
a p p l i c a t i o n s :
- " A l e r t l o g " ,
- " S t a t u s o f f u n c t i o n s " .
Press the "MENU" button to gain
a c c e s s t o t h e g e n e r a l m e n u .
Press the arrows, then the "OK"
b u t t o n t o s e l e c t t h e " T r i p c o m -
p u t e r " m e n u .
On the " T r i p c o m p u t e r " menu,
s e l e c t o n e o f t h e f o l l o w i n g a p p l i -
c a t i o n s :
- " A l e r t l o g " ,
- " S t a t u s o f f u n c t i o n s " ,
- " E n t e r d i s t a n c e t o d e s t i n a t i o n " . N a v i D r i v e c o l o u r s c r e e n
Page 44 of 337
44
II
M U L T I F U N C T I O N S C R E E N S
A f e w d e f i n i t i o n s … R a n g e
( k m o r m i l e s )
T h i s fi g u r e m a y v a r y f o l l o w i n g a
c h a n g e i n t h e s t y l e o f d r i v i n g o r
t h e r e l i e f , r e s u l t i n g i n a s i g n i fi c a n t
c h a n g e i n t h e c u r r e n t c o n s u m p t i o n .
When the range falls below 20 miles
( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r
fi l l i n g w i t h a t l e a s t 5 l i t r e s o f f u e l ,
t h e r a n g e i s r e c a l c u l a t e d a n d i s d i s -
p l a y e d w h e n i t e x c e e d s 6 0 m i l e s
( 1 0 0 k m ) .
I f d a s h e s a r e d i s p l a y e d c o n t i n u -
o u s l y w h i l e d r i v i n g i n p l a c e o f t h e
d i g i t s , c o n t a c t a C I T R O Ë N d e a l e r .
T h i s i n d i c a t e s t h e d i s t a n c e w h i c h
c a n s t i l l b e t r a v e l l e d w i t h t h e f u e l r e -
m a i n i n g i n t h e t a n k i n r e l a t i o n t o t h e
a v e r a g e c o n s u m p t i o n o v e r t h e l a s t
f e w m i l e s ( k i l o m e t r e s ) t r a v e l l e d .
C u r r e n t c o n s u m p t i o n
( l / 1 0 0 k m o r k m / l o r m p g )
A v e r a g e c o n s u m p t i o n
( l / 1 0 0 k m o r k m / l o r m p g )
This is the average quantity of fuel
c o n s u m e d s i n c e t h e l a s t t r i p c o m p u -
t e r z e r o r e s e t .
D i s t a n c e t r a v e l l e d
( k m o r m i l e s )
T h i s i n d i c a t e s t h e d i s t a n c e t r a v e l l e d
s i n c e t h e l a s t t r i p c o m p u t e r z e r o
r e s e t . A v e r a g e s p e e d
( k m / h o r m p h )
T h i s i s t h e a v e r a g e s p e e d c a l c u l a t -
e d s i n c e t h e l a s t t r i p c o m p u t e r z e r o
r e s e t ( i g n i t i o n o n ) .
D i s t a n c e r e m a i n i n g t o
destination
( k m o r m i l e s )
T h i s i s t h e d i s t a n c e r e m a i n i n g t o b e
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
i s e i t h e r c a l c u l a t e d i n s t a n t l y b y t h e
n a v i g a t i o n s y s t e m , i f g u i d a n c e i s a c -
t i v a t e d , o r e n t e r e d b y t h e u s e r .
I f t h e d i s t a n c e i s n o t e n t e r e d , d a s h e s
a r e d i s p l a y e d i n p l a c e o f t h e d i g i t s .
T h i s f u n c t i o n i s o n l y d i s p l a y e d f r o m
2 0 m p h ( 3 0 k m / h ) .
This is the average quantity of
f u e l c o n s u m e d d u r i n g t h e l a s t f e w
s e c o n d s .
Page 45 of 337
45
III
C O M F O R T
RECOMMENDED SETTINGS FOR THE VENTILATION, HEATING AND AIR CONDITIONING Air inlet
Check that the exterior grille for the
air inlet, at the bottom of the wind-
screen, is clean and free of dead
leaves, snow, etc.

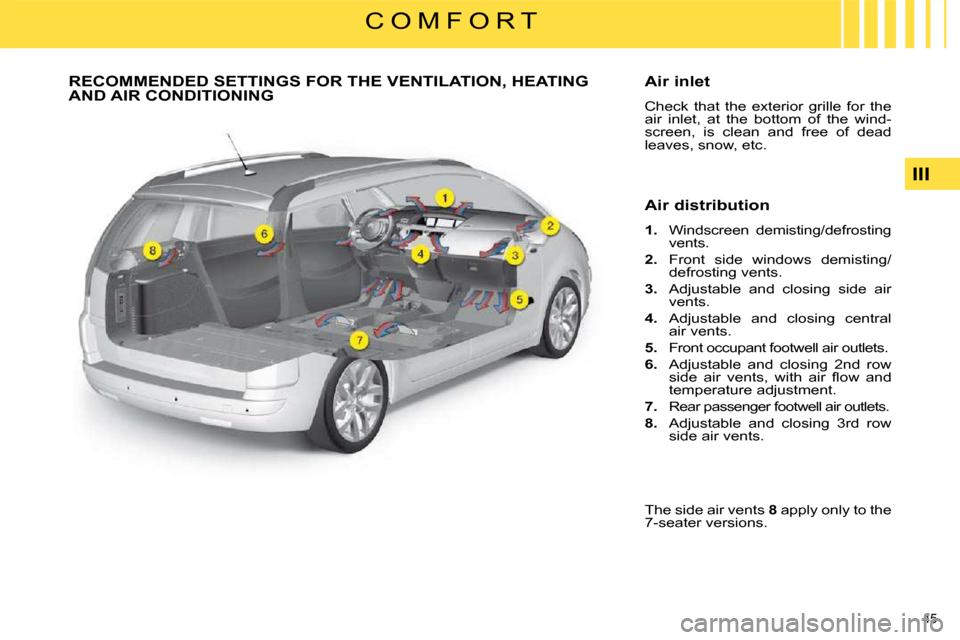

Air distribution
1. Windscreen demisting/defrosting
vents.
2. Front side windows demisting/
defrosting vents.
3. Adjustable and closing side air
vents.
4. Adjustable and closing central
air vents.
5. Front occupant footwell air outlets.
6. Adjustable and closing 2nd row
s i d e a i r v e n t s , w i t h a i r fl o w a n d
temperature adjustment.
7. Rear passenger footwell air outlets.
8. Adjustable and closing 3rd row
side air vents.
The side air vents 8 apply only to the
7-seater versions.
Page 46 of 337
46
III
C O M F O R T
Air conditioning
To ensure that your system operates
correctly, it is recommended to have
it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To keep the air conditioning com-
pressor well sealed, it is essential to
operate the air conditioning at least
once in every month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
air the passenger compartment by
opening the windows for a few mo-
ments, then close them again.
The air conditioning operates by using
power from the engine. This results in
a slight increase in fuel consumption.
Dust filter/Odour filter
(active carbon)
T h e r e i s a fi l t e r f o r e x c l u d i n g o d o u r s
and dust.
T h i s fi l t e r h a s t o b e c h a n g e d i n a c -
cordance with the vehicle's servic-
ing schedule (see "Maintenance and
Warranty Guide").
Air circulation
A i r v e n t s o n t h e fl o o r u n d e r n e a t h t h e
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.
Air vents
The air vents to the face have grilles
and thumbwheels to adjust the air
fl o w a n d d i r e c t i o n ( u p - d o w n , r i g h t -
left).
The automatic regulation of the air
conditioning, inside the cabin, uses
a number of sensors (sunlight sen-
sor, outside temperature sensor...)
that relieve you of the need to make
frequent adjustments outside the
displayed temperature.
Be careful not to obstruct the sun-
light sensor, located on the dash-
board behind the instrument panel.
Sensors
Page 47 of 337
47
III
C O M F O R T
MANUAL AIR CONDITIONING
A. DRIVER’S CONTROL PANEL
1. Adjustment of the air blower speed
The air blower adjustment only op-
erates when the engine is running.
T o a d j u s t t h e a i r fl o w , p r e s s o n
button 1 :
t o i n c r e a s e t h e fl o w o f a i r ,
t o d e c r e a s e t h e fl o w o f a i r .
T h e l e v e l o f a i r fl o w i s s h o w n b y t h e p r o -
gressive lighting of the warning lamps
depicting the ventilator blades 1 .
B y r e d u c i n g t h e fl o w t o m i n i m u m ,
you deactivate the air conditioning
system (OFF).
To achieve an agreeable level of
comfort in the passenger compart-
ment, you should not leave this
control too long in the OFF position.
2. Adjustment of the air
distribution
Press on button 2 to make the
display scroll through the different
types of air distribution.
The air distribution chosen
is shown by the lighting of
the corresponding warning
lamps on the display 2.
3. Mode of adjustment of temperature for the
passenger
Press on button 3 to have inde-
pendent passenger control of
cabin air temperature. The warn-
ing lamp goes out.
While the passenger is adjusting
temperature,the warning lamp lights
up. 4. Air recirculation
This control is for isolating disagree-
able odours or fumes coming from
outside.
Press on button 4 , to exclude
entry of outside air. The warning
lamp lights up.
This should be cancelled as soon as possible to permit renewal of
cabin air and to prevent misting.
Press again on button 4 , to de-
activate air recirculation.
5. Air conditioning
The air conditioning can only oper-
ate when the engine is running. The
a i r b l o w e r c o n t r o l ( a d j u s t i n g t h e fl o w
of air) has to be activated in order for
air conditioning to be obtained.
Press on button 5 . The warning
lamp lights up.
To be effective, the air condi-
tioning should be operated only
with the windows closed.
If your vehicle is not equipped with
air conditioning, you will have the
same control panel but without the
A/C button.
Page 48 of 337
48
III
C O M F O R T
6. Demisting/defrosting of the rear screen
This operates only if the engine is
running.
Press on button 6 to activate/de-
activate the electric demisting/
defrosting of the rear screen and
the exterior rear view mirrors. The
warning lamp lights up.
7. Rapid Demisting/ Defrosting of front and
rear windows and rear
view mirrors
Press on button 7 . The warning
lamp lights up.
This function simultaneously acti-
vates:
- front demisting/defrosting,
- o p t i m u m fl o w o f a i r ,
- recirculation prohibition,
- demisting/defrosting of rear view mirrors and heated rear screen,
- air conditioning, if necessary.
To stop the function, press again on
button 7 . 8. Adjustment of the air
blower temperature
This control is for adjusting the tem-
perature of the air in the passenger
compartment. It can be used in cold
weather as well as in hot weather,
provided the air conditioning is
active.
The adjustment of the temperature is
continuous and progressive starting
from one side.
B. PASSENGER’S CONTROL PANEL
Adjustment of temperature
Press on button 9 to take over
control of the temperature. The
warning lamp lights up.
Rotate button 10 to adjust your
temperature.
The adjustment of the temperature is
continuous and progressive starting
from one side.
The demisting/defrosting
switches off automatically
to prevent excessive con-
sumption of power.
Page 49 of 337
54
III
C O M F O R T

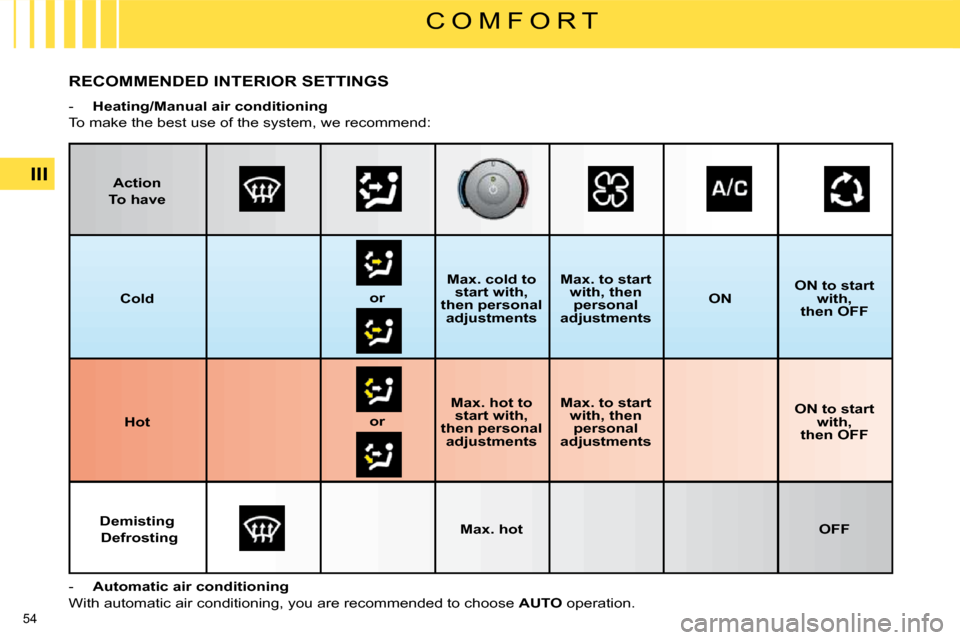

RECOMMENDED INTERIOR SETTINGS
- Heating/Manual air conditioning
To make the best use of the system, we recommend:
- Automatic air conditioning
With automatic air conditioning, you are recommended to choose AUTO operation.
Action
To have
Cold
or
Max. cold to
start with,
then personal
adjustments
Max. to start
with, then personal
adjustments
ON
ON to start
with,
then OFF
Hot
or
Max. hot to
start with,
then personal adjustments
Max. to start
with, then personal
adjustments
ON to start
with,
then OFF
Demisting
Defrosting
Max. hot OFF
Page 50 of 337
49
III
C O M F O R T
AUTOMATIC AIR CONDITIONING
A. DRIVER’S CONTROL PANEL
1. Automatic comfort regulation
A press on this button, con-
fi r m e d b y t h e d i s p l a y o f t h e
A/C warning lamp and of
AUTO on the screen, pro-
vides automatic control, at the tem-
perature selected, of all the following
5 functions:
- a i r fl o w ,
- cabin temperature, on left hand side and right hand side,
- air distribution,
- air conditioning,
- automatic air recirculation. For this facility to operate, it is rec-
ommended to keep all the air vents
open.
Using the
AUTO mode will prevent
misting inside the vehicle in cold or
humid weather.
When starting from cold, in order to
avoid a rush of cold air, the blower
attains its optimum level progres-
sively. 2. Adjustment of temperature
To display the desired temperature,
press button:
-
- to decrease the temperature,
- + to increase the temperature.
An adjustment around 21 will pro-
vide an agreeable temperature level.
However, depending on your prefer-
ence, anything between 18 and 24
is quite normal.
For optimum comfort, it is recom-
mended to avoid an adjustment dif-
ference greater than 3 between right
and left.
Actual temperatures experienced in
the passenger compartment are de-
pendent on external factors and for
this reason might not be identical to
those displayed.
On entering the vehicle, the inside
temperature may be much colder (or
hotter) than would be comfortable. It
serves no purpose to alter the tem-
perature displayed in an attempt to
attain your preference more rapidly.
The system automatically does all in
its power to make up the difference
in temperature as soon as possible.
Manual resumption of one or
more functions
It is possible to adjust each of the
functions 3, 4 , 6 and 10 manually.
The display of the "AUTO" function
will then go off.
Resumption by the driver of the
adjustment of cabin temperatures
(for the front and rear passengers).
A long press on the "AUTO" button
will realign the temperature for all
passengers with the preferences of
the driver.
