Citroen C4 PICASSO DAG 2009 1.G Workshop Manual
Manufacturer: CITROEN, Model Year: 2009, Model line: C4 PICASSO DAG, Model: Citroen C4 PICASSO DAG 2009 1.GPages: 337, PDF Size: 12.85 MB
Page 51 of 337
50
III
C O M F O R T
3. Adjustment of the air blower speed
The air blower operates only when
the engine is running (except when
the REST function is activated).
T o a d j u s t t h e fl o w o f a i r , p r e s s o n t h e
button:
t o i n c r e a s e t h e a i r fl o w ,
t o d e c r e a s e t h e a i r fl o w ( t h i s
button also has the REST
function).
T h e l e v e l o f a i r fl o w i s i n d i c a t e d o n
t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l i n g
of the ventilator blades.
If you place the air blower on posi-
tion 0 , the system is deactivated.
The air blower display will be empty,
with the indication OFF.
Function for retaining
ventilation with the engine
switched off
The REST function is availa-
ble when you switch on the ignition
and when you stop the engine.
This function allows you to retain
ventilation in the passenger com-
partment for a few minutes, even
with the engine stopped.
When you leave the vehicle, any
passengers present can still have
t h e b e n e fi t o f a i r c i r c u l a t i o n , e v e n
though the engine is not running.
Engine stopped, ignition switched
on:
- The displays will light up, with the air blower shown empty as
long as the function is available.
- A press on the REST button acti- vates the function for a timing of
just a few minutes. Two blades of
t h e b l o w e r w i l l fi l l t o s i g n i f y t h a t
the function is active.
- It can be deactivated and reacti- vated during the timing.
- At the end of the timing, the dis- play will go off. This button does not activate the air
conditioning, only the air blowers. In
t h e R E S T f u n c t i o n , t h e a i r fl o w a n d
distribution are controlled automati-
cally and you cannot modify them.
On stopping the engine:
- The displays remain lit up, the blower is shown empty and the
function can be activated for
30 seconds.
- A press on the REST button during the next 30 seconds ac-
tivates the function for a timing
of several minutes. The dura-
tion and availability of the func-
tion are variable according to the
state of charge of the battery (a
protection to guarantee engine
s t a r t i n g ) . T w o b l o w e r b l a d e s fi l l
up to signify that the function is
active. It remains active, even af-
ter the doors have been locked,
until the end of the timing.
- A further press before the end of t h e t i m i n g d e fi n i t i v e l y s t o p s t h e
function. 4. Adjustment of the air
distribution
Press on button 4 so that
t h e a i r fl o w s s c r o l l s u c -
cessively on the display.
The air distribution you have chosen
i s c o n fi r m e d b y t h e l i g h t i n g o f t h e
corresponding warning lamps in the
display.
There are 7 possible adjustments.
5. Air recirculation
This button activates the recircula-
tion of air within the passenger com-
partment and also has an automatic
function.
Entry of air in automatic
mode (activated by default, in
automatic comfort regulation)
According to version, the automatic
mode makes use of an air quality
sensor. This analyses the air and
isolates the passenger compart-
ment from the exterior as soon as it
detects the presence of pollutants.
Then it automatically activates recir-
culation of cabin air.
Page 52 of 337
51
III
C O M F O R T
Closing of the air inlet
Press on button 5 to
close off the entry of air
from outside.
Entry of air (manual mode)
Press on button 5 to activate en-
try of air from the outside. The
warning lamp goes out.
Press once on button 5 to return
to the initial status (entry of air in
automatic mode).
The air recirculation can also be ac-
cessed by means of a press on the
control, located low down to one side
of the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible statuses
for this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use
their adjustment controls at their
convenience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are
deactivated. 7. Panel display mode: black
panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Page 53 of 337
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/
defrosting of the rear view mirrors
and heated rear screen remains
activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently at
any time by pressing buttons + and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f
the driver enables you to (see but-
ton 6 of the driver’s control panel).
Page 54 of 337
54
III
C O M F O R T

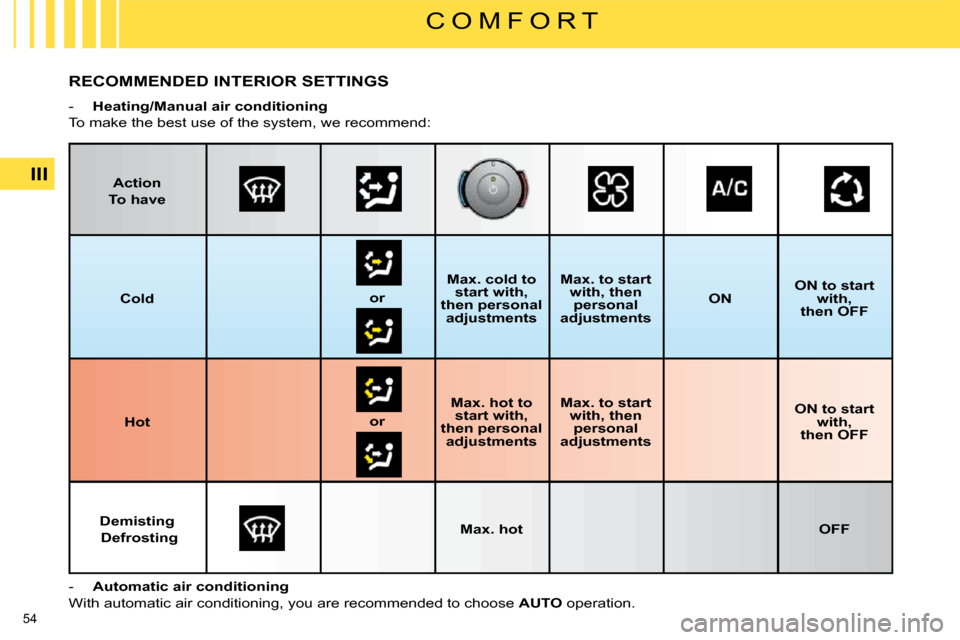

RECOMMENDED INTERIOR SETTINGS
- Heating/Manual air conditioning
To make the best use of the system, we recommend:
- Automatic air conditioning
With automatic air conditioning, you are recommended to choose AUTO operation.
Action
To have
Cold
or
Max. cold to
start with,
then personal
adjustments
Max. to start
with, then personal
adjustments
ON
ON to start
with,
then OFF
Hot
or
Max. hot to
start with,
then personal adjustments
Max. to start
with, then personal
adjustments
ON to start
with,
then OFF
Demisting
Defrosting
Max. hot OFF
Page 55 of 337
51
III
C O M F O R T
Closing of the air inlet
Press on button 5 to
close off the entry of air
from outside.
Entry of air (manual mode)
Press on button 5 to activate en-
try of air from the outside. The
warning lamp goes out.
Press once on button 5 to return
to the initial status (entry of air in
automatic mode).
The air recirculation can also be ac-
cessed by means of a press on the
control, located low down to one side
of the steering wheel (see "§ Fixed
centred controls steering wheel"). 6. Adjustment mode for the
rear passengers
This button decides whether
or not the rear passengers
may use their adjustment
controls.
There are three possible statuses
for this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use
their adjustment controls at their
convenience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are
deactivated. 7. Panel display mode: black
panel function
This function turns the dis-
plays and panel backlighting
on or off.
- Function activated, a press on any button will light up the screen
temporarily.
- press on button 7 deactivates
the function, lighting of buttons
and screen is again permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting of the rear screen
This can only operate when the en-
gine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
exterior rear view mirrors. The
warning lamp lights up and the
symbol appears on the display.
It switches off automatically
to prevent excessive con-
sumption of power.
Whilst retaining the other adjust-
ments, this position enables the
driver at any time to exclude any dis-
agreeable odours or fumes coming
from outside the vehicle. It should
be cancelled as soon as possible to
permit renewal of cabin air and to
prevent misting.
Page 56 of 337
52
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press on button 9 . The warning
lamp lights up.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the rear view mirrors and heated rear
screen,
- air conditioning, if necessary.
Press again on button 9 or on AUTO
to stop the function. Demisting/
defrosting of the rear view mirrors
and heated rear screen remains
activated.
10. Air conditioning
Press on button 10 to activate
the air conditioning.
The A/C warning lamp lights up.
PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently at
any time by pressing buttons + and - .
The front passenger con-
trols the adjustment of their
own temperature.
The temperature for the
passenger is aligned with
that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f
the driver enables you to (see but-
ton 6 of the driver’s control panel).
Page 57 of 337
54
III
C O M F O R T
RECOMMENDED INTERIOR SETTINGS
- Heating/Manual air conditioning
To make the best use of the system, we recommend:
- Automatic air conditioning
With automatic air conditioning, you are recommended to choose AUTO operation.
Action
To have
Cold
or
Max. cold to
start with,
then personal
adjustments
Max. to start
with, then personal
adjustments
ON
ON to start
with,
then OFF
Hot
or
Max. hot to
start with,
then personal adjustments
Max. to start
with, then personal
adjustments
ON to start
with,
then OFF
Demisting
Defrosting
Max. hot OFF
Page 58 of 337
53
III
C O M F O R T
ADDITIONAL AIR CONDITIONING
Additional air conditioning allows you
to optimise comfort levels in warm
weather conditions. It produces ad-
ditional fresh air which is supplied
using the rear air vents. The supply
of warm air via the rear air vents is
not possible using this system.
C. REAR PASSENGER CONTROL PANELS (RIGHT/LEFT)
13. Adjustment of temperature
The rear passengers can adjust their
temperature controls independently
via buttons + and - .
Their preference cannot be great-
er than that of the driver by more
than 2. The reaching of this maxi-
m u m p r e f e r e n c e i s c o n fi r m e d b y t h e
fl a s h i n g o f i t s d i s p l a y .
14. Adjustment of air blower speed
The air blower operates only when
the engine is running.
T o a d j u s t t h e fl o w o f a i r , p r e s s o n
button:
t o i n c r e a s e t h e a i r fl o w ,
t o d e c r e a s e t h e a i r fl o w . T h e l e v e l o f a i r fl o w i s i n d i c a t e d o n
t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l i n g
of the ventilator blades.
B y r e d u c i n g t h e fl o w t o m i n i m u m ,
you deactivate the air conditioning
system (OFF).
You can adjust the temperature and
t h e a i r fl o w o n l y i f t h e d r i v e r e n a b l e s
you to (see button
6 of the driver’s
control panel).
T h i s w a r n i n g l a m p s i g n i fi e s
that the passenger controls
are locked, you can adjust
neither the temperature nor
t h e a i r fl o w , w h i c h r e m a i n a l i g n e d o n
the preferences of the driver.
This warning lamp indi-
cates that the supply of air
is cut off .
This position is recommended in
cold weather conditions, as the air
vents do not supply warm air.
Page 59 of 337
55
III
C O M F O R T

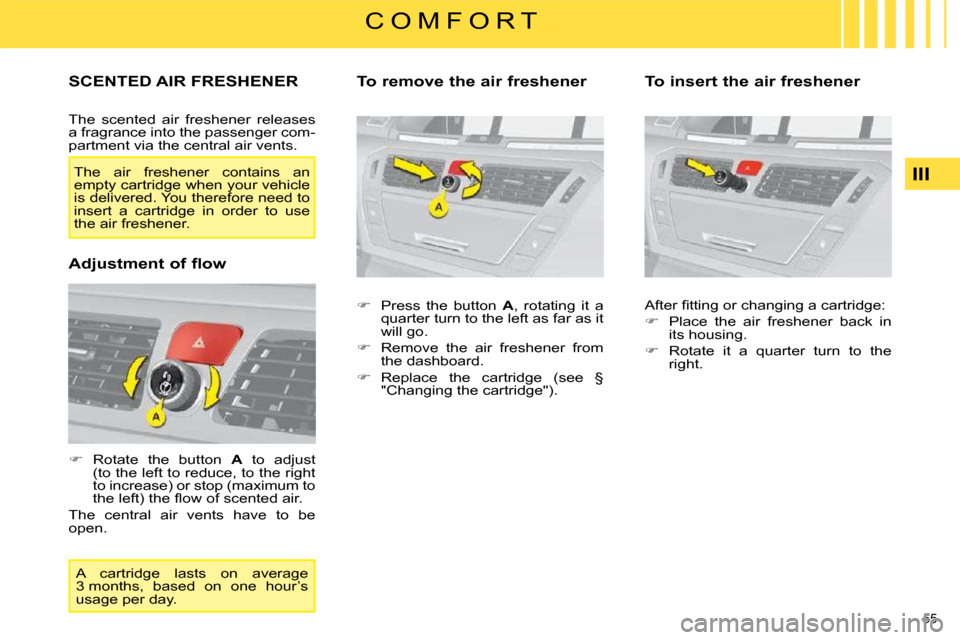

SCENTED AIR FRESHENER
The scented air freshener releases
a fragrance into the passenger com-
partment via the central air vents.
Rotate the button A to adjust
(to the left to reduce, to the right
to increase) or stop (maximum to
t h e l e f t ) t h e fl o w o f s c e n t e d a i r .
The central air vents have to be
open.
Press the button A , rotating it a
quarter turn to the left as far as it
will go.
Remove the air freshener from
the dashboard.
Replace the cartridge (see §
"Changing the cartridge"). A f t e r fi t t i n g o r c h a n g i n g a c a r t r i d g e :
Place the air freshener back in
its housing.
Rotate it a quarter turn to the
right.
Adjustment of flow To remove the air freshener To insert the air freshe
ner
The air freshener contains an
empty cartridge when your vehicle
is delivered. You therefore need to
insert a cartridge in order to use
the air freshener.
A cartridge lasts on average
3 months, based on one hour’s
usage per day.
Page 60 of 337
56
III
C O M F O R T

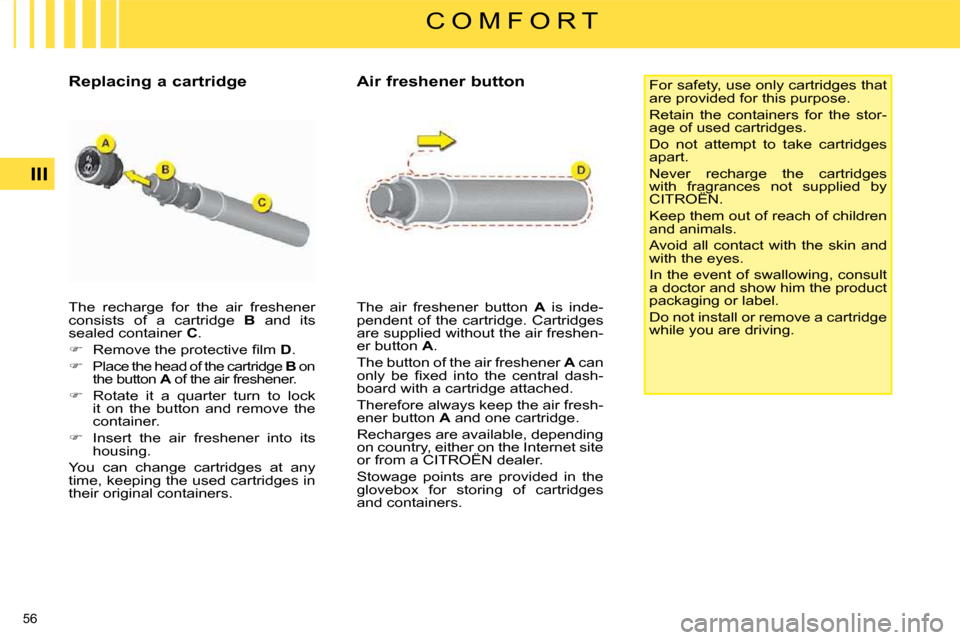

The recharge for the air freshener
consists of a cartridge B and its
sealed container C .
R e m o v e t h e p r o t e c t i v e fi l m D .
Place the head of the cartridge B on
the button A of the air freshener.
Rotate it a quarter turn to lock
it on the button and remove the
container.
Insert the air freshener into its
housing.
You can change cartridges at any
time, keeping the used cartridges in
their original containers. The air freshener button
A is inde-
pendent of the cartridge. Cartridges
are supplied without the air freshen-
er button A .
The button of the air freshener A can
o n l y b e fi x e d i n t o t h e c e n t r a l d a s h -
board with a cartridge attached.
Therefore always keep the air fresh-
ener button A and one cartridge.
Recharges are available, depending
on country, either on the Internet site
or from a CITROËN dealer.
Stowage points are provided in the
glovebox for storing of cartridges
and containers. For safety, use only cartridges that
are provided for this purpose.
Retain the containers for the stor-
age of used cartridges.
Do not attempt to take cartridges
apart.
Never recharge the cartridges
with fragrances not supplied by
CITROËN.
Keep them out of reach of children
and animals.
Avoid all contact with the skin and
with the eyes.
In the event of swallowing, consult
a doctor and show him the product
packaging or label.
Do not install or remove a cartridge
while you are driving.
Replacing a cartridge Air freshener button
