Page 15 of 355
18
F A M I L I A R I S A T I O N
Seat belts not fastened/
unfastened warning lamp This warning lamp informs you if
the driver’s or front passenger’s
s e a t b e l t i s n o t f a s t e n e d ( d e -
p e n d i n g o n m o d e l ) , a n d i f t h e
f r o n t p a s s e n g e r ’ s ( d e p e n d i n g
o n m o d e l ) o r t h e s e c o n d - r o w
passengers’ seat belts are unfastened.
The illuminated positions represent
those whose seat belts are not fas-
tened/unfastened.
Once the function has been activated,
when starting the engine, the system
automatically locks the doors once you
r e a c h a p p r o x i m a t e l y 6 m p h ( 1 0 k m / h ) .
This function can be deactivated
by pressing button A for more than
two seconds.
Tyre under-inflation detection
This function warns you if a tyre is de-
fl a t e d o r p u n c t u r e d .
This system does not absolve the driver
of the need to regularly check the tyre
pressures.
The service warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
U n d e r - i n fl a t i o n w a r n i n g
The STOP warning lamp comes
on, and a vehicle outline is dis-
played, accompanied by a mes-
sage and an audible signal.
Puncture
40
124
88
M O N I T O R I N G
Automatic central locking
Instrument panel
with multifunction screen A or C
with the MyWay or NaviDrive
multifunction screen
1. Instrument panel.
2. Multifunction screen.
3. Control buttons.
4. Warning lamps display zone.
30
31 Manual central locking
You can use electrical central locking or
unlocking by pressing on button
A .
If one of the doors is open or is not
closed properly, central locking will not
work.
Page 59 of 355
III
61
C O M F O R T
5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 60 of 355
III
62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 61 of 355
III
61
C O M F O R T
5. Air recirculation
Press button 5 to cut off the in-
take of air from outside and to
activate recycling of the air in
the passenger compartment. the
warning lamp comes on.
Whilst retaining the other adjust-
ments, this function prevents un-
pleasant odours or fumes entering
the vehicle. Avoid extended use of
air recirculation (risk of deterioration
of air quality and misting).
Press button 5 again to allow
entry of air from the outside. The
warning lamp goes off.
Air recirculation can also be controlled by
pressing the switch located on the lower
left of the steering wheel (see "Fixed
centred controls steering wheel").
6. Activation/deactivation of
rear passenger controls
This button allows you to
permit or not the rear pas-
sengers to use their adjust-
ment controls.
There are three possible states for
this button:
Locking of the rear
passenger controls
Authorisation of the rear
passenger controls
Reduction of the
a i r fl o w f o r t h e r e a r
passengers
With additional air conditioning, in
cold weather you are advised to
close the supply of air to the rear
passengers (no hot air distribution
possible via these air vents).
The rear passengers can use their
adjustment controls at their conve-
nience.
The driver imposes his adjustment
on the rear passengers. In this case,
the rear passenger controls are de-
activated. 7. Panel display mode: black
panel function
This function turns the
screen and switch backlight-
ing on or off.
- Function activated, pressing any button will illuminate the screen
temporarily.
- pressing button 7 deactivates
the function, the illumination of
of buttons and screen is again
permanent.
This function optimises notably the
visual comfort for driving at night.
8. Demisting/defrosting the rear screen
This function is active only when the
engine is running.
Press on button 8 to activate/
deactivate the electric demist-
ing/defrosting of the rear screen
and, according to version, of the
door mirrors. The warning lamp
comes on and the symbol ap-
pears in the screen.
It switches off automatically
to prevent excessive con-
sumption of power.
This button activates the recircu-
lation of air within the passenger
compartment and also has an
automatic function.
Page 62 of 355
III
62
C O M F O R T
9. Rapid demisting/defrosting of the front and rear
windows
- Press button 9 . The warning
lamp comes on.
This function gives a rapid
demisting/defrosting of the
vehicle simultaneously with:
- front demisting/defrosting at op- timum temperature,
- o p t i m u m a i r fl o w ,
- recirculation prohibition,
- demisting/defrosting of the door mirrors and rear screen,
- air conditioning, if necessary.
Press button 9 again or " AUTO"
to stop the function. Demisting/
defrosting of the door mirrors and
rear screen remains activated.
10. Air conditioning
Press button 10 to activate the
air conditioning.
The A/C warning lamp comes on.
B. PASSENGER CONTROL PANELS
11. Front passenger
The front passenger can adjust their
temperature control independently
at any time by pressing buttons +
and - .
The front passenger controls
the adjustment of their own
temperature.
The temperature setting for
the passenger is aligned
with that for the driver. 12. Rear passengers
(right/left)
By default, in AUTO
position, the adjust-
m e n t o f t h e a i r fl o w i s
aligned on the front
ventilation.
Rotate the button
to decrease or in-
c r e a s e t h e a i r fl o w .
Y o u c a n a d j u s t t h e a i r fl o w o n l y i f t h i s is enabled by the driver (see but-
ton 6 of the driver’s control panel).
With Stop & Start, when demist-
ing has been activated, the STOP
mode is not available.
Page 63 of 355
III
63
C O M F O R T
ADDITIONAL AIR CONDITIONING
Additional air conditioning allows you
to optimise comfort levels in warm
weather conditions. It produces ad-
ditional fresh air which is supplied
using the rear air vents. The supply
of warm air via the rear air vents is
not possible using this system.
C. REAR PASSENGER CONTROL PANELS (RIGHT/LEFT)
13. Adjustment of temperature
The rear passengers can adjust their
temperature controls independently
via buttons + and - .
Their setting cannot be greater than
that of the driver by more than 2.
Attainment of this maximum setting
i s c o n fi r m e d b y t h e fl a s h i n g o f i t s
display.
14. Adjustment of air fan speed
The air fan operates only when the
engine is running.
T o a d j u s t t h e fl o w o f a i r , p r e s s o n
button:
t o i n c r e a s e t h e a i r fl o w ,
t o d e c r e a s e t h e a i r fl o w . T h e l e v e l o f a i r fl o w i s i n d i c a t e d o n
t h e d i s p l a y b y t h e p r o g r e s s i v e fi l l i n g
of the fan blades.
B y r e d u c i n g t h e fl o w t o m i n i m u m ,
you switch off the air conditioning
system (OFF).
You can adjust the temperature and
t h e a i r fl o w o n l y i f t h e d r i v e r e n a b l e s
you to (see button
6 of the driver’s
control panel).
T h i s w a r n i n g l a m p s i g n i fi e s
that the passenger controls
are locked , you can adjust
neither the temperature nor
t h e a i r fl o w , w h i c h r e m a i n a l i g n e d o n
the preferences of the driver.
This warning lamp indi-
cates that the supply of air
is cut off .
This position is recommended in
cold weather conditions, as the air
vents do not supply warm air.
Page 68 of 355
III
68
C O M F O R T
Storing driving positions
System which memorises the elec-
trical settings of the driver's seat and
door mirrors. It enables you to store
up to two positions using the buttons
on the side of the driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat and the door
mirrors.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indi- cating that the position has been
stored.
Storing a new position cancels the
previous position. Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery.
Vehicle moving
Press and hold button 1 or 2
until the audible signal is heard
indicating the end of the adjust-
ment.
Do not try to store a driving position
while driving.
Page 83 of 355
IV
82
A C C E S S

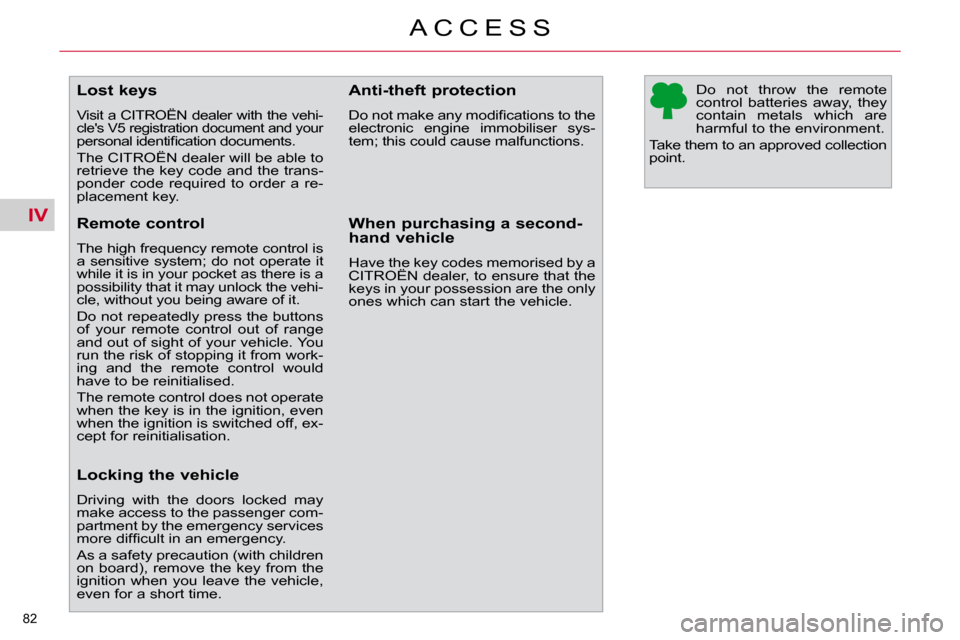

Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 85 of 355
IV
82
A C C E S S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic engine immobiliser sys-
tem; this could cause malfunctions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
Page 127 of 355
VI
110
F I T T I N G S
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It comprises a shopping trolley and
a fl e x i b l e b a g ( i n s u l a t e d o n s o m e
versions) which can be used inde-
pendently of each other depending
on your needs (by detaching the fas-
tenings on each side at the top and
bottom).
To use
Unhook the red strap to free the
Modubox.
Unhook the black strap then
press on the round buttons on
either side of the Modubox si-
multaneously to unfold it. Use outside the vehicle
Stowing inside the vehicle
Perform the operations in re-
verse to fold and stow inside the
vehicle.
If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER ROLLER (GRAND C4 PICASSO)
Position 1
5 - s e a t c o n fi g u r a t i o n ; i n s t a l l e d b e -
hind the second-row seats, with the
third-row seats folded away.
Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this can be used to se-
cure shopping bags.
Installing the roller
Position the left-hand end of the
roller in notch A .
Compress the right-hand end of
the roller and place it in notch B .
Pull out the blind until it reaches
the boot pillars.
Insert the guides of the blind into
the rails on the pillars.
Removing the roller
Carry out these operations in
reverse order.
