Citroen C4 RHD 2011 2.G Owner's Manual

219
01



1. Rotary control:
-
Short press engine not running: on/off.
-
Short press engine running: mute on/off.
- Rotation: volume ad
justment(each source is independant,
including TA messages and navigation
information).

2. Radio source
, access to the FM/AM band
menu and display the list of stations.

3. Access to the MEDIAmenu and display
the list of tracks.

4. A
ccess to the Navigation - guidancemenu and display the last destinations.

5. Access to the Traffi c informationmenuand display the current traffi c alerts.

6. Access to the "
Telephone " menu anddisplay the recent calls list.
2 - 3. Lon
g press: access to the Audio settings:music ambiance, bass, treble, loudness,left/right balance, front/rear fader, automatic volume adjustment. 7.
Access to the " Confi guration" menu.
Lon
g press: access to the GPS coverage and
the navigation demonstration mode.
8. MODE button:
Selection of the t
ype of permanent display.
Lon
g press: black screen (DARK).
9. ESC: abandon the operation in pro
gress,
up one level in the menu.
Long press: return to permanent display.
10.
CD eject.
Continuous press: reinitialisation of thesystem.
11. Accordin
g to context:
Selection of the previous/next line in a list or
menu.
Selection of the previous/next media folder.
Step by step selection of the previous/next
radio frequency.
Move up
/down in Move the map
mode.
12. Accordin
g to context:
Automatic selection o
f the next lower/higher radio frequency

Selection of the previous/next CD or media
track
Selection of left/ri
ght on the screen when a
menu is displayed.
Move left/ri
ght in Move the map mode.

1
3. Buttons 1 to 6:

Short press: selection of the stored radio station.
Lon
g press: store the current radio station.

14. Dial for selection and
OK confi rmation:

Selection of an item on the screen or in alist in a menu, then confi rmation with a shortpress.

Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displa
yed: zoom the mapscale in and out.
FIRST STEPS

220
02 STEERING MOUNTED CONTROLS




- Change the audio source.
Long press: mute.


-
Volume increase.


- V
olume decrease.


- Radio: displa
y the list of stations.
Media: display the list o
f tracks.


-
Rotation

Radio - automatic selection of next/previous frequency.

Media: previous/next track.

- Pr
ess then rotation: access to 6 preset stations.





- TEL button:

Access to the telephone menu:

Call list/Contacts/Hands-freemode/Answer/Hang up.

Accept an incoming call/

Long press: reject an incoming callor end the current call.


-
Move in the menus.

Zoom the map in and out
Pr
ess: confi rmation


-
Abandon the current operation.

221
03

For a detailed global view of the menus available, refer to the"Screen menu map" section.


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. "RADIO
/MEDIA"
"
TELEPHONE"
(If conversation in progress)
SETUP
: PARAMETERS
date and time, display parameters, sound.
Changing the audio source:
RADIO:RADIObroadcasts.
MUSIC :playing MEDIA.

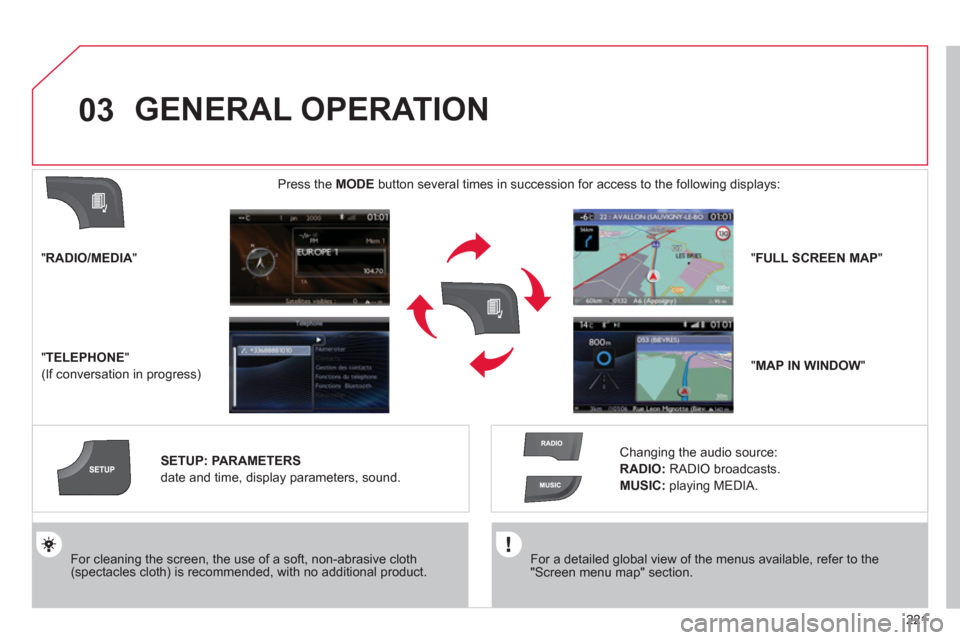

Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION
"FULL SCREEN MAP"
"MAP IN WINDOW"

222
03
A press on the OK dial gives access to
short-cut menus according to the display
in the screen.

RADIO:
Activate/Deactivate TA

Activate/Deactivate RDS



GENERAL OPERATION







DISPLAY ACCORDING TO CONTEXT

MUSIC MEDIA PLAYERS,
CD or USB (according
to media):
Play modes:
Normal
Random
Random on all media
Repetition


TELEPHONE (call in
progress):
Private mode


FULL SCREEN MAP OR
IN A NEW WINDOW:
Stop/Restore guidance
Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode
Guidance criteria


Put call on hold

DTMF rin
g tones

Han
g up1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1

223
04
""""""""""""ggggggggggNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation - guidanceNavigation - guidanceNavigation - guidanceNavigation - guidanceNavigation guidanceNavigation guidanceNavigation guidanceNavigation guidanceN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idN i ti idNi i id""""""""""""

To delete the list of recent destinations, select "Guidance options" in the navigation menu then select "Delete last destinations" and confi rm. Select "Ye s" then confi rm.

Deleting just one destination is not possible.


Go from the list to the menu (left/right).

NAVIGATION - GUIDANCE

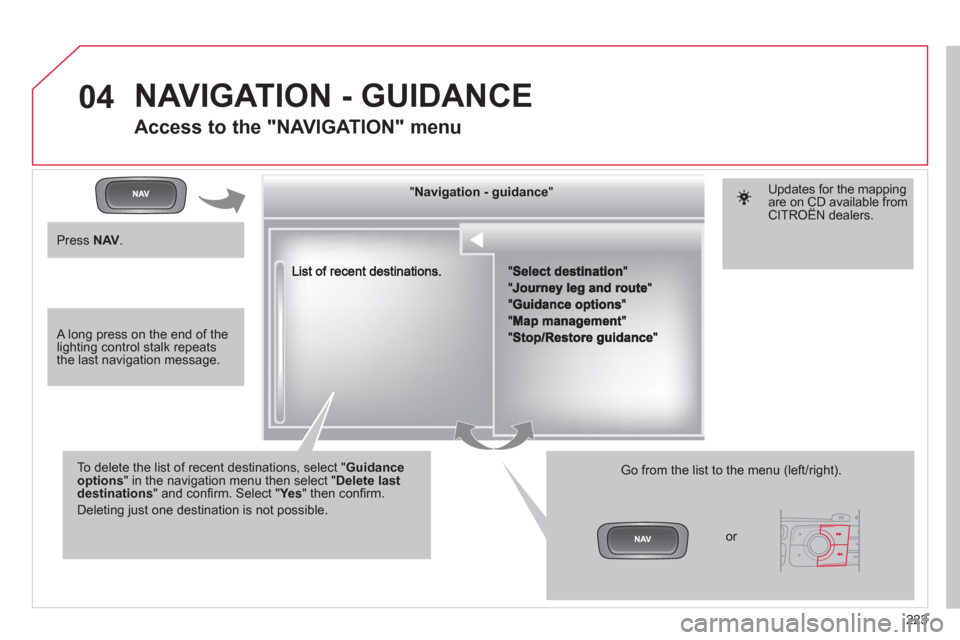

Access to the "NAVIGATION" menu


Press NAV .
or



Updates for the mappingare on CD available from CITROËN dealers.


A long press on the end of the lighting control stalk repeats the last navigation message.

224
04
1
2
3
4
5
7
9
10
8
6
Press NAVto display the"Navigation - guidance " menu.

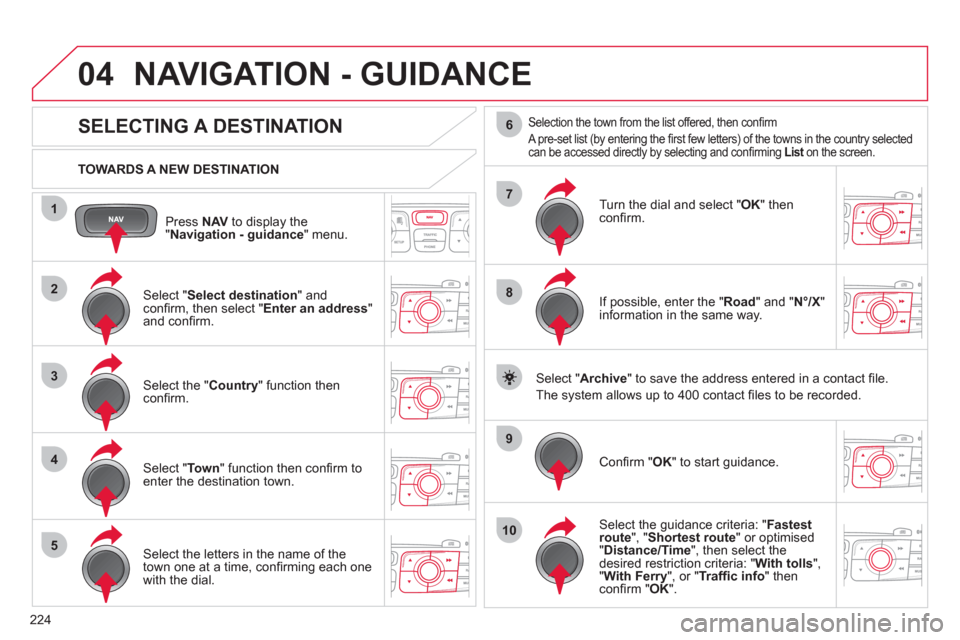

TOWARDS A NEW DESTINATION
NAVIGATION - GUIDANCE













SELECTING A DESTINATION

Select "Select destination
" and confi rm, then select " Enter an address"and confi rm.

Select the " Country
" function then confi rm.

Select "Town" function then confi rm to enter the destination town.

Select the letters in the name of the
town one at a time, confi rming each one
with the dial.
Selection the town from the list offered, then confi rm

A pre-set list (by entering the fi rst few letters) of the towns in the country selected can be accessed directly by selecting and confi rming Liston the screen. t
Turn the dial and select "OK" thenconfi rm.
If possible, enter the "
Road
" and "N°/X"
information in the same way.

Select "Archive
" to save the address entered in a contact fi le.
The s
ystem allows up to 400 contact fi les to be recorded.
Confi rm " OK
" to start guidance.
Select the guidance criteria: "Fastest
route", " Shortest route" or optimised "Distance/Time ", then select thedesired restriction criteria: "With tolls","With Ferry", or "Traffi c info" thenconfi rm "OK".

225
1
2
04
1
2
3

SELECTING A DESTINATION
NAVIGATION - GUIDANCE

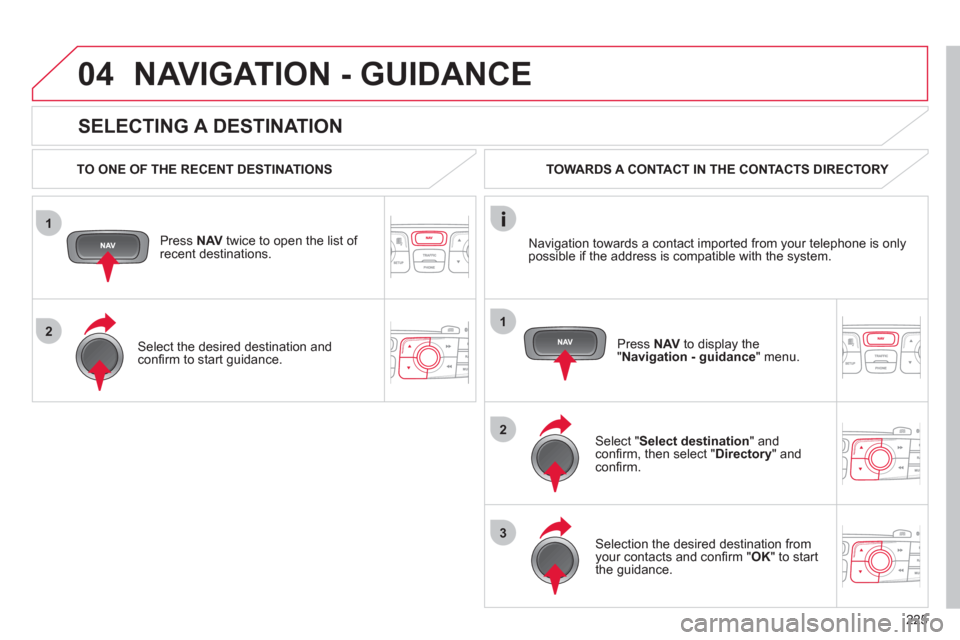

TO ONE OF THE RECENT DESTINATIONS
Press NAV
twice to open the list of
recent destinations.

Select the desired destination and confi rm to start guidance. TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" andconfi rm, then select " Directory " and confi rm.

Selection the desired destination from your contacts and confi rm "OK
" to start
the guidance.
Pr
ess NAVto display the"Navigation - guidance
" menu. Navi
gation towards a contact imported from your telephone is only
possible if the address is compatible with the system.

226
1
04
2
1
2
33
4

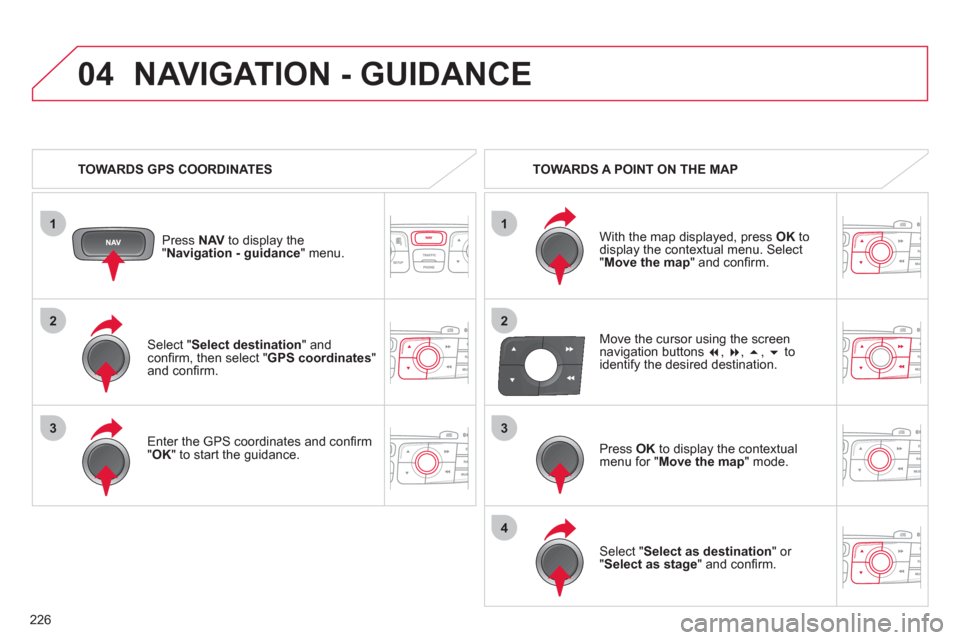

Select "Select destination" andconfi rm, then select " GPS coordinates
"and confi rm.

Enter the
GPS coordinates and confi rm "OK " to start the guidance. Pr
ess NAV
to display the
"Navigation - guidance" menu.
NAVIGATION - GUIDANCE
TOWARDS GPS COORDINATES TOWARDS A POINT ON THE MAP
With the map displa
yed, press OKto
display the contextual menu. Select"Move the map
" and confi rm.
Pr
ess OK
to display the contextual
menu for " Move the map " mode.
Select " Select as destination
" or "Select as stage" and confi rm.
Move the cursor using the screen
navigation buttons , ,  ,
to
identify the desired destination.

227
04
1
3
4
5
2

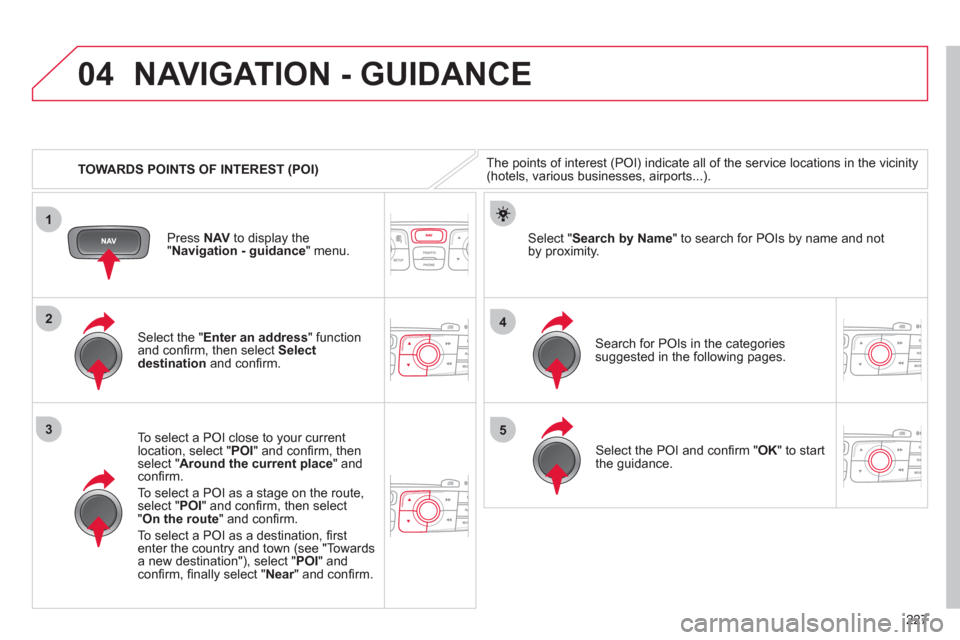

TOWARDS POINTS OF INTEREST (POI)
NAVIGATION - GUIDANCE
The points of interest (POI) indicate all of the service locations in the vicinity(hotels, various businesses, airports...).

Select the " Enter an address
" function
and confi rm, then select Select
destinationand confi rm.

To select a P
OI close to your currentlocation, select "POI" and confi rm, thenselect " Around the current place
" and confi rm.
To select a P
OI as a stage on the route,select " POI" and confi rm, then select"On the route
" and confi rm.
To select a P
OI as a destination, fi rst enter the country and town (see "Towards
a new destination"), select "POI" andconfi rm, fi nally select "Near" and confi rm.r
Search for POIs in the categories
suggested in the following pages.
Select " Search by Name
" to search for POIs by name and not
by proximity. Press NAVto display the"Navigation - guidance " menu.
Select the POI and confi rm " OK" to start
the guidance.

228
04

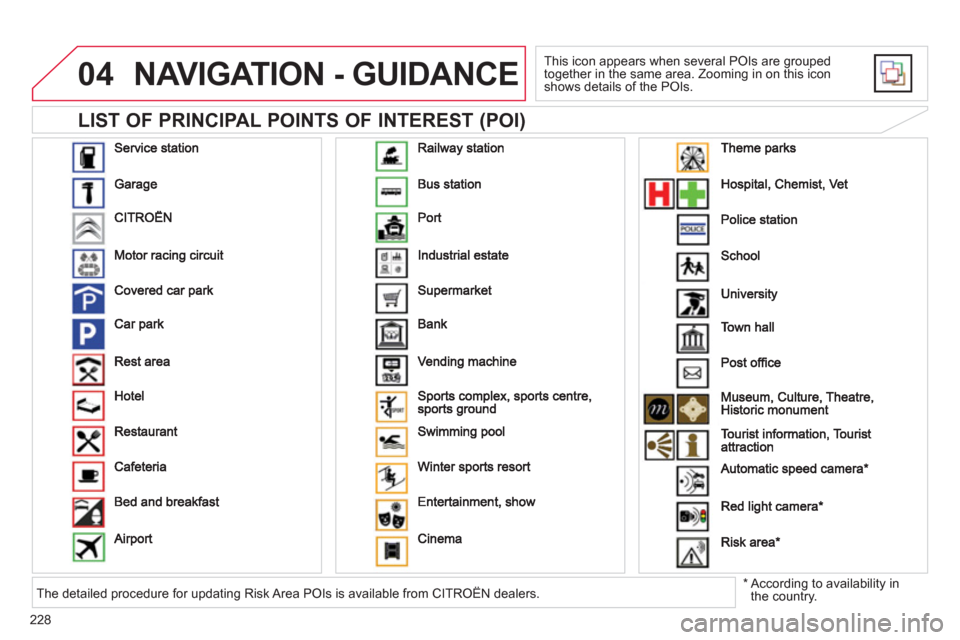

LIST OF PRINCIPAL POINTS OF INTEREST (POI)
NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped
together in the same area. Zooming in on this icon shows details of the POIs.

*

According to availability in
the country.The detailed procedure for updating Risk Area POIs is available from CITROËN dealers.
