TECHNICAL DATA
209
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


VTi 95



VTi 120



Gearboxes


Manual



Manual



Auto



Model codes:
NC...


8FR0



5FS0



5FS9




- Unladen weight
1 200
1 205
1 270


- Kerb weight
1 275
1 280
1 345


- Gross vehicle weight (GVW)
1 720
1 765
1 755


- Gross train weight (GTW)
on a 12 % gradient
2 920
3 065
3 055


- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 300
1 300



- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 550
1 550


- Unbraked trailer
635
640
670


- Recommended nose weight
75
75
75

12
TECHNICAL DATA
210


WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 i 16V



THP 155



Gearboxes


Manual



Automatic



Manual



Model codes:
NC...


NFU0



NFU9



5FV8/P




- Unladen weight
1 205
1 265
1 275


- Kerb weight
1 280
1 340
1 350


- Gross vehicle weight (GVW)
1 730
1 765
1 805


- Maximum train weight (GTW)
on a 12 % gradient
2 530
2 565
3 205


- Braked trailer (within the GTW limit)
on a 12 % gradient
800
800
1 400


- Braked trailer * (with transfer of load
within the GTW limit)
1 050
1 050
1 560



- Unbraked trailer
640
670
675


- Recommended nose weight
75
75
75
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

12
TECHNICAL DATA
211

MODELS:


ENGINES AND GEARBOXES



Model codes:
NC...


9HJ0



9HP0



9HR8



9HR8/P
9HR8/PS



RHE8



DIESEL ENGINES


HDi 90



HDi 90 PEF



HDi 110 PEF



HDi 150 PEF


Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power: EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
-
4 000
3 600
-
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
-
1 750
1 750
-
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
-
yes
yes
yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)


Electronic
gearbox system
(6-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)




Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-

.../S:
model fi tted with Stop & Start.

12
TECHNICAL DATA
212

*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 90



HDi 90 PEF



HDi 110 PEF



HDi 150 PEF



Gearboxes


Manual



Manual



Manual





Electronic
gearbox system




Manual



Model codes:
NC...


9HJ0



9HP0



9HR8



9HR8/P
9HR8/PS



RHE8




- Unladen weight
1 205
1 205
1 275
1 290
1 320


- Kerb weight
1 280
1 280
1 350
1 365
1 395


- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 825
1 885


- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 125
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 500


- Braked trailer
* (with load transfer
with the GTW limit)
1 050
1 350
1 550
1 550
1 750


- Unbraked trailer
640
640
675
680
695


- Recommended nose weight
75
75
75
75
75

12
213

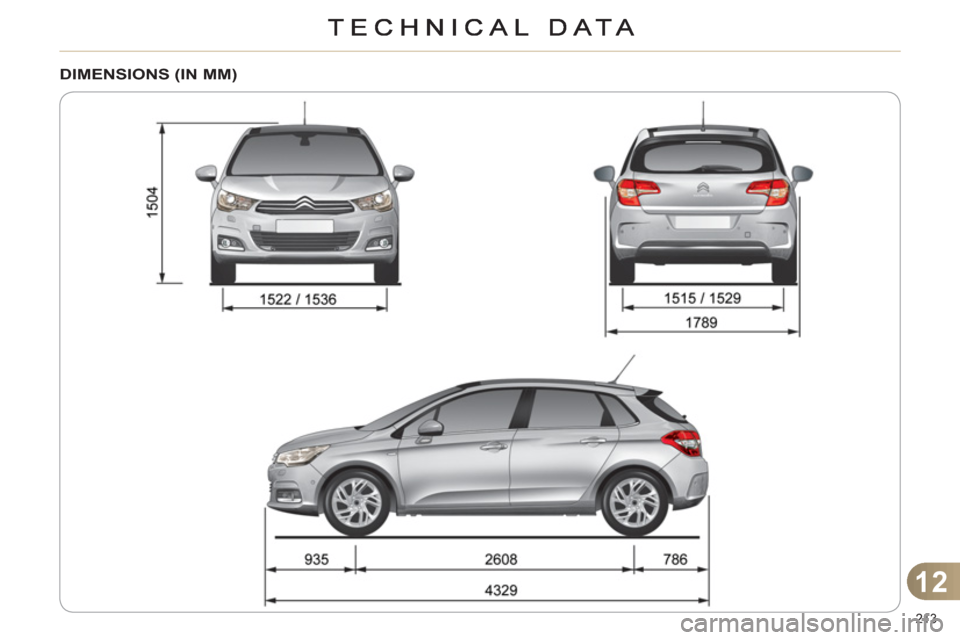

DIMENSIONS (IN MM)

12
TECHNICAL DATA
214
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number
(VIN) under the bonnet.

This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.

This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

215
EMERGENCY OR ASSISTANCE CALL

216
EMERGENCY OR ASSISTANCE CALL

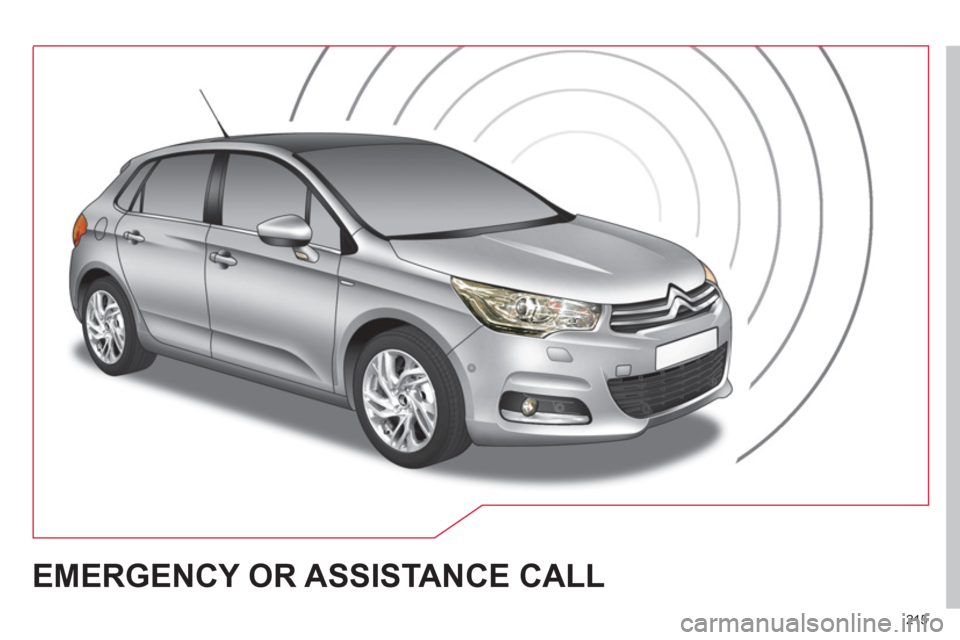

EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the CITROËN Emergency team * .g
Pressing this button again immediately cancels the request. The green
indicator lamp goes off.
A press
(at any time) of more than 8 seconds on this button, cancels
the request.

ASSISTANCE CALL
When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating correctly.


If the orange indicator lamp fl ashes: there
is a system fault.
If the orange indicator lamp is on continuously:
the backup battery must be replaced.
In either case, contact a CITROÀN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) whencommunication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROÀN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.

* These services are sub
ject to conditions and availability.
Consult a CITROÀN dealer.
If
you purchased your vehicle outside the CITROÀN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice. If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.

For technical reasons, particularl
y to improve the quality of telematic services for customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.

217

The system is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
218
220
221
223
236
239
249
252
258
259
260
263


SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

218
1142
9
3
4
5
67
8
10
111213
01 FIRST STEPS


CONTROL PANEL

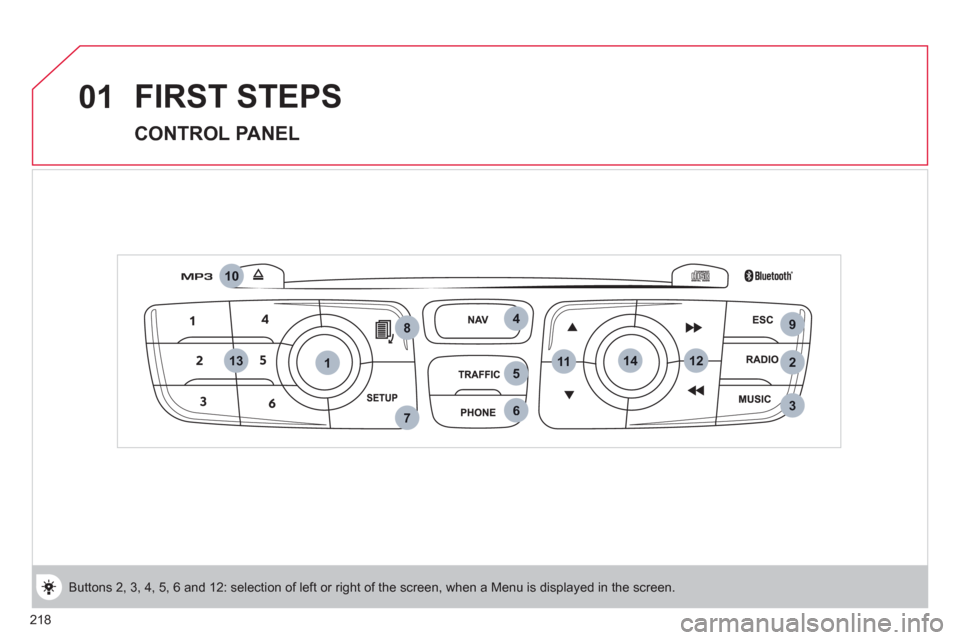

Buttons 2, 3, 4, 5, 6 and 12: selection of left or right of the screen, when a Menu is displayed in the screen.
