Citroen C4 RHD 2011 2.G Owner's Manual

249
07 RADIO

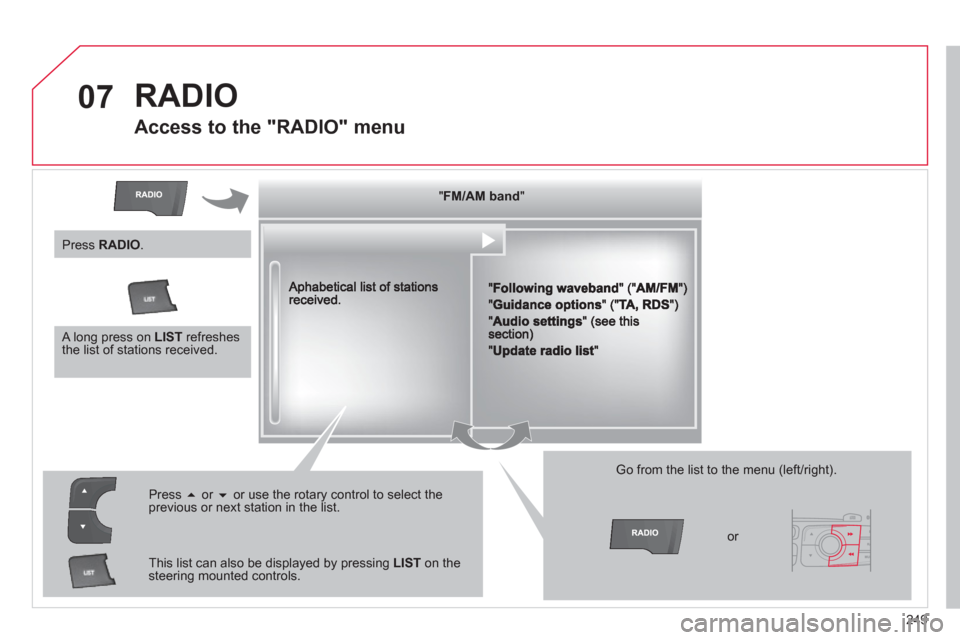

Access to the "RADIO" menu
""""""""FM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM bandFM/AM b dFM/AM b dFM/AM b dFM/AM b dFM/AM b d""""""""


Press
or
or use the rotary control to select theprevious or next station in the list.


This list can also be displayed by pressing LISTon thesteering mounted controls.

Go from the list to the menu (left/right).
or




A long press on LIST
refreshesthe list of stations received.
Press RADIO.

07
1a
1b
1c
1
2
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and confi rm.
B
y automatic frequency search
Press or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel on the steering
mounted control.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.Pr
ess the button on the numericalkeypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.

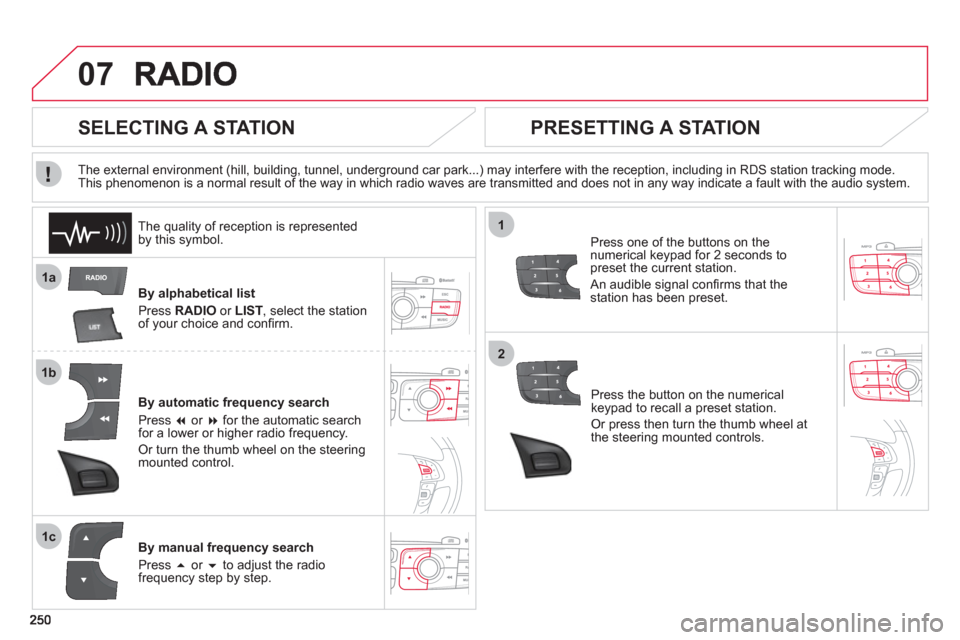

SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

PRESETTING A STATION


Press one of the buttons on thenumerical keypad for 2 seconds topreset the current station.
An audible si
gnal confi rms that thestation has been preset. The qualit
y of reception is represented by this symbol.

251
1
2
3
07
Press RADIO
.

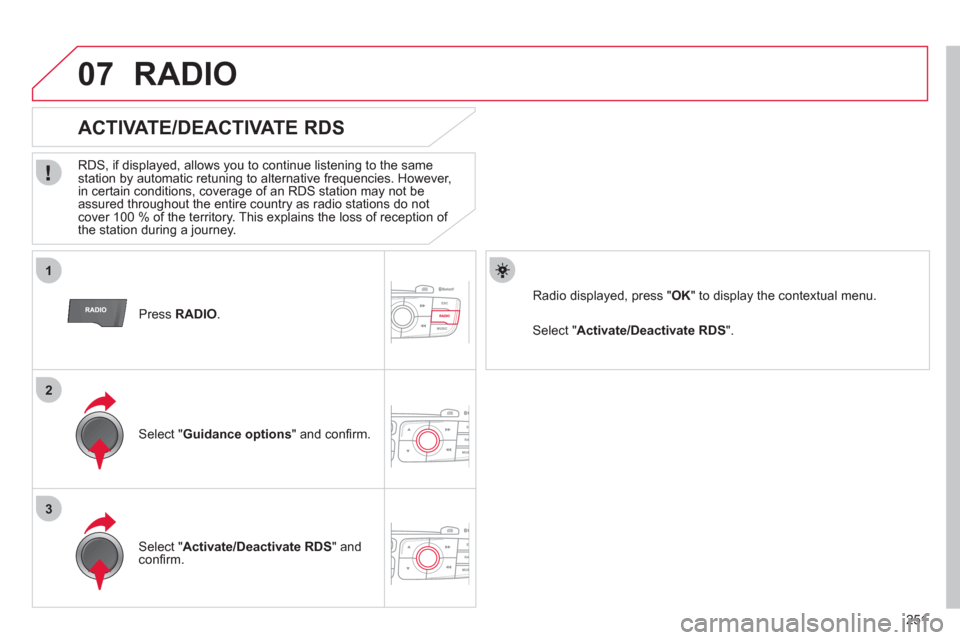

ACTIVATE/DEACTIVATE RDS


RDS, if displayed, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select "Guidance options" and confi rm.

Select "Activate/Deactivate RDS " and confi rm.
RADIO
Select " Activate/Deactivate RDS".
Radio displayed, press "OK " to display the contextual menu.

252
08 MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu
""""""""MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA""""""""
This list can also be displayed by pressing LISTat the steering mounted controls.

Go from the list to the menu (left/right).
or

Press MUSIC.

08

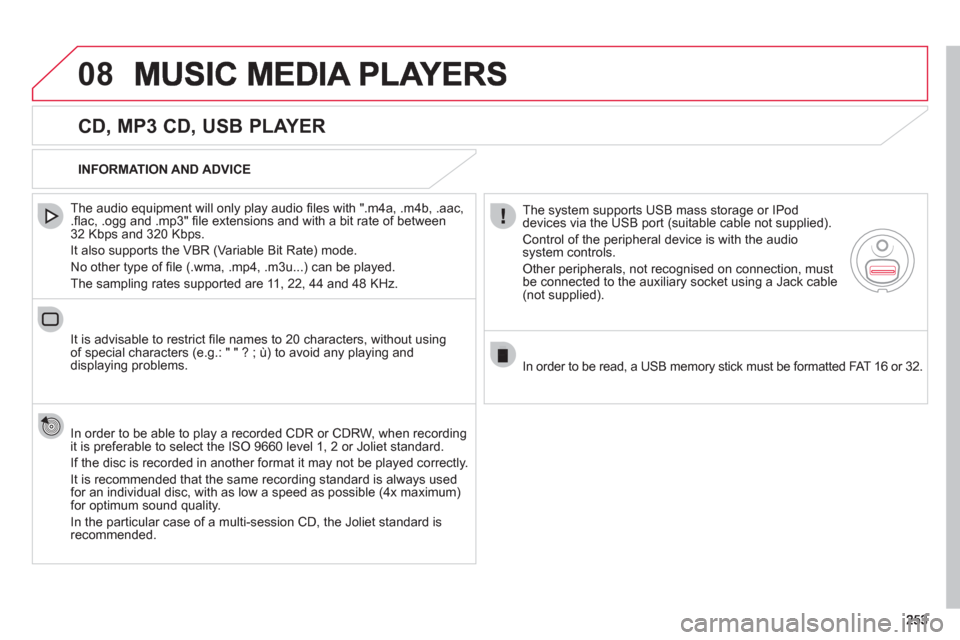

CD, MP3 CD, USB PLAYER


The audio equipment will only play audio fi les with ".m4a, .m4b, .aac,.fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between32 Kbps and 320 Kbps.
It also supports the VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.wma, .mp4, .m3u...) can be played.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict
fi le names to 20 characters, without using of special characters (e.g.: " " ? ; ˘) to avoid any playing and
displaying problems.

In order to be able to pla
y a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.

It is recommended that the same recording standard is always used for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard isrecommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or IPod
devices via the USB port (suitable cable not supplied).

Control of the peripheral device is with the audiosystem controls.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memor
y stick must be formatted FAT 16 or 32.

254
08
1
2
3
MUSIC MEDIA PLAYERS

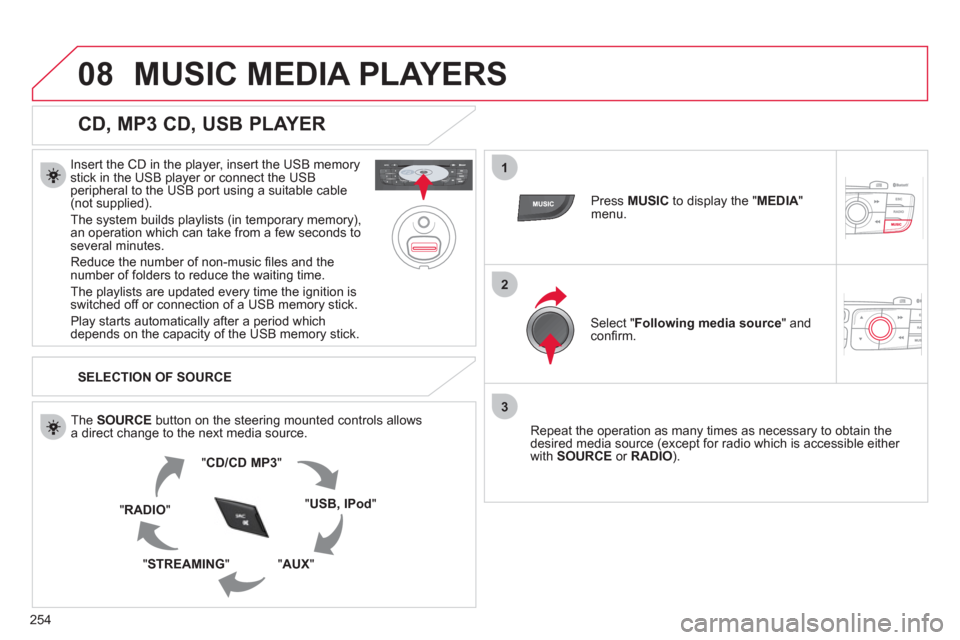

CD, MP3 CD, USB PLAYER


Insert the CD in the player, insert the USB memorystick in the USB player or connect the USBperipheral to the USB port using a suitable cable (not supplied).
The s
ystem builds playlists (in temporary memory),
an operation which can take from a few seconds to several minutes.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.

The playlists are updated every time the ignition isswitched off or connection of a USB memory stick.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick.


SELECTION OF SOURCE
Th
e SOURCE button on the steering mounted controls allows
a direct change to the next media source.
" CD/CD MP
3
"
"
USB, IPod"
"AUX " "STREAMING "
"RADIO "

Press MUSICto display the "MEDIA"menu.

Select "Following media source
" and confi rm.

Repeat the operation as man
y times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO).

255
08
/
/
//
//
// +/

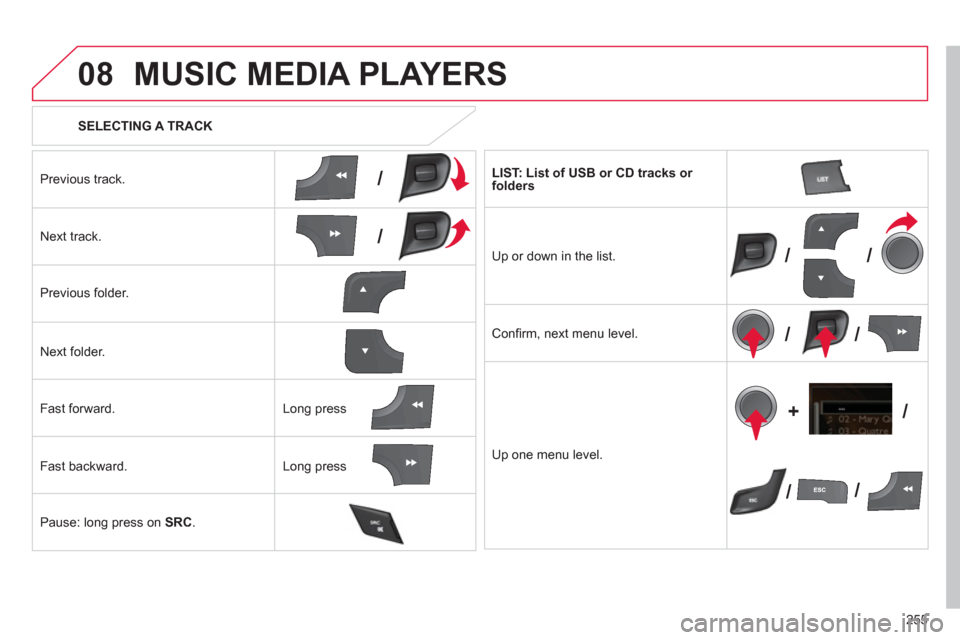

SELECTING A TRACK
MUSIC MEDIA PLAYERS
Previous track.
N
ext track.
Pr
evious folder.
N
ext folder.
F
ast forward.
Fast backward.
Pause: lon
g press on SRC.

LIST: List of USB or CD tracks or folders
Up or down in the list.
Confi rm
, next menu level.

Up one menu level.
Lon
g press

Long press

256
1
2
1
2
08

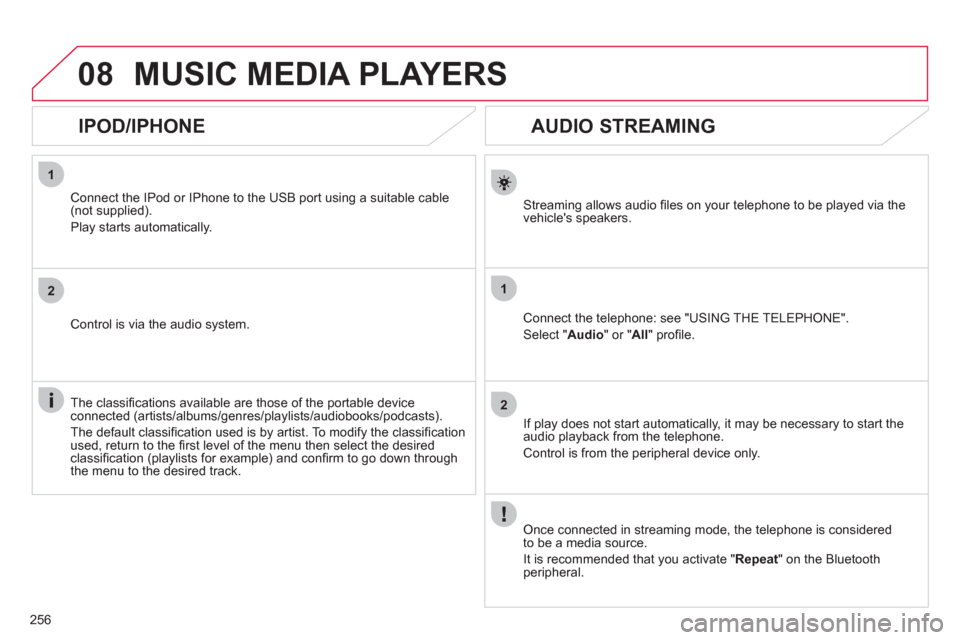

AUDIO STREAMING
Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see "USING THE TELEPHONE".
Select " Audio" or " All" profi le.
If pla
y does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device only.
Once connected in streaming mode, the telephone is considered
to be a media source.
It is recommended that
you activate " Repeat" on the Bluetooth
peripheral.

MUSIC MEDIA PLAYERS


IPOD/IPHONE
Connect the IPod or IPhone to the USB port using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifi cations available are those of the portable device
connected (artists/albums/genres/playlists/audiobooks/podcasts).
The de
fault classifi cation used is by artist. To modify the classifi cationused, return to the fi rst level of the menu then select the desired classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.

257
08
12
3
MUSIC MEDIA PLAYERS

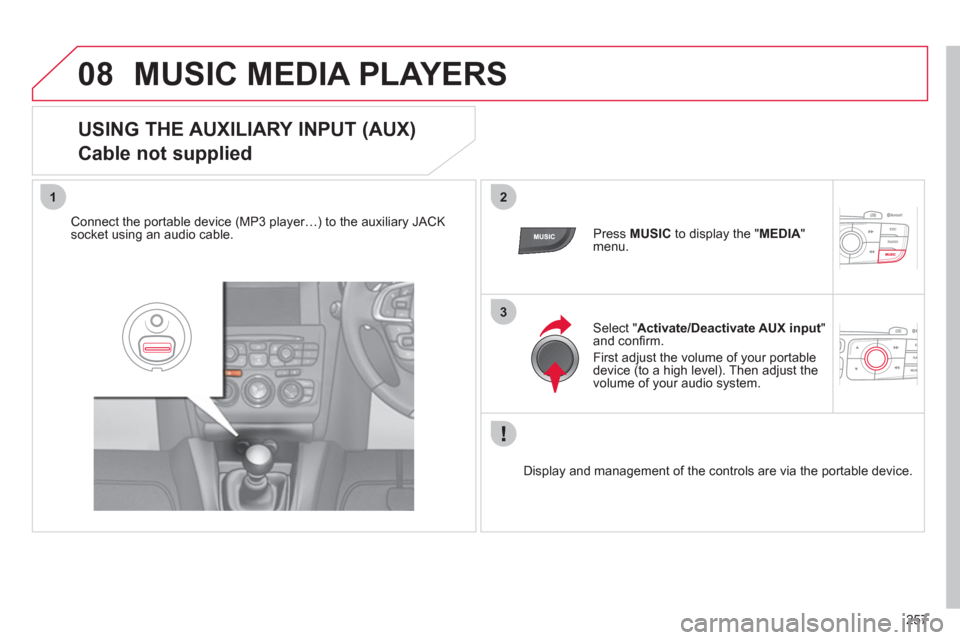

USING THE AUXILIARY INPUT (AUX)
Cable not supplied
Connect the portable device (MP3 player…) to the auxiliary JACK
socket using an audio cable. Press MUSICto display the " MEDIA"menu.

Select "Activate/Deactivate AUX input"and confi rm.
First ad
just the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Displa
y and management of the controls are via the portable device.

258
09
1
2
AUDIO SETTINGS
They are accessible by a long press on RADIOor MUSIC
or from the "FM/AM band " or " MEDIA" menus.
-"
Equalizer" (choice of 6 musical ambiences) r
-"Bass"
-
"Treble"
-"Loudness" (Activate/Deactivate)
- "
Distribution" (" Driver
", "rAll passengers
")
- " Le-Ri balanc
e
" (Left/Right)
- " Fr-Re balanc
e
" (Front/Rear)
-"Auto. Volume
" depending on road speed (Activate/Deactivate)
The audio settings ( Equalizer, rBass , Trebleand Loudness) are
different and independent for each sound source.
The settings
for distribution and balance are common to all sources. The distribution
(or spatialisation) of sound is an audio process that allows the audio quality to be adapted to the number of listeners in
the vehicle.
