10
CHECKS
179
Used products
Avoid prolonged contact of used
oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl uids
into sewers or onto the ground.
Take used oil to a CITROËN
dealer or a qualifi ed workshop
(France) or to an authorised
waste disposal site.
Additive level (Diesel with
particle emissions filter)
According to your version of instrument
panel, the additive reservoir low level is
indicated by:
Topping up
The reservoir must be topped up with-
out delay by a CITROËN dealer or a
qualifi ed workshop.
- fi xed illumination of the par-
ticle emissions fi lter warning
lamp, accompanied by an au-
dible signal and a message
that the particle emissions fi l-
ter additive level is too low,
- fi xed illumination of the
service warning lamp, ac-
companied by an audible
signal and a message that
the particle emissions fi lter additive level is too low. or
Screenwash/headlamp wash
level
Specifi cation of the fl uid
To ensure optimum cleaning and to
avoid freezing, the fl uid should never be
topped up or replaced by plain water.
To check the level or top up the
fl uid on vehicle fi tted with head-
lamp washers, immobilise the
vehicle and switch of the engine.
)
Open the bonnet and secure it with
the stay.
)
Open the screenwash reservoir fi ller
cap.
)
Take and pinch the level gauge to
block its breather.
)
Remove the gauge completely from
the reservoir to read the level in the
transparent section.
)
Top up if necessary.
)
Refi t the fi ller cap to the reservoir
and close the bonnet.
Page 182 of 324
10
CHECKS
180
CHECKS
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a
CITROËN dealer or a qualifi ed workshop.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Particle emission filter (Diesel)
According to your version of instrument
panel, the start of saturation of the par-
ticle emissions fi lter is indicated by:
- fi xed illumination of the par-
ticle emissions fi lter warning
lamp, accompanied by an au-
dible signal and a message
that there is a risk of blockage
of the particle emissions fi lter,
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specifi c 12 V lead-acid bat-
tery with special technology and speci-
fi cation, for which the involvement of a
CITROËN dealer or a qualifi ed work-
shop is required when replacing or dis-
connecting the battery.
Failure to observe this recommendation
may shorten the life of the battery.
Depending on the environment (e.g.
dusty atmosphere) and the use of the
vehicle (e.g. city driving), replace them
twice as often if necessary
(refer to
the "Engines" section).
A clogged passenger compartment fi l-
ter may have an adverse effect on the
performance of the air conditioning sys-
tem and generate undesirable odours.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, refer to
the "Additive level" section.
On a new vehicle, the fi rst opera-
tions of regeneration of the particle
emissions fi lter may be accom-
panied by the smell of "burning",
which is perfectly normal.
Following prolonged operation
of the vehicle at very low speed
or at idle, you may, in excep-
tional circumstances, notice the
emission of water vapour at the
exhaust on acceleration. This
does not affect the behaviour of
the vehicle or the environment. or
-
temporary illumination of
the service warning lamp,
accompanied by an audible
signal and a message that
there is a risk of blockage of
the particle emissions fi lter.
Page 183 of 324
10
CHECKS
181
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing book-
let for the details of the level
checking interval for this com-
ponent.
6-speed electronic gearbox
system
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
terval for this component.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
interval for this component.
Electric parking brake
This system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a CITROËN
dealer or a qualifi ed workshop.
For more information, see "Driving - Electric parking brake - § Operating faults".
Brake pads
Brake disc wear
If a loss of effectiveness of this
system is noticed, the parking
brake must be checked, even
between two services.
Checking this system must be done by
a CITROËN dealer or a qualifi ed work-
shop.
Only use products recommended
by CITROËN or products of equiv-
alent quality and specifi cation.
In order to optimise the opera-
tion of units as important as
the braking system, CITROËN
selects and offers very specifi c
products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compart-
ment is strictly prohibited
.
Manual parking brake
For information on checking
brake disc wear, contact a
CITROËN dealer or a quali-
fi ed workshop. Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the system, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Page 184 of 324
11
PRACTICAL INFORMATION
182

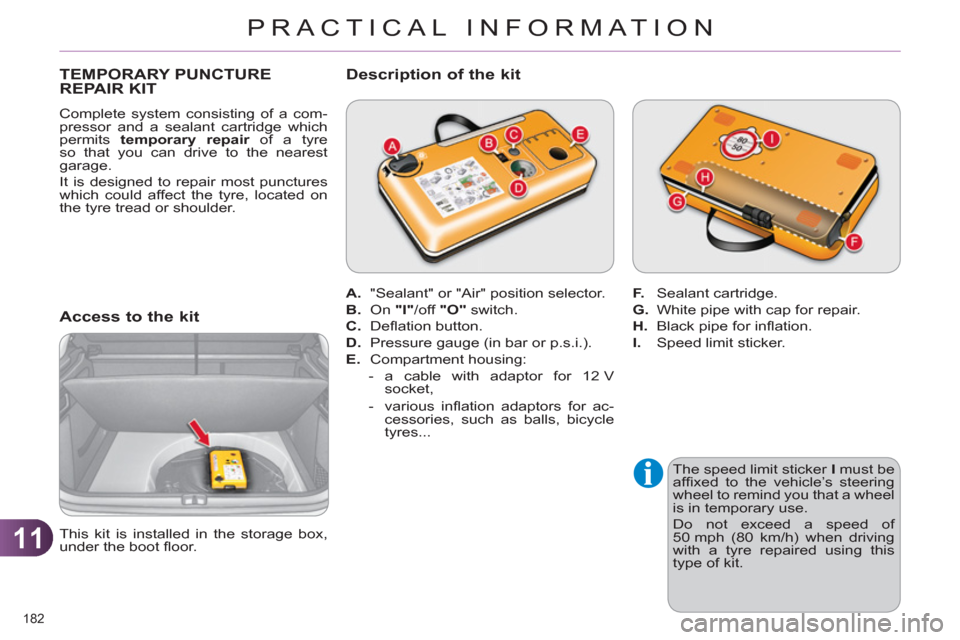

TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre
so that you can drive to the nearest
garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
Access to the kit
The speed limit sticker I
must be
affi xed to the vehicle’s steering
wheel to remind you that a wheel
is in temporary use.
Do not exceed a speed of
50 mph (80 km/h) when driving
with a tyre repaired using this
type of kit.
This kit is installed in the storage box,
under the boot fl oor.
A.
"Sealant" or "Air" position selector.
B.
On "I"
/off "O"
switch.
C.
Defl ation button.
D.
Pressure gauge (in bar or p.s.i.).
E.
Compartment housing:
- a cable with adaptor for 12 V
socket,
- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
Description of the kit
F.
Sealant cartridge.
G.
White pipe with cap for repair.
H.
Black pipe for infl ation.
I.
Speed limit sticker.
Page 185 of 324
11
PRACTICAL INFORMATION
183
Repair procedure
)
Switch off the ignition.
)
Turn the selector A
to the
"sealant" position.
)
Check that the switch B
is
in position "O"
.
Avoid removing any foreign
bodies which have penetrated
into the tyre.
1. Sealing
)
Uncoil the white pipe G
fully.
)
Unscrew the cap from the white
pipe.
)
Connect the white pipe to the valve
of the tyre to be repaired.
)
Connect the compressor’s electric
plug to the vehicle’s 12 V socket.
)
Start the vehicle and leave the
engine running.
Do not start the compressor be-
fore connecting the white pipe
to the tyre valve: the sealant
product would be expelled
through the pipe.
Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep it out of reach of children.
Page 186 of 324
11
PRACTICAL INFORMATION
184

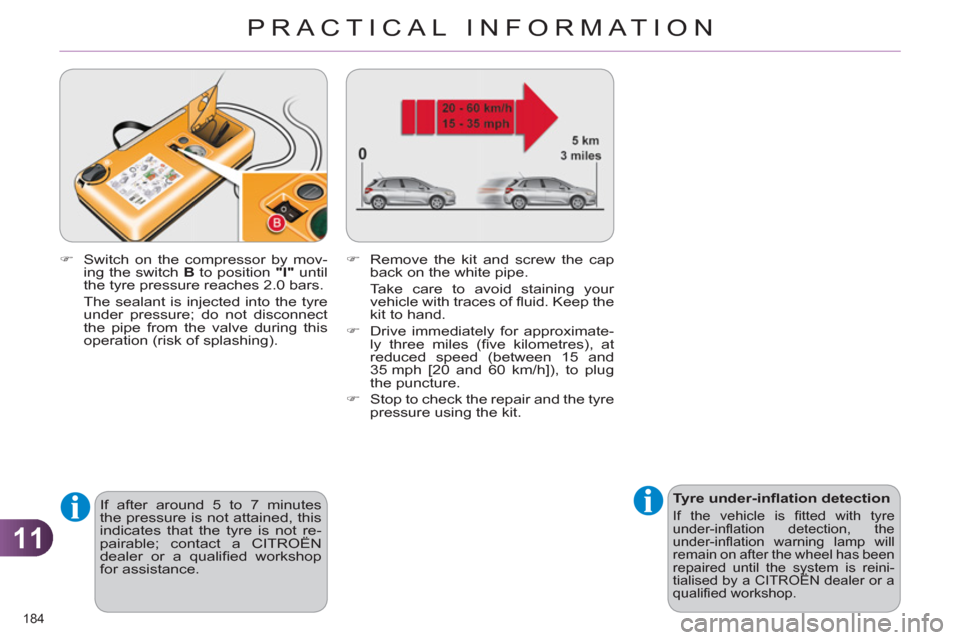

Tyre under-infl ation detection
If the vehicle is fi tted with tyre
under-infl ation detection, the
under-infl ation warning lamp will
remain on after the wheel has been
repaired until the system is reini-
tialised by a CITROËN dealer or a
qualifi ed workshop.
If after around 5 to 7 minutes
the pressure is not attained, this
indicates that the tyre is not re-
pairable; contact a CITROËN
dealer or a qualifi ed workshop
for assistance.
)
Switch on the compressor by mov-
ing the switch B
to position "I"
until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).
)
Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your
vehicle with traces of fl uid. Keep the
kit to hand.
)
Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph [20 and 60 km/h]), to plug
the puncture.
)
Stop to check the repair and the tyre
pressure using the kit.
Page 187 of 324
11
PRACTICAL INFORMATION
185
)
Connect the compressor’s electric
plug to the vehicle’s 12 V socket.
)
Start the vehicle again and leave
the engine running.
)
Visit a CITROËN dealer or a
qualifi ed workshop as soon
as possible.
You must inform the techni-
cian that you have used this
kit. After inspection, the tech-
nician will inform you whether
the tyre can be repaired or
must be replaced.
)
Turn the selector A
to the
"air" position.
)
Uncoil the black pipe H
fully.
)
Connect the black pipe to
the valve of the wheel.
2. Infl ation
)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in posi-
tion "I"
; to defl ate: switch B
in po-
sition "O"
and press button C
), in
accordance with the vehicle’s tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or quali-
fi ed workshop for assistance.
)
Remove and stow the kit.
)
Drive at reduced speed (50 mph
[80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).
Page 188 of 324
11
PRACTICAL INFORMATION
186
Removing the cartridge
)
Stow the black pipe.
)
Detach the angled base from the
white pipe.
)
Support the compressor vertically.
)
Unscrew the cartridge from the
bottom.
)
Connect the compressor’s electri-
cal connector to the vehicle’s 12 V
socket.
)
Start the vehicle and let the engine
run.
)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in posi-
tion "I"
; to defl ate: switch B
in position
"O"
and press button C
), according
to the vehicle’s tyre pressure label or
the accessory’s pressure label.
)
Remove the kit then stow it.
Beware of discharges of fl uid.
The expiry date of the fl uid is in-
dicated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a CITROËN dealer.
Do not forget to obtain a new
sealant cartridge, available from
CITROËN dealers or from a
qualifi ed workshop.
Checking tyre pressures/
inflating accessories
You can also use the compressor, with-
out injecting any product, to:
- check or adjust the pressure of your
tyres,
- infl ate other accessories (balls, bi-
cycle tyres...).
)
Turn the selector A
to the
"Air" position.
)
Uncoil the black pipe H
fully.
)
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.
Page 189 of 324
11
PRACTICAL INFORMATION
187
CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in the boot under
the fl oor.
To gain access to them:
)
open the boot,
)
raise the fl oor,
)
secure it by hooking its cord on the
hook on the rear shelf support,
)
with a standard size spare wheel,
unclip and remove the box in the
middle of the wheel containing the
tools,
or
)
with a "space-saver" spare wheel;
lift the wheel at the rear towards
you for access to the storage box
containing the tools.
List of tools
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1.
Wheelbrace.
For removing the wheel trim and
the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removing the bolt protectors
(covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adapting the wheelbrace to the
special "security" bolts.
Wheel with trim
When removing the wheel
, detach the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.
When refi tting the wheel
, refi t the trim starting by placing its notch facing
the valve and press around its edge with the palm of your hand.
Page 190 of 324
11
PRACTICAL INFORMATION
188
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
Depending on version, the spare wheel
may be a standard size steel or alloy
wheel, or for some countries it is the
"space saver" type.
For access to the spare wheel, refer to
the paragraph "Access to the tools" on
the previous page.
Putting the standard wheel back in
place
)
Put the wheel back in its housing.
)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a CITROËN
dealer or aqualifi ed workshop.
Taking out the standard wheel
)
Unscrew the yellow central bolt.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
)
Put the box back in place in the centre
of the wheel and clip it.
