TECHNICAL DATA
219


WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


HDi 150 PEF



Gearboxes


Manual



Model codes:
NC...


RHE8




- Unladen weight
1 320


- Kerb weight
1 395


- Gross vehicle weight (GVW)
1 885


- Gross train weight (GTW)
on 12 % gradient
3 385


- Braked trailer (within GTW limit)
on 12 % gradient
1 500


- Braked trailer * (with load transfer
with the GTW limit)
1 750


- Unbraked trailer
695


- Recommended nose weight
75
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

12
TECHNICAL DATA
220





DIMENSIONS (IN MM)

12
TECHNICAL DATA
221

















IDENTIFICATION MARKINGS

Various visible markings for the identifi -
cation of your vehicle.

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.

This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.

The VIN is indicated on a self-destroying
label affi xed to the driver's centre pillar. It bears the following information:


- the tyre pressures, for unladen and
laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the spare tyre infl ation pressure,

- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.

222

223

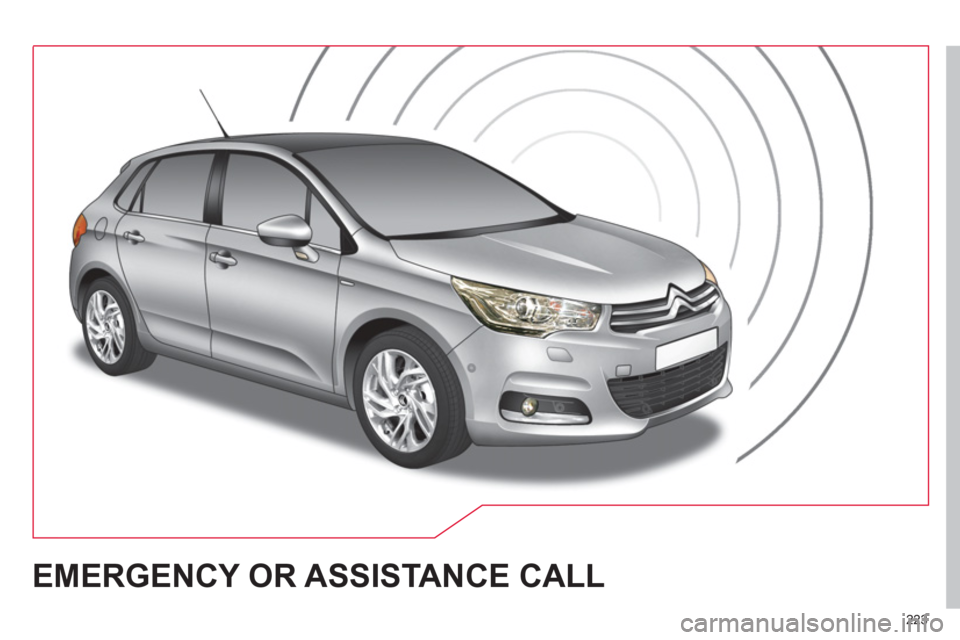

EMERGENCY OR ASSISTANCE CALL

224

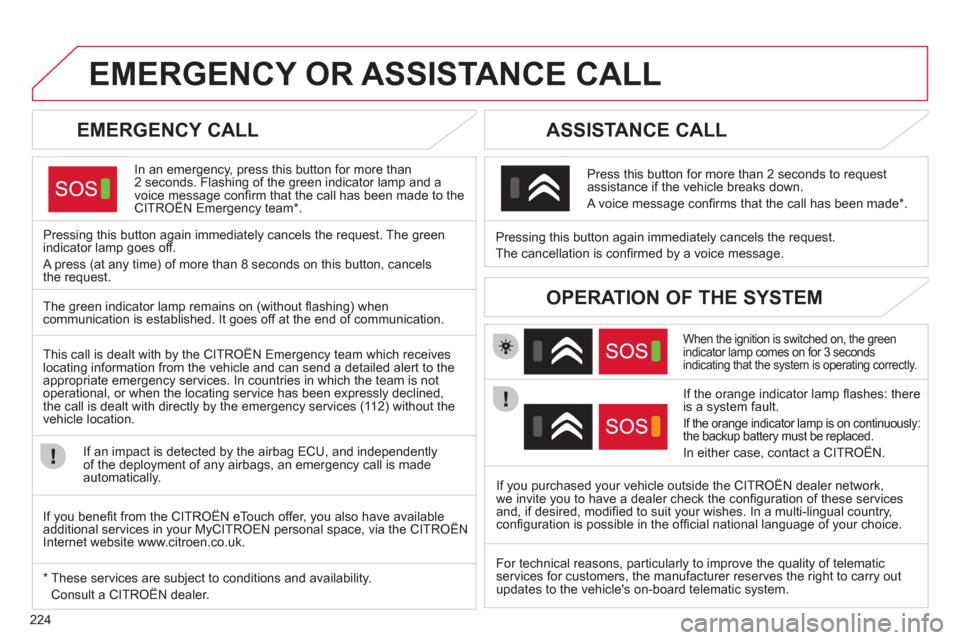

EMERGENCY OR ASSISTANCE CALL


EMERGENCY CALL


In an emergency, press this button for more than
2 seconds. Flashing of the green indicator lamp and a
voice message confi rm that the call has been made to the
CITROËN Emergency team * .

Pressing this button again immediately cancels the request. The green
indicator lamp goes off.
A press (at any time) of more than 8 seconds on this button, cancels
the request.


ASSISTANCE CALL

When the ignition is switched on, the green
indicator lamp comes on for 3 seconds
indicating that the system is operating correctly.


If the orange indicator lamp fl ashes: there
is a system fault.
If the orange indicator lamp is on continuously:
the backup battery must be replaced.
In either case, contact a CITROËN.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .


OPERATION OF THE SYSTEM

The green indicator lamp remains on (without fl ashing) when
communication is established. It goes off at the end of communication.

This call is dealt with by the CITROËN Emergency team which receives
locating information from the vehicle and can send a detailed alert to the
appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently
of the deployment of any airbags, an emergency call is made
automatically.


* These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.
If you benefi t from the CITROËN eTouch offer, you also have available
additional services in your MyCITROEN personal space, via the CITROËN
Internet website www.citroen.co.uk.

For technical reasons, particularly to improve the quality of telematic
services for customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.

225

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
226
228
229
231
244
247
257
260
266
267
268
271

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

226
1142
9
3
4
5
67
8
10
111213
01 FIRST STEPS


CONTROL PANEL

Buttons 2, 3, 4, 5, 6 and 12: selection of left or right of the screen, when a Menu is displayed in the screen.

227
01


1. Rotary control:


- Short press engine not running: on/off.

- Short press engine running:
mute on/off.

- Rotation: volume adjustment (each source
is independent, including TA messages
and navigation information).

2. Radio source, access to the FM/AM band

menu and display the list of stations.

3. Access to the MEDIA
menu and display
the list of tracks.

4. Access to the Navigation - guidance
menu
and display the last destinations.

5. Access to the Traffi c information
menu and
display the current traffi c alerts.

6. Access to the " Telephone
" menu and display
the recent calls list or accept an incoming
call.
2 - 3. Long press: access to the Audio settings
:
music ambiance, bass, treble, loudness,
left/right balance, front/rear fader,
automatic volume adjustment.
7. Access to the " Confi guration
" menu.
Long press: access to the GPS coverage and
the navigation demonstration mode.

8. MODE button:
Selection of the type of permanent display.
Long press: black screen (DARK).

9. ESC: abandon the operation in progress, up
one level in the menu.
Long press: return to permanent display.

10. CD eject.
Continuous press: reinitialisation of the
system.

11. According to context:
Selection of the previous/next line in a list or
menu
Selection of the previous/next media folder.
Step by step selection of the previous/next
radio frequency.
Move up/down in Move the map
mode.
12. According to context:
Automatic selection of the next lower/higher
radio frequency
Selection of the previous/next CD or media
track
Selection of left/right on the screen when a
menu is displayed.
Move left/right in Move the map
mode.

13. Buttons 1 to 6:
Short press: selection of the stored radio
station.
Long press: store the current radio station.

14. Dial for selection and OK confi rmation:
Selection of an item on the screen or in a
list in a menu, then confi rmation with a short
press.
Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displayed: zoom the map
scale in and out.
FIRST STEPS

228
02 STEERING MOUNTED CONTROLS





- Change the audio source.
Long press: mute.


- Volume increase.


- Volume decrease.


- Radio: display the list of stations.
Media: display the list of tracks.


- Rotation.
Radio -automatic selection of
next/previous frequency.
Media: previous/next track.

- Press then rotation: access to
6 preset stations.





- TEL button:
Access to the telephone menu:
Call list/Contacts/Hands-free
mode/Answer/Hang up.
Accept an incoming call/
Long press: reject an incoming call
or end the current call.


- Move in the menus.
Zoom the map in and out.
Press: confi rmation.


- Abandon the current operation.
