8
INTERIOR


Interior mood lighting
This dimmed lighting of the passenger
compartment improves visibility inside
the vehicle when the light is poor.



109


6-speed electronic gearbox system
This system offers driving combining
a fully automatic mode and a manual
mode.



151

Massage function
This system provides a lumbar mas-
sage for a period of 60 minutes.
The massage is done in 6 cycles of
10 minutes.



74

Audio and communication systems

These systems benefi t from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation sys-
tem with colour screen, auxiliary sockets.

Radio




277
eMyWay satellite navigation system



225



Electric parking brake
It combines the functions of auto-
matic application on switching off the
engine and automatic release when
moving off.
Manual application and release re-
mains possible.



142

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS




1.
Controls for audio and telematic
system.

2.
Controls for Bluetooth system or
telephone.

3.
Steering lock and ignition.

4.
Wiper/screenwash/trip computer
control stalk.

5.
Instrument panel.

6.
Driver’s airbag.
Horn.

7.
Cruise control/speed limiter
switches.

8.
Controls for optional functions.

9.
Door mirror controls.
Electric window controls.

10.
Oddments storage.

11 .
Manual headlamp height
adjustment
Lower side switch panel.

12.
Fuel fi ller fl ap opening button.
Upper side switch panel.

13.
Side adjustable air vent.

14.
Front side window demisting vent.

18
MONITORING


Side switch panel
Multifunction steering wheel


Cruise control/speed limiter
controls



167, 165


Optional functions controls


1.
Black panel (black screen).


49

2.
Dashboard lighting dimmer.

49
or
Control of the instrument panel central
screen associated with the satellite
navigation system.

57

3.
Courtesy lamp on/off.

108
or
Parking space sensors.

169


Audio system controls



228, 279


Bluetooth system or telephone
controls



228, 279

Illumination of the warning lamp indi-
cates the state of the system.


A.
Deactivating the ESP/ASR system.

133

B.
Deactivating the parking sensors.

171

C.
Deactivating the Stop & Start sys-
tem.


158

D.
Activating the blind spot sensors.

161

E.
Switching on the electric child lock.

129

F.
Deactivating the volumetric alarm
monitoring.

86

2
MULTIFUNCTION SCREENS
53



















MONOCHROME SCREEN C

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature (this fl ashes if
there is a risk of ice),

- openings check (if a doors or the
boot is open),

- parking sensor information,

- current audio source,

- telephone or Bluetooth system in-
formation,

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switch-
ing on of the headlamps activated")
may appear temporarily. These can be
cleared by pressing the "ESC"
button. From the control panel of your audio
system, you can press:


)
button A
to chooses between the
display of audio information in full
screen or the shared display of au-
dio and trip computer information,

)
the "MENU"
button for access to
the main menu
,

)
the "
" or "
" buttons to scroll
through the items on the screen,

)
the "
" or "
" buttons to change a
setting value,

)
the "OK"
button to confi rm,
or


)
the "ESC"
button to abandon the
operation in progress.



Controls



)
Press the "MENU"
button for ac-
cess to the main menu
:


- "Multimedia",

- "Telephone",

- "Trip computer",

- "Bluetooth connection",

- "Personalisation-confi guration",

)
Press the "
" or "
" button to se-
lect the menu required, then confi rm
by pressing the "OK"
button.



Main menu

"Multimedia" menu

With the audio system switched on,
this menu allows you to activate or de-
activate the functions associated with
use of the radio (RDS, DAB/FM auto
tracking, RadioText (TXT) display) or to
choose the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio and
Telematics" section.

2
MULTIFUNCTION SCREENS
54

Defi ne the vehicle parameters
This menu allows you to activate or de-
activate the following equipment, clas-
sifi ed in different categories:


- "Access to the vehicle" (see the
"Access" section):


●
"Plip action" (Selective unlocking
of the driver's door),

●
"Unlocking boot only" (Selective
unlocking of the boot).



"Telephone" menu

With the audio system switched on, this
menu allows you to make a call or view
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio and
Telematics" section. This menu allows you to view informa-
tion on the status of the vehicle.

Warning log
This summarises the status and warn-
ing messages for systems (active, not
active or faulty), displaying them in suc-
cession in the multifunction screen.


)
Press the "MENU"
button for ac-
cess to the main menu.

)
Press the arrows, then the "OK"

button to select the " Trip computer
"
menu.

)
In the " Trip computer
" menu, select
the "Warning log" line and confi rm.




"Bluetooth connection"
menu
"Trip computer" menu

Wit the audio system on, this menu allows
a Bluetooth device (telephone, media
player) to be connected or disconnected
and the connection mode to be defi ned
(hands-free, playing audio fi les).
For more information on the "Bluetooth
connection" application, refer to the
"Audio and Telematics" section.


"Personalisation-
configuration" menu
This menu gives access to the following
functions:


- "Defi ne the vehicle parameters",

- "Choice of language",

- "Display confi guration",

- "Choice of sounds".

11
PRACTICAL INFORMATION
210

Installation of radio
communication transmitters
Before installing any after-
market radio communication
transmitter, you can contact a
CITROËN dealer for the speci-
fi cation of transmitters which
can be fi tted (frequency, maxi-
mum power, aerial position,
specifi c installation require-
ments), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).


Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning triangle
and spare bulbs and fuses available
in the vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.

"Multimedia":
audio systems, steering mounted au-
dio controls, speakers, Hi-Fi module,
Bluetooth hands-free system, portable
satellite navigation system, semi-inte-
gral support bracket for portable navi-
gation system, speed camera detector,
USB Box, reversing camera, portable
video screen, portable video support
bracket, 230 V/50 Hz socket, 230 V/50 Hz
adaptor, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...

225

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
226
228
229
231
244
247
257
260
266
267
268
271

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE
AUDIO SYSTEM

247

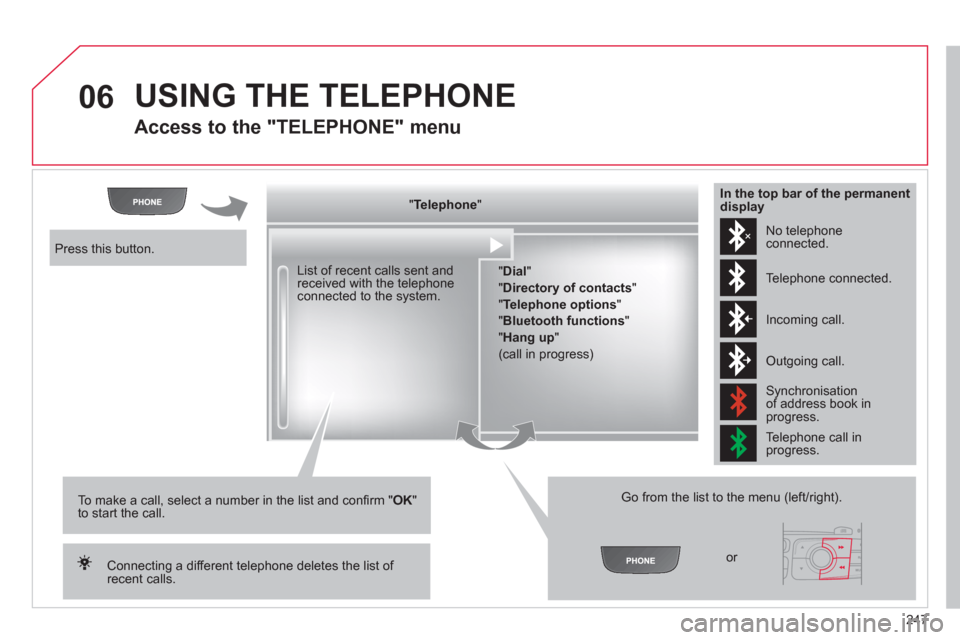

06 USING THE TELEPHONE


Access to the "TELEPHONE" menu


" Telephone
"

" Dial
"
" Directory of contacts
"
" Telephone options
"
" Bluetooth functions
"
" Hang up
"
(call in progress)

Go from the list to the menu (left/right).
or

List of recent calls sent and
received with the telephone
connected to the system.
Press this button.

To make a call, select a number in the list and confi rm " OK
"
to start the call.

Connecting a different telephone deletes the list of
recent calls. No telephone
connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation
of address book in
progress.
Telephone call in
progress.
In the top bar of the permanent
display

248
1
25
6
3
4
06

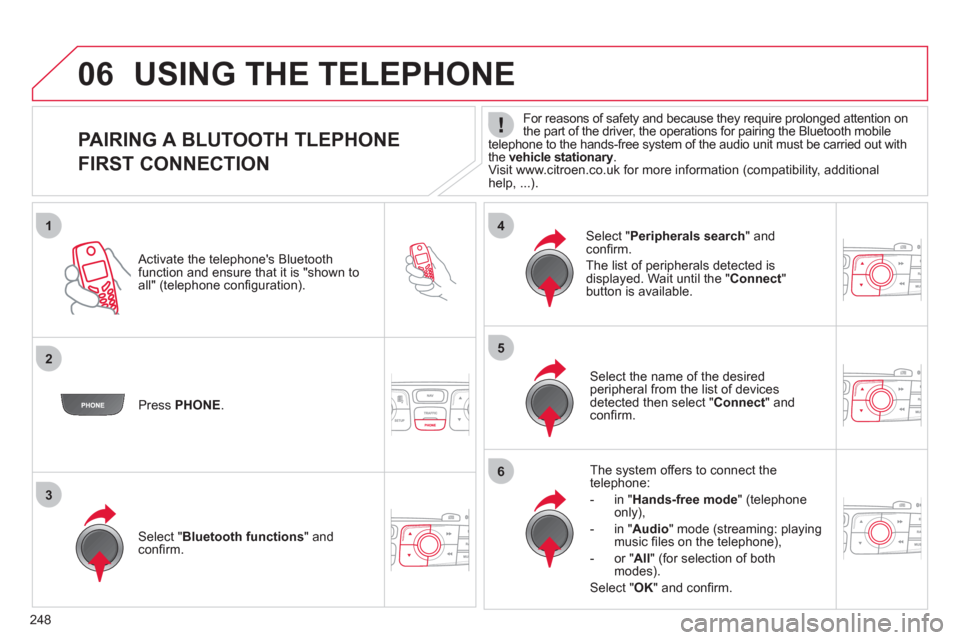

PAIRING A BLUTOOTH TLEPHONE
FIRST CONNECTION

For reasons of safety and because they require prolonged attention on
the part of the driver, the operations for pairing the Bluetooth mobile
telephone to the hands-free system of the audio unit must be carried out with
the vehicle stationary
.
Visit www.citroen.co.uk for more information (compatibility, additional
help, ...).

Activate the telephone's Bluetooth
function and ensure that it is "shown to
all" (telephone confi guration).

Press PHONE
.
Select the name of the desired
peripheral from the list of devices
detected then select " Connect
" and
confi rm.

The system offers to connect the
telephone:


- in " Hands-free mode
" (telephone
only),

- in " Audio
" mode (streaming: playing
music fi les on the telephone),

- or " All
" (for selection of both
modes).
Select " OK
" and confi rm.
Select " Bluetooth functions
" and
confi rm.
Select " Peripherals search
" and
confi rm.
The list of peripherals detected is
displayed. Wait until the " Connect
"
button is available.
USING THE TELEPHONE

249
7
8
06

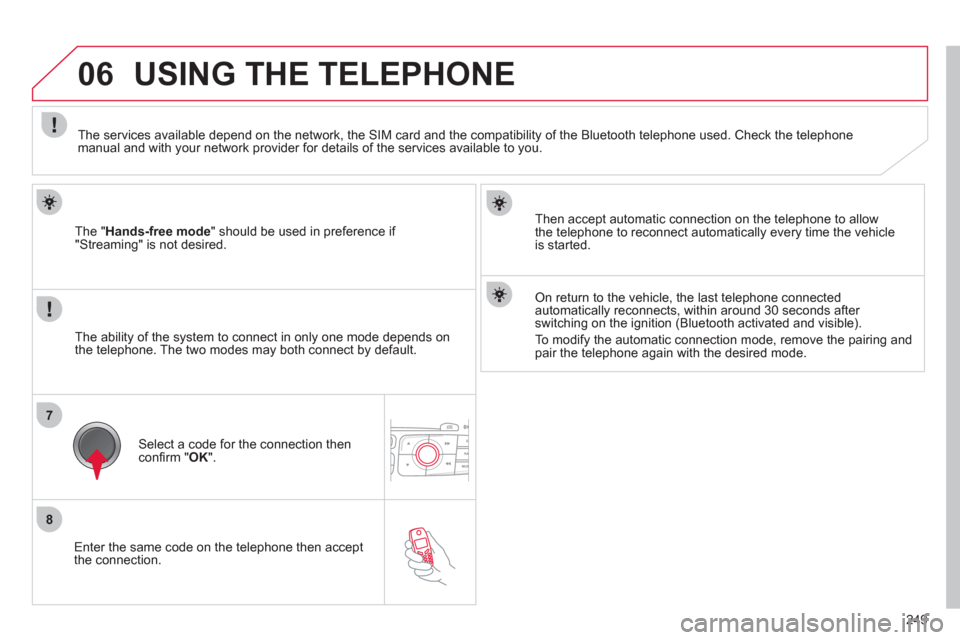

Enter the same code on the telephone then accept
the connection.
The " Hands-free mode
" should be used in preference if
"Streaming" is not desired.
Then accept automatic connection on the telephone to allow
the telephone to reconnect automatically every time the vehicle
is started.


USING THE TELEPHONE


The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you.

Select a code for the connection then
confi rm " OK
".
On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing and
pair the telephone again with the desired mode.
