bluetooth Citroen C4 RHD 2012 2.G User Guide

251
1
2
3
4
5
6
7
06

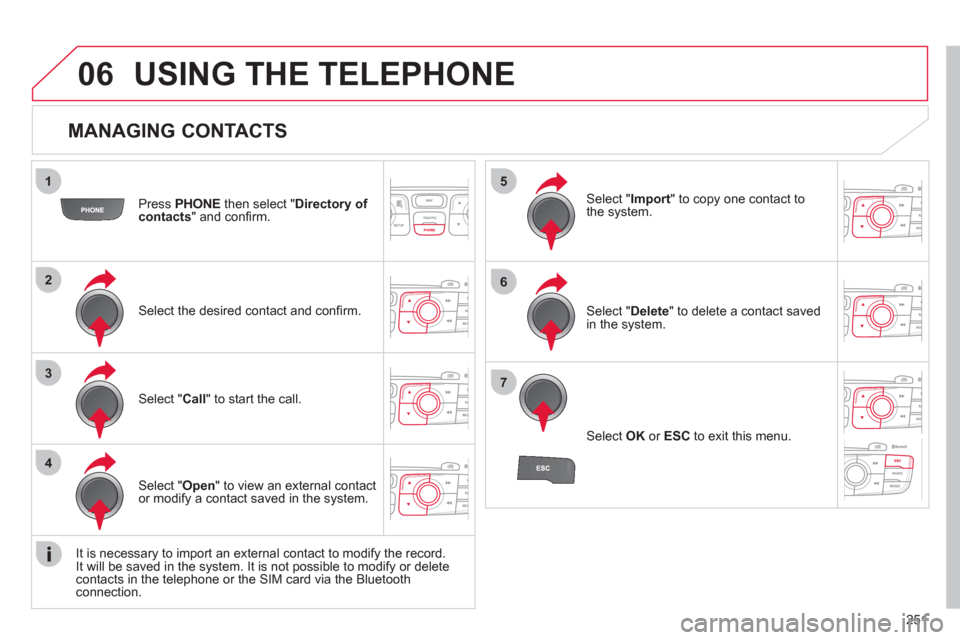

MANAGING CONTACTS


Press PHONE
then select " Directory of
contacts
" and confi rm.

Select the desired contact and confi rm.
Select " Import
" to copy one contact to
the system.

Select " Call
" to start the call.

Select " Open
" to view an external contact
or modify a contact saved in the system.
Select OK
or ESC
to exit this menu.

Select " Delete
" to delete a contact saved
in the system.
It is necessary to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete
contacts in the telephone or the SIM card via the Bluetooth
connection.

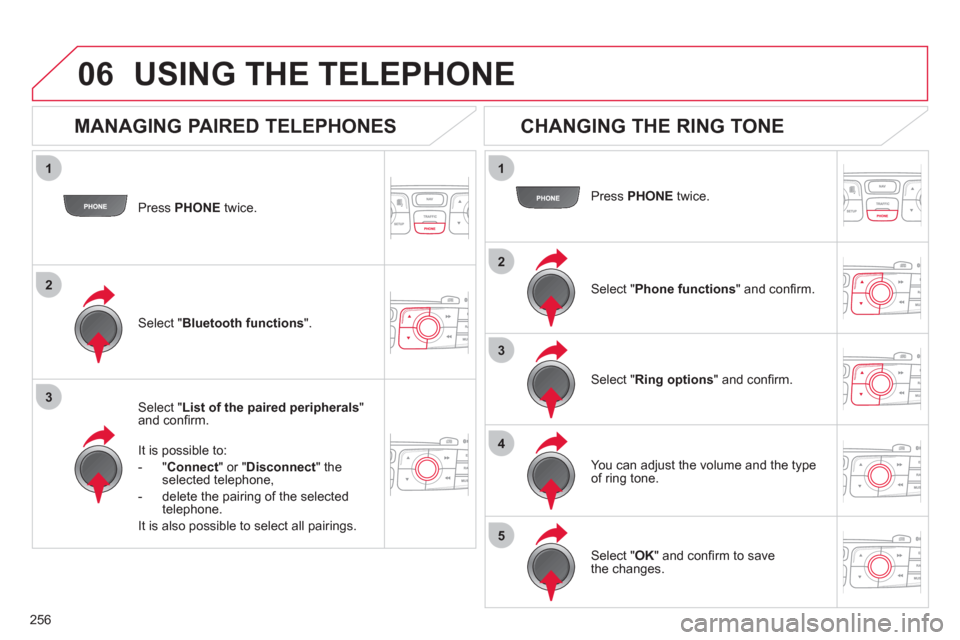

USING THE TELEPHONE

256
1
2
3
1
2
3
4
5
06

Press PHONE
twice.

Select " List of the paired peripherals
"
and confi rm.

It is possible to:


- " Connect
" or " Disconnect
" the
selected telephone,

- delete the pairing of the selected
telephone.
It is also possible to select all pairings.

USING THE TELEPHONE


MANAGING PAIRED TELEPHONES
CHANGING THE RING TONE


Press PHONE
twice.

Select " Phone functions
" and confi rm.

Select " Ring options
" and confi rm.

You can adjust the volume and the type
of ring tone.
Select " Bluetooth functions
".

Select " OK
" and confi rm to save
the changes.

264
1
2
1
2
08

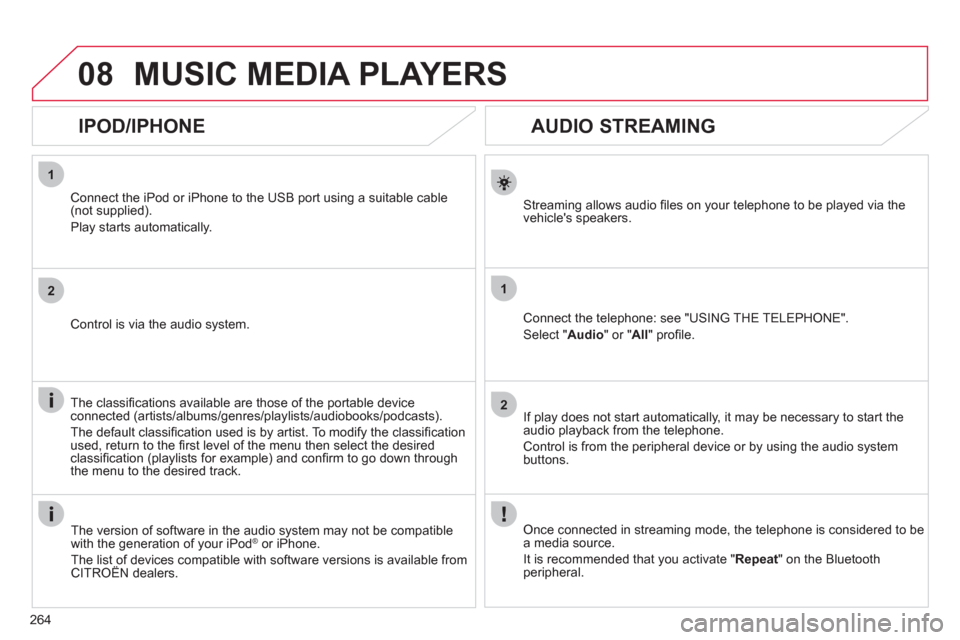

AUDIO STREAMING


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see "USING THE TELEPHONE".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.

Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.

MUSIC MEDIA PLAYERS


IPOD/IPHONE


Connect the iPod or iPhone to the USB port using a suitable cable
(not supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists/albums/genres/playlists/audiobooks/podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.

The version of software in the audio system may not be compatible
with the generation of your iPod
® or iPhone.
The list of devices compatible with software versions is available from
CITROËN dealers.

269
11SCREEN MENU MAP
Following waveband

Guidance options


Activate/Deactivate TA

Activate/Deactivate RDS


Dial

Directory of contacts

Bluetooth functions


List of the paired peripherals
Call

Open

Import


Phone MENU


Connect


Disconnect



"RADIO" MENU


Delete



Contacts management


New contact

Delete all contacts

Import all the entries

Synchronizing contacts

No synchronization


Display telephone contacts


Display SIM card contacts


Display all phone contacts



Contact mem. status



Phone functions


Ring options

Delete calls log


Delete


Delete all




Hang up


Peripherals search


Rename radiotelephone

1
2
2
1
2
2
2
1
1
2
3
3
1
2
2
2
2
1
2
3
3
3
3
2
2
2
1
3
3
1
2
2

272
FREQUENTLY ASKED QUESTIONS


QUESTION



ANSWER



SOLUTION


The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button,
then select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal reception
conditions.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the telephone
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check in the telephone settings that it is
"visible to all".
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones
is available from the dealer network.
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an infl uence on the quality of telephone
communication. Reduce the ambient noise level (close the windows,
reduce the booster fan speed, slow down, ...).
Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.

273
FREQUENTLY ASKED QUESTIONS


QUESTION



ANSWER



SOLUTION


The system does not receive
SMS text messages.
The Bluetooth mode does not permit sending SMS text messages to the system.

The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
Le CD has been recorded in a format that is not compatible with the
player.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio system.

- Check that the CD is inserted in the player
the right way up.

- Check the condition of the CD: the CD
cannot be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio system's CD player does not play
DVDs.

- Some recorded CDs will not be played by
the audio system because they are not of
the correct quality.
There is a long waiting
period following the insertion
of a CD or connection of a
USB memory stick. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to a
few minutes. This phenomenon is normal.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without
selecting an ambience.
Some characters in the
media information are not
displayed correctly while
playing. The audio system does not display some types of characters. Use standard characters to name tracks and
folders.

274
FREQUENTLY ASKED QUESTIONS


QUESTION



ANSWER



SOLUTION


Playing of streaming fi les
does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth profi le does not allow the transfer of this information.
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5 Mhz is displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not
indicate a fault with the audio system.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
I cannot fi nd some radio
stations in the list of
stations received. The station is not received or its name has changed in the list.
Some radio stations send other information in place of their name (the
title of the song for example).
The system interprets this information as the name of the station. The name of the radio
station changes.

277

The system is coded in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact your CITROËN dealer for confi guration
of the system.

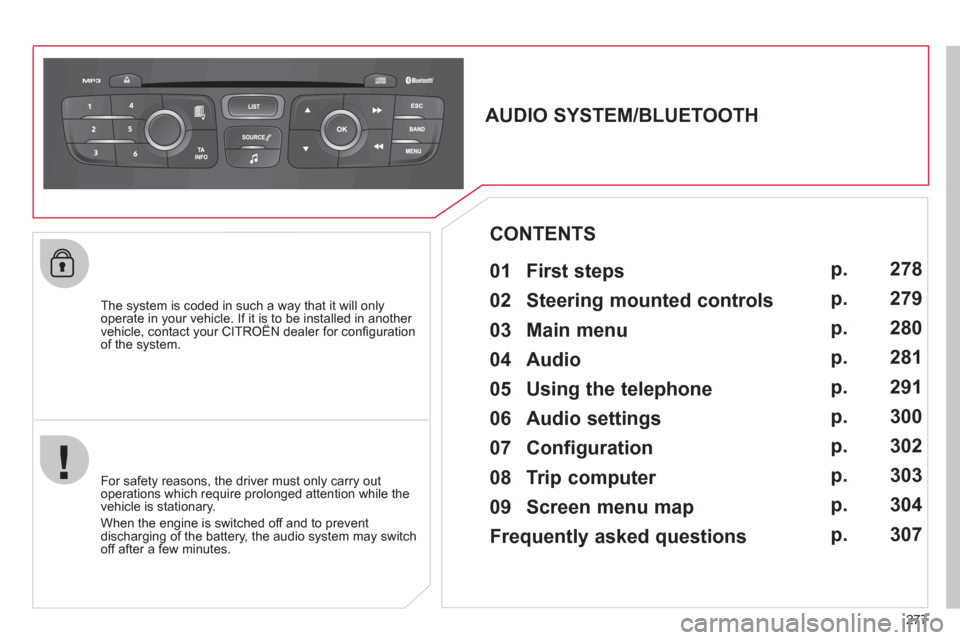

AUDIO SYSTEM/BLUETOOTH

01 First steps


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio system may switch
off after a few minutes.



CONTENTS

02 Steering mounted controls

03 Main menu

04 Audio

05 Using the telephone

06 Audio settings

07 Configuration

08 Trip computer

09 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
278
279
280
281
291
300
302
303
304
307

280
03

" Multimedia
": Media parameters,
Radio parameters.

" Trip computer
": Warning log.

For a detailed global view of the menus
available, refer to "Screen menu maps"
in this section.









> SCREEN C

" Bluetooth connection
":
Connections management, Search
for a device.

" Telephone
": Call, Directory
management, Telephone
management, Hang up.

MAIN MENU











> MONOCHROME SCREEN A

" Personalisation-confi guration
": Defi ne the
vehicle parameters, Choice of language, Display
confi guration, Choice of units, Date and time
adjustment.

290
04
1
2
1
2
3
4
5
AUDIO






STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP/AVRCP).

Activate the streaming source by pressing SOURCE
.
Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from
the telephone.

The audio quality depends on the quality of the transmission from
the telephone.



PLAY MODE


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.







Press OK
for access to the contextual
menu.
or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.
