Citroen C4 RHD 2013.5 2.G Owner's Manual

06
249

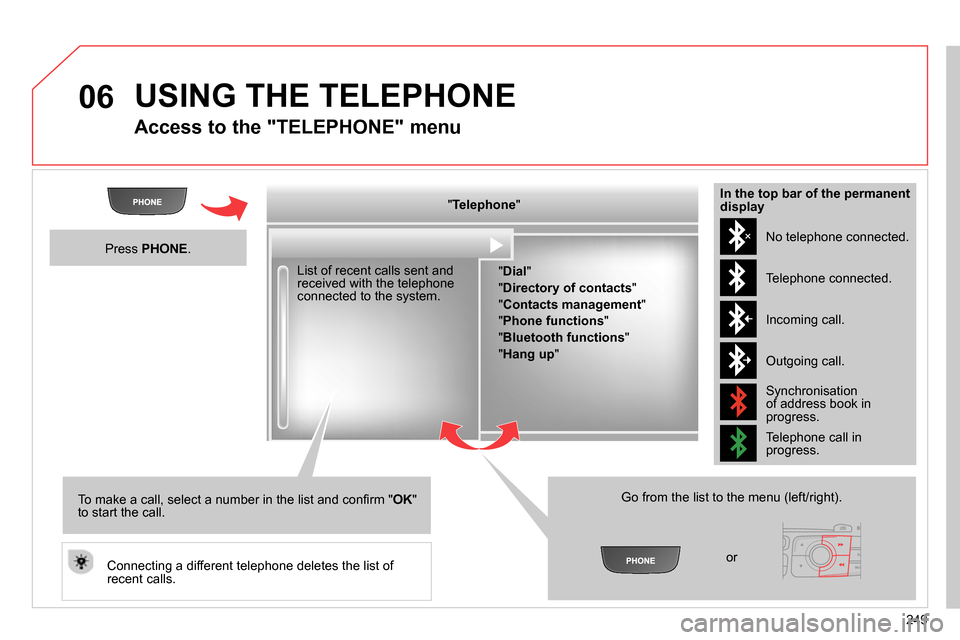

USING THE TELEPHONE


Access to the "TELEPHONE" menu


" Telephone
"

" Dial
"
" Directory of contacts
"

"Contacts management
"
" Phone functions
"
" Bluetooth functions
"
" Hang up
"

Go from the list to the menu (left/right).
or

List of recent calls sent and
received with the telephone
connected to the system.
Press PHONE
.

To make a call, select a number in the list and confi rm " OK
"
to start the call.

Connecting a different telephone deletes the list of
recent calls. No telephone connected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation
of address book in
progress.
Telephone call in
progress.
In the top bar of the permanent
display

06
250

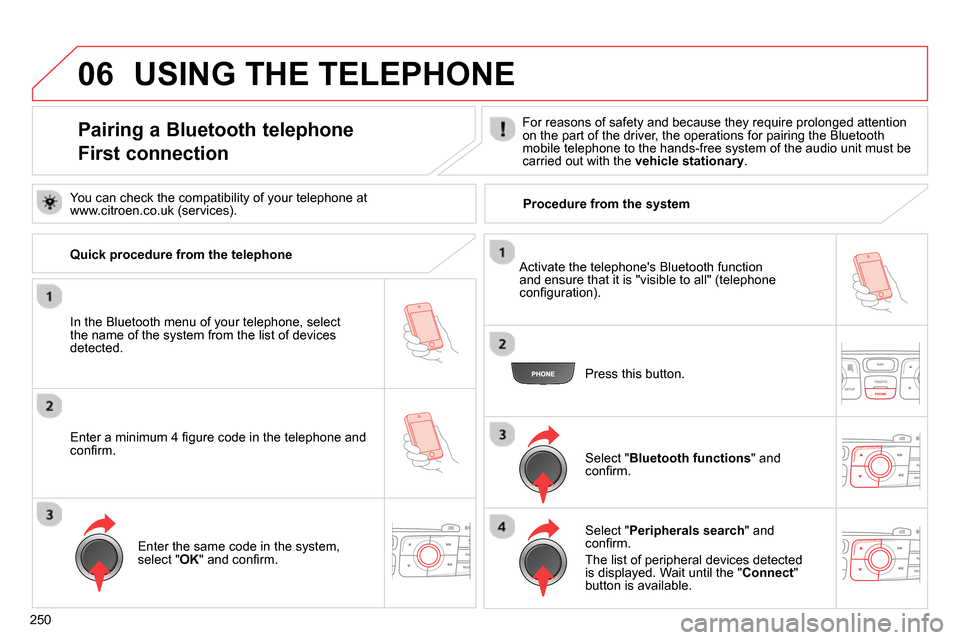

Pairing a Bluetooth telephone
First connection
For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio unit must be
carried out with the vehicle stationary
.

In the Bluetooth menu of your telephone, select
the name of the system from the list of devices
detected.

Press this button.

Select " Bluetooth functions
" and
confi rm.

Select " Peripherals search
" and
confi rm.
The list of peripheral devices detected
is displayed. Wait until the " Connect
"
button is available.

USING THE TELEPHONE

You can check the compatibility of your telephone at
www.citroen.co.uk (services).

Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
confi guration).
Quick procedure from the telephone

Enter a minimum 4 fi gure code in the telephone and
confi rm.

Enter the same code in the system,
select " OK
" and confi rm.
Procedure from the system

06
251

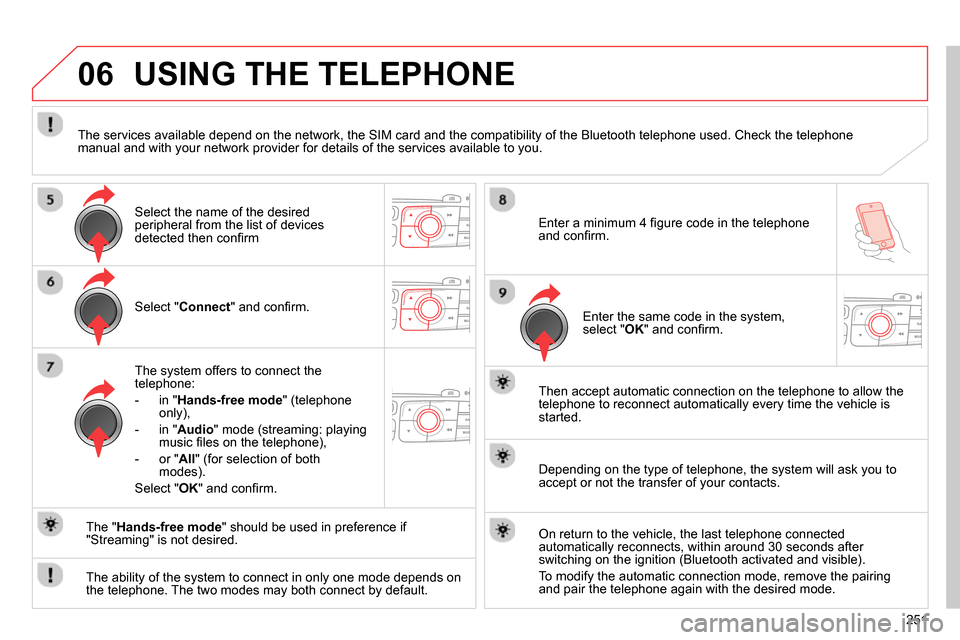

Select " Connect
" and confi rm.

The system offers to connect the
telephone:


- in " Hands-free mode
" (telephone
only),

- in " Audio
" mode (streaming: playing
music fi les on the telephone),

- or " All
" (for selection of both
modes).
Select " OK
" and confi rm.
Then accept automatic connection on the telephone to allow the
telephone to reconnect automatically every time the vehicle is
started.

The ability of the system to connect in only one mode depends on
the telephone. The two modes may both connect by default.

USING THE TELEPHONE


The " Hands-free mode
" should be used in preference if
"Streaming" is not desired.
The services available depend on the network, the SIM card and the compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services available to you.

Depending on the type of telephone, the system will ask you to
accept or not the transfer of your contacts.

On return to the vehicle, the last telephone connected
automatically reconnects, within around 30 seconds after
switching on the ignition (Bluetooth activated and visible).
To modify the automatic connection mode, remove the pairing
and pair the telephone again with the desired mode.

Enter a minimum 4 fi gure code in the telephone
and confi rm.

Enter the same code in the system,
select " OK
" and confi rm.
Select the name of the desired
peripheral from the list of devices
detected then confi rm

06
252
USING THE TELEPHONE

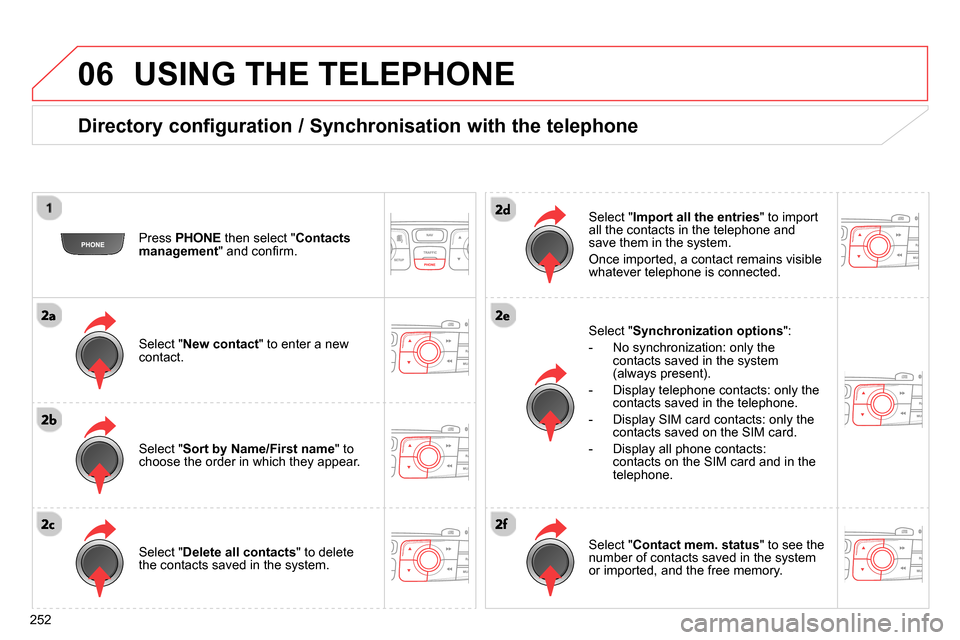

Directory configuration / Synchronisation with the telephone


Press PHONE
then select " Contacts
management
" and confi rm.

Select " New contact
" to enter a new
contact.

Select " Delete all contacts
" to delete
the contacts saved in the system.
Select " Import all the entries
" to import
all the contacts in the telephone and
save them in the system.
Once imported, a contact remains visible
whatever telephone is connected.

Select " Synchronization options
":


- No synchronization: only the
contacts saved in the system
(always present).

- Display telephone contacts: only the
contacts saved in the telephone.

- Display SIM card contacts: only the
contacts saved on the SIM card.

- Display all phone contacts:
contacts on the SIM card and in the
telephone.


Select " Contact mem. status
" to see the
number of contacts saved in the system
or imported, and the free memory.

Select " Sort by Name/First name
" to
choose the order in which they appear.

06
253

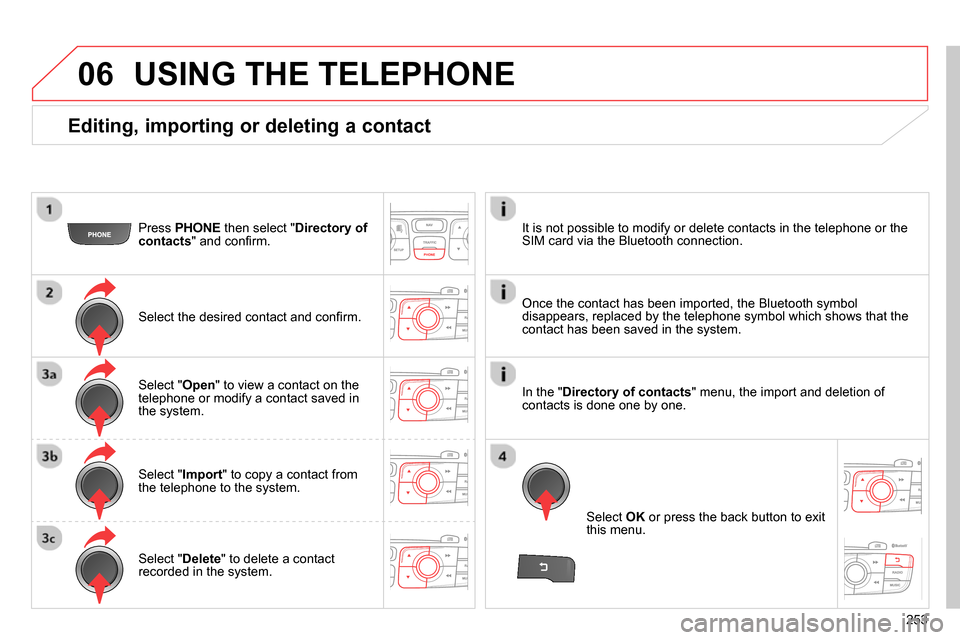

Editing, importing or deleting a contact


Press PHONE
then select " Directory of
contacts
" and confi rm.

Select the desired contact and confi rm.

Select " Import
" to copy a contact from
the telephone to the system.

Select " Delete
" to delete a contact
recorded in the system.
Select OK
or press the back button to exit
this menu.

Once the contact has been imported, the Bluetooth symbol
disappears, replaced by the telephone symbol which shows that the
contact has been saved in the system.

USING THE TELEPHONE


It is not possible to modify or delete contacts in the telephone or the
SIM card via the Bluetooth connection.

Select " Open
" to view a contact on the
telephone or modify a contact saved in
the system.
In the " Directory of contacts
" menu, the import and deletion of
contacts is done one by one.

06
254
USING THE TELEPHONE


Press PHONE
twice.

Select " Dial
" then confi rm.
Select " Directory of contacts
" then
confi rm.

Dial the telephone number using the
virtual keypad selecting each number
in turn.
Confi rm " OK
" to make the call.

Press TEL
or twice on PHONE
.
Calling a new number

Calling a contact

Select the desired contact and confi rm.
If access was via the PHONE
button,
select " Call
" and confi rm.

Select the number and confi rm to start
the call.

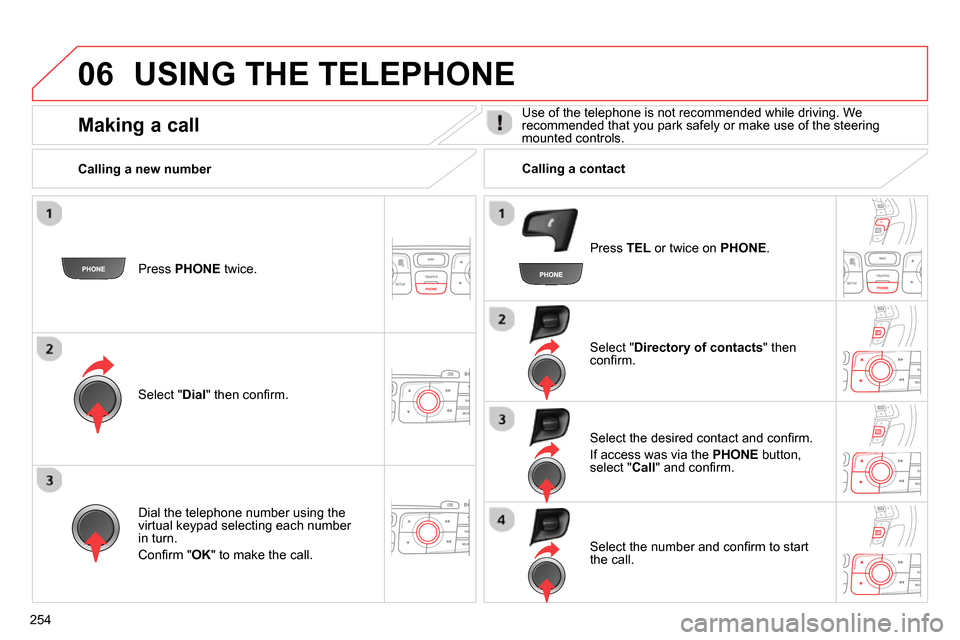

Making a call

Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.

06
255
USING THE TELEPHONE

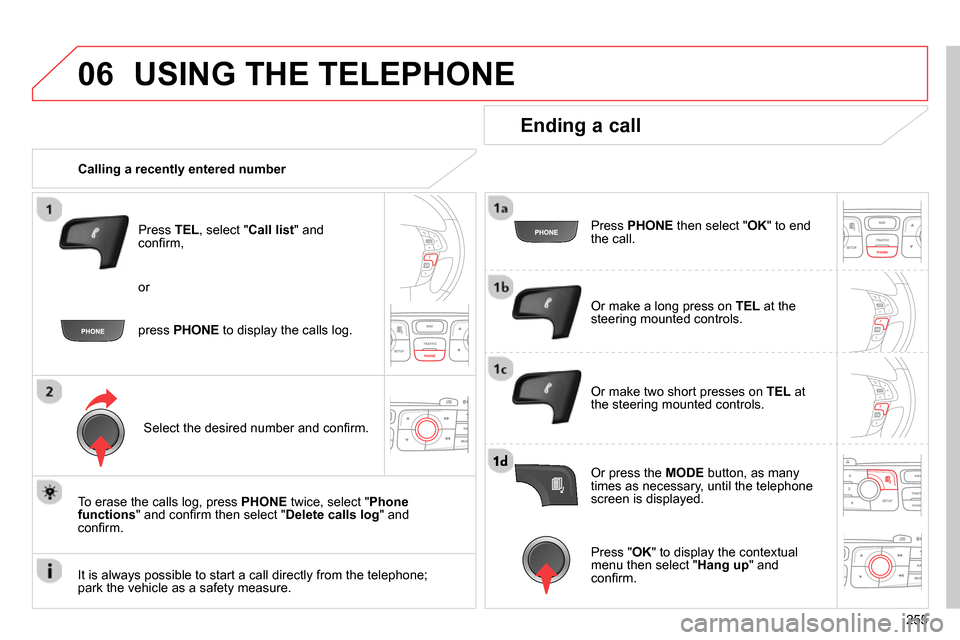

Calling a recently entered number

Press TEL
, select " Call list
" and
confi rm,

Select the desired number and confi rm.

To erase the calls log, press PHONE
twice, select " Phone
functions
" and confi rm then select " Delete calls log
" and
confi rm.


Ending a call


Press PHONE
then select " OK
" to end
the call.

Or make a long press on TEL
at the
steering mounted controls.

Or make two short presses on TEL
at
the steering mounted controls.

Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed. press PHONE
to display the calls log. or
Press " OK
" to display the contextual
menu then select " Hang up
" and
confi rm.

It is always possible to start a call directly from the telephone;
park the vehicle as a safety measure.

06
256
USING THE TELEPHONE

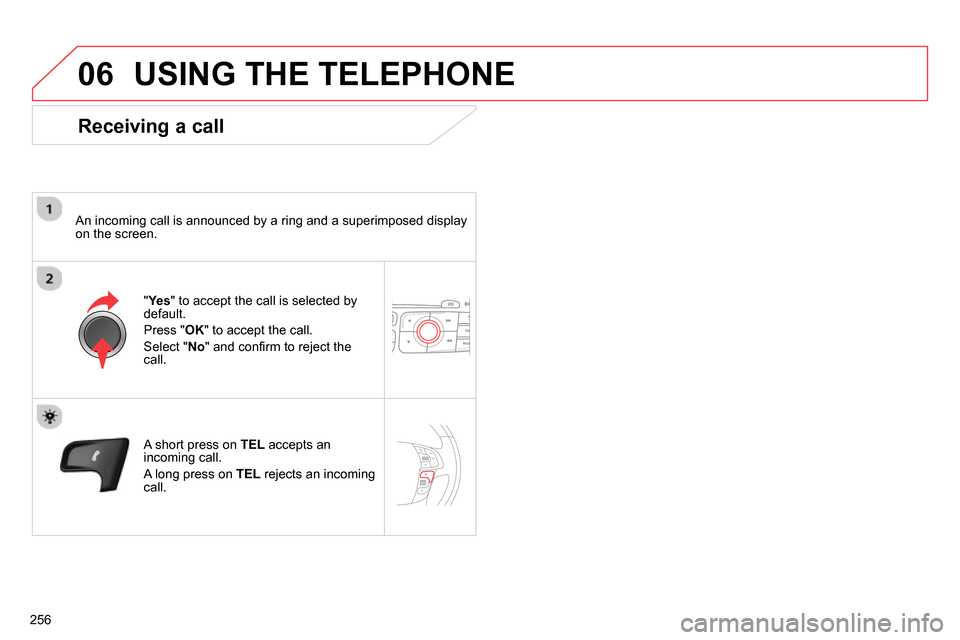

Receiving a call


An incoming call is announced by a ring and a superimposed display
on the screen.


"Ye s
" to accept the call is selected by
default.
Press " OK
" to accept the call.
Select " No
" and confi rm to reject the
call.

A short press on TEL
accepts an
incoming call.
A long press on TEL
rejects an incoming
call.

06
257
USING THE TELEPHONE

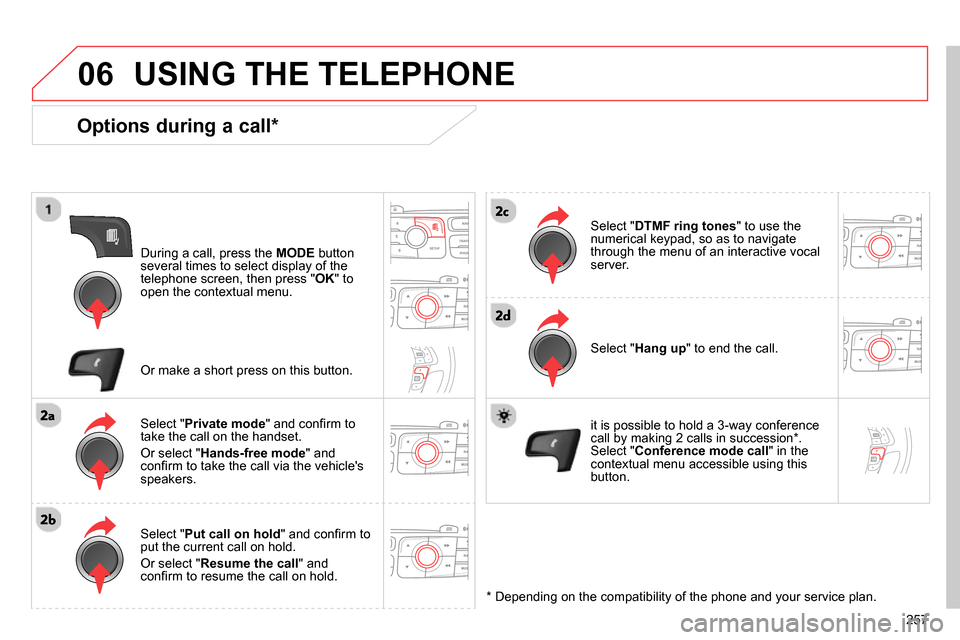

Options during a call *


During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK
" to
open the contextual menu.

Select " Private mode
" and confi rm to
take the call on the handset.
Or select " Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.

Select " Put call on hold
" and confi rm to
put the current call on hold.
Or select " Resume the call
" and
confi rm to resume the call on hold.
Select " DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.

Select " Hang up
" to end the call.

*
Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference
call by making 2 calls in succession*.
Select " Conference
mode call
" in the
contextual menu accessible using this
button.

Or make a short press on this button.

06
258
Press PHONE
twice.

Select " List of the paired peripherals
"
and confi rm.

It is possible to:


- " Connect
" or " Disconnect
" the
selected telephone,

- delete the pairing of the selected
telephone.
It is also possible to select all pairings.


USING THE TELEPHONE

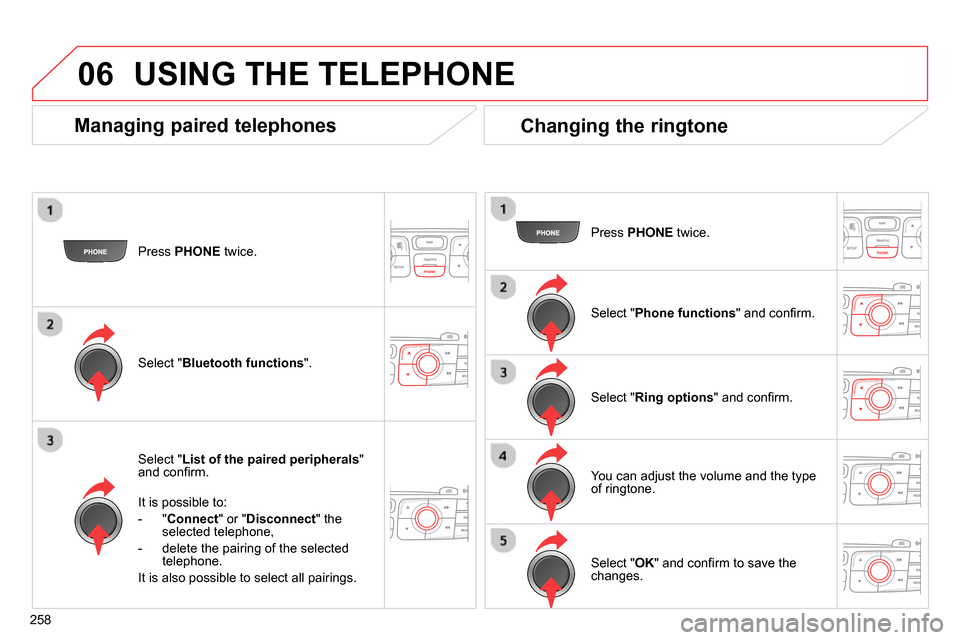

Managing paired telephones

Changing the ringtone


Press PHONE
twice.

Select " Phone functions
" and confi rm.

Select " Ring options
" and confi rm.

You can adjust the volume and the type
of ringtone.
Select " Bluetooth functions
".

Select " OK
" and confi rm to save the
changes.
