Citroen C4 RHD 2013.5 2.G Owner's Manual

07
259

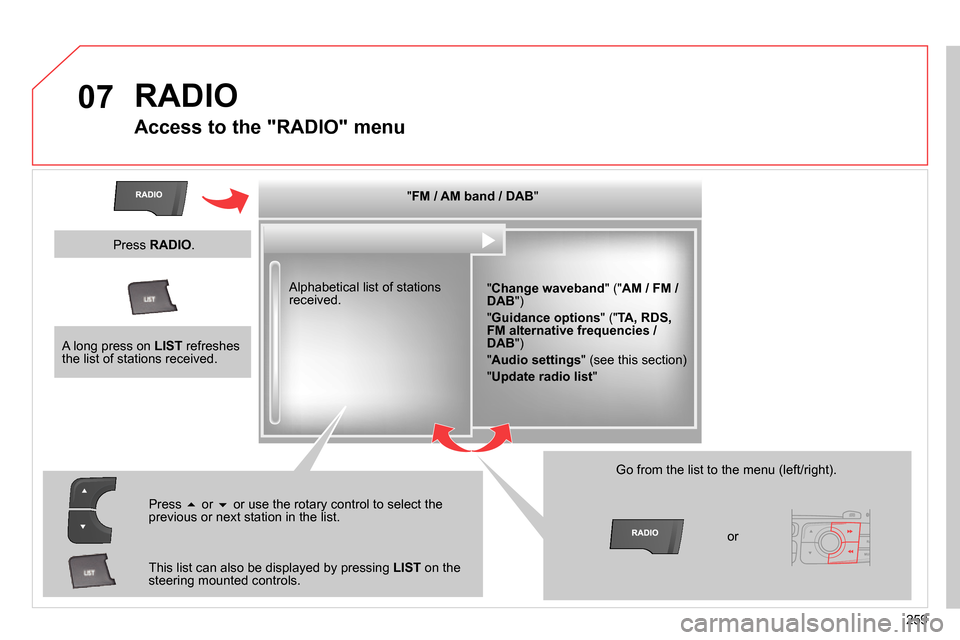

RADIO







Access to the "RADIO" menu



" FM / AM band / DAB
"

" Change waveband
" (" AM / FM /
DAB
")
" Guidance options
" (" TA, RDS,
FM alternative frequencies /
DAB
")
" Audio settings
" (see this section)
" Update radio list
"

Alphabetical list of stations
received.

Press 
or 
or use the rotary control to select the
previous or next station in the list.

This list can also be displayed by pressing LIST
on the
steering mounted controls.
Go from the list to the menu (left/right).
or

A long press on LIST
refreshes
the list of stations received.
Press RADIO
.

07
260

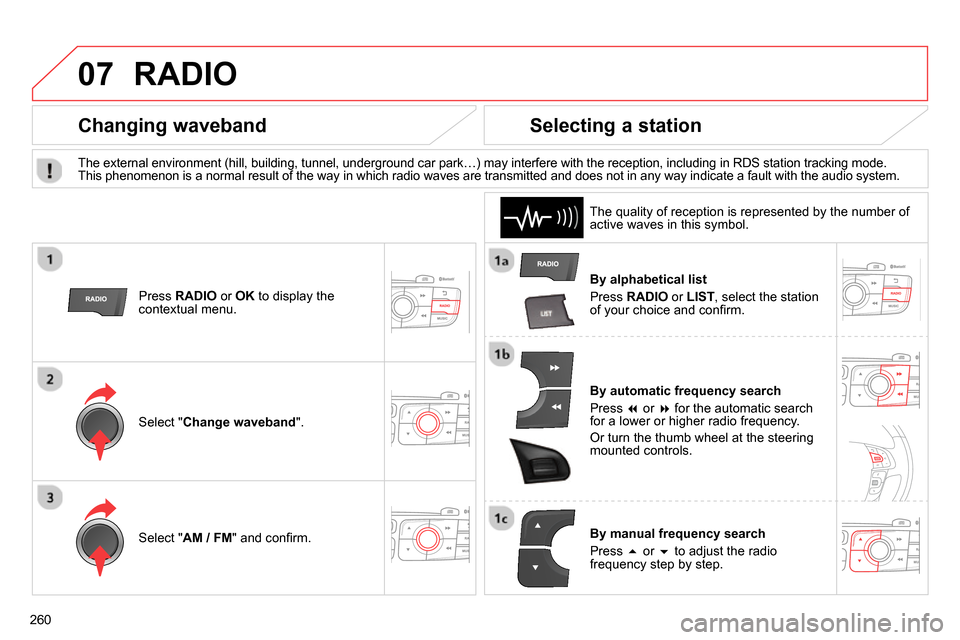

RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press 
or 
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.

By manual frequency search
Press 
or 
to adjust the radio
frequency step by step.








Selecting a station


The external environment (hill, building, tunnel, underground car park…) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

The quality of reception is represented by the number of
active waves in this symbol.

Press RADIO
or OK
to display the
contextual menu.






Changing waveband


Select " Change waveband
".

Select " AM / FM
" and confi rm.

07
261
Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.

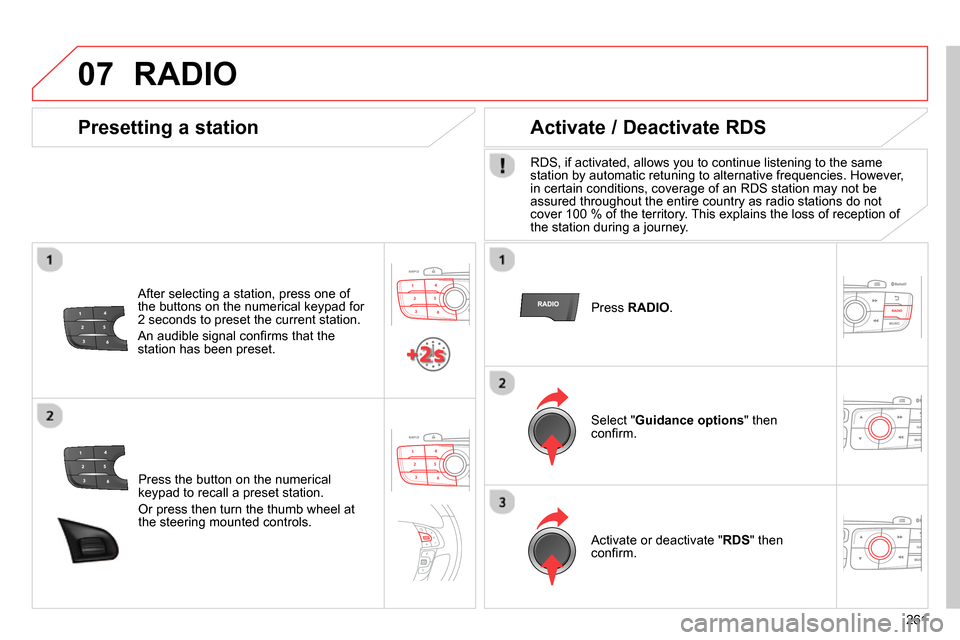

Presetting a station


After selecting a station, press one of
the buttons on the numerical keypad for
2 seconds to preset the current station.
An audible signal confi rms that the
station has been preset.
Press RADIO
.







Activate / Deactivate RDS


RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do not
cover 100 % of the territory. This explains the loss of reception of
the station during a journey.

Select " Guidance options
" then
confi rm.

Activate or deactivate " RDS
" then
confi rm.


RADIO

07
262

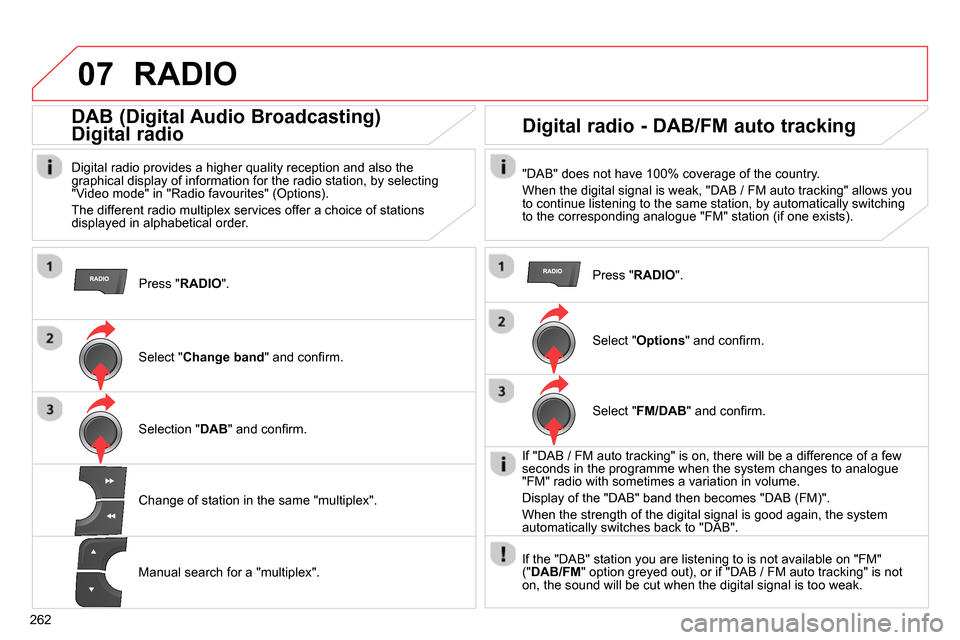

RADIO


Press " RADIO
".






DAB (Digital Audio Broadcasting)
Digital radio

Digital radio provides a higher quality reception and also the
graphical display of information for the radio station, by selecting
"Video mode" in "Radio favourites" (Options).
The different radio multiplex services offer a choice of stations
displayed in alphabetical order.

Select " Change band
" and confi rm.

Selection " DAB
" and confi rm.







Digital radio - DAB/FM auto tracking


"DAB" does not have 100% coverage of the country.
When the digital signal is weak, "DAB / FM auto tracking" allows you
to continue listening to the same station, by automatically switching
to the corresponding analogue "FM" station (if one exists).

Change of station in the same "multiplex".

Manual search for a "multiplex".

Press " RADIO
".

Select " Options
" and confi rm.

Select " FM/DAB
" and confi rm.

If "DAB / FM auto tracking" is on, there will be a difference of a few
seconds in the programme when the system changes to analogue
"FM" radio with sometimes a variation in volume.
Display of the "DAB" band then becomes "DAB (FM)".
When the strength of the digital signal is good again, the system
automatically switches back to "DAB".

If the "DAB" station you are listening to is not available on "FM"
(" DAB/FM
" option greyed out), or if "DAB / FM auto tracking" is not
on, the sound will be cut when the digital signal is too weak.

08
263
MUSIC MEDIA PLAYERS

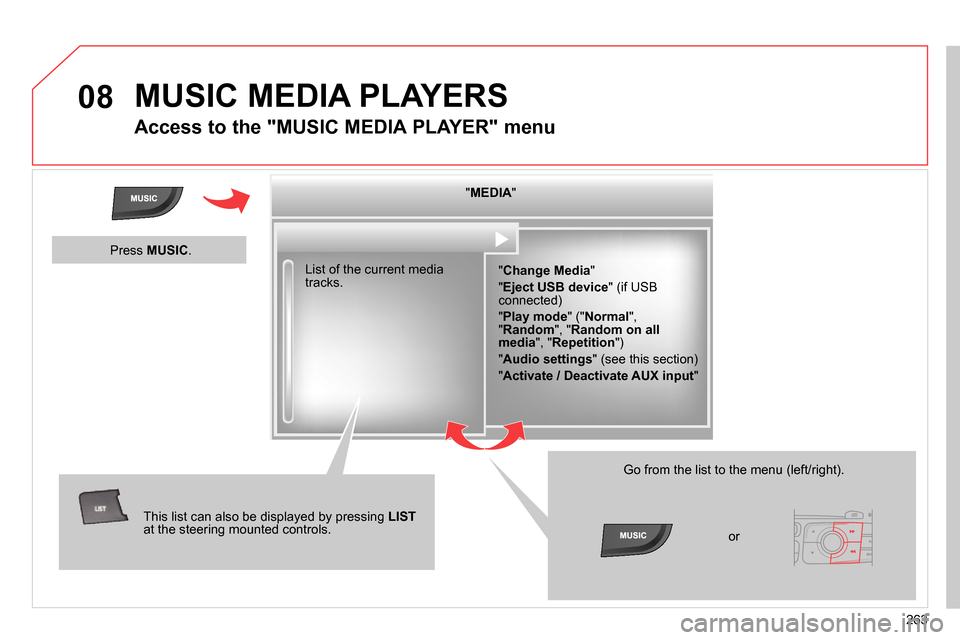

Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Change Media
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate / Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MUSIC
.

08
264
MUSIC MEDIA PLAYERS

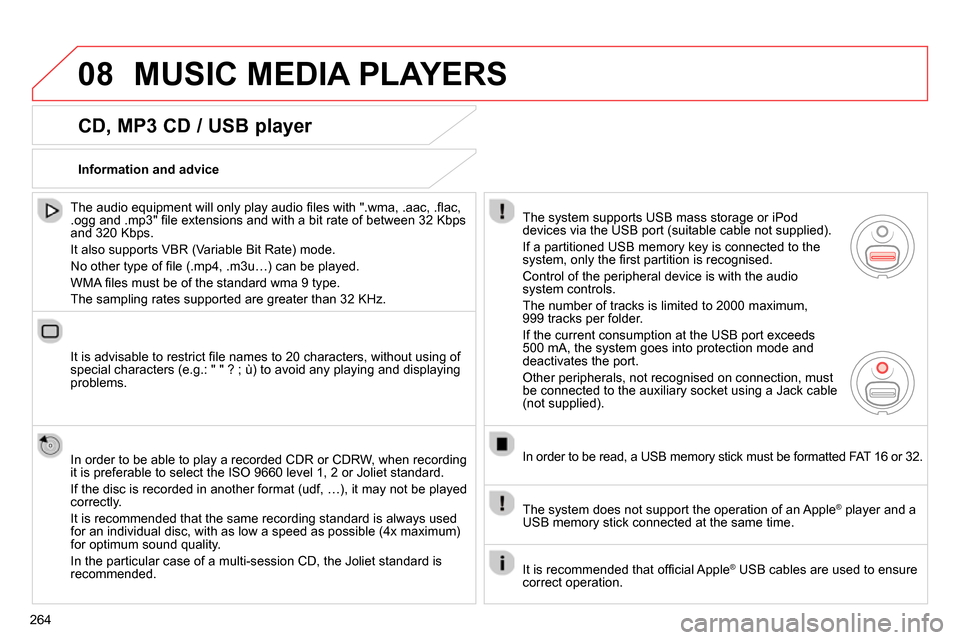

CD, MP3 CD / USB player


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac,
.ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of fi le (.mp4, .m3u…) can be played.
WMA fi les must be of the standard wma 9 type.
The sampling rates supported are greater than 32 KHz.

It is advisable to restrict fi le names to 20 characters, without using of
special characters (e.g.: " " ? ; ù) to avoid any playing and displaying
problems.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format (udf, …), it may not be played
correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Information and advice

The system supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
If a partitioned USB memory key is connected to the
system, only the fi rst partition is recognised.
Control of the peripheral device is with the audio
system controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
If the current consumption at the USB port exceeds
500 mA, the system goes into protection mode and
deactivates the port.
Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable
(not supplied).

In order to be read, a USB memory stick must be formatted FAT 16 or 32.



The system does not support the operation of an Apple
®
player and a
USB memory stick connected at the same time.

It is recommended that offi cial Apple
®
USB cables are used to ensure
correct operation.

08
265
MUSIC MEDIA PLAYERS

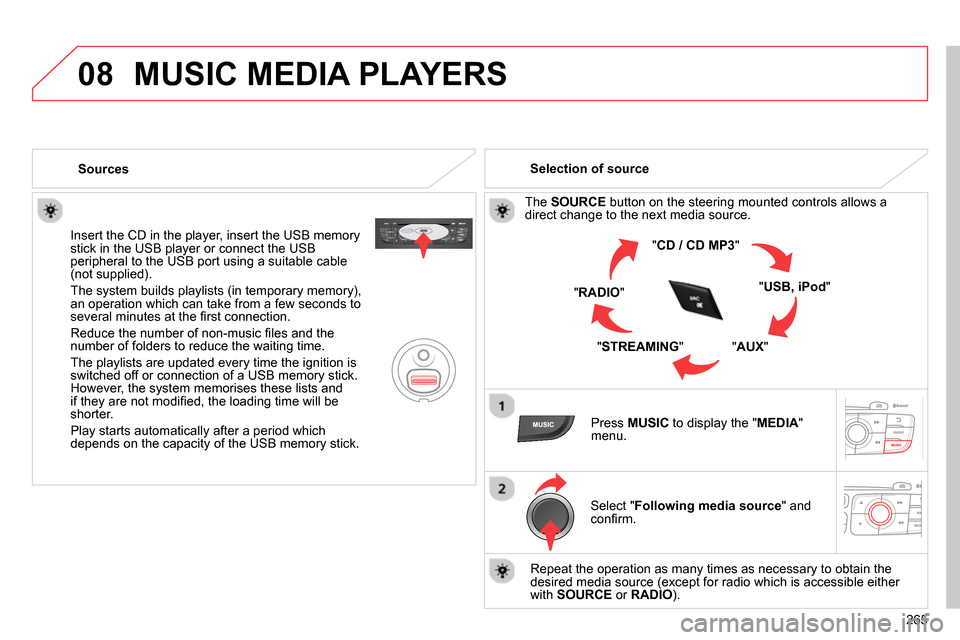

Sources

Insert the CD in the player, insert the USB memory
stick in the USB player or connect the USB
peripheral to the USB port using a suitable cable
(not supplied) .
The system builds playlists (in temporary memory),
an operation which can take from a few seconds to
several minutes at the fi rst connection.
Reduce the number of non-music fi les and the
number of folders to reduce the waiting time.
The playlists are updated every time the ignition is
switched off or connection of a USB memory stick.
However, the system memorises these lists and
if they are not modifi ed, the loading time will be
shorter.
Play starts automatically after a period which
depends on the capacity of the USB memory stick.


Selection of source
The SOURCE
button on the steering mounted controls allows a
direct change to the next media source.
" CD / CD MP3
"
" USB, iPod
"
" AUX
"
" STREAMING
" " RADIO
"

Press MUSIC
to display the " MEDIA
"
menu.

Select " Following media source
" and
confi rm.

Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO
).

08
/
/
//
//
// +/
266

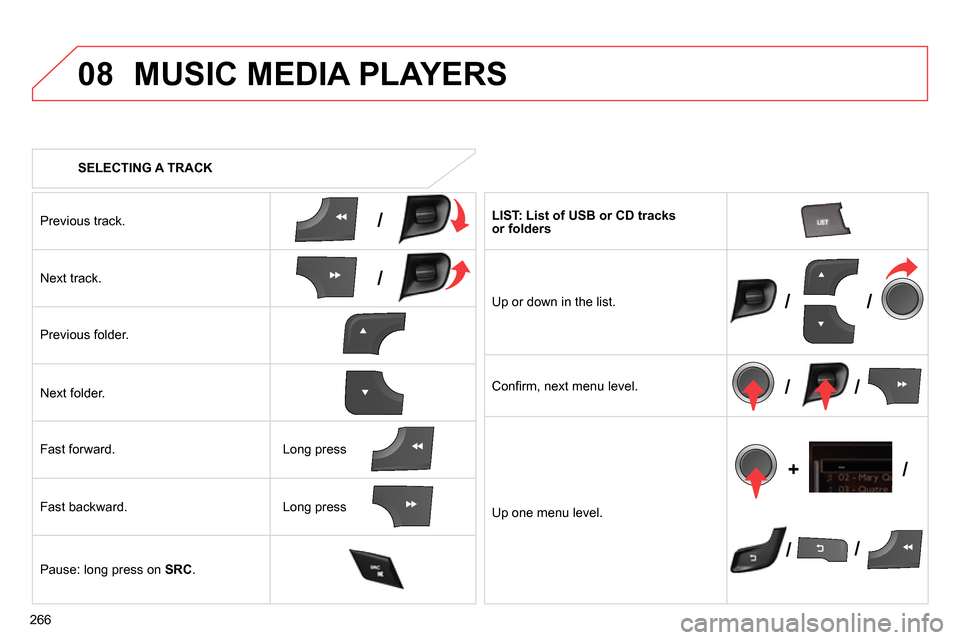

SELECTING A TRACK

MUSIC MEDIA PLAYERS


Previous track.

Next track.

Previous folder.

Next folder.

Fast forward.

Fast backward.

Pause: long press on SRC
.


LIST: List of USB or CD tracks
or folders

Up or down in the list.

Confi rm, next menu level.

Up one menu level.
Long press
Long press

08
267

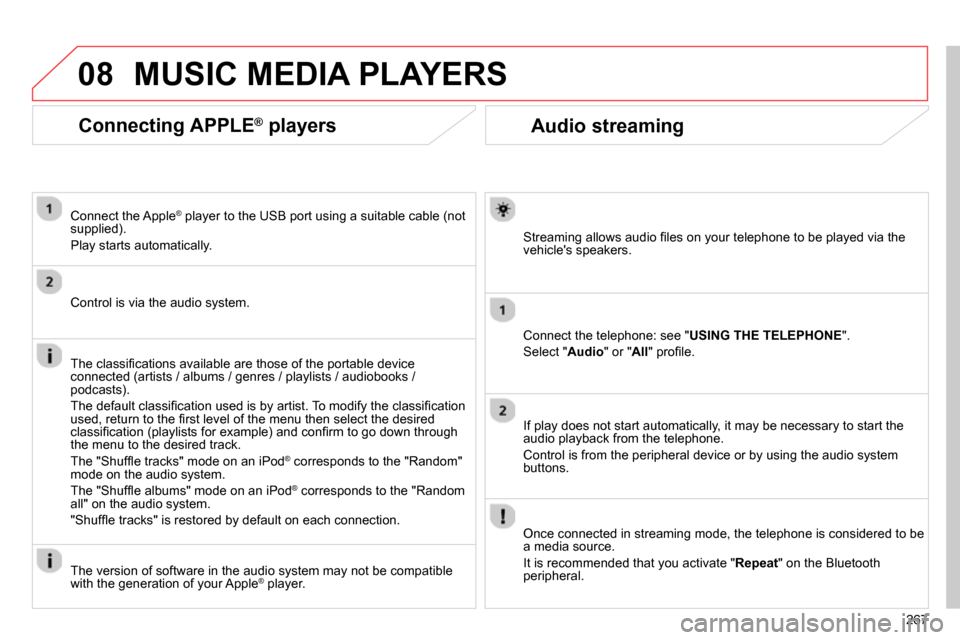

Audio streaming


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see " USING THE TELEPHONE
".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.

Once connected in streaming mode, the telephone is considered to be
a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.


MUSIC MEDIA PLAYERS


Connecting APPLE ®
players


Connect the Apple ®
player to the USB port using a suitable cable (not
supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The "Shuffl e tracks" mode on an iPod
®
corresponds to the "Random"
mode on the audio system.
The "Shuffl e albums" mode on an iPod
®
corresponds to the "Random
all" on the audio system.
"Shuffl e tracks" is restored by default on each connection.

The version of software in the audio system may not be compatible
with the generation of your Apple
® player.

08
268
MUSIC MEDIA PLAYERS

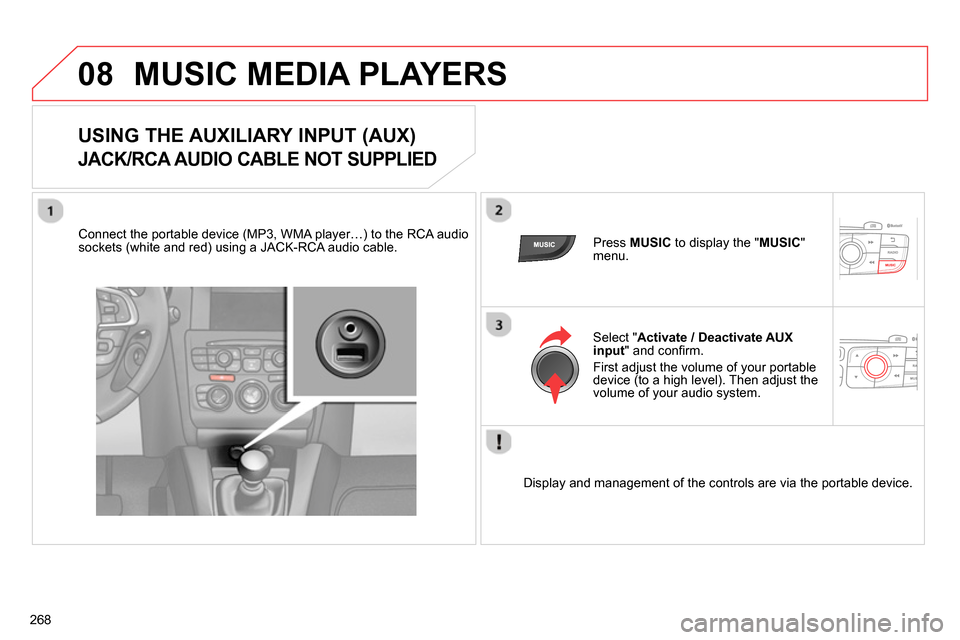

USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED


Connect the portable device (MP3, WMA player…) to the RCA audio
sockets (white and red) using a JACK-RCA audio cable.
Press MUSIC
to display the " MUSIC
"
menu.

Select " Activate / Deactivate AUX
input
" and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.
