Page 221 of 328
12
TECHNICAL DATA
219
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
VTi 95
VTi 120
THP 155
Gearboxes
Manual
Manual
Automatic
Electronic
Model codes:
NC...
8FR0
5FS0
5FS9
5FS9/D
5FV8/P
- Unladen weight
1 200
1 205
1 270
1 275
- Kerb weight
1 275
1 280
1 345
1 350
- Gross vehicle weight (GVW)
1 720
1 765
1 755
1 805
- Gross train weight (GTW)
on a 12 % gradient
2 920
3 065
3 055
3 205
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 200
1 300
1 300
1 400
- Braked trailer * (with load transfer
within the GTW limit)
1 450
1 550
1 550
1 650
- Unbraked trailer
635
640
670
675
- Recommended nose weight
75
75
75
75
Page 222 of 328
12
TECHNICAL DATA
220
MODELS:
ENGINES AND GEARBOXES
Model codes:
NC...
9HJC
9HP0
9HR8
9HR8
/ S
9HR8/PS
9HR8/1PS
9HR8/2PS
RHE8
DIESEL ENGINES
HDi 90
HDi 90 PEF
HDi 110 PEF
HDi 150 PEF
Cubic capacity (cc)
1 560
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
75 x 88.3
85 x 88
Max power * : EU standard (kW)
68
68
82
110
Max power engine speed (rpm)
4 000
4 000
3 600
3 750
Max torque: EU standard (Nm)
230
230
270
340
Max torque engine speed (rpm)
1 750
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
yes
yes
yes
yes
Particle emissions fi lter (PEF)
no
yes
yes
yes
GEARBOXES
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)
Electronic
(6-speed)
Manual
(6-speed)
OIL CAPACITIES (in litres)
Engine (with fi lter replacement)
3.75
3.75
3.75
3.75
-
.../S:
model fi tted with Stop & Start.
.../1:
model fi tted with low rolling resistance tyres (for example: MICHELIN Energy Saver).
.../2:
model fi tted with very low rolling resistance tyres.
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation
(Directive 1999/99/EC).
Page 223 of 328
12
TECHNICAL DATA
221
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 90
HDi 90
PEF
HDi 110
PEF
e-HDi 110 PEF
Gearboxes
Manual
Manual
Manual
Manual
Electronic
Model codes:
NC...
9HJC
9HP0
9HR8
9HR8/S
9HR8/P
S
9HR8/1PS
9HR8/2PS
- Unladen weight
1 205
1 205
1 275
1 280
1 290
1 205
- Kerb weight
1 280
1 280
1 350
1 355
1 365
1 280
- Gross vehicle weight (GVW)
1 745
1 790
1 810
1 820
1 825
1 825
- Gross train weight (GTW)
on a 12 % gradient
2 545
2 890
3 110
3 120
3 125
2 225
- Braked trailer (within GTW limit)
on 12 % gradient
800
1 100
1 300
1 300
1 300
400
- Braked trailer * (with load transfer
with the GTW limit)
1 050
1 350
1 550
1 550
1 550
600
- Unbraked trailer
640
640
675
670
680
400
- Recommended nose weight
75
75
75
75
75
75
Page 224 of 328
12
TECHNICAL DATA
222
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
HDi 150 PEF
Gearboxes
Manual
Model codes:
NC...
RHE8
- Unladen weight
1 320
- Kerb weight
1 395
- Gross vehicle weight (GVW)
1 885
- Gross train weight (GTW)
on 12 % gradient
3 385
- Braked trailer (within GTW limit)
on 12 % gradient
1 500
- Braked trailer * (with load transfer
with the GTW limit)
1 750
- Unbraked trailer
695
- Recommended nose weight
75
*
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount. Warning: towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
Page 225 of 328
12
TECHNICAL DATA
223
DIMENSIONS (IN MM)
Page 226 of 328
12
TECHNICAL DATA
224
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the body-
work near the suspension damper
mounting.
B. Vehicle identifi cation number on
the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen.
D. Tyre/paint label.
This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are
cold, at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.
The VIN is indicated on a self-destroy-
ing label affi xed to the driver's centre
pillar. It bears the following information:
- the tyre pressures, for unladen and
laden conditions,
- the tyre sizes (including the load in-
dex and speed rating),
- the spare tyre infl ation pressure,
- the paint colour code.

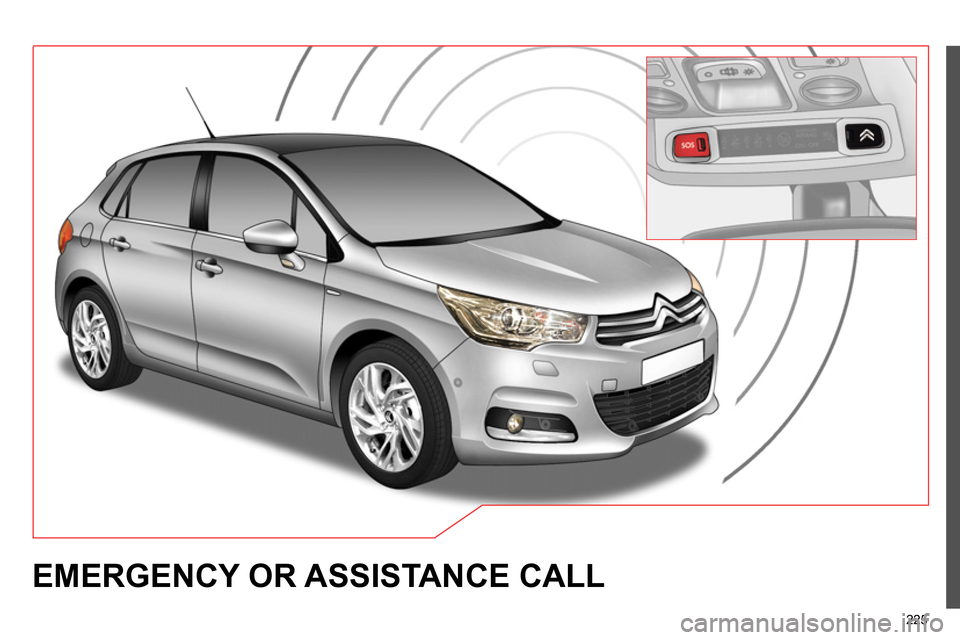

Page 227 of 328
225
EMERGENCY OR ASSISTANCE CALL

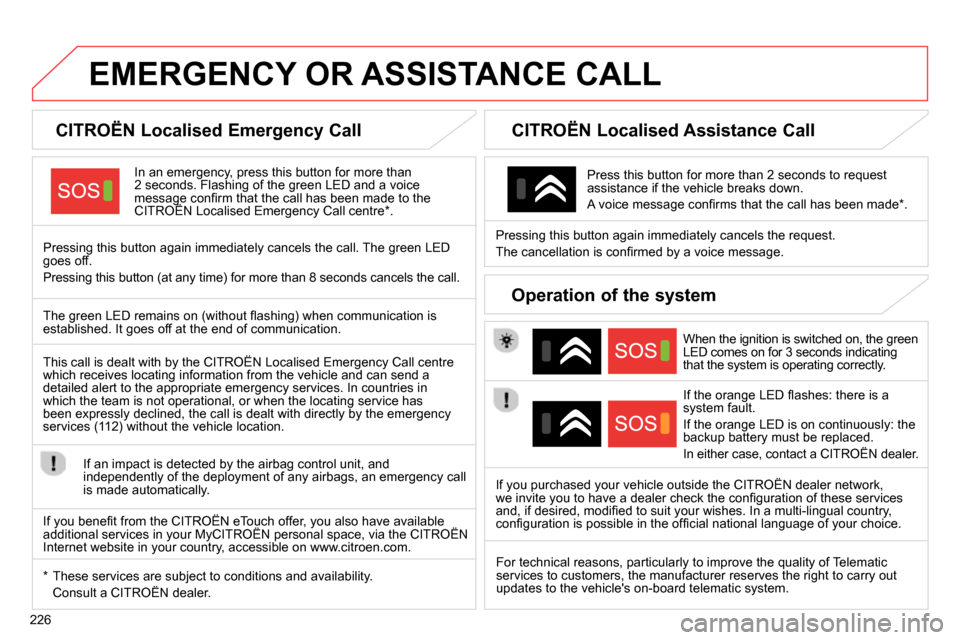

Page 228 of 328
226
EMERGENCY OR ASSISTANCE CALL
CITROËN Localised Emergency Call
In an emergency, press this button for more than
2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
CITROËN Localised Emergency Call centre * .
Pressing this button again immediately cancels the call. The green LED
goes off.
Pressing this button (at any time) for more than 8 seconds cancels the call.
CITROËN Localised Assistance Call
When the ignition is switched on, the green
LED comes on for 3 seconds indicating
that the system is operating correctly.
If the orange LED fl ashes: there is a
system fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN dealer.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
Operation of the system
The green LED remains on (without fl ashing) when communication is
established. It goes off at the end of communication.
This call is dealt with by the CITROËN Localised Emergency Call centre
which receives locating information from the vehicle and can send a
detailed alert to the appropriate emergency services. In countries in
which the team is not operational, or when the locating service has
been expressly declined, the call is dealt with directly by the emergency
services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
* These services are subject to conditions and availability.
Consult a CITROËN dealer.
If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,
confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have available
additional services in your MyCITROËN personal space, via the CITROËN
Internet website in your country, accessible on www.citroen.com.

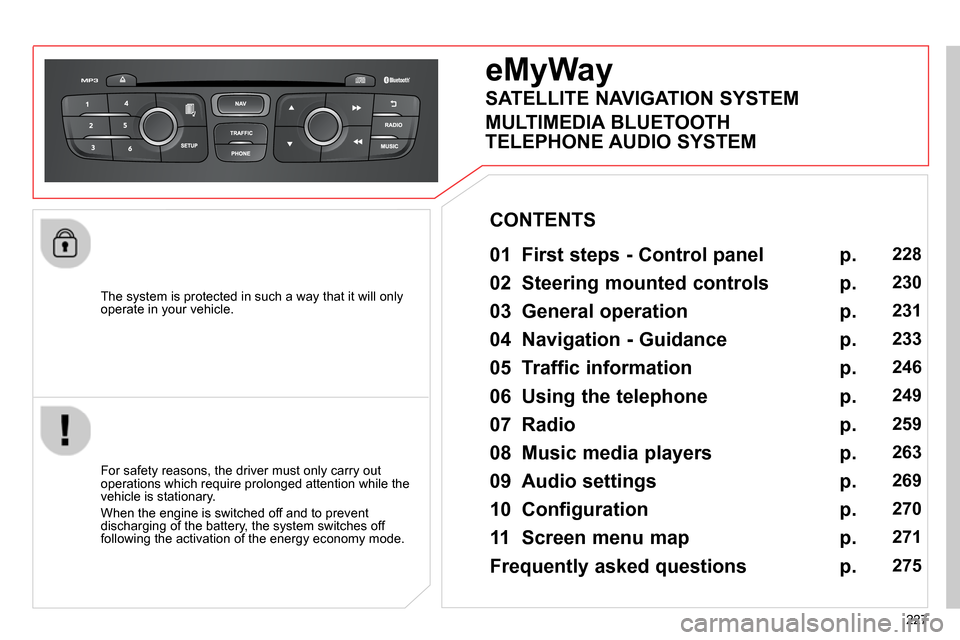

Page 229 of 328
227
The system is protected in such a way that it will only
operate in your vehicle.
eMyWay
01 First steps - Control panel
For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Radio
08 Music media players
09 Audio settings
10 Configuration
11 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
228
230
231
233
246
249
259
263
269
270
271
275
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

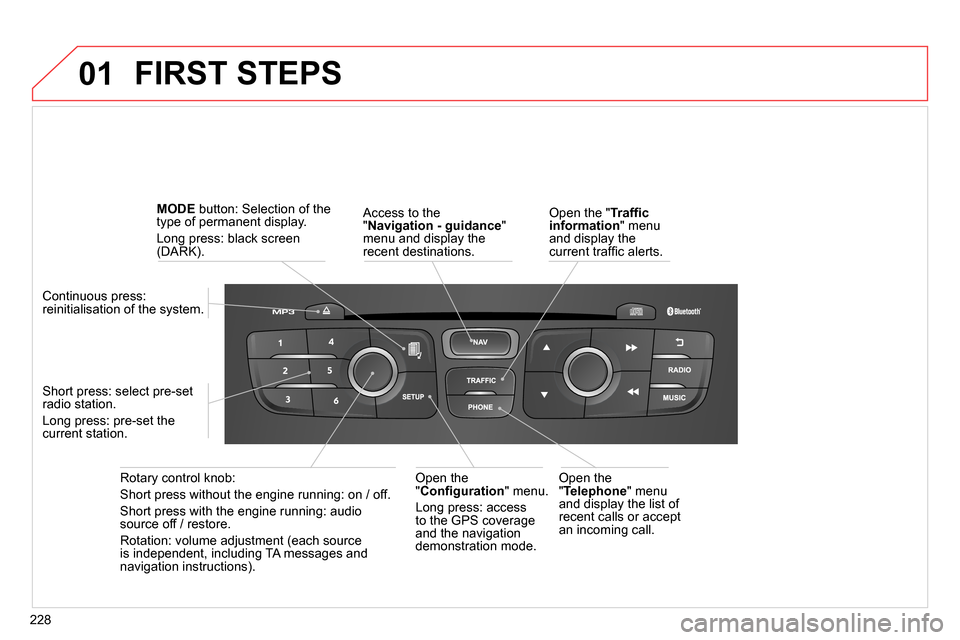

Page 230 of 328
01
228
FIRST STEPS
Access to the
" Navigation - guidance
"
menu and display the
recent destinations.
Rotary control knob:
Short press without the engine running: on / off.
Short press with the engine running: audio
source off / restore.
Rotation: volume adjustment (each source
is independent, including TA messages and
navigation instructions).
Continuous press:
reinitialisation of the system.
Short press: select pre-set
radio station.
Long press: pre-set the
current station.
MODE
button: Selection of the
type of permanent display.
Long press: black screen
(DARK).
Open the
" Telephone
" menu
and display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration
" menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.
Open the " Traffi c
information
" menu
and display the
current traffi c alerts.
