Citroen C4 RHD 2014 2.G Owner's Manual

04
289
AUDIO

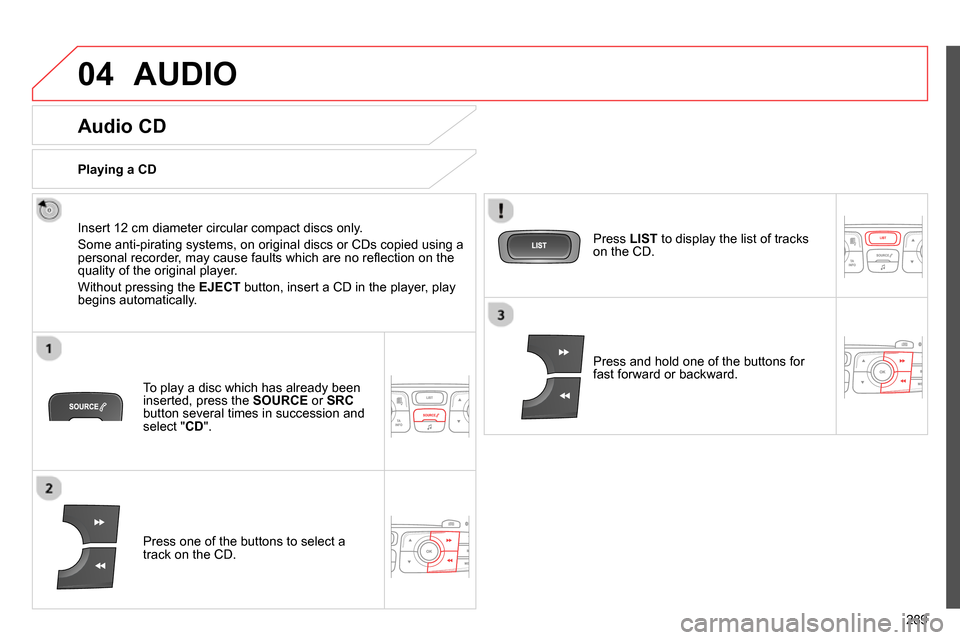

Audio CD


Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT
button, insert a CD in the player, play
begins automatically.

To play a disc which has already been
inserted, press the SOURCE
or SRC

button several times in succession and
select " CD
".

Press one of the buttons to select a
track on the CD.
Playing a CD

Press LIST
to display the list of tracks
on the CD.

Press and hold one of the buttons for
fast forward or backward.

04
290
AUDIO

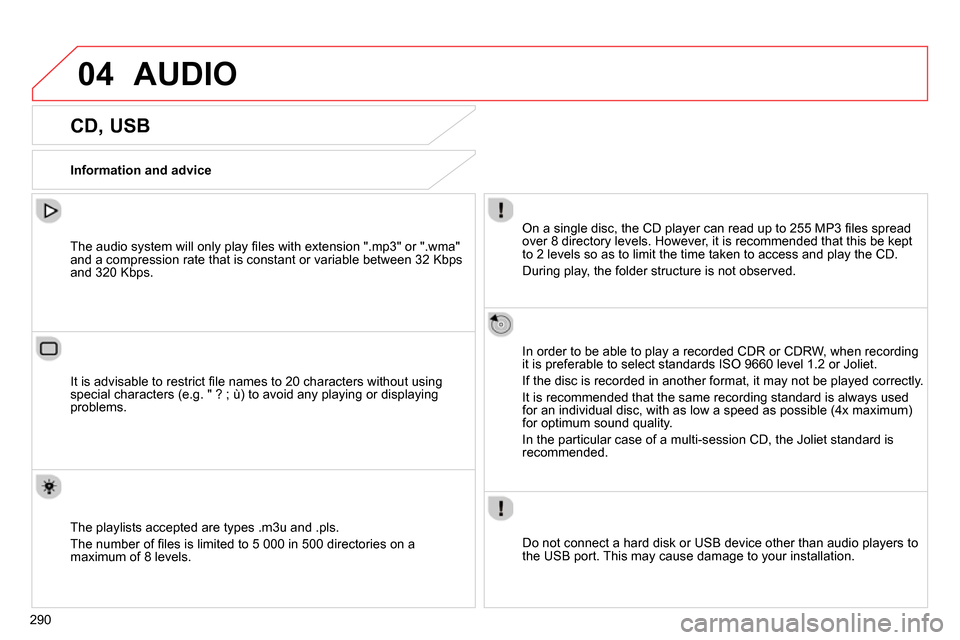

CD, USB


Information and advice

On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.

Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.

The audio system will only play fi les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.

The playlists accepted are types .m3u and .pls.
The number of fi les is limited to 5 000 in 500 directories on a
maximum of 8 levels.

04
291












CD, USB

AUDIO

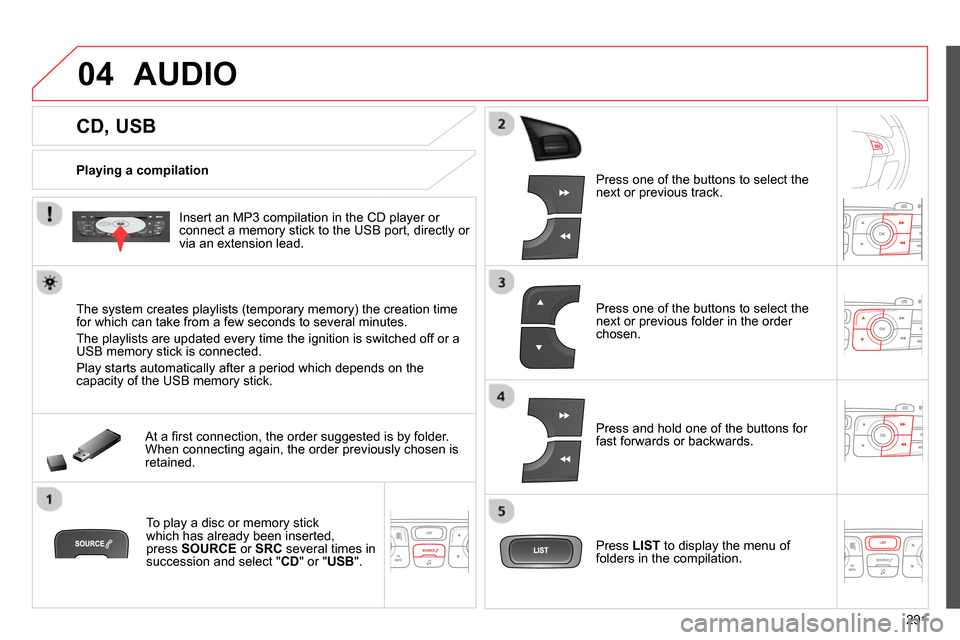

Playing a compilation

Insert an MP3 compilation in the CD player or
connect a memory stick to the USB port, directly or
via an extension lead.

The system creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a
USB memory stick is connected.
Play starts automatically after a period which depends on the
capacity of the USB memory stick.

At a fi rst connection, the order suggested is by folder.
When connecting again, the order previously chosen is
retained.

To play a disc or memory stick
which has already been inserted,
press SOURCE
or SRC
several times in
succession and select " CD
" or " USB
".


Press one of the buttons to select the
next or previous track.

Press one of the buttons to select the
next or previous folder in the order
chosen.

Press and hold one of the buttons for
fast forwards or backwards.

Press LIST
to display the menu of
folders in the compilation.

04
292
Select a line in the list.

Select a track or a folder.

Skip a track.

Up a level in the menu.

AUDIO

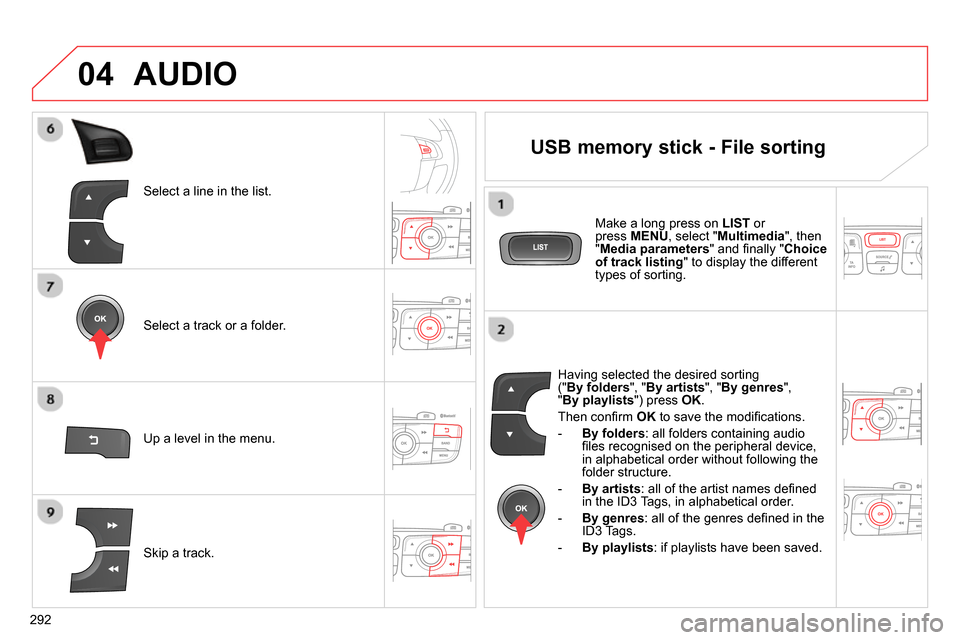

USB memory stick - File sorting


Having selected the desired sorting
(" By folders
", " By artists
", " By genres
",
" By playlists
") press OK
.
Then confi rm OK
to save the modifi cations.


- By folders
: all folders containing audio
fi les recognised on the peripheral device,
in alphabetical order without following the
folder structure.

- By artists
: all of the artist names defi ned
in the ID3 Tags, in alphabetical order.

- By genres
: all of the genres defi ned in the
ID3 Tags.

- By playlists
: if playlists have been saved.


Make a long press on LIST
or
press MENU
, select " Multimedia
", then
" Media parameters
" and fi nally " Choice
of track listing
" to display the different
types of sorting.

04
293
AUDIO

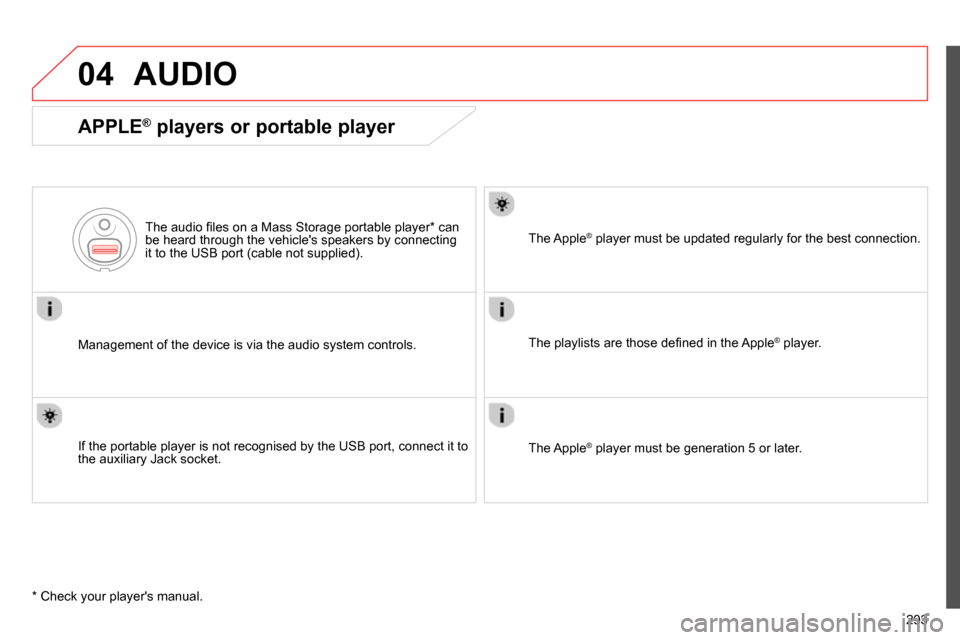

APPLE ®
players or portable player


Management of the device is via the audio system controls.
The audio fi les on a Mass Storage portable player * can
be heard through the vehicle's speakers by connecting
it to the USB port (cable not supplied).

If the portable player is not recognised by the USB port, connect it to
the auxiliary Jack socket.
The Apple
®
player must be updated regularly for the best connection.

The playlists are those defi ned in the Apple
®
player.

The Apple
®
player must be generation 5 or later.


* Check your player's manual.

04
294
AUDIO
















Auxiliary socket (AUX)


Auxiliary Jack socket

Do not connect a device to the USB port and to the auxiliary Jack
socket at the same time.
The auxiliary Jack socket permits the connection of a portable non-
mass storage device or an Apple
® player if not recognised by the
USB port.

Connect the portable device to the auxiliary Jack socket using a
suitable cable (not supplied).
Press the SOURCE
or SRC
button
several times in succession and
select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on the
portable device.

04
295
AUDIO







Streaming - Playing audio files via
Bluetooth

Depending on the compatibility of the phone

Pair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profi les
(Profi les A2DP / AVRCP).

Activate the streaming source by pressing SOURCE
or
SRC
. Control of playback is via the audio system. The
contextual information can be displayed in the screen.

In certain cases, playing of the audio fi les must be initiated from the
telephone.

The audio quality depends on the quality of the transmission from
the telephone.



Play mode


The play modes available are:


- Normal: the tracks are played in order, depending on the
classifi cation of the selected fi les.

- Random: the tracks in an album or folder are played in a
random order.

- Random all: all of the tracks saved in the media are played in
random order.

- Repeat: the tracks played are only those from the current
album or folder.


Press OK
for access to the contextual
menu.
or
Press MENU
.

Select " Multimedia
" and confi rm.

Select " Media parameters
" and
confi rm.

Select " Read mode
" and confi rm.

Select the desired play mode and
confi rm OK
to save the modifi cations.

05
296
USING THE TELEPHONE

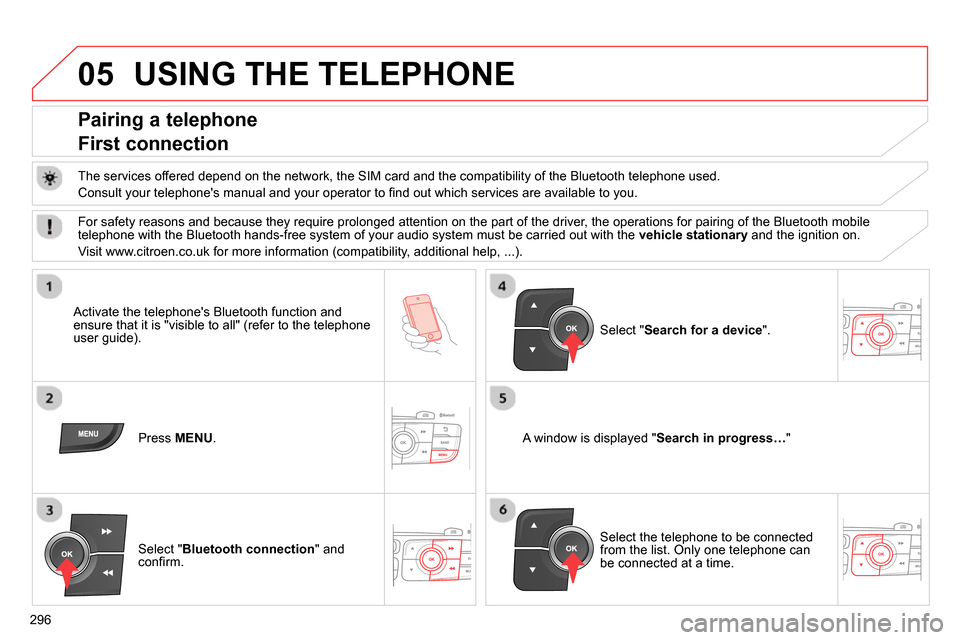

Pairing a telephone
First connection

The services offered depend on the network, the SIM card and the compatibility of the Bluetooth telephone used.
Consult your telephone's manual and your operator to fi nd out which services are available to you.

Activate the telephone's Bluetooth function and
ensure that it is "visible to all" (refer to the telephone
user guide).

Press MENU
.
A window is displayed " Search in progress…
"

Select the telephone to be connected
from the list. Only one telephone can
be connected at a time.
Select " Search for a device
".
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile
telephone with the Bluetooth hands-free system of your audio system must be carried out with the vehicle stationary
and the ignition on.
Visit www.citroen.co.uk for more information (compatibility, additional help, ...).

Select " Bluetooth connection
" and
confi rm.

05
Saisir code authentification
01
OK Del23456789 _
297
USING THE TELEPHONE

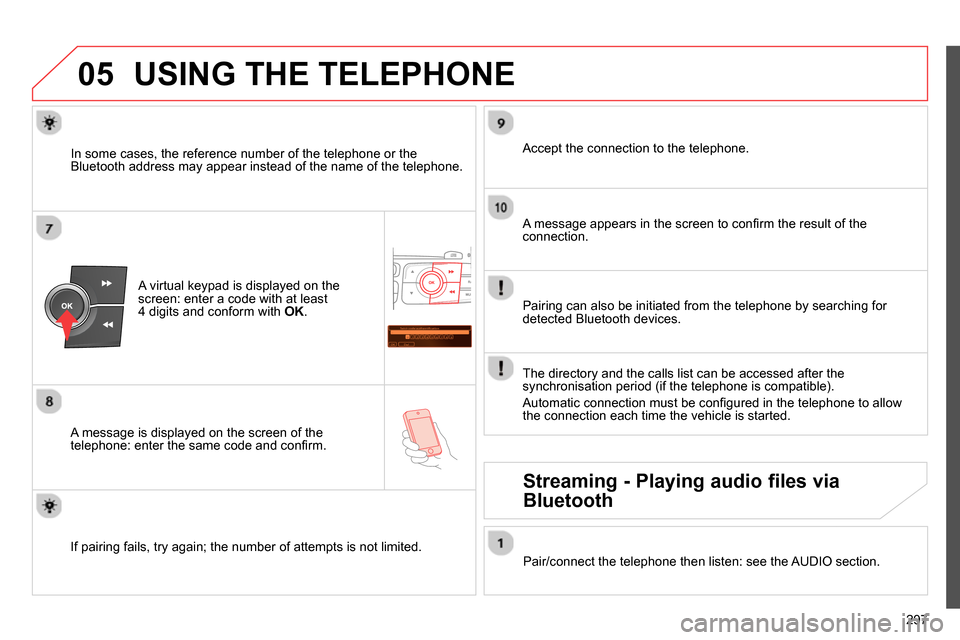

A virtual keypad is displayed on the
screen: enter a code with at least
4 digits and conform with OK
.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of the
connection.

Pairing can also be initiated from the telephone by searching for
detected Bluetooth devices.
Accept the connection to the telephone.

If pairing fails, try again; the number of attempts is not limited.
The directory and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).
Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the telephone or the
Bluetooth address may appear instead of the name of the telephone.

Pair/connect the telephone then listen: see the AUDIO section.








Streaming - Playing audio files via
Bluetooth

05
298
USING THE TELEPHONE


The telephone connection automatically includes hands free operation
and audio streaming.
The ability of the system to connect to just one profi le depends on the
telephone. Both profi les may connect by default.

Press MENU
.

Select " Bluetooth connection
" and
confi rm. Indicates connection of the audio steaming profi le.

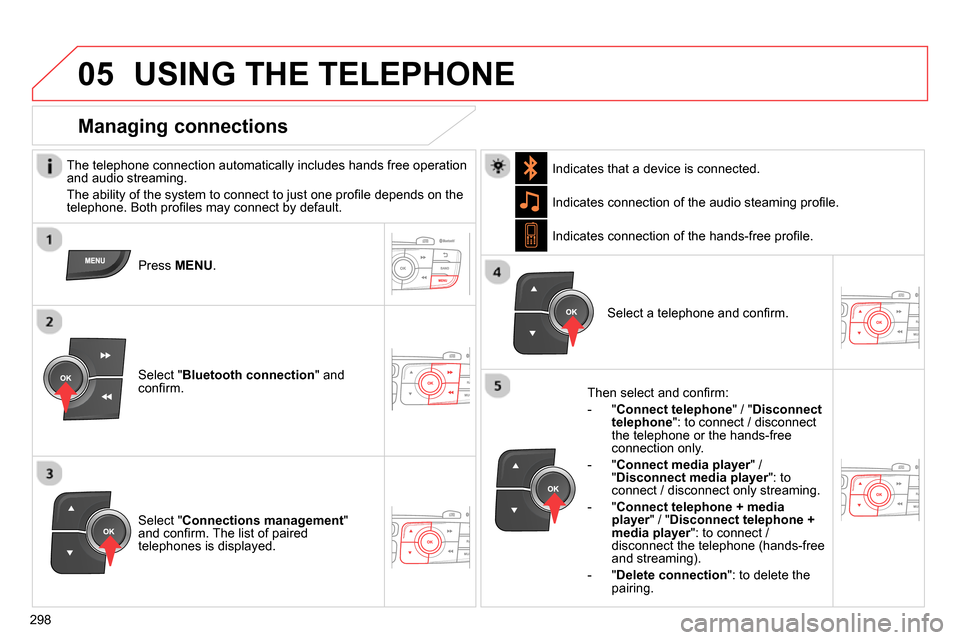

Managing connections


Select " Connections management
"
and confi rm. The list of paired
telephones is displayed.
Select a telephone and confi rm. Indicates connection of the hands-free profi le.

Then select and confi rm:


- " Connect telephone
" / " Disconnect
telephone
": to connect / disconnect
the telephone or the hands-free
connection only.

- " Connect media player
" /
" Disconnect media player
": to
connect / disconnect only streaming.

- " Connect telephone + media
player
" / " Disconnect telephone +
media player
": to connect /
disconnect the telephone (hands-free
and streaming).

- " Delete connection
": to delete the
pairing.


Indicates that a device is connected.
