Manual operation (Emer-gency mode)
Driver's door
Insert the key into the lock to lock/unlock the door.
Passenger doors
It is possible to lock the passenger doors in the event of an electrical fault by using control B on each door:With the door open, unclip the plastic cover.
Insert an object, such as the end of a key, into the cavity and turn.
Replace the plastic cover.
Close the door.
After this operation, normal opera-tion resumes using the central unlocking control (inside the vehi-cle), the remote control or the key.
Page 92 of 231
96
III
C
AB
D
A U T O M A T I C A I R C O N D I T I O N I N G
G E N E R A L
A. Sunlight sensor.B. Soft air conditioning diffusion grille.The soft diffusion grille located in the centre of the dashboard provides an optimum air distribution for the front seats.
This device eliminates unpleasant air currents whilst maintainin g an optimum tempera-ture in the passenger compartment.
To open the soft air diffusion grille, move the control knob upwards.
To close the soft air diffusion grille, move the control knob all the way down.
In very hot weather, to improve the central and lateral venti lation, closing off the soft diffusion air conditioning is recommended.
C. Air conditioned glovebox.D. Rear passenger air vents.
Page 93 of 231
97
III
A U T O M A T I C A I R C O N D I T I O N I N G
G E N E R A L
You are advised to use the automatic air conditioning regulation. This automatically regulates the following f u n c t i o n s f o r m a x i m u m c o m f o r t : a i r fl o w , p a s s e n g e r compartment temperature, and air distribution, using different sensors (external temperature, sunlight). This avoids the need to alter any of the settings, with the exception of the temperature displayed.
Take care not to obstruct the sunlight sensor A.
Provided you retain automatic mode (by pressing button “AUTO”) and all the air vents are open, you will main-tain an optimum comfort level, also removing humidity and misting, whatever the ambient climatic conditions.
The temperature inside the cabin cannot be lower than the temperature outside if the air conditioning is not operating.
To be effective, the air conditioning should only be used with the windows closed. If after a lengthy stop in bright sunlight the interior temperature is excessive, air the passenger compartment by opening the windows for a few moments, then close them again.
To ensure the correct operation of the air conditioning system, it is essential to operate the air conditioning at least once a month.
The air conditioning operates by using power from the engine. This results in a slight increase in fuel con-sumption.
In certain extreme operating conditions (e.g. carrying a full load up a steep gradient in high temperatures), the switching off of the air conditioning allows more power to be transferred to the engine, thereby increasing the towing capacity.
Air inlet
Check that the exterior grille for the air inlet, at the bot-tom of the windscreen, is clean and free of dead leaves, snow, etc.
If washing the vehicle with a high pressure jet, avoid targeting the air inlet zone.
Air circulation
For your comfort we advise you to maintain a proper distribution of air within the cabin, both at the front and at the rear.
To obtain an even distribution of air, ensure that you do obstruct the external air inlet grille located at the base of the windscreen, the air vents, the air outlets on the fl o o r u n d e r n e a t h t h e f r o n t s e a t s , a n d t h e a i r e x t r a c t o r l o c a t e d b e h i n d t h e fl a p s i n t h e b o o t .
T h e f r o n t a n d r e a r a i r v e n t s a r e fi t t e d w i t h c o n t r o l k n o b s w h i c h a l l o w y o u t o c o n t r o l a n d d i r e c t t h e a i r fl o w . I t i s recommended to keep all the air vents open.
D u s t / p o l l e n fi l t e r
T h e r e i s a fi l t e r f o r e x c l u d i n g p o l l e n a n d d u s t .
T h i s fi l t e r h a s t o b e c h a n g e d a c c o r d i n g t o t h e v e h i c l e maintenance schedule. See “Maintenance Guide”.
Page 94 of 231
98
III8285
789
838184
6
81a2a3a4a858684b4b4b81b1b3b3b2b2b
978
A U T O M A T I C A I R C O N D I T I O N I N G
G E N E R A L

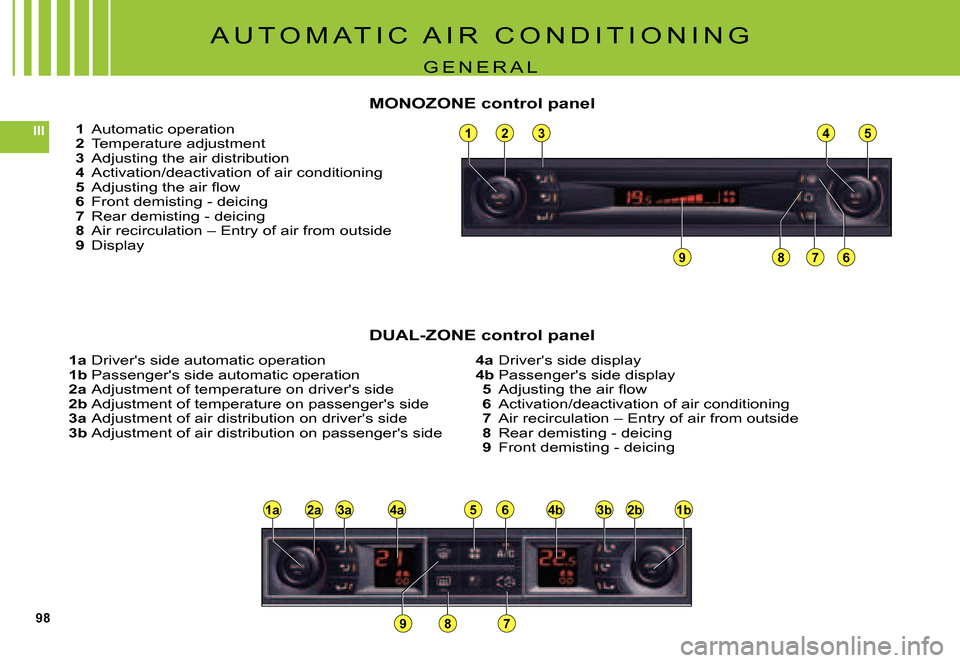

1 Automatic operation2 Temperature adjustment3 Adjusting the air distribution4 Activation/deactivation of air conditioning5 A d j u s t i n g t h e a i r fl o w6 Front demisting - deicing7 Rear demisting - deicing8 Air recirculation – Entry of air from outside9 Display
1a Driver's side automatic operation1b Passenger's side automatic operation2a Adjustment of temperature on driver's side2b Adjustment of temperature on passenger's side3a Adjustment of air distribution on driver's side3b Adjustment of air distribution on passenger's side
4a Driver's side display4b Passenger's side display5 A d j u s t i n g t h e a i r fl o w6 Activation/deactivation of air conditioning7 Air recirculation – Entry of air from outside8 Rear demisting - deicing9 Front demisting - deicing
DUAL-ZONE control panel
MONOZONE control panel
