Citroen C5 2007.5 (DC/DE) / 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2007.5, Model line: C5, Model: Citroen C5 2007.5 (DC/DE) / 1.GPages: 231, PDF Size: 7.63 MB

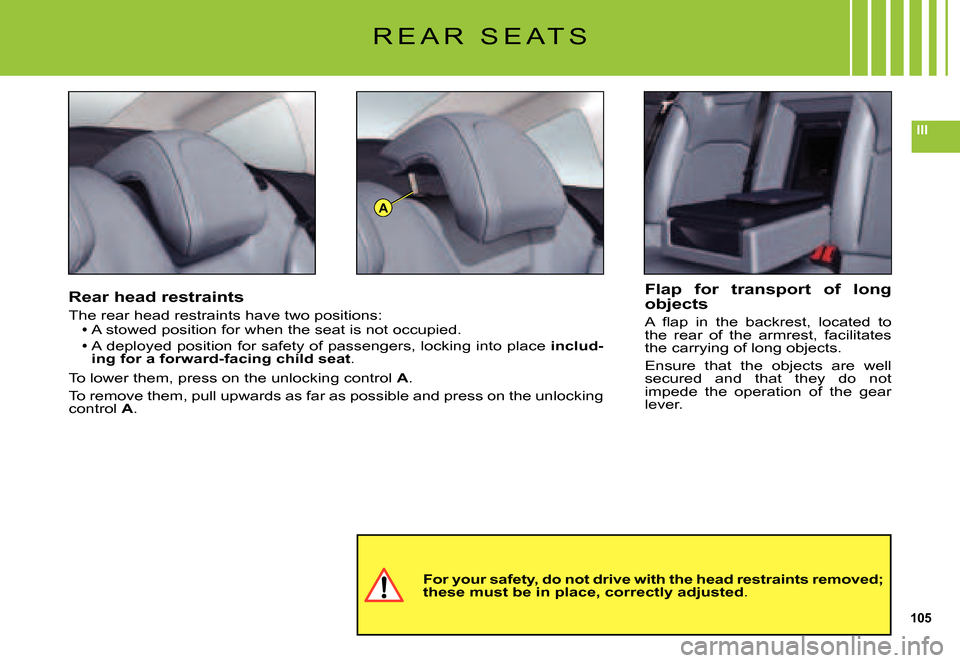

Page 101 of 231
105
III
A
R E A R S E A T S
Rear head restraints
The rear head restraints have two positions:A stowed position for when the seat is not occupied.A deployed position for safety of passengers, locking into place includ-ing for a forward-facing child seat.
To lower them, press on the unlocking control A.
To remove them, pull upwards as far as possible and press on the unlocking control A.
Page 102 of 231
106
III
1
2
3
R E A R S E A T S
The red light on button 3 should no longer be visible - if not, push the seat all the way back.
Pull control 3 forwards to unlock the backrest 2.Move the backrest 2.
P i n c h t h e s e a t c u s h i o n fi x i n g s t o remove them from their fasteners.
When repositioning:Fold the backrest 2 back up and lock it into place (the red light on button 3 should go out).Fold up the seat cushion 1.
Replace the head restraints if you had removed them.
Ensure that the front and rear back-rests are correctly locked in place.
Page 103 of 231
107
III
A
A I R B A G S
Front passenger's airbag deactivation
In order to be able to use a rear-facing child seat in the front pas-senger's seat position, it is impera-tive to deactivate the passenger's airbag.
For that:With the ignition switched off, insert the key into the switch A.
Turn the key to the “OFF” posi-tion, the passenger's airbag is deactivated.With the ignition on, the front passenger's airbag deactiva-tion warning lamp lights up on the roof console display.
Page 104 of 231
108
III
A
C H I L D S A F E T Y
Note: T h e a c t i v a t i o n o f t h i s f u n c t i o n i s c o n fi r m e d b y a m e s s a g e o n t h e i n s t r u -ment panel screen and the light on button A coming on.
If the light on button A fl a s h e s , t h e d o o r s h a v e n o t b e e n c l o s e d p r o p -erly.
The status of this function is memorised when the ignition is switched off.
The electric child safety is automatically deactivated in the e vent of a seri-ous accident (e.g. triggering of an airbag).
Page 105 of 231
109
III
C H I L D R E S T R A I N T S
Child seats secured by means of the vehicle seat belt
In conformity with Directive 2005/40, the table tells you to what extent each of the seat positions in your vehicle may take a child seat that is secured by means of the vehicle seat belt and approved as “Univer-sal” as a function of the weight of the child.
Consult “User Precautions”, chapter on “Child Safety” at the end of this handbook, in order to ensure that you are installing your child in conditions of maxi-mum safety.
Seat position(s)
Weight of child
Up to 10 kg and up to 13 kg (groups 0 and 0+)
9 - 18 kg (group 1)15 - 25 kg (group 2)22 - 36 kg (group 3)
Front passenger(a)UUUU
Lateral rearUUUU
Central rearUUUU
U: Seat position suitable for installation of universally approved rear-facing and/or front-facing child seat.
(a):Consult the current legislation for your country before driving w ith your child in this seat.
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “rear-facing” child seat there. Otherw ise the child risks being killed or seriously injured should the airbag deploy. .
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e c h i l d s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n guide.
Page 106 of 231
110
IIIA
A
B
A
C
C H I L D R E S T R A I N T S
ISOFIX CHILD SEATS
ISOFIX anchoring points and the ISOFIX fastening system
Your vehicle is ISOFIX approved in conformance with European law ECE 14-06. The lateral rear seats and the front passenger seat a r e fi t t e d w i t h r e g u l a t i o n I S O F I X anchoring points.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by i n c o r r e c t fi t t i n g . T h e I S O F I X f a s -tening system gives you a conven- i e n t , s t r o n g a n d r e l i a b l e fi t t i n g f o r a child seat in your vehicle.
The ISOFIX fastening sys-tem
The ISOFIX system is made up of:
3 rings for each lateral rear seat:2 lower rings A located between the backrest and the seat cush-ion. They are approximately 28 cm apart and have the ISO-FIX logo on them.
One top ring B fi x e d o n t h e r e a r shelf, concealed u n d e r a fl a p with the logo TOP TETHERbehind the head restraint.
3 rings for the front passenger seat:2 rings located between the backrest and the seat cushion, with the ISOFIX logo.
A third ring C fi x e d i n t h e l o w e r section of the rear of the back-rest.
Page 107 of 231
111
III
C H I L D R E S T R A I N T S
Table summarising the installation of ISOFIX child seats
In conformance with European law (ECE 14-06), this table shows you the p o s s i b i l i t i e s f o r t h e i n s t a l l a t i o n o f I S O F I X c h i l d s e a t s i n s e a t s fi t t e d w i t h I S O -FIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size cl ass, d e fi n e d b y a l e t t e r f r o m A to G, is shown on the child seat to the right of the ISOFIX logo.
Weight of child/Age given as a guide
U p t o 1 0 k g ( g r o u p 0 )U p t o a r o u n d 6 m o n t h s
Up to 10 kg and up to 13 kg (groups 0 and 0+)Up to around 1 year old
9 - 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatS h e l l( * )“ R e a r - f a c i n g ”“ R e a r - f a c i n g ”“ F o r w a r d -f a c i n g ”
ISOFIX size classFGCDECDABB 1
Front passenger seatXI L - S UI L - S UI U FI L - S U
Lateral rear seatsI L - S UI L - S UI L - S UI U FI L - S U
Central rear seatN o n I S O F I X s e a t
IUF: Seat position suitable for installation of an ISOFIX universal child seat. ISOFIX “forward-facing” child seats equipped with a top belt for attaching on the top ring in the vehicle's ISOFIX seat positions.IL-SU: Seat position suitable for installation of an ISOFIX semi-un iversal child seat. ISOFIX “forward-facing” child seats equipped with a bar, ISOFIX “rear-facing” child seats, or ISOFIX shell seats equipped with either a top belt or a bar.X: Seat not suitable for installation of an ISOFIX seat of the size class indicated ( * ) : T h e I S O F I X s h e l l , fi x e d t o t h e l o w e r r i n g s o f a n I S O F I X s e a t , t a k e s u p 2 r e a r s e a t s
In the front passenger's s e a t p o s i t i o n , i t i s imperative to deactivate the front passenger's airbag if you are installing a “rear-facing” child seat there. Otherwise the child risks being k i l l e d o r s e r i o u s l y i n j u r e d should the airbag deploy.
Take care to comply with the fitting instructions given in the child seat manufacturer’s installation guide.
ISOFIX child seat recom-mended
The ISOFIX child seat recom-mended for your vehicle is the RÖMER Duo Plus ISOFIXmended for your vehicle is mended . It is marketed by the CITROËN net-work.
It is equipped with a top belt and so is approved as an “ISOFIX univer-sal” child seat, size class B1. It is essential to use the top belt.
This ISOFIX child seat can also be i n s t a l l e d i n s e a t s n o t fi t t e d w i t h I S O -FIX anchoring points. In this case, the child seat must be secured by means of the vehicle seat belt.
Page 108 of 231
112
III
2
2
1
I N T E R I O R L I G H T I N G
1. Interior lamps
Move control 1 to one of the 3 following positions:
Automatic lighting of the interior lampsOn entering the vehicle:They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.
On vacating the vehicle:They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.
Page 109 of 231
113
III
B
A
I N T E R I O R L I G H T I N G
Ambient dashboard lighting
Your vehicle is equipped with warm and welcoming ambient lighting.
A soft orange light is emitted.
Operation
When starting the engine, lights located along the dashboard are activated.
With the ignition on and the head-lamps on, button A allows you to activate or deactivate the ambient dashboard lighting.
Ambient central console lighting
These lights are located on the roof console, near the front interior lamp. They light up the central con-sole.
Operation
These lights are activated when the instrument panel comes on. They are deactivated when the instrument panel goes out.
The intensity of the lighting var-ies along with that of the instru-ment panel. Press on button B to increase or reduce the intensity of the lighting.
Door opening controls light-ing
They are located on the front and rear interior door opening controls.
The rear door opening controls lighting is deactivated if child safety is activated.
Page 110 of 231
114
III
I N T E R I O R L I G H T I N G
Pavement lighting
With the door open, this lights up the ground next to the vehicle.
Floor lighting
In the front and the rear of the vehi-cle, when a door is opened, this lights up the interior of the vehicle.
Welcome lighting
The welcome lighting is made up of:The interior (roof) lamps.
T h e fl o o r l i g h t i n g .
The pavement lighting when a door is open.
