remote control Citroen C5 2007.5 (DC/DE) / 1.G Owner's Manual

II
55
F
BA
D
C
E
IN BRIEF
A. Key release / storage.
B. Locking of the vehicle.
C. Unlocking of the vehicle.
D. Guide-me-home lighting.
Press upwards on the lever E.
The boot automatically locks when the vehicle is moving at a speed of over 10 km/h (6 mph), even if automatic central locking is deacti-vated. It is unlocked when a door is opened or when the central locking button is pressed (speed lower than 10 km/h (6mph)).
To open the fuel fl ap, press on the top left part of it, then pull from the edge.
Locking fi ller cap*
Turn the key a quarter turn to lock and unlock the fi ller cap.
When refuelling, place the cap on hook F.
Remote control keyOpening the bootFuel tank
22159
Tank capacity:
approximately 71 litres
95
O P E N I N G

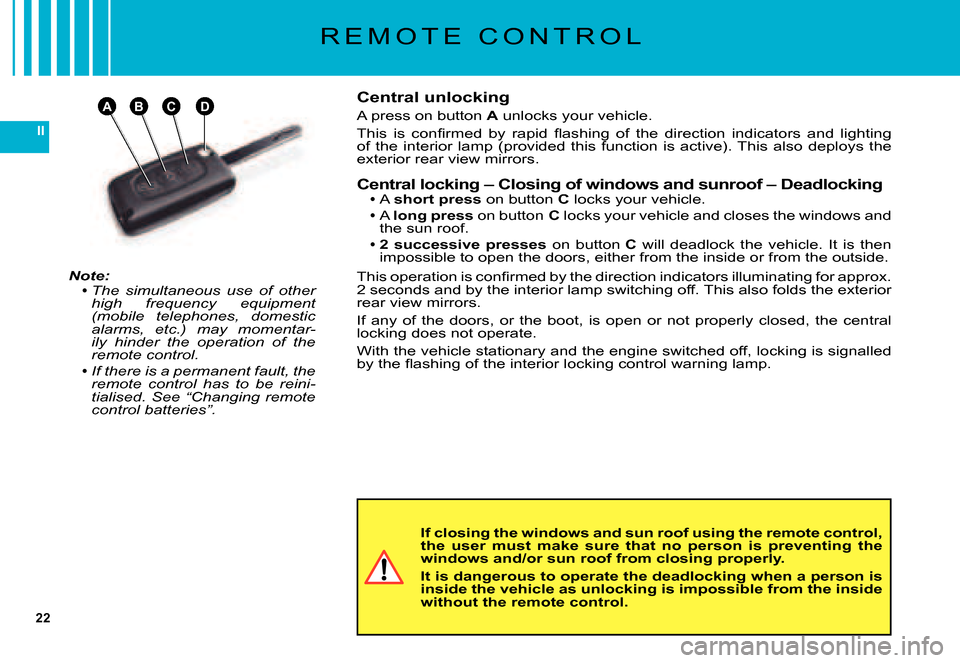

22
II
ACDB
R E M O T E C O N T R O L
Note:The simultaneous use of other high frequency equipment (mobile telephones, domestic alarms, etc.) may momentar-ily hinder the operation of the remote control.
If there is a permanent fault, the remote control has to be reini-tialised. See “Changing remote control batteries”.

23
II
R E M O T E C O N T R O L
Folding and ejecting the key
Button D is for folding and ejecting the key from its housing in the remote control.
If you do not press on button D, you could damage the key mechanism.
Changing the remote control battery
Unclip the cover to gain access to the battery.
Battery: CR 0523 de 3 V.
Re-initialisation of the remote control
After a change of battery, it is necessary to re-initialise the remote control. To do that, switch on the ignition and immediately press bu tton C of your remote control until you achieve the desired result. This may take some ten seconds.Note: Make a careful note of the numbers for the keys and for the remot e control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away used batteries. Return them to a CITROËN dealer or dealertake them to an authorised recycling facility (camera shops, etc).
Except when reinitialising, the remote control cannot function while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, when for example it is in your pocket, you can unlock the vehicle without your realising it.
However, if none of the doors is opened within thirty seconds following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement batte ry is not the correct one.
Only use batteries that are identical or equivalent to those approved by CITROËN.
Guide-me-home lighting
A press on button B activates the guide-me-home lighting (lighting of the sidelamps, dipped beams, registration plate lights for around 1 minute).
A second press prior to the end of this timing cancels the guide-me-home lighting.
Locating of the vehicle
To locate the vehicle in a carpark, press button C. Locating of the vehicle is confi rmed by:The fl ashing of the direction indicators for a few seconds.The interior lighting coming on.
The vehicle remains locked.

24
II
K E Y S
It is dangerous to operate the deadlocking when a person is inside the vehicle as unlocking is impossible from the inside without the remote control.
The key number is on the label attached to the key.
Should you lose your key or remote control, a CITROËN dealer can supply replacements.
Central locking using the key
Briefl y turn the key in the door lock. The vehicle is locked.
Deadlocking: Central locking using the key
A second immediate action with the key deadlocks the vehicle. I t is then impossible to open the doors from the interior or exterior.Note:With the vehicle stationary and the engine switched off, locking is sig-nalled by the fl ashing of the interior locking control warning lamp.
If any of the doors, or the boot, is open or not properly clo sed, the central locking does not operate.
Electronic immobiliser
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the igni tion.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle
If this occurs, leave your vehicle immobilised and contact a CITRO ËN dealer.

27
II
A N T I - I N T R U S I O N A L A R M
Operating the alarm
First make sure all the doors are closed.
The alarm is armed by pressing button C on the remote control.
With the alarm armed, the protections are active after 5 seconds (perimeter) and 45 seconds (volumetric).
When the alarm is armed (on standby), any intrusion will trigger the siren for 30 seconds, accompanied by the direction indicators lighting up.
The alarm then goes back on standby. The triggering remains memorised. The warning lamp on button Afl ashes quickly when the alarm is deactivated by press-ing the unlocking button B. This fl ashing stops when you switch on the ignition.
The siren is also triggered if there is a cutting of the electrical supply. To stop it, restore the electrical supply then press on the unlocking button B.Note:If you want to lock your vehicle without arming the alarm, just lock with the key only.
If you lock your vehicle and a door, or the boot, is still open, the central locking does not operate but the alarm will arm itself after approx. 45 seconds.Note: The siren is automatically deactivated (for exam-ple for disconnecting the battery) as soon as the vehicle is unlocked using the remote control.

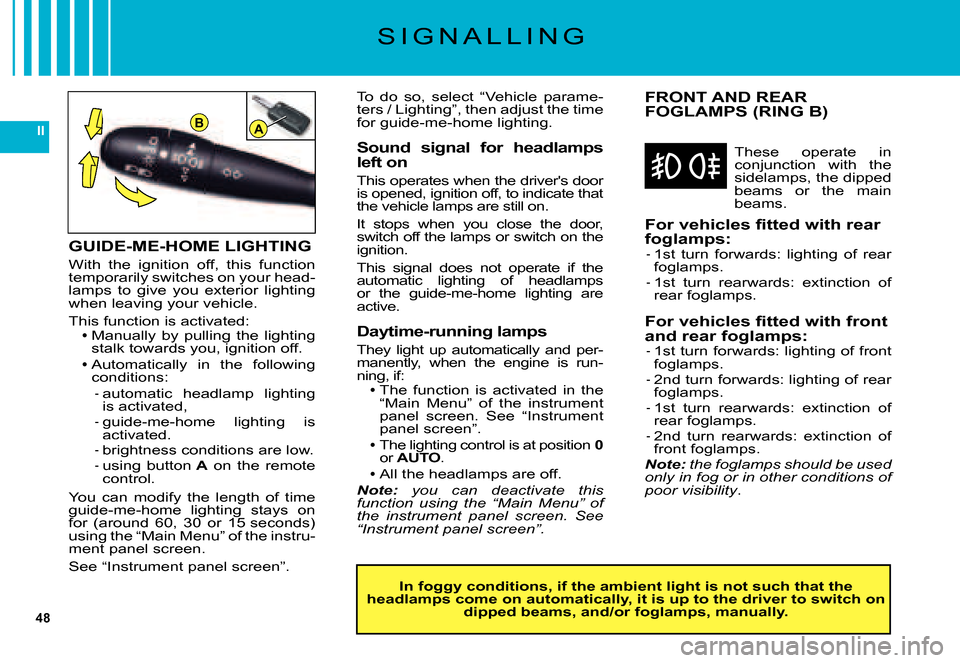

48
IIAB
For vehicles fi tted with rear foglamps:1st turn forwards: lighting of rear foglamps.1st turn rearwards: extinction of rear foglamps.
For vehicles fi tted with front and rear foglamps:1st turn forwards: lighting of front foglamps.2nd turn forwards: lighting of rear foglamps.1st turn rearwards: extinction of rear foglamps.2nd turn rearwards: extinction of front foglamps.Note: the foglamps should be used only in fog or in other conditions of poor visibility.
-
-
-
-
-
-
FRONT AND REAR FOGLAMPS (RING B)
These operate in conjunction with the sidelamps, the dipped beams or the main beams.
S I G N A L L I N G
GUIDE-ME-HOME LIGHTING
With the ignition off, this function temporarily switches on your head-lamps to give you exterior lighting when leaving your vehicle.
This function is activated:Manually by pulling the lighting stalk towards you, ignition off.Automatically in the following conditions:
automatic headlamp lighting is activated,guide-me-home lighting is activated.brightness conditions are low.using button A on the remote control.
You can modify the length of time guide-me-home lighting stays on for (around 60, 30 or 15 seconds) using the “Main Menu” of the instru-ment panel screen.
See “Instrument panel screen”.

94
III
A
Locking/unlocking from the inside
With the doors and the boot closed, pressing button A allows you to control the electric central locking and unlocking.
It is still possible to open the doors from the inside.
If one of the doors is open or not properly closed, central locking will not work.
The warning lamp associated with the control A signals 3 statuses:lt fl ashes when the ignition key is in the stop position or when the key is not detected and the doors are locked.
It lights up when the vehicle is locked with the ignition switched on.It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.

95
III
BCD
A C C E S S
Manual operation (Emer-gency mode)
Driver's door
Insert the key into the lock to lock/unlock the door.
Passenger doors
It is possible to lock the passenger doors in the event of an electrical fault by using control B on each door:With the door open, unclip the plastic cover.
Insert an object, such as the end of a key, into the cavity and turn.
Replace the plastic cover.
Close the door.
After this operation, normal opera-tion resumes using the central unlocking control (inside the vehi-cle), the remote control or the key.
