IN BRIEF
F. Seat height and slide adjust-ments.
G. Adjustment of the backrest angle.
H. Adjustment of top of backrest.
I. Adjustment of 2 axis lumbar support.
J. Massage function.
A. Adjustment of the backrest angle.B. Adjustment of the seat height and angle.C. Heated seat control.D. Longitudinal adjustment of seat.E. Adjustment of the backrest lum-bar support.
5556
G E T T I N G S T A R T E D
54
Memorisation
The Memorisation function allows you to programme the driver's seat and exterior rear view mirror set-tings.
The correct positioning of the belt strap is through the middle of the shoulder. See “Seat belts”.
To adjust the seat belt for height, compress the control and slide it in the desired direction.
Seat belt height adjustmentFront seats
Electrical adjustmentsElectrical adjustmentsManual adjustments
Page 25 of 231
28
II
S T E E R I N G L O C K - I G N I T I O N - S T A R T E R
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
S : Steering lock
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M : Drive position
The steering is unlocked (by turn-ing the key in position M, if neces-sary move the steering wheel).
D : Starting
Release the key as soon as the engine starts. Never turn it while the engine is running.
Economy mode
When the engine is stopped, some functions (radio, screen wipe , electric windows, sunroof, electric seats, telephone, video etc) are only electrically supplied for about 30 minutes, to avoid discharging the battery.
Once the 30 minutes are over, a message appears on the instrumen t panel screen and the active functions are put on standby.
The electrical components relating to comfort and also the headlamps (not sidelamps or hazard warning lamps) cut out automatically. To react ivate them, it is necessary to start the engine.
Page 44 of 231
47
II
A
3
1
2
4
1
LIGHTING CONTROL STALK1 : Off.
2 : Automatic lighting.
3 : Sidelamps.4 : Dipped beams / Main beams.
All vehicle lamps off
Rotate the ring A forwards.
They go out once the brightness has reached a satisfactory level or about 5 minutes after the wind-screen wipers have stopped.
To activate this function, turn the ring A to position 2.
Take care not to cover the bright-ness sensor, which is visible from outside the windscreen, behind the interior rear view mir-ror.
Automatic lighting of headlamps
The sidelamps and the dipped beams come on automatically w h e n t h e l i g h t i s i n s u f fi c i e n t o r i f the windscreen wipers are in con-tinuous operation.
Rotate the ring A forwards.
Sidelamps on
Dipped beams/main beams on
Pull the control stalk towards youto change between dipped beam and main beam.
Rotate the ring A forwards.
S I G N A L L I N G
Manual headlamp height adjustment
You are advised to adjust the aim of the headlamps in accordance with vehicle load.0. 1 or 2 people in the front seats.-. 3 people.1. 5 people.-. Intermediate setting.2. 5 people + maximum permitted load.-. Intermediate setting.3. Driver + maximum permitted load.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Page 52 of 231
55
II
A
5
4
3
2
1
6
F R O N T S E A T S
M A N U A L A D J U S T M E N T S
1. Adjustments to the height and angle of the head restraint
To raise it, pull upwards.
To lower it, press on the control A to unlock it, and simultaneously on the head restraint itself. The adjustment is correct when the top edge of the head restraint is at the same height as the top of the head. It is also tilt-adjustable.
To raise it, press control A to unlock it, then pull it upwards.
2. Adjustment of the backrest angle
Use the control to adjust the backrest angle.
It is possible to recline the backrest angle to 45° by pushing it until it locks.
3. Adjustment of the seat height and angle
Raise or lower the control the number of times required to obtain the desired position.
4. Longitudinal adjustment of seat
Lift the control bar and adjust to the desired position.
5. Adjustment of lumbar support
Turn the control and adjust to the desired posi-tion.
6. Heated seat controlsNote: The heated seats only operate when the engine is running.0: Off.
1: Gentle.
2: Medium.
3: Strong.
F o r y o u r s a f e t y, d o n o t d r i v e w i t h the head restraints r e m o v e d ; t h e s e m u s t b e i n p l a c e , correctly adjusted.
Page 53 of 231
56
II
32
a
b
c
d
4
1
F R O N T S E A T S
E L E C T R I C A L A D J U S T M E N T S
To adjust the electrical seats, switch on the ignition or start the engine if the vehicle has gone into economy mode.
1. Adjustment of the seat height and angle, and longitudinal adjustmenta Raise or lower the front of the control in order to raise or lower the front of the seat.b Raise or lower the rear of the control in order to raise or lower the rear of the seat.c Simultaneously raise or lower the front and rear of the control in order to raise or lower the entire seat.d Slide the control forwards or backwards to move the seat forwards or backwards.
2. Adjustment of the backrest angle
Move the control forwards or backwards to adjust the back-rest angle.
3. Adjustment of the angle of the top of the backrest
Move the control forwards or backwards to adjust the angle of the top of the backrest.
4. Adjustment of lumbar support
This function allows you to independently adjust the height and level of lumbar support.
Move the control:Forwards or backwards to increase or reduce the lumbar support.
Upwards or downwards to raise or lower the lumbar support zone.Note: Seat adjustments are also possible for a short period after open ing one of the front doors or switching off the ignition.
Page 54 of 231
57
II
CBDA
F R O N T S E A T S
E L E C T R I C A L A D J U S T M E N T S
The Welcome function
When the driver's door is opened and the ignition is off, the seat moves to ease accessing or leav-ing the vehicle.
You may activate or deactivate this function using the “Main Menu” on the instrument panel screen. To do so, select “Vehicle parameters / Comfort / Driver welcome”.
Head restraint height and angle adjustments on elec-tric seats
To adjust the angle of the head restraint, push back or pull forward section C of the head restraint until you reach the desired position.
To raise it, pull upwards.
To lower it, press on the control Dto unlock it, and simultaneously on the head restraint itself.
To raise it, press control D to unlock it, then pull it upwards.
0: Off.
1: Gentle.
2: Medium.
3: Strong.
Controls for the heated seats
The front seats can be heated indi-vidually. With the engine running, use control A, located beside the seats to choose between three heating levels:
Massage function
This function provides the driver with a back massage.
To activate the massage, with the engine runnuing, press on but-ton B. The warning lamp comes on and the massage function is acti-vated for a period of 1 hour. During this time, massage is performed in cycles of 6 minutes (4 minutes of massage followed by 2 minutes break). In total, the system will per-form 10 cycles.
After 1 hour, the function is deacti-vated. The warning lamp goes out.
You can deactivate the massage function at any time by pressing on button B.
Page 92 of 231
96
III
C
AB
D
A U T O M A T I C A I R C O N D I T I O N I N G
G E N E R A L
A. Sunlight sensor.B. Soft air conditioning diffusion grille.The soft diffusion grille located in the centre of the dashboard provides an optimum air distribution for the front seats.
This device eliminates unpleasant air currents whilst maintainin g an optimum tempera-ture in the passenger compartment.
To open the soft air diffusion grille, move the control knob upwards.
To close the soft air diffusion grille, move the control knob all the way down.
In very hot weather, to improve the central and lateral venti lation, closing off the soft diffusion air conditioning is recommended.
C. Air conditioned glovebox.D. Rear passenger air vents.
Page 105 of 231
109
III
C H I L D R E S T R A I N T S
Child seats secured by means of the vehicle seat belt
In conformity with Directive 2005/40, the table tells you to what extent each of the seat positions in your vehicle may take a child seat that is secured by means of the vehicle seat belt and approved as “Univer-sal” as a function of the weight of the child.
Consult “User Precautions”, chapter on “Child Safety” at the end of this handbook, in order to ensure that you are installing your child in conditions of maxi-mum safety.
Seat position(s)
Weight of child
Up to 10 kg and up to 13 kg (groups 0 and 0+)
9 - 18 kg (group 1)15 - 25 kg (group 2)22 - 36 kg (group 3)
Front passenger(a)UUUU
Lateral rearUUUU
Central rearUUUU
U: Seat position suitable for installation of universally approved rear-facing and/or front-facing child seat.
(a):Consult the current legislation for your country before driving w ith your child in this seat.
In the front passenger's seat position, it is imperative to deactivate the front passenger's airbag if you are installing a “rear-facing” child seat there. Otherw ise the child risks being killed or seriously injured should the airbag deploy. .
T a k e c a r e t o c o m p l y w i t h t h e fi t t i n g i n s t r u c t i o n s g i v e n i n t h e c h i l d s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n guide.
Page 106 of 231
110
IIIA
A
B
A
C
C H I L D R E S T R A I N T S

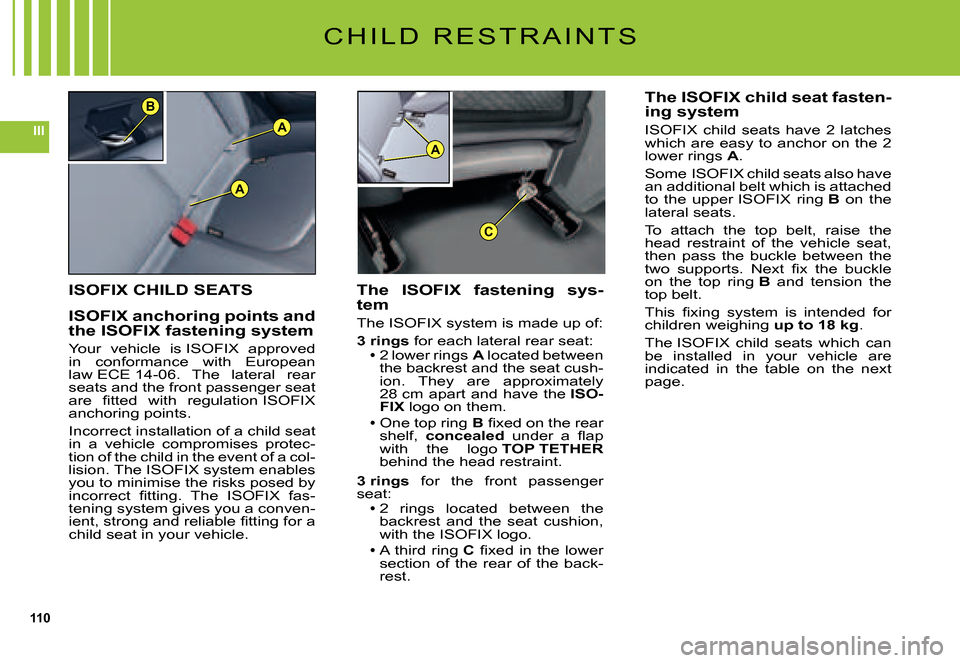

ISOFIX CHILD SEATS
ISOFIX anchoring points and the ISOFIX fastening system
Your vehicle is ISOFIX approved in conformance with European law ECE 14-06. The lateral rear seats and the front passenger seat a r e fi t t e d w i t h r e g u l a t i o n I S O F I X anchoring points.
Incorrect installation of a child seat in a vehicle compromises protec-tion of the child in the event of a col-lision. The ISOFIX system enables you to minimise the risks posed by i n c o r r e c t fi t t i n g . T h e I S O F I X f a s -tening system gives you a conven- i e n t , s t r o n g a n d r e l i a b l e fi t t i n g f o r a child seat in your vehicle.
The ISOFIX fastening sys-tem
The ISOFIX system is made up of:
3 rings for each lateral rear seat:2 lower rings A located between the backrest and the seat cush-ion. They are approximately 28 cm apart and have the ISO-FIX logo on them.
One top ring B fi x e d o n t h e r e a r shelf, concealed u n d e r a fl a p with the logo TOP TETHERbehind the head restraint.
3 rings for the front passenger seat:2 rings located between the backrest and the seat cushion, with the ISOFIX logo.
A third ring C fi x e d i n t h e l o w e r section of the rear of the back-rest.
Page 107 of 231
111
III
C H I L D R E S T R A I N T S
Table summarising the installation of ISOFIX child seats
In conformance with European law (ECE 14-06), this table shows you the p o s s i b i l i t i e s f o r t h e i n s t a l l a t i o n o f I S O F I X c h i l d s e a t s i n s e a t s fi t t e d w i t h I S O -FIX anchoring points.
For ISOFIX universal and semi-universal child seats, the ISOFIX size cl ass, d e fi n e d b y a l e t t e r f r o m A to G, is shown on the child seat to the right of the ISOFIX logo.
Weight of child/Age given as a guide
U p t o 1 0 k g ( g r o u p 0 )U p t o a r o u n d 6 m o n t h s
Up to 10 kg and up to 13 kg (groups 0 and 0+)Up to around 1 year old
9 - 18 kg (group 1)From approx. 1 to 3 years
Type of ISOFIX child seatS h e l l( * )“ R e a r - f a c i n g ”“ R e a r - f a c i n g ”“ F o r w a r d -f a c i n g ”
ISOFIX size classFGCDECDABB 1
Front passenger seatXI L - S UI L - S UI U FI L - S U
Lateral rear seatsI L - S UI L - S UI L - S UI U FI L - S U
Central rear seatN o n I S O F I X s e a t
IUF: Seat position suitable for installation of an ISOFIX universal child seat. ISOFIX “forward-facing” child seats equipped with a top belt for attaching on the top ring in the vehicle's ISOFIX seat positions.IL-SU: Seat position suitable for installation of an ISOFIX semi-un iversal child seat. ISOFIX “forward-facing” child seats equipped with a bar, ISOFIX “rear-facing” child seats, or ISOFIX shell seats equipped with either a top belt or a bar.X: Seat not suitable for installation of an ISOFIX seat of the size class indicated ( * ) : T h e I S O F I X s h e l l , fi x e d t o t h e l o w e r r i n g s o f a n I S O F I X s e a t , t a k e s u p 2 r e a r s e a t s
In the front passenger's s e a t p o s i t i o n , i t i s imperative to deactivate the front passenger's airbag if you are installing a “rear-facing” child seat there. Otherwise the child risks being k i l l e d o r s e r i o u s l y i n j u r e d should the airbag deploy.
Take care to comply with the fitting instructions given in the child seat manufacturer’s installation guide.
ISOFIX child seat recom-mended
The ISOFIX child seat recom-mended for your vehicle is the RÖMER Duo Plus ISOFIXmended for your vehicle is mended . It is marketed by the CITROËN net-work.
It is equipped with a top belt and so is approved as an “ISOFIX univer-sal” child seat, size class B1. It is essential to use the top belt.
This ISOFIX child seat can also be i n s t a l l e d i n s e a t s n o t fi t t e d w i t h I S O -FIX anchoring points. In this case, the child seat must be secured by means of the vehicle seat belt.
