ad blue Citroen C5 2008.5 (RD/TD) / 2.G Owner's Manual

37
2
M U L T I F U N C T I O N D I S P L A Y S
MULTIFUNCTION SCREEN C Main Menu
Press on the button A to view the
"Main Menu" of the multifunction
screen. This menu gives you access
to the following functions:
Presentation
Radio-CD
(see "Audio" chapter)
Bluetooth ®
hands-free kit
(see "Audio" chapter)
Controls

1. Time

2. Outside temperature

3. Date and display zone
When the outside temperature is be-
tween +3 °C and -3 °C, the tempera-
ture display fl ashes (ice risk).
The outside temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
It is recommended that the driver
should not operate the controls
while the vehicle is in motion. Personalisation-
Configuration
This permits activation/deactivation
of the:
- brightness and contrast of the multifunction screen,
- date and time,
- units of the outside temperature displayed.

A. Access to the "Main Menu"

B. Cancellation of the operation or
return to the previous display

C. Scrolling in the screen menus
Confi rmation at the steering wheel

D. Confi rmation on the audio equip-
ment control panel

191
11
P R A C T I C A L I N F O R M A T I O N * To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another. The fi tting of electrical
equipment or accessories
which are not recommend-
ed by CITROËN may result in a
failure of your vehicle’s electronic
system and excess consumption.
Please note this specifi c warn-
ing. You are advised to contact a
CITROËN representative to be
shown the range of recommended
equipment and accessories.
A wide range of accessories and
genuine parts is offered by the
CITROËN network.
These accessories and parts have
been tested and approved for reli-
ability and safety.
They are all adapted to your vehicle
and benefi t from CITROËN’s recom-
mendation and warranty.
This product range is structured
around 5 categories:
"Comfort and leisure": mats * , boot
tray, boot carpet, sun blinds, mini-
bar, fragrance cartridges, roof bars,
bicycle carrier, ski carrier, roof box-
es, towbars, child seats and booster
cushions...

"Protection": anti-theft alarm, wheel
anti-theft devices, stolen vehicle
tracking system, breathalyser, fi rst
aid kit, warning triangle, high vis-
ibility safety jacket, dog guard, snow
chains, non-skid covers, fog lamps
kit, puncture repair kit, rear parking
assistance...
"Navigation and communication":
Bluetooth ®
hands-free kit, audio
equipment, portable satellite naviga-
tion system, DVD player, auxiliary
cable for connecting a portable MP3
player, USB Box, speakers...
"Personalisation": seat covers, alloy
wheels, wheel trims, mud fl aps...

"Accessories": windscreen wash
fl uid, interior and exterior cleaning
and maintenance products, body-
work touch-up aerosol and pen...
Depending on the country in which
the vehicle is sold, it may be com-
pulsory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.

214
11
11
22
33
44
22
11
HANDS-FREE KIT
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile telephone with your Audio System’s hands-free kit m ust be carried out with the vehicle stationary. The ignition must be on.
Select the accessory which corresponds to the name of the vehicle, a superimposed confi guration display appears on the multifunction screen.
Activate the telephone’s Bluetooth function and carry out a search of the Bluetooth accessories present for the telephone.
Select the YES tab on the display using the buttons then confi rm by pressing OK.
Enter the vehicle’s authentication code (=1234). Depending on the telephone, you may be asked to enter this code before the superimposed confi guration display appears.
YES
YES
The services offered by the hands-free kit depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone’s manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the network. Consult a CITROËN dealer.
RECEIVING A CALL
An incoming call is announced by a ring and a supe rimposed display on the multifunction display.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control TEL to accept the call.
Press the steering wheel control TEL to access your directory.
To dial a number, use the keypad on your telephone.
MAKING A CALL
PAIRING A TELEPHONE

217
11
2
3
4
3
4
3
4
2
3
4
2
3
4
2
4
4
3
4
4
4
3
4
4
2
1
2
3
3
3
4
4
4
2
3
4
3
4
3
4
2
3
3
3
4
07
PERSONALISATION-CONFIGURATION AUDIO FUNCTIONS
SCREEN MENU MAP monochrome C
* The parameters vary according to vehicle (refer to the "Multifunction displays" section).
** According to compatibility of Bluetooth telephone and service contract.
TELEPHONE
FM BAND PREFERENCES
alternative frequencies (RDS)
activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
AUDIO CD PREFERENCES
track random play (RDM)
activate/deactivate
DEFINE THE VEHICLE PARAMETERS *
CHOICE OF LANGUAGE
DISPLAY CONFIGURATION
video brightness adjustment
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CONSULTING DIRECTORIES **
telephone directory
call log
services directory
customer contact centre
breakdown call
emergency call
MANAGEMENT OF A COMMUNICATION
switch **
terminate the current call
secret mode
activate/deactivate
CONFIGURATION
deletion of a match
list of matches
consulting matches
list of matches
choice of a mobile to connect
list of mobiles

The NaviDrive 3D is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for will only operate in your vehicle. If it is to be installe If it is t
confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
NaviDrive 3D
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS

2
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*
1. CD eject.
2. RADIO: Access to the RADIO menu. Displaying of the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: Access to the MEDIA menu (Audio CD, Jukebox , External Device). Displaying of the list of tracks. Change of source.
NAV: access to the NAVIGATION menu and displaying of the last destinations.
ESC: Abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the TRAFFIC menu (function desc ribed in detail in sections 02 and 10).
ADDR BOOK: access to the ADDRESS BOOK menu (functi on described in detail in section 10).
SETUP: access to the SETUP menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience...).
4. Volume adjustment. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
6. Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
FIRST STEPS
NaviDrive 3D CONTROL PANEL
7. Normal display or black screen.
8. Selection of the successive displaying on the scre en of MAP/NAV (if navigation is in progress)/TEL (if a conversation is in progress)/RADIO or MEDIA currently being played.
9. PICK UP: access to the TELEPHONE menu. With Blueto oth connection, accept an incoming call.
10. HANG UP: access to the TELEPHONE menu. Hang up the current call or refuse an incoming call, with Bluetooth connection. access to the TELEPHONE menu
11. Telephone numeric keypad, pre-selection of 10 radi o frequencies.
12. SD card reader.
Short press: clears the last character.
Long press: activates the voice recognition.

22
07
1
2
CHOOSING BETWEEN THE BLUETOOTH
TELEPHONE/INTERNAL TELEPHONE
To activate the Bluetooth telephone or the internal telephone, press PICK UP TEL.
MAKING A TELEPHONE CALL
Select TELEPHONE MENU, then SELECT TELEPHONE then choose between NONE, BLUETOOTH TELEPHONE or INTERNAL TELEPHONE. Press OK at each step to confi rm.
The system can only be connected to one Bluetooth teleth telephone and one SIM card (Internal telephone) at the same time. In this case, the phone book is synchronised with the Blthe Bluetooth telephone.

23
07
1
3
5
4
2
1
The services available via the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
MAKING A TELEPHONE CALL
CONNECTING A BLUETOOTH
TELEPHONE
For safety reasons and because they require prolon gedonged attention on the part of the driver, the operations for pairing the Blue Bluetooth mobile telephone to the hands-free system of the NaviDrive 3Dive 3D must be carried out with the vehicle stationary and the ignition onition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
If no telephone is connected, the system prompts you to CONNECT PHONE. Select YES and press OK to confi rm.
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the TEL button, then select TELEPHONE MENU, then SELECT PHONE then CONNECT BLUETOOTH TELEPHONE then select the telephone required or SEARCH PHONE. Press OK at each step to confi rm.
Once the telephone has been connected, the NaviDri veiDrive 3D can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
The list of telephones connected previously (4 max imumximum) appears on the multifunction display. Select the telephone required uired then select CONNECT PHONE for a new connection. Select DELE DELETE PHONE to cancel the connection to the telephone.
Press the TEL button.
For a fi rst connection, select SEARCH PHONE and press OK to confi rm. Then select the name of the telephone.
SEARCH PHONE

24
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
07
1
22
33
11
22

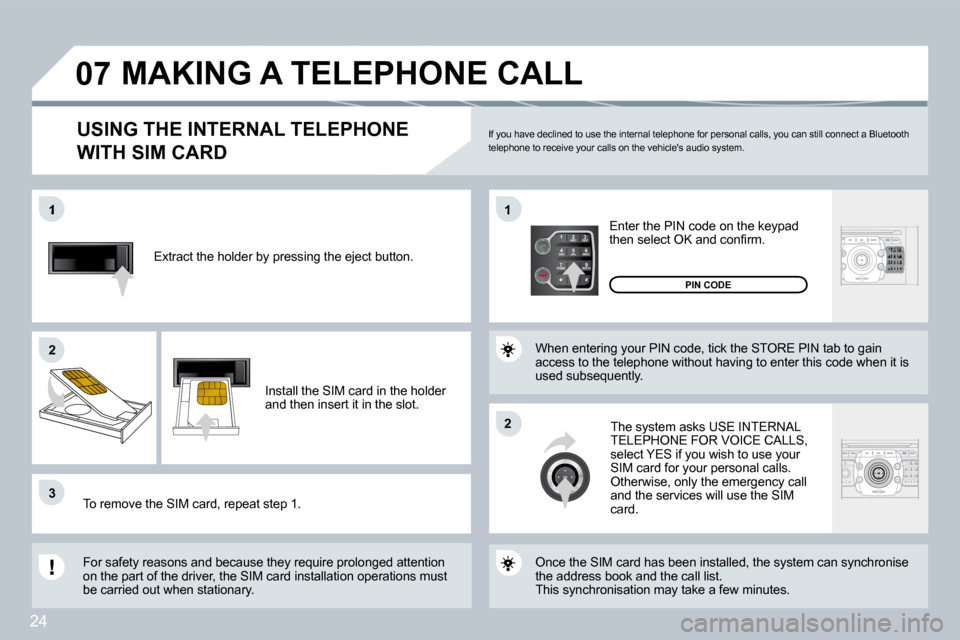

Extract the holder by pressing the eject button.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
For safety reasons and because they require prolon
ged attention on the part of the driver, the SIM card installation operations must be carried out when stationary.
Enter the PIN code on the keypad then select OK and confi rm.
The system asks USE INTERNAL TELEPHONE FOR VOICE CALLS, select YES if you wish to use your SIM card for your personal calls. Otherwise, only the emergency call and the services will use the SIM card.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
USING THE INTERNAL TELEPHONE
WITH SIM CARD
MAKING A TELEPHONE CALL
Once the SIM card has been installed, the system c an synchronise the address book and the call list. This synchronisation may take a few minutes.
If you have declined to use the internal telephone for personal calls, you can still connect a Bluet ooth telephone to receive your calls on the vehicle's au dio system.

26
SOS
* On condition that the CITROËN Emergency contract has been signed. This is free and of unlimited duration. Consult a CITROËN dealer. * On condition that the CITROËN Emergency cont ract has been signct has b
EMERGENCY CALL
EXCEPT NaviDrive 3D CONTROL PANEL
CITROËN ASSISTANCE
CUSTOMER CONTACT CENTRE
* These services and options are subject to conditions and availability.
CONSULTING THE SERVICES
Press this button to gain access to the CITROËN services * .
Select CUSTOMER CONTACT CENTRE to request any information about the CITROËN marque. CENTRE to request any informequest
Select CITROËN ASSISTANCE to make a breakdown assistance call.
In an emergency, press the SOS button until an aud ible signal is heard and a CONFIRMATION/CANCELLATION screen is displayed (if valid SIM card inserted). A call is made to the emergency services (112). In certain countries * , this emergency call is made directly by the CITROËN Emergency team which locates the In certain countries * , this emergency call is made direccountri
vehicle and alerts the appropriate emergency servic es as quickly as possible.
Warning, the emergency call and the services are only active if the internal telephone is used with a valid SIM card. With a Bluetooth telephone a nd without a SIM card, these services are not operational.
If necessary, the internal telephone is activated automatomatically to make an emergency call.
