Page 19 of 306
37
2
M U L T I F U N C T I O N D I S P L A Y S
MULTIFUNCTION SCREEN C Main Menu
Press on the button A to view the
"Main Menu" of the multifunction
screen. This menu gives you access
to the following functions:
Presentation
Radio-CD
(see "Audio" chapter)
Bluetooth ®
hands-free kit
(see "Audio" chapter)
Controls
1. Time
2. Outside temperature
3. Date and display zone
When the outside temperature is be-
tween +3 °C and -3 °C, the tempera-
t u r e d i s p l a y fl a s h e s ( i c e r i s k ) .
The outside temperature displayed
may be greater than the actual tem-
perature, if the vehicle is parked in
bright sunlight.
It is recommended that the driver
should not operate the controls
while the vehicle is in motion. Personalisation-
Configuration
This permits activation/deactivation
of the:
- brightness and contrast of the multifunction screen,
- date and time,
- units of the outside temperature displayed.
A. Access to the "Main Menu"
B. Cancellation of the operation or
return to the previous display
C. Scrolling in the screen menus
C o n fi r m a t i o n a t t h e s t e e r i n g w h e e l
D. C o n fi r m a t i o n o n t h e a u d i o e q u i p -
ment control panel
Page 20 of 306
38
2
M U L T I F U N C T I O N D I S P L A Y S
Adjusting the brightness and
contrast
Press on A .
Use C to select the "Brightness -
v i d e o a d j u s t m e n t " m e n u . C o n fi r m
with a press on C on the steering
wheel or D on the audio equip-
ment.
S e l e c t t h e c o n fi g u r a t i o n o f t h e
screen using C . C o n fi r m w i t h a
press on C on the steering wheel
or D on the audio equipment.
Select the brightness setting.
C o n fi r m w i t h a p r e s s o n C on the
steering wheel or D on the audio
equipment.
Select the inverse or normal dis-
play mode using C then validate
with a press on C on the steering
wheel or D on the audio equip-
ment. To adjust the brightness
select "+" or "-" and save your
setting with a press on C .
C o n fi r m w i t h "OK" on the
screen. Adjusting the date and the
time
Press on A .
Use C to select the "Adjusting
the date and time" menu, then
c o n fi r m y o u r c h o i c e w i t h a p r e s s
on C on the steering wheel or D
on the audio equipment.
S e l e c t t h e s c r e e n c o n fi g u r a t i o n
using C . C o n fi r m w i t h a p r e s s o n
C on the steering wheel or D on
the audio equipment.
Select the adjustment for the
date and the time, using B .
C o n fi r m w i t h a p r e s s o n C on the
steering wheel or D on the audio
equipment.
Press C to select the values you
w i s h t o m o d i f y . C o n fi r m y o u r
choice with a press on C on the
steering wheel or D on the audio
equipment.
C o n fi r m w i t h "OK" on the
screen. Choosing the units
Press on A .
Use C to select the "Choice of
temperature units" menu, then
c o n fi r m y o u r c h o i c e w i t h a p r e s s
on C on the steering wheel or D
on the audio equipment.
Using C , select the unit then val-
idate with a press on C on the
steering wheel or D on the audio
equipment.
C o n fi r m w i t h "OK" on the
screen.
Selection of the type of
information displayed (Mode)
Successive presses on the end of
the wiper stalk or on the MODE but-
ton on the audio equipment permit
selection of the type of informa-
tion presented on the multifunction
screen (date or radio, CD, MP3 CD,
CD changer).
Page 21 of 306
39
2
M U L T I F U N C T I O N D I S P L A Y S
16/9 COLOUR SCREEN (WITH MY WAY)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- e x t e r i o r t e m p e r a t u r e ( t h e v a l u e d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- audio functions,
- satellite navigation system infor- mation. Controls
From the MyWay control panel, to
select one of the applications:
press the dedicated "RADIO" ,
"MUSIC" , "NAV" , "TRAFFIC" ,
"SETUP" or "PHONE" button
for access to the corresponding
menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e -
lection,
or
press the "ESC" button to aban-
don the current operation and re-
turn to the previous display.
* According to country. For further details concerning
these applications, refer to the
"Audio Equipment" section or to
t h e s p e c i fi c u s e r g u i d e g i v e n t o
you with the other owner's docu-
ments. "SETUP" menu
Press the "SETUP" button to
gain access to the "SETUP"
menu. This allows you to select
from the following functions:
- "System language",
- "Date & time",
- "Display",
- "Units",
- "System".
System language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues,
Türkçe * .
Page 23 of 306
41
2
M U L T I F U N C T I O N D I S P L A Y S
16/9 HIGH DEFINITION COLOUR SCREEN (WITH NAVIDRIVE 3D)
Displays on the screen
It displays the following information
automatically and directly:
- time,
- date,
- altitude,
- e x t e r i o r t e m p e r a t u r e ( t h e v a l u e d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k
of ice),
- audio functions,
- telephone and address book in- formation,
- satellite navigation system infor- mation. Controls
From the NaviDrive 3D control pan-
el, to select one of the applications:
press the dedicated "RADIO" ,
"MEDIA" , "NAV" , "TRAFFIC" ,
"ADDR BOOK" or "SETUP"
button to gain access to the cor-
responding menu,
turn the dial to move the selection,
p r e s s t h e d i a l t o c o n fi r m t h e s e l e c -
tion,
or
press the "ESC" button to aban-
don the current operation and re-
turn to the previous display. For further details concerning
these applications, refer to the
"Audio Equipment" section or to
t h e s p e c i fi c u s e r g u i d e g i v e n t o
you with the other owner's docu-
ments.
Page 24 of 306
42
2
M U L T I F U N C T I O N D I S P L A Y S * According to country.
"SETUP" menu
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from
the following functions:
- "Languages and Speech",
- "Date & Time",
- "Display",
- "Units",
- "System".
Language & Speech
This menu allows you to:
- select the language used by the display (Deutsch, English,
Espanol, Français, Italiano,
Nederlands, Polski, Portugues,
Türkçe * ),
- select the voice recognition pa- rameters (activation/deactiva-
tion, advice on use, personal
voice programming, etc.),
- set the volume of the voice syn- thesiser. Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the
"Audio Equipment" section or to the
s p e c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner's documents).
Display
This menu allows you to set the
brightness of the screen, the screen
colour scheme and the colour of the
map (day/night or auto mode).
This menu allows you to select the
units: temperature (°C or °F) and
distance (km or miles).
System
This menu allows you to restore the
f a c t o r y c o n fi g u r a t i o n , d i s p l a y t h e
software version and activate the
s c r o l l i n g t e x t .
For safety reasons, it is impera-
t i v e t h a t c o n fi g u r a t i o n o f t h e m u l -
tifunction screen by the driver is
carried out when stationary.
Page 86 of 306
95
6
L A Y O U T
SUN VISOR
System which protects against sun
from ahead or from the side and
courtesy system with illuminated
mirror. SKI FLAP
A fl a p i n t h e b a c k r e s t , l o c a t e d t o t h e
rear of the armrest, facilitates the
carrying of long objects.
W i t h t h e i g n i t i o n o n , l i f t t h e fl a p ;
the mirror is illuminated automati-
cally.
To prevent dazzle from ahead, fold
the visor downwards.
It can be disengaged from its central
fi x i n g a n d p i v o t e d o v e r t o t h e s i d e
windows if required. AIR CONDITIONED
GLOVEBOX
T o o p e n t h e g l o v e b o x , p u l l o n t h e
handle and lower the lid.
T h e g l o v e b o x h a s a m a n u a l l y c l o s -
able air conditioning vent B .
It has 2 or 3 sockets C to connect
audio/video equipment.
It has automatic lighting.
It provides access to the dashboard
f u s e b o x .
Whilst driving, the
glovebox should be kept
closed. To open
Lower the rear armrest.
P u l l t h e fl a p h a n d l e d o w n .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Ensure that the objects are well se-
cured and that they do not impede
the operation of the gear lever.
Page 89 of 306
95
6
L A Y O U T
SUN VISOR
System which protects against sun
from ahead or from the side and
courtesy system with illuminated
mirror. SKI FLAP
A fl a p i n t h e b a c k r e s t , l o c a t e d t o t h e
rear of the armrest, facilitates the
carrying of long objects.
W i t h t h e i g n i t i o n o n , l i f t t h e fl a p ;
the mirror is illuminated automati-
cally.
To prevent dazzle from ahead, fold
the visor downwards.
It can be disengaged from its central
fi x i n g a n d p i v o t e d o v e r t o t h e s i d e
windows if required. AIR CONDITIONED
GLOVEBOX
T o o p e n t h e g l o v e b o x , p u l l o n t h e
handle and lower the lid.
T h e g l o v e b o x h a s a m a n u a l l y c l o s -
able air conditioning vent B .
It has 2 or 3 sockets C to connect
audio/video equipment.
It has automatic lighting.
It provides access to the dashboard
f u s e b o x .
Whilst driving, the
glovebox should be kept
closed. To open
Lower the rear armrest.
P u l l t h e fl a p h a n d l e d o w n .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Ensure that the objects are well se-
cured and that they do not impede
the operation of the gear lever.
Page 188 of 306
185
11
P R A C T I C A L I N F O R M A T I O N
ENERGY ECONOMY MODE
System which manages the duration
of use of certain functions to con-
s e r v e a s u f fi c i e n t l e v e l o f c h a r g e i n
the battery.
After the engine has stopped, you can
still use functions such as the audio
and telematics system, windscreen
wipers, dipped headlamps, courtesy
l i g h t s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-func-
tion screen indicating that the vehi-
cle has switched to economy mode
and the active functions are put on
standby.
If the telephone is being used at this
time:
- it will be maintained for 5 minutes with radio-CD hands-free kit,
-
it will be interrupted after 10 minutes with the MyWay audio-navigation
system,
- you can complete your call with the NaviDrive system.
T h i s p e r i o d m a y b e s i g n i fi c a n t l y r e -
duced if the battery charge is low. Exiting economy mode
These functions are reactivated
a u t o m a t i c a l l y n e x t t i m e t h e v e h i c l e
is driven.
In order to resume the use of
these functions immediately,
start the engine and let it run for
a few minutes.
The time available will then be dou-
ble the duration for which the engine
was left running. However, this time
w i l l a l w a y s b e b e t w e e n fi v e a n d t h i r t y
minutes.
A fl a t b a t t e r y p r e v e n t s t h e
engine from starting (refer
to the corresponding para-
graph).
Page 194 of 306
191
11
P R A C T I C A L I N F O R M A T I O N * To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f another. T h e fi t t i n g o f e l e c t r i c a l
equipment or accessories
which are not recommend-
ed by CITROËN may result in a
failure of your vehicle’s electronic
s y s t e m a n d e x c e s s c o n s u m p t i o n .
P l e a s e n o t e t h i s s p e c i fi c w a r n -
ing. You are advised to contact a
CITROËN representative to be
shown the range of recommended
equipment and accessories.
A wide range of accessories and
genuine parts is offered by the
CITROËN network.
These accessories and parts have
been tested and approved for reli-
ability and safety.
They are all adapted to your vehicle
a n d b e n e fi t f r o m C I T R O Ë N ’ s r e c o m -
mendation and warranty.
This product range is structured
around 5 categories:
"Comfort and leisure": mats * , boot
tray, boot carpet, sun blinds, mini-
bar, fragrance cartridges, roof bars,
b i c y c l e c a r r i e r , s k i c a r r i e r , r o o f b o x -
es, towbars, child seats and booster
cushions...
"Protection": anti-theft alarm, wheel
anti-theft devices, stolen vehicle
t r a c k i n g s y s t e m , b r e a t h a l y s e r , fi r s t
aid kit, warning triangle, high vis-
ibility safety jacket, dog guard, snow
chains, non-skid covers, fog lamps
kit, puncture repair kit, rear parking
assistance...
"Navigation and communication":
Bluetooth ®
hands-free kit, audio
equipment, portable satellite naviga-
t i o n s y s t e m , D V D p l a y e r , a u x i l i a r y
cable for connecting a portable MP3
p l a y e r , U S B B o x , s p e a k e r s . . .
"Personalisation": seat covers, alloy
w h e e l s , w h e e l t r i m s , m u d fl a p s . . .
"Accessories": windscreen wash
fl u i d , i n t e r i o r a n d e x t e r i o r c l e a n i n g
and maintenance products, body-
work touch-up aerosol and pen...
Depending on the country in which
the vehicle is sold, it may be com-
pulsory to have a high visibility safety
jacket, warning triangle and spare
bulbs available in the vehicle.
Page 210 of 306
207

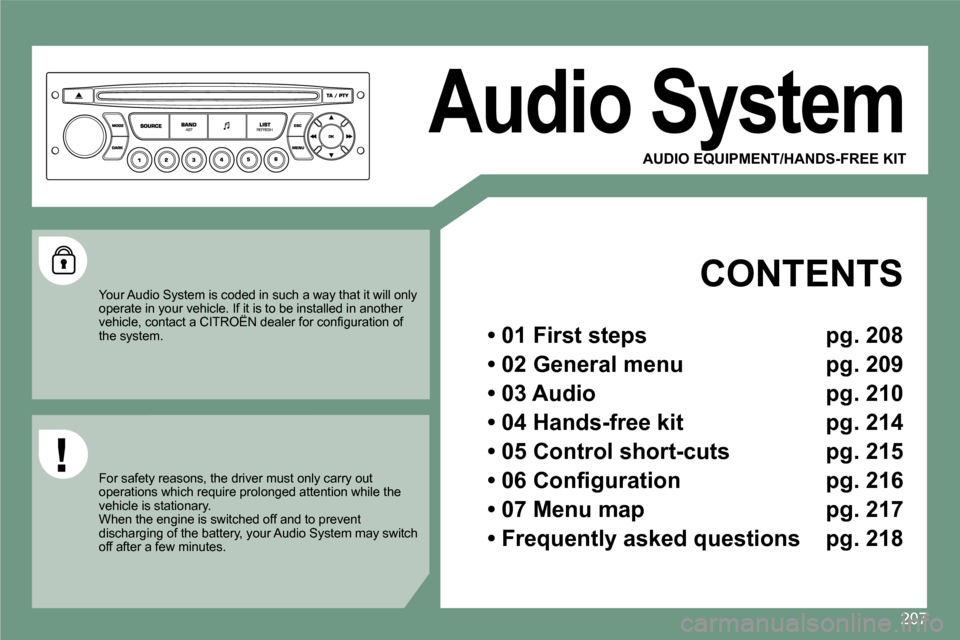

Audio System
CONTENTS
