Citroen C5 2009.5 (RD/TD) / 2.G Repair Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C5, Model: Citroen C5 2009.5 (RD/TD) / 2.GPages: 314, PDF Size: 19.25 MB
Page 61 of 314
III
61
C O M F O R T
Storing driving positions
System which takes into account the
settings of the driver's seat and air
conditioning. It enables you to store
up to two positions using the buttons
on the side of the driver's seat. Storing a position
Using buttons M/1/2
Switch on the ignition.
Adjust your seat.
Press button M , then press but-
ton 1 or 2 within four seconds.
An audible signal is heard indicating
that the settings have been stored.
Storing a new position cancels the
previous position.
Recalling a stored position
Ignition on or engine running
B r i e fl y p r e s s b u t t o n 1 or 2 to re-
call the corresponding position.
An audible signal is heard indicating
the end of the adjustment.
When the ignition is on, after a few
consecutive position recalls, the
function will be deactivated until the
engine is started, to prevent dis-
charging of the battery. For your safety, avoid storing a
driving position while driving.
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to re-
main in line with the seat back.
Never drive with the head restraints removed, they must be in place
and correctly adjusted.
Page 62 of 314
III
62
C O M F O R T

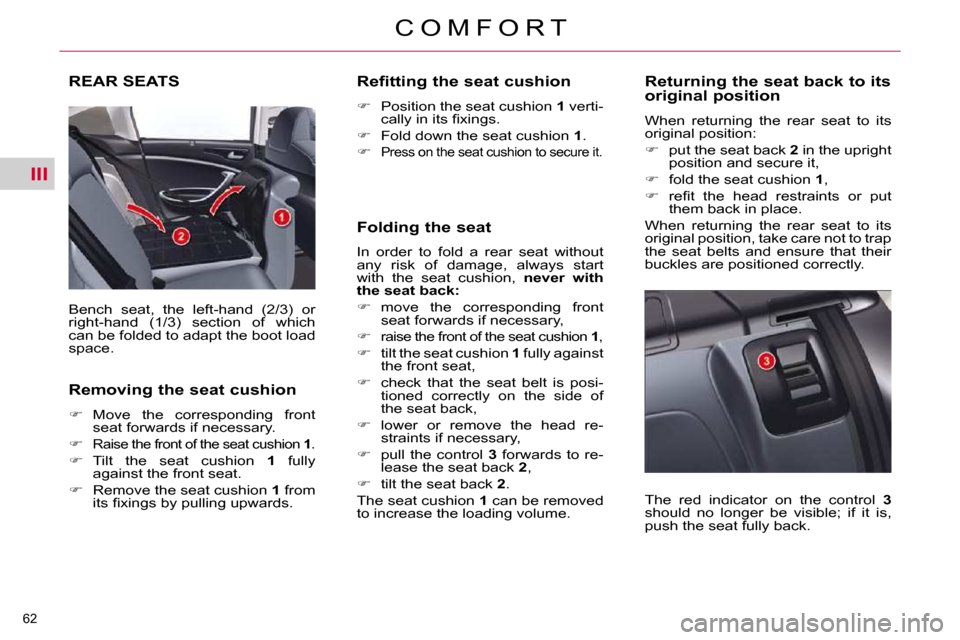

REAR SEATS
Bench seat, the left-hand (2/3) or
right-hand (1/3) section of which
can be folded to adapt the boot load
space.
Removing the seat cushion
Move the corresponding front
seat forwards if necessary.
Raise the front of the seat cushion 1 .
Tilt the seat cushion 1 fully
against the front seat.
Remove the seat cushion 1 from
i t s fi x i n g s b y p u l l i n g u p w a r d s . Refitting the seat cushion
Position the seat cushion 1 verti-
c a l l y i n i t s fi x i n g s .
Fold down the seat cushion 1 .
Press on the seat cushion to secure it.
Folding the seat
In order to fold a rear seat without
any risk of damage, always start
with the seat cushion, never with
the seat back:
move the corresponding front
seat forwards if necessary,
raise the front of the seat cushion 1 ,
tilt the seat cushion 1 fully against
the front seat,
check that the seat belt is posi-
tioned correctly on the side of
the seat back,
lower or remove the head re-
straints if necessary,
pull the control 3 forwards to re-
lease the seat back 2 ,
tilt the seat back 2 .
The seat cushion 1 can be removed
to increase the loading volume. Returning the seat back to its
original position
When returning the rear seat to its
original position:
put the seat back 2 in the upright
position and secure it,
fold the seat cushion 1 ,
r e fi t t h e h e a d r e s t r a i n t s o r p u t
them back in place.
When returning the rear seat to its
original position, take care not to trap
the seat belts and ensure that their
buckles are positioned correctly.
The red indicator on the control 3
should no longer be visible; if it is,
push the seat fully back.
Page 63 of 314
III
63
C O M F O R T
MIRRORS
Door mirrors
E a c h fi t t e d w i t h a n a d j u s t a b l e m i r r o r
glasses providing the lateral rear-
ward vision necessary for overtaking
or parking. They can also be folded.
Adjustment
With the ignition on:
move control A to the right or to
the left to select the corresponding
mirror,
move control B in all four direc-
tions to adjust,
return control A to the central po-
sition. Demisting/defrosting of the door
mirrors is associated with that of
the rear screen.
Folding
from outside; lock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
If the mirrors are folded using
control A , they will not unfold when
the vehicle is unlocked. Control A
must be pulled again.
Unfolding
from outside; unlock the vehicle
using the remote control or the
key.
from inside; with the ignition on,
pull control A rearwards.
If the position is changed manually,
a long press on control A re-engages
the mirror.
The folding and unfolding of the exte-rior mirrors using the remote control
can be deactivated by a CITROËN
dealer. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.
Page 64 of 314
III
64
C O M F O R T As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted
for height and reach to adapt the
driving position to the size of the
driver.
Adjustment
First, adjust the driver's seat to
the most suitable position.
When stationary , pull the lever A
to unlock the steering wheel ad-
justment.
Adjust for height and reach.
Push the lever to lock the steer-
ing wheel adjustment.
A f t e r l o c k i n g , i f y o u p r e s s fi r m l y o n
the steering wheel, a slight click may
be heard.
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Manual day/night model
Adjustment
Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position
Pull the lever to change to the
"night" anti-dazzle position.
Push the lever to change to the
normal "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
It has an anti-dazzle system which
darkens the mirror glass: this reduc-
es any driver discomfort caused by
the light beam of following vehicles,
the sun...
Page 65 of 314
IV
65
O P E N I N G S
REMOTE CONTROL KEY
System which permits central un-
locking or locking of the vehicle us-
ing the lock or from a distance. It
is also used to locate and start the
vehicle and provide guide-me-home
lighting, as well as providing protec-
tion against theft.
Unlocking the vehicle Complete unlocking using
the remote control
Unfolding the key
First press button A to unfold
the key.
Press the open padlock
to unlock the vehicle.
Complete unlocking using the key
Turn the key to the left in the
driver's door lock to unlock the
vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds and
lighting of the courtesy lamp (if the
function is activated).
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Press the open pad-
lock once to unlock the
driver's door only.
Press the open padlock again to
unlock the other doors and the
boot. According to version, the exterior
mirrors unfold at the same time as
t h e fi r s t u n l o c k i n g a c t i o n .
The complete or selective unlocking
parameter is set via the instrument
p a n e l s c r e e n c o n fi g u r a t i o n m e n u ( s e e
"Instruments and controls" section).
Complete unlocking is activated by
default.
Selective unlocking is not possible
using the key.
E a c h u n l o c k i n g i s c o n fi r m e d b y
r a p i d fl a s h i n g o f t h e d i r e c t i o n i n d i c a -
tors for approximately two seconds
and by switching on of the courtesy
lamp.
Electric boot opening
Press button B to open
the boot.
Page 66 of 314
IV
66
O P E N I N G S
Normal locking using the key
Turn the key to the right in the
driver's door lock to lock the ve-
hicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for
approximately two seconds and by
switching off of the courtesy lamp.
According to version, the exterior
mirrors fold at the same time. If one of the doors, the rear screen
or the boot is still open, the central
locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
When stationary with the engine
o f f , l o c k i n g i s c o n fi r m e d b y fl a s h i n g
of the interior locking control indi-
cator lamp.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Deadlocking using the
remote control
Press the closed pad-
lock to lock the vehicle
completely or press the
closed padlock for more
than two seconds to
close the windows and
sunroof automatically in
addition to locking.
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
Locking the vehicle
Normal locking using the remote
control
Press the closed pad-
lock to lock the vehicle
completely.
Press the closed padlock for
more than two seconds to close
the windows and sunroof auto-
matically in addition to locking. Deadlocking using the key
Turn the key to the right in the
driver's door lock to lock the
vehicle completely and hold it
in this position for more than
two seconds to close the win-
dows automatically in addition
to locking.
Turn the key to the right again
w i t h i n fi v e s e c o n d s t o d e a d l o c k
the vehicle.
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior
mirrors fold at the same time.
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
When stationary with the engine
o f f , l o c k i n g i s c o n fi r m e d b y fl a s h i n g
of the indicator lamp on the interior
locking control.
If one of the doors or the boot is open
or has not been closed correctly, the
central locking will not work.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Page 67 of 314
IV
67
O P E N I N G S
First press button A to fold
the key.
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by switching on of the
i n t e r i o r l i g h t i n g a n d fl a s h i n g o f t h e d i -
rection indicators for a few seconds.
The vehicle remains locked. Guide-me-home lighting Anti-theft protecti
on
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code
must be recognised in order for
starting to be possible.
This electronic engine immobiliser
locks the engine management sys-
tem a few minutes after the ignition
is switched off and prevents starting
of the engine by anyone who does
not have the key.
In the event of a mal-
function, you are in-
formed by lighting of
this warning lamp, an
audible signal and a message on
the multifunction screen.
In this case, your vehicle does not
start; contact a CITROËN dealer as
soon as possible.
Folding the key
A press on button B oper-
ates the guide-me-home
lighting (lighting of the
sidelamps, dipped beams
and number plate lamps).
A second press before the end of
the timing cancels the guide-me-
home lighting.
The timed duration can be set via the
"Lighting" menu on the "Main Menu"
of the instrument panel screen.
Page 68 of 314
IV
68
O P E N I N G S
STOPPING
D o n o t fl i c k t h e a c c e l e r a t o r a t
the moment of switching off the
ignition. This could cause serious
damage to the turbocharger(s).
IGNITION SWITCH
1. "S": Steering lock
To unlock the steering, gently move
the steering wheel while turning the
key, without forcing it.
2. "M": Drive position
Depending on the version of your
vehicle, the orange and red warning
lamps should also come on for a short
time.
3. "D": Starter
Release the key as soon the engine
has started.
I f t h e fi r s t a t t e m p t f a i l s , s w i t c h o f f t h e
ignition. Wait ten seconds then ope-
rate the starter again. Steering lock
1. "
S": After removing the key, turn
the steering wheel to lock the steer-
ing. The key can only be removed in
position S .
2. "M": Ignition switched on, the
steering is unlocked (by turning the
key to position M , move the steering wheel gently if necessary).
3. "D": Starter position.
Never turn the key to this position
when the engine is running.
Do not run the engine in an enclosed
s p a c e o r w h e r e t h e r e i s i n s u f fi c i e n t
ventilation.
It is essential always to drive with
the engine running in order to retain
braking and steering assistance.
Never remove the ignition key
before the vehicle has come to a
complete stop.
Avoid attaching a heavy object to
the key which would weigh down
on its shaft in the switch and could
cause a malfunction. Vehicles equipped with a
turbocharger
Never stop the engine without having
allowed it to run for a few seconds at
idle, this being the time required for
the turbocharger to return to a normal
speed.
Page 69 of 314
IV
69
O P E N I N G S
Malfunction
Following disconnection of the ve-
hicle battery, replacement of the re-
mote control battery or in the event
of a remote control malfunction, you
can no longer unlock, lock or locate
your vehicle.
First of all, use the key in the lock
to unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a CITROËN dealer as soon as possible.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (
Drive
) .
Press the closed padlock imme-
diately for a few seconds, until
the operation requested is trig-
gered.
Switch off the ignition and re-
move the key from the ignition
switch.
The remote control is fully opera-
tional again. Battery ref.: CR0523/3 volts.
This replacement battery is available
from CITROËN dealers.
I f t h e b a t t e r y i s fl a t ,
you are informed by
lighting of this warn-
ing lamp, an audible
signal and a message on the multi-
function screen.
Unclip the casing using a coin at
the notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s
location.
Slide the new battery into its
location observing the original
direction.
Clip the casing.
Reinitialise the remote control.
Changing the battery
Page 70 of 314
IV
70
O P E N I N G S
Lost keys
Visit a CITROËN dealer with the vehi-
cle's V5 registration document and your
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
The CITROËN dealer will be able to
retrieve the key code and the trans-
ponder code required to order a re-
placement key.
Remote control
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the ve-
hicle, without you being aware of it.
Do not repeatedly press the buttons
of your remote control out of range
and out of sight of your vehicle. You
run the risk of stopping it from work-
ing and the remote control would
have to be reinitialised.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reinitialisation.
Locking the vehicle
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system; this could cause malfunc-
tions.
When purchasing a second-
hand vehicle
Have the key codes memorised by a
CITROËN dealer, to ensure that the
keys in your possession are the only
ones which can start the vehicle.
Do not throw the remote con-
trol batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collec-
tion point.
