cruise control Citroen C5 2012 (RD/TD) / 2.G Owner's Manual

CONTENTS
Direction indicators 114
Hazard warning lamps 114
Horn 114
Emergency or assistance call 114
Tyre under-infl ation detection 115
Braking assistance systems 117
Trajectory control systems 118
Seat belts 119
Airbags 122
VIII-SAFETY 11 4Î125
Parking brake 126
Electric parking brake 127
Hill start assist 134
Manual gearbox 135
Gear shift indicator 136
6-speed electronic
gearbox system 137
Stop & Start 141
Automatic gearbox 144
Fixed centred controls
steering wheel 148
Speed limiter 150
Cruise control 152
Lane departure warning system 154
Parking space sensor 155
Parking sensors 157
Reversing camera (Tourer) 158
"Hydractive III +" electronic
suspension 159
IX - DRIVING 126 Î160
Bonnet 162
Running out of fuel (Diesel) 164
Petrol engines 165
Diesel engines 167
Checking levels 170
Checks 172
X -CHECKS 161Î 173
Temporary puncture repair kit 174
Changing a wheel 177
Changing a bulb 181
Changing a fuse 191
Battery 196
Energy economy mode 198
Towing the vehicle 199
Towing a trailer 200
Roof bars 201
Very cold protection 202
Cold climate screen 203
Accessories 205
XI - PRACTICALINFORMATION 174Î 206
Petrol engines 207
Petrol weights 208
Diesel engines 210
Diesel weights 212
Diesel weights -
commercial versions (Tourer) 216
Dimensions 217
Identifi cation markings 221
XII - TECHNICALDATAA 207Î222
Emergency or assistance 223
eMyWay 225
Audio system 279
XIII - AUDIO andTELEMATICS 223 Î298
VISUALSEARCH 299 Î 304
ALPHABETICAL INDEX 305 Î 309

8
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Electric windows/door mirrors/child safety
controls.

2.
Storing driver’s seat and door mirror settings.

3.
Audio/telematic steering mounted controls.

4.
Horn.

5.
Steering mounted controls:


- Speed limiter

- Cruise control

6.
Driver's airbag.

7.
Navigation controls for the audio/telematic and
trip computer systems.

8.
Driver's air vent.

9.
Instrument panel.

10.
Driver's air vent.

11 .
Stop & Start switch.

12.
Lighting/Direction indicators/Foglamp/Voice
recognition control stalk.

13.
Manual headlamp height adjustment.

14.
Steering wheel adjustment.

15.
Knee airbag.

16.
Locking/unlocking of doors and boot.

17.
Checks/Anti-intrusion alarm/Parking space
sensor controls.

18.
Ignition switch.

19.
Windscreen wiper/screenwash control stalk.

20.
Oddments tray or programmable heater
controls.

21.
USB port.

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS

Audio. Instrument panel menu. Multifunction screen menu.
Telephone. Cruise control and speed
limiter.

The " SET +, PAUSE, VOL+,
and MUTE
"
buttons have touch identifi cation to make
them easier to use. Activation of voice
recognition or reminder of
navigation guidance. MODE: selection of the type
of information displayed in
the multifunction screen.



148-149

15
FAMILIARISATION
MONITORING

Instrument panel

The hazard warning lamps
can also be used with the
ignition switched off.

A.
Fuel gauge and low fuel warning lamp.

B.
Cruise control/speed limiter information.

C.
Coolant temperature.

D.
Speedometer.

E.
Instrument panel screen.

F.
Mileage recorder.
G.
Trip mileage recorder reset button.

H.
Rev counter.

I.
Engine oil temperature.

J.
Automatic gearbox information.



- When the ignition is switched on, the orange and
red warning lamps come on.

- When the engine is running, these warning lamps
should go off .

- If any warning lamps remain on, refer to the
"Monitoring" section.



Hazard warning lamps




26




114

19
FAMILIARISATION
This system allows you to maintain a
constant vehicle speed programmed by
the driver.

Cruise control
Speed limiter

This system allows you to choose a maxi-
mum speed that you do not wish to exceed.
The chosen speed must be higher
than 20 mph (30 km/h)
. Cruise control is active on the higher
gears
of the gearbox. The chosen
speed must be higher than 25 mph
(40 km/h).



Instrument panel screen

The speed limiter or cruise control
mode is displayed in the instrument
panel screen when selected.
Cruise control Speed limiter Selection of "LIMIT": Activation
of speed limiter mode.

"SET +"
: Increase the maximum
speed.

"SET -":
Reduce the maximum
speed.
Suspension or resumption of
mode.
Deactivation.

The chosen speed is memorised.


"SET":
Memorisation
of the speed (system
paused). Selection of " CRUISE:
" Activation
of cruise control mode.

"SET +"
: Increase the memo-
rised speed (system ON).

"SET -"
: Reduce the memo-
rised speed (system ON).
Suspension or resumption of
mode.
Deactivation.
DRIVING SAFELY




150



152

24
ECO-DRIVING

Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite soon.
If your vehicle has the system, the
gear effi ciency indicator invites you to
change up; it is displayed in the instru-
ment panel, follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
, ac-
cording to the type of gearbox, without
pressing the accelerator pedal heavily
or suddenly.



Drive smoothly


Maintain a safe distance between ve-
hicles, use engine braking rather than
the brake pedal, and press the accel-
erator progressively. These practices
contribute towards a reduction in fuel
consumption and CO
2 emissions and
also helps reduce the background
traffi c noise.

If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffi c is
fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front fo-
glamps when the level of light does not
require their use.
Avoid running the engine before mov-
ing off, particularly in winter; your ve-
hicle will warm up much faster while
driving.

As a passenger, if you avoid connect-
ing your multimedia devices (fi lm, mu-
sic, video game...), you will contribute
towards limiting the consumption of
electrical energy, and so of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO
2 emissions.

I
26
MONITORING
INSTRUMENT PANELS - PETROL AND DIESEL - MANUAL AND AUTOMATIC GEARBOX
Panel grouping together the dials and vehicle operation indicator and warning lamps.


A.
Fuel gauge

B.
Indicator:


●
Coolant temperature

●
Cruise control/Speed limiter
information

C.
Speedometer

D.
Rev counter
E.
Indicator:


●
Engine oil temperature

●
Gear lever position and gear
engaged (Automatic gearbox)

F.
Controls:


●
Lighting dimmer

●
Resetting to zero of trip mile-
age computer and mainte-
nance indicator
G.

Instrument panel screen indicating:



●
Depending on the page
selected with the left-hand
thumb wheel on the steering
wheel:


- Digital speed repeater

- Trip computer

- Navigation (guidance) infor-
mation

- Display of message alerts

- Engine oil level check

- Service indicator

●
Permanently:


- Trip mileage recorder

- Total mileage recorder

VI
99
FITTINGS
MATS

Removing



)
Slide the seat back as far as pos-
sible,

)
unclip the fi xings,

)
remove the fi xings, then the mat.



Refitting



)
Position the mat correctly,

)
clip the fi xings,

)
check that the mat is held is
place correctly.
To avoid any interference with the
pedals:


- only use mats which are suit-
able for the fi xings already
present in the vehicle. The use
of these fi xings is essential,

- never fi t more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to
the pedals and hinder the cruise
control/speed limiter function.
Floor mats approved by CITROËN
are fi tted with a 3rd fi xing located in
the pedal area to avoid any risk of
interference with the pedals .
FRONT ARMREST

Comfort and storage system for the
driver and front passenger.

Adjustment

To optimise your driving position:


)
lift the control A
,

)
push the armrest forwards.
The armrest returns to its initial posi-
tion when you push it rearwards.
The front armrest includes a cup
holder and a USB port.
The USB port allows connection of
a portable device, such as a USB
memory stick, sending the audio
fi les to your audio system so that
they can be heard via the vehicle's
speakers.


)
Lift the armrest to access the cup
holder or the USB port.
Equipment available for the driver
and front passenger.

Cup-holder / USB port

IX
148
DRIVING
FIXED CENTRED CONTROLS STEERING WHEEL


1


Rotation

-
Scroll the various pages of information on the instrument panel
screen.

- Move through the various menus on the instrument panel screen.

- Increase/decrease values.

Short press


- Open the menu on the instrument panel screen (only when stationary).

- Select and confi rm information.

Long press Trip computer zero reset (if the trip computer page is
displayed).


2


Short press

- Cancel the current operation.

-
Return to the previous screen on the instrument panel screen.


Long press Return to the initial page on the instrument panel screen.


3


Short press

Increase the speed in steps of 1 mph (1 km/h) / storing the speed.


Maintained press Increase the speed in steps of 5 mph (5 km/h).


4


Short press

Decrease the speed in steps of 1 mph (1 km/h) / storing the speed.


Maintained press Decrease the speed in steps of 5 mph (5 km/h).


5


Short press Suspend or resume cruise control/speed limiter (depending
on the mode selected).


6


Short press Select cruise control or speed limiter mode (the cycle on this
button will always begin with selection of the speed limiter).


7


Short press Deactivate cruise control/speed limiter.


8


Short press

- Pick up an incoming call.

- Hang up the current call.

- Open the telephone short-cut menu.

- Confi rm on the list and the telephone menu.

Long press Refuse an incoming call.


9


Short press / Long press Horn.


10


Short press Activate/deactivate Black Panel mode (night driving).


11


Short press Activate the voice command.

Long press Navigation instruction repeat.

IX

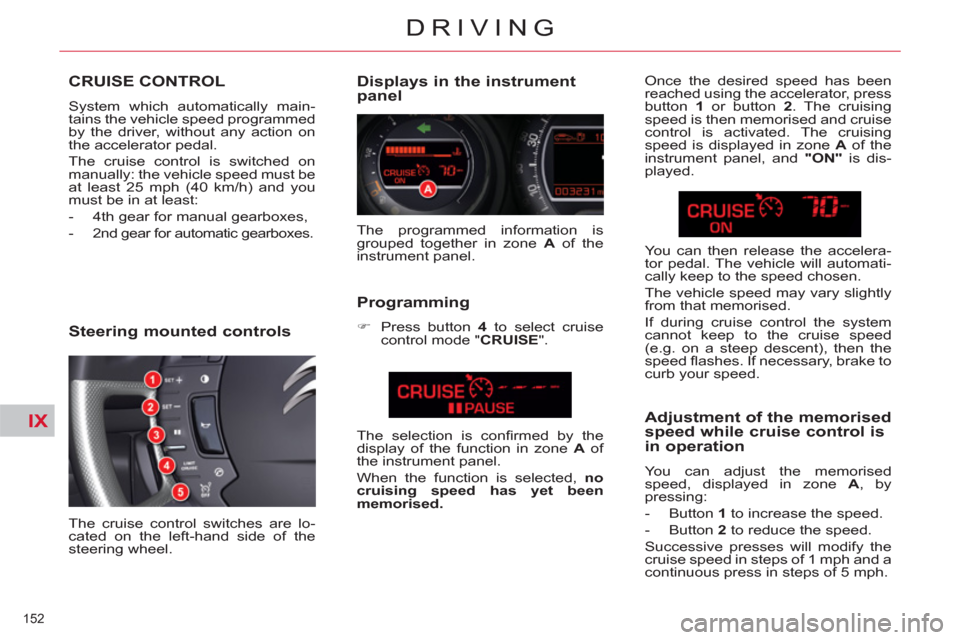

152
DRIVING
CRUISE CONTROL
System which automatically main-
tains the vehicle speed programmed
by the driver, without any action on
the accelerator pedal.
The cruise control is switched on
manually: the vehicle speed must be
at least 25 mph (40 km/h) and you
must be in at least:


- 4th gear for manual gearboxes,

- 2nd gear for automatic gearboxes.


Displays in the instrument
panel
The programmed information is
grouped together in zone A
of the
instrument panel.


Programming



)
Press button 4
to select cruise
control mode " CRUISE
".

Steering mounted controls

The cruise control switches are lo-
cated on the left-hand side of the
steering wheel. The selection is confi rmed by the
display of the function in zone A
of
the instrument panel.
When the function is selected, no
cruising speed has yet been
memorised.
Once the desired speed has been
reached using the accelerator, press
button 1
or button 2
. The cruising
speed is then memorised and cruise
control is activated. The cruising
speed is displayed in zone A
of the
instrument panel, and "ON"
is dis-
played.

Adjustment of the memorised
speed while cruise control is
in operation
You can adjust the memorised
speed, displayed in zone A
, by
pressing:


- Button 1
to increase the speed.

- Button 2
to reduce the speed.
Successive presses will modify the
cruise speed in steps of 1 mph and a
continuous press in steps of 5 mph. You can then release the accelera-
tor pedal. The vehicle will automati-
cally keep to the speed chosen.
The vehicle speed may vary slightly
from that memorised.
If during cruise control the system
cannot keep to the cruise speed
(e.g. on a steep descent), then the
speed fl ashes. If necessary, brake to
curb your speed.
