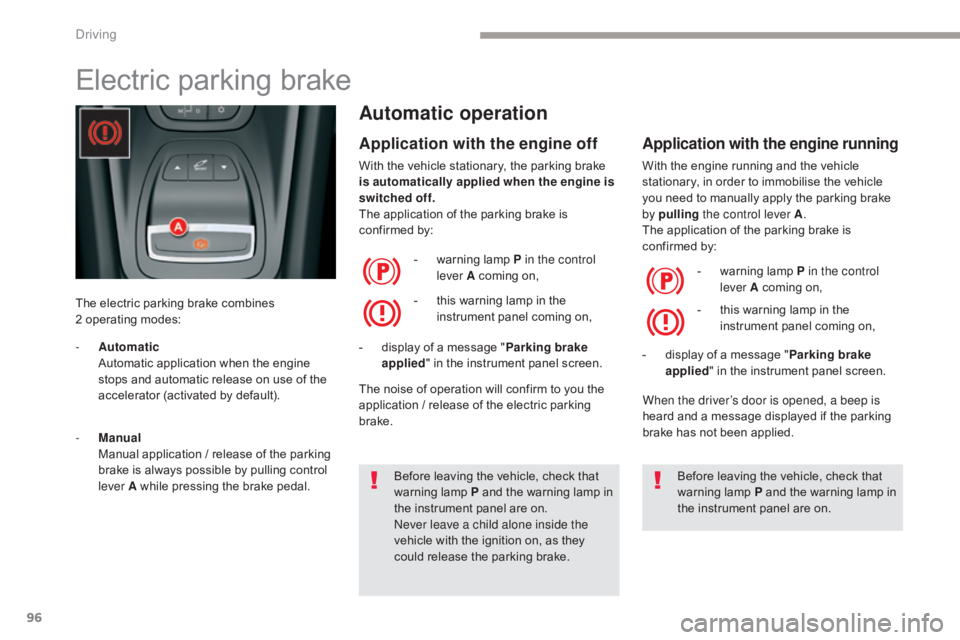

Electric parking brake
The electric parking brake combines
2 operating modes:
Automatic operation
Application with the engine off
With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:
Application with the engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
you need to manually apply the parking brake
by pulling the control lever A .
The application of the parking brake is
confirmed by:
-

w

arning lamp P in the control
lever A coming on,
-

d

isplay of a message " Parking brake
applied " in the instrument panel screen. -

w
arning lamp P in the control
lever A coming on,
-

d
isplay of a message " Parking brake
applied " in the instrument panel screen.
-

t

his warning lamp in the
instrument panel coming on, -

t
his warning lamp in the
instrument panel coming on,
Before leaving the vehicle, check that
warning lamp P and the warning lamp in
the instrument panel are on.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. Before leaving the vehicle, check that
warning lamp
P and the warning lamp in
the instrument panel are on.
-

A

utomatic
A

utomatic application when the engine
stops and automatic release on use of the
accelerator (activated by default).
-

M

anual
M

anual application / release of the parking
brake is always possible by pulling control
lever A while pressing the brake pedal. When the driver’s door is opened, a beep is
heard and a message displayed if the parking
brake has not been applied.
The noise of operation will confirm to you the
application / release of the electric parking
brake.
Driving

102
C5_en_Chap04_conduite_ed01-2016

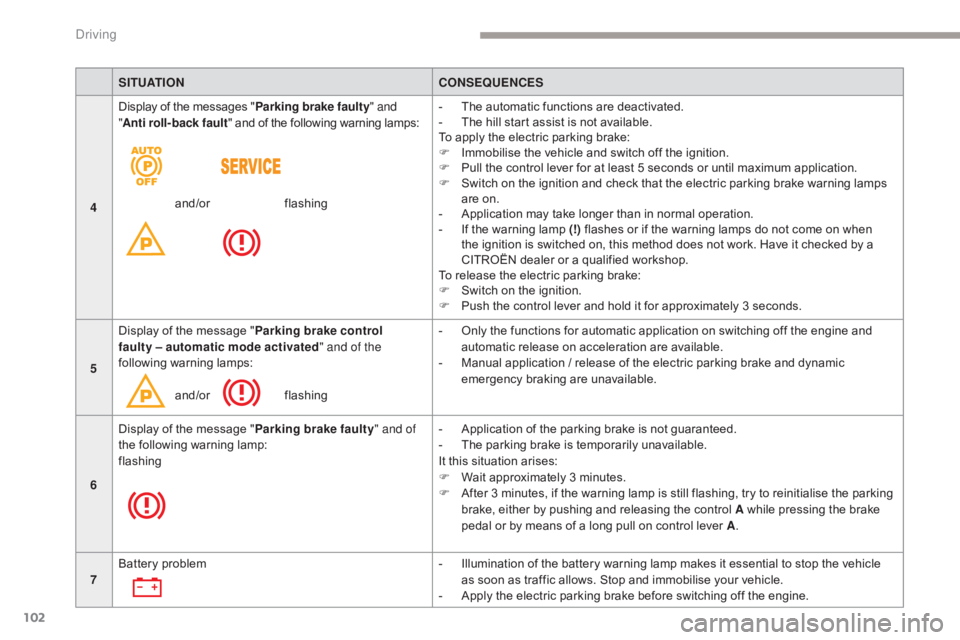

SITUATIONCONSEQUENCES
4 Display of the messages "
Parking brake faulty" and
" Anti roll-back fault " and of the following warning lamps:
and/or
f

lashing-

T
he automatic functions are deactivated.
-

T
he hill start assist is not available.
To apply the electric parking brake:
F

I
mmobilise the vehicle and switch off the ignition.
F

P
ull the control lever for at least 5 seconds or until maximum application.
F

S
witch on the ignition and check that the electric parking brake warning lamps
are on.
-

A
pplication may take longer than in normal operation.
-

I
f the warning lamp (!) flashes or if the warning lamps do not come on when
the ignition is switched on, this method does not work. Have it checked by a
CITROËN dealer or a qualified workshop.
To release the electric parking brake:
F

S
witch on the ignition.
F

P
ush the control lever and hold it for approximately 3 seconds.
5 Display of the message "
Parking brake control
faulty
– automatic mode activated " and of the
following warning lamps:
and/or
f

lashing-

O
nly the functions for automatic application on switching off the engine and
automatic release on acceleration are available.
-

M
anual application / release of the electric parking brake and dynamic
emergency braking are unavailable.
6 Display of the message "
Parking brake faulty" and of
the following warning lamp:
flashing -

A
pplication of the parking brake is not guaranteed.
-

T
he parking brake is temporarily unavailable.
It this situation arises:
F

W
ait approximately 3 minutes.
F

A
fter 3 minutes, if the warning lamp is still flashing, try to reinitialise the parking
brake, either by pushing and releasing the control A while pressing the brake
pedal or by means of a long pull on control lever A .
7 Battery problem
-

I
llumination of the battery warning lamp makes it essential to stop the vehicle
as soon as traffic allows. Stop and immobilise your vehicle.
-

A
pply the electric parking brake before switching off the engine.
Driving

113
C5_en_Chap04_conduite_ed01-2016

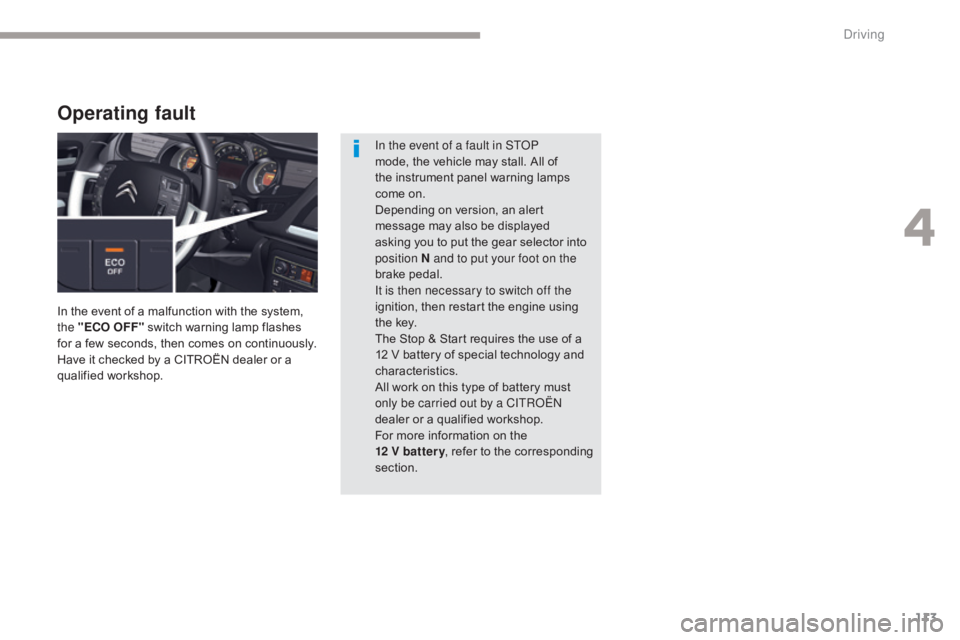

Operating fault
In the event of a malfunction with the system,
the "ECO OFF" switch warning lamp flashes
for a few seconds, then comes on continuously.
Have it checked by a CITROËN dealer or a
qualified workshop.In the event of a fault in STOP
mode, the vehicle may stall. All of
the instrument panel warning lamps
come
on.
Depending on version, an alert
message may also be displayed
asking you to put the gear selector into
position

N and to put your foot on the
brake pedal.
It is then necessary to switch off the
ignition, then restart the engine using
the key.
The Stop & Start requires the use of a
12 V battery of special technology and
characteristics.
All work on this type of battery must
only be carried out by a CITROËN
dealer or a qualified workshop.
For more information on the
12
V batter y, refer to the corresponding
section.
4
Driving

120
C5_en_Chap04_conduite_ed01-2016
The accelerator pedal has a stiff point at the
end of its travel. To exceed the maximum speed
setting at any time, you can press the pedal
all the way down. While the speed is being
exceeded, the speed displayed in zone A will
flash. Simply release the accelerator pedal to
return below the maximum speed and restore
the limiter function.
Return to normal

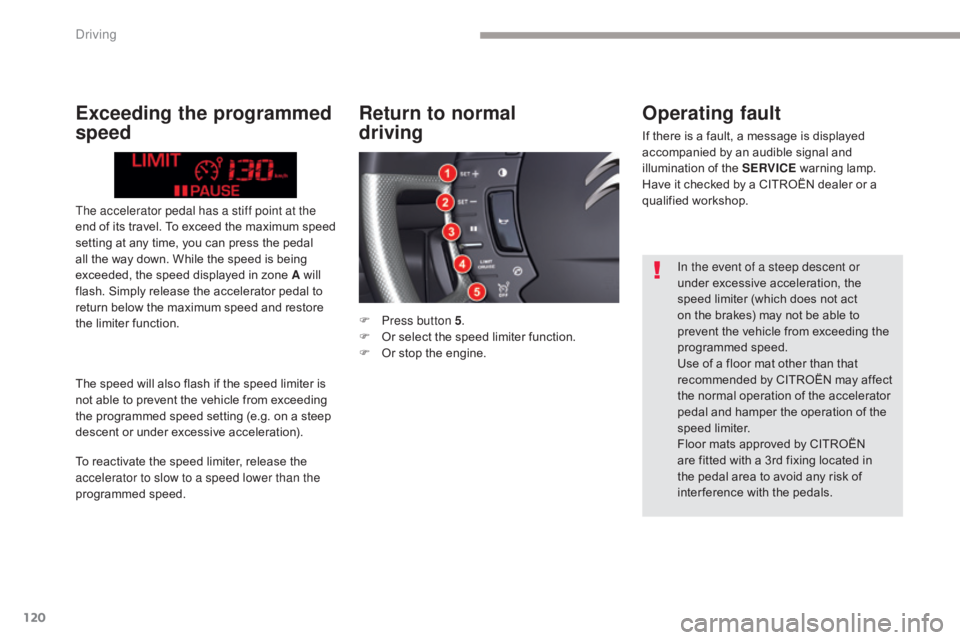

driving Operating fault
If there is a fault, a message is displayed
accompanied by an audible signal and
illumination of the SERVICE
warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Exceeding the programmed
speed
In the event of a steep descent or
under excessive acceleration, the
speed limiter (which does not act
on the brakes) may not be able to
prevent the vehicle from exceeding the
programmed speed.
Use of a floor mat other than that
recommended by CITROËN may affect
the normal operation of the accelerator
pedal and hamper the operation of the
speed limiter.
Floor mats approved by CITROËN
are fitted with a 3rd fixing located in
the pedal area to avoid any risk of
inter ference with the pedals.
The speed will also flash if the speed limiter is
not able to prevent the vehicle from exceeding
the programmed speed setting (e.g. on a steep
descent or under excessive acceleration).
To reactivate the speed limiter, release the
accelerator to slow to a speed lower than the
programmed speed. F

P

ress button 5 .
F

O

r select the speed limiter function.
F

O

r stop the engine.
Driving

123
C5_en_Chap04_conduite_ed01-2016
Reactivation
- By recalling the memorised speed After deactivation, press button 3. Your
vehicle automatically returns to the
memorised cruise speed setting. The
memorised speed and "ON" are displayed
in zone A .
I

f the memorised cruise speed setting is
higher than the current speed, the vehicle
will accelerate strongly to reach the current
speed.
-

B
y selecting the current speed
P

ress button 1 or 2 once the desired speed
has been reached.
T

he new speed and "ON" will appear in
zone A .
Return to normal driving
F Press button 5 .
F O r select the cruise control function.
F

O
r stop the engine.
The speed that was chosen is no longer
memorised.
" PAUS E "
will then be displayed in zone A of
the instrument panel.
These actions do not cancel the cruise
speed setting which remains displayed in the
instrument panel.
Operating fault
If there is a fault , a message is displayed
accompanied by an audible signal and
illumination of the SERVICE warning lamp.
Have it checked by a CITROËN dealer or a
qualified workshop.
Cruise control must only be used where
the traffic conditions permit driving at a
constant speed.
Do not use it on congested roads or
when the weather or the road conditions
are poor.

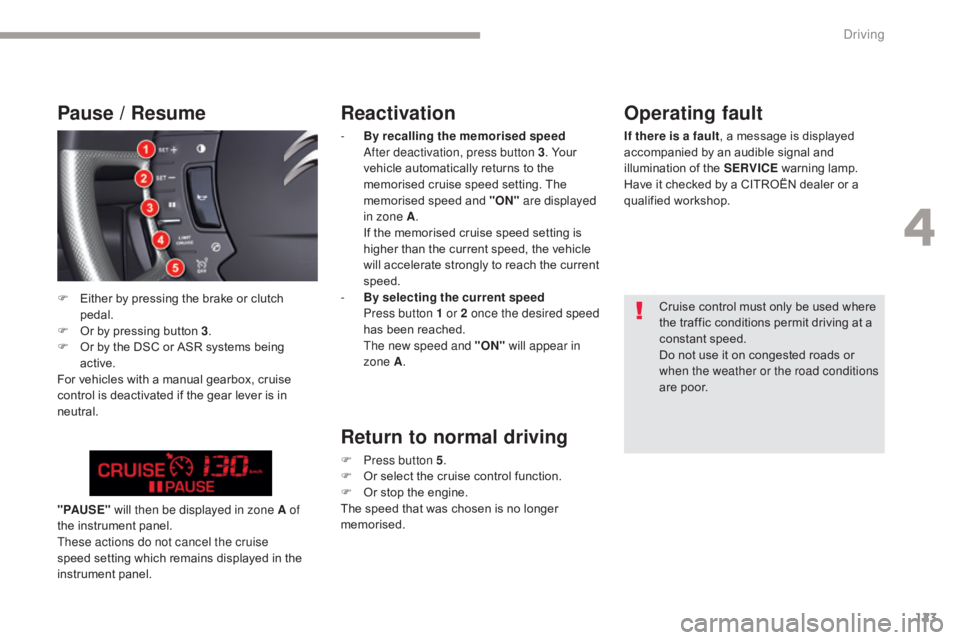

Pause / Resume
F Either by pressing the brake or clutch pedal.
F

O
r by pressing button 3 .
F

O
r by the DSC or ASR systems being
active.
For vehicles with a manual gearbox, cruise
control is deactivated if the gear lever is in
neutral.
4
Driving

149
C5_en_Chap06_securite_ed01-2016
Reactivation
Operating fault
Illumination of this warning lamp and
the lamp in the deactivation button,
accompanied by an audible signal
and a message, indicate a fault with
the system.

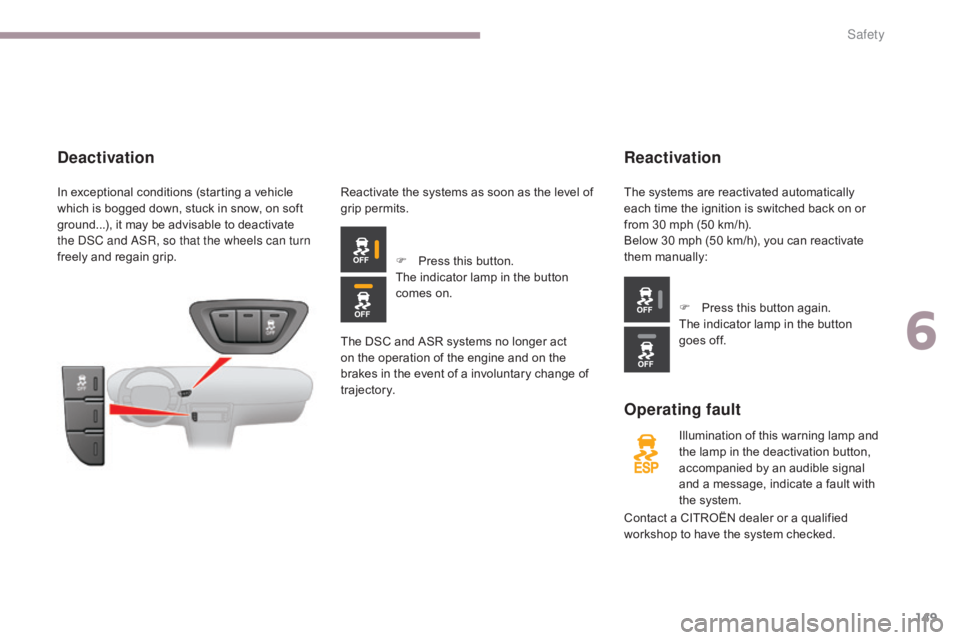

Deactivation
Reactivate the systems as soon as the level of
grip permits.F

P
ress this button.
The indicator lamp in the button
comes on.
Contact a CITROËN dealer or a qualified
workshop to have the system checked.
The DSC and ASR systems no longer act
on the operation of the engine and on the
brakes in the event of a involuntary change of
trajectory.
F

P
ress this button again.
The indicator lamp in the button
goes
off.
The systems are reactivated automatically
each
time the ignition is switched back on or
from 30
mph (50 km/h).
Below 30 mph (50 km/h), you can reactivate
them manually:
In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft
ground...), it may be advisable to deactivate
the DSC and ASR, so that the wheels can turn
freely and regain grip.
6
Safety

177
C5_en_Chap07_info-pratiques_ed01-2016

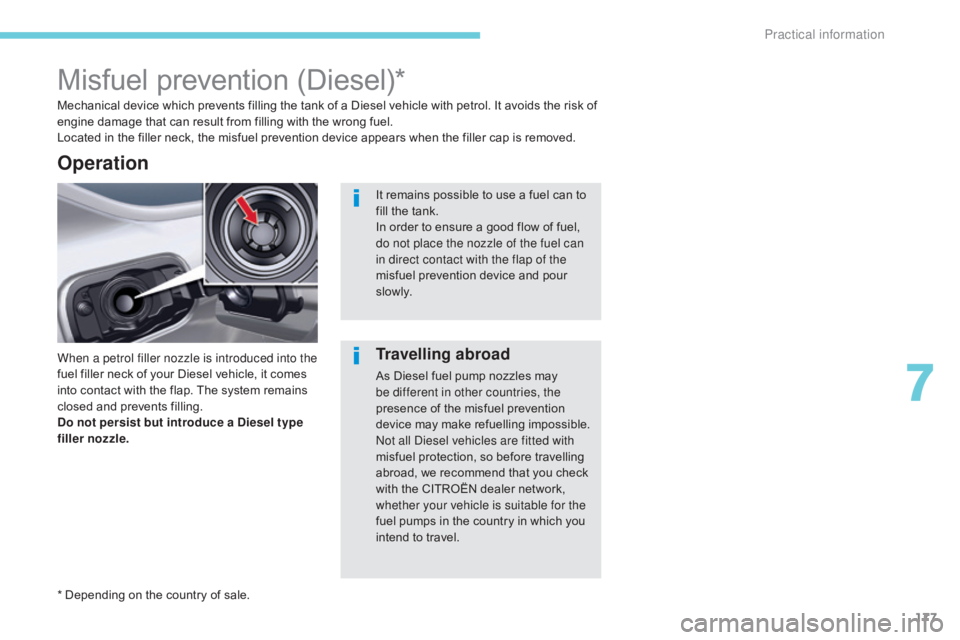

Misfuel prevention (Diesel)*
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle. Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
Operation
It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
s l ow l y.
*

Depending on the country of sale.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Not all Diesel vehicles are fitted with
misfuel protection, so before travelling
abroad, we recommend that you check
with the CITROËN dealer network,
whether your vehicle is suitable for the
fuel pumps in the country in which you
intend to travel.
7
Practical information

181
C5_en_Chap07_info-pratiques_ed01-2016
Blanking cover
When towing, you must remove the blanking
cover in the front bumper as well as the bonnet
seal if fitted.
Contact a CITROËN dealer or a qualified
workshop for this.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the headlamp beam
height of your vehicle.
For more information on Adjusting the
headlamps , refer to the corresponding section.
The rear parking sensors will be
deactivated automatically to avoid the
audible signal if a genuine CITROËN
towbar is used.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F
T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the exterior
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
7
Practical information

185
C5_en_Chap07_info-pratiques_ed01-2016

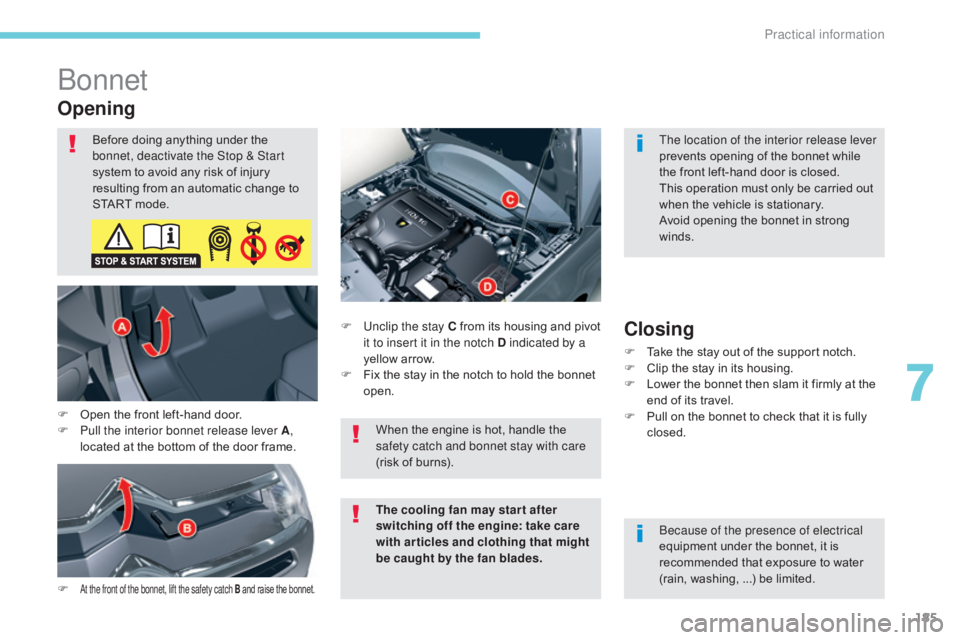

Bonnet
Opening
F At the front of the bonnet, lift the safety catch B and raise the bonnet.
F Unclip the stay C from its housing and pivot
it to insert it in the notch D indicated by a
yellow arrow.
F

F
ix the stay in the notch to hold the bonnet
open.Closing
F Take the stay out of the support notch.
F C lip the stay in its housing.
F

L
ower the bonnet then slam it firmly at the
end of its travel.
F

P
ull on the bonnet to check that it is fully
closed.
F

O

pen the front left-hand door.
F

P

ull the interior bonnet release lever A ,
located at the bottom of the door frame. Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
The location of the interior release lever
prevents opening of the bonnet while
the front left-hand door is closed.
This operation must only be carried out
when the vehicle is stationary.
Avoid opening the bonnet in strong
winds.
When the engine is hot, handle the
safety catch and bonnet stay with care
(risk of burns). Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing,
...) be limited.
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
7
Practical information

186
C5_en_Chap07_info-pratiques_ed01-2016
The various caps and covers allow access for
checking fluid levels and for replacing certain
components.THP
Petrol engines
1. Screenwash and headlamp wash fluid reservoir.
2.
P

ower steering fluid reservoir


or
o

r power steering and Hydractive III +
suspension fluid reservoir.
3.
E

ngine coolant header tank.
4.
E

ngine oil dipstick.
5.
E

ngine oil filler cap.
6.
B

rake fluid reservoir.
7.
B

attery.
8.
A

ir filter.
Practical information
