Citroen C5 2015 (RD/TD) / 2.G Owner's Manual

145
C5_en_Chap05_visibilite_ed01-2014
Lighting left on
When a front door is opened with the
ignition off and in manual lighting mode,
an audible signal warns the driver if the
vehicle's lighting is still on.
In this case, switching off the lighting
stops the audible signal.
With the ignition off, if the dipped
headlamps remain on, they will switch
off automatically after thirty minutes to
prevent discharging of the battery.* According to country.
Daytime-running lampsManual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps
using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
System which switches on special lamps at the
front, to make the vehicle more visible by day.
They light up automatically and permanently,
when the engine is running, if:
-

T

he function is activated* in the "Main
Menu" of the instrument panel screen.
-
T

he lighting control is at position

0
or AUTO .
-

A

ll the headlamps are off.
You can deactivate* this function using the
"Main Menu" of the instrument panel screen. The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
5
Visibility

146
C5_en_Chap05_visibilite_ed01-2014
Linked with the automatic
"Guide-me-home" lighting
The link with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
-
s
election of the duration of lighting for 15,
30 or 60 seconds in the vehicle
parameters on the instrument panel screen
configuration menu,
-

a
utomatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.
Operating fault
In the event of a fault with the sunshine
sensor, the lighting comes on and a
message appears in the instrument panel
screen, accompanied by an audible signal.
Contact a CITROËN dealer or a qualified
workshop.
Automatic illumination of headlamps
Activation
F Turn ring A to the "AUTO" position. The automatic
illumination of headlamps is accompanied by a
message in the instrument panel screen.
Deactivation
F Turn ring A to a position other than "AUTO" .
Deactivation is accompanied by a message
in the instrument panel screen.
The sidelamps and dipped beam headlamps are
switched on automatically, without any action on
the part of the driver, when a low level of external
light is detected or in certain cases of activation of
the windscreen wipers.
As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
In fog or snow, the sunshine sensor
may detect sufficient light. Therefore,
the lighting will not come on
automatically.
do n
ot cover the sunshine sensor,
linked with the rain sensor and located
in the centre of the windscreen behind
the rear view mirror; the associated
functions would no longer operate.
Visibility

147
C5_en_Chap05_visibilite_ed01-2014
Manual headlamp
adjustment
To avoid dazzling other road users, the height
of the halogen bulb headlamps must be
adjusted according to the load in the vehicle.
0.

1 o
r 2 people in the front seats.
-.

3 p
eople.
1.

5 p
eople.
-.

I
ntermediate setting.
2.

5 p
eople + maximum authorised loads.
-.

I
ntermediate setting.
3.

D
river + maximum authorised loads.
Automatic adjustment of directional
headlamps
The system then places your headlamps in the
lowest position. If a fault occurs, this warning lamp
comes on in the instrument panel,
accompanied by an audible signal
and a message in the instrument
panel screen.
Initial setting is position "0" .To avoid causing a nuisance to other road
users, this system corrects the height of the
xenon headlamp beams automatically and
when stationary, depending on the load in
the

vehicle. Do not touch the xenon bulbs. Contact
a CITROËN dealer or a qualified
workshop.
Travelling abroad
If planning to use your vehicle in a
country that drives on the other side
of the road, we recommend that
you contact a CITROËN dealer or a
qualified workshop to check whether
the headlamps need to be adjusted to
avoid dazzling on-coming drivers.
5
Visibility

148
C5_en_Chap05_visibilite_ed01-2014
Directional lighting
without cornering lightingwith cornering lighting
"Cornering lighting" function
Activation
This function is activated:
- w hen the direction indicator is activated,
-

f
rom a certain angle of rotation of the
steering wheel.
Deactivation
This function is deactivated:
- b elow a certain angle of rotation of the
steering wheel,
-

w
hen stationary or at very low speed,
-

w
hen reverse gear is engaged,
-

w
hen the directional headlamps are
switched off.
With dipped or main beams, this function
provides additional lighting for the inside of a
bend, when the vehicle speed is below 25 mph
(approx 40 km/h).
This lighting is most useful when travelling at
low and medium speed (urban driving, winding
road, intersections, parking manoeuvres...).
Visibility

149
C5_en_Chap05_visibilite_ed01-2014
Programming
The function is activated or deactivated via the
instrument panel screen "Main Menu".
To do this, select " Vehicle parameters \
Lighting \ Directional headlamps".
Operating fault
If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
multifunction screen.
Directional headlamps
function
When the dipped or main beam headlamps are
on, this function, associated with the "cornering
lighting" function, enables the light beam to
follow the direction of the road.
The use of this function, linked with the xenon
headlamps only, considerably improves the
quality of your lighting when cornering.
with directional lighting
without directional lighting
When stationary or moving at very low
speed or when reverse gear is engaged,
the function is inactive.
The status of the function remains in the
memory when the ignition is switched off.
Contact a CITROËN dealer or a qualified
workshop.
5
Visibility

150
C5_en_Chap05_visibilite_ed01-2014
Wiper controls
Programming
Various automatic wiper control modes are also
available according to the following options:
-
a
utomatic rain sensitive windscreen wipers,
-

r
ear wiping on engaging reverse gear.
Manual controls
Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to the
speed of the vehicle).
Automatic, then single wipe
(see the corresponding
section).
Of f.
Single wipe (press down and
release).
Windscreen wipers
A.
Wiping speed selection stalk.
or
System for selection and control of the various
front and rear wiping modes for the elimination
of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
The wiper commands are issued directly by the
driver by means of the stalk A and the ring B.
Visibility

151
C5_en_Chap05_visibilite_ed01-2014
Rear wiper (Tourer)
B. rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the instrument panel
screen configuration menu.
Reverse gear
When reverse gear is engaged, the rear
wiper operates if the windscreen wipers are
operating.
Programming
The function is activated or deactivated via the
instrument panel screen configuration menu.
This function is activated by default.
Windscreen and headlamp
wash
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when
the
dipped beam headlamps are on .
5
Visibility

152
C5_en_Chap05_visibilite_ed01-2014
Automatic rain sensitive
windscreen wipers
Activation
This is controlled manually by the driver by
moving stalk A to the "AUTO" position.
It is accompanied by a message in the
instrument panel screen.
Switching off
This is controlled manually by the driver by
moving stalk A upwards and returning it to
position "0" .
It is accompanied by a message in the
instrument panel screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a CITROËN dealer or a
qualified workshop.
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the
rear view mirror.
Switch off the automatic wiping when
using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wiping.
The automatic wiping must be
reactivated if the ignition has been off
for more than one minute, by pushing
stalk A downwards.
Visibility

153
C5_en_Chap05_visibilite_ed01-2014

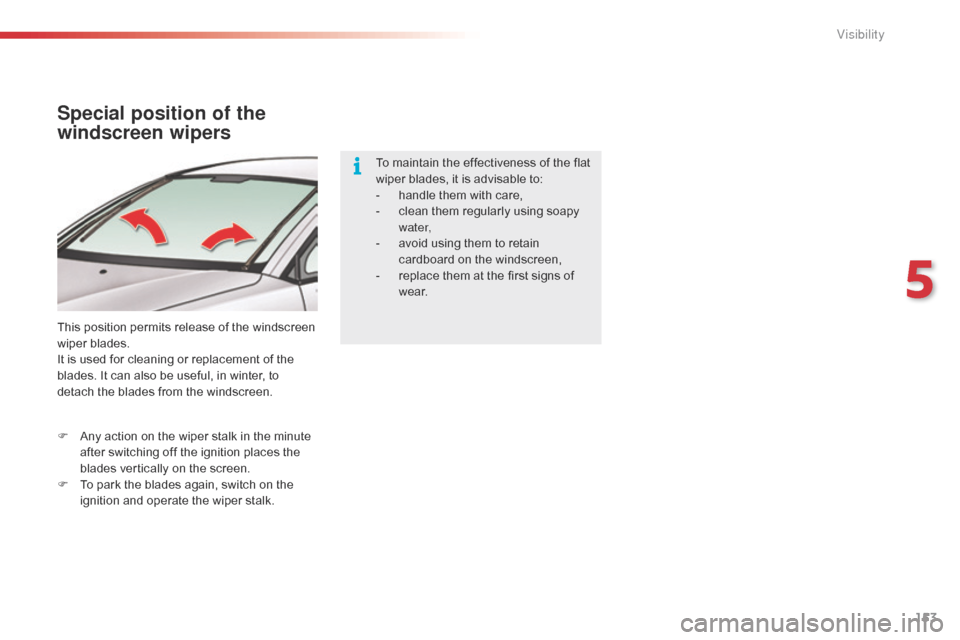

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
F
A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk. To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-
c
lean them regularly using soapy
water,
-
a
void using them to retain
cardboard on the windscreen,
-
r
eplace them at the first signs of
w e a r.
5
Visibility

96
C5_en_Chap04_conduite_ed01-2014
A few driving recommendations
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle. Observe the driving regulations at all times and
remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.
Important!
Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk
of fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position

N or P, depending on the type
of gearbox.
If you are obliged to drive through water:
-

c

heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d

eactivate the Stop & Start system,
-

d

rive as slowly as possible without stalling.
In all cases, do not exceed 6 mph
(10 km/h),
-

d

o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a CITROËN dealer or a qualified workshop.
Driving
