Citroen C5 DAG 2007.5 (DC/DE) / 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2007.5, Model line: C5 DAG, Model: Citroen C5 DAG 2007.5 (DC/DE) / 1.GPages: 231, PDF Size: 8.02 MB
Page 131 of 231
135
IV
H I F I S Y S T E M
The Hi-Fi system, custom built for your cabin, is made up of: A h i g h p o w e r D S P ( D i g i t a l S i g n a l P r o c e s s i n g ) d i g i t a l a m p l i fi e r .
A subwoofer bass box (30 Hz - 100 Hz). 8 s p e c i fi c l o u d s p e a k e r s .
An MP3 player.
Adjustment in CD or radio mode
The basic functions remain the same as those for the radio.
No extra adjustment is necessary.
However, to make the most of your Hi-Fi system, you are advised to adjust the audio functions Bass (Bass), Treble (Treb), front/rear balance (Fad) and left/right balance (Bal) to position O, and Loudness (Loud) to position ON when listening to a CD and position OFF when listening to the radio.
Your system also provides Dolby surround sound with the Pop, Rock an d Classical ambiances.Note: In the event of poor reception of an FM stereo signal and/or mono source, deactivate the musical ambiances.
Page 132 of 231
136
IV
F R E Q U E N T L Y - A S K E D Q U E S T I O N S
QUESTIONANSWERSOLUTION
There is a discrepancy in sound quality between the different audio sources (radio, CD, CD changer etc.).
To achieve an optimum listening quality, the audio adjustments (Volume, Bass, Treble, Ambiance, Loudness) can be adapted to each of the different sound sources, which can produce audible shifts when you change the source (radio, CD, CD changer etc.).
Check that the audio adjustments (Vol-ume, Bass, Treble, Ambiance, Loud-ness) are adapted to your preferences for each of the sources being listened to.
The CD immediately ejects.
The CD is the wrong way up, is unplayable, does not contain audio data or contains an audio format that the radio cannot play back.
Check that you have inserted the CD the right way up in the CD player.
Check the condition of the CD: the CD cannot be played back if it is too dam-aged.
Check the contents if it is a burnt CD: refer to the advice given in the chapter on Audio System.
For reasons of poor quality, some burnt CDs will not be played back by the audio system.
The CD changer does not play back DVDs.
The CD changer does not play back MP3 CDs.
The CD player sound is downgraded.The CD is scratched or of poor quality.Insert only CDs of good quality and keep them in good condition.
The pre-set stations do not work (no sound, 87,5 Mhz is displayed, etc.).
The waveband selected is not the correct one.
Press on the button BND to retrieve the wave band (AM, FM1, FM2, FMAST) where the stations have been memo-rised.
The table below brings together the answers to the questio ns that are the most frequently asked.
Page 133 of 231
137
IV
F R E Q U E N T L Y - A S K E D Q U E S T I O N S
QUESTIONANSWERSOLUTION
T r a f fi c A n n o u n c e m e n t s (TA) is displayed. I do not r e c e i v e a n y t r a f fi c i n f o r m a -tion or public announce-ments.
The particular radio station is not in the r e g i o n a l t r a f fi c i n f o r m a t i o n n e t w o r k .Change to a radio station that does b r o a d c a s t t r a f fi c i n f o r m a t i o n .
The reception quality of the radio station being lis-tened to gradually deterio-rates.
The vehicle is too distant from the transmit-ter, or no transmitter is present in the geo-graphical area you are passing through.
Activate the RDS function to allow the system to check whether a more pow-erful transmitter is to be found in the geographical area.
The environment (hills, high buildings, tun-nels, underground car parks, etc.) is blocking reception, even in RDS mode.
This phenomenon is normal and does not imply anything wrong with the radio.
The aerial is absent or has been damaged (for example after going through a car wash or in an underground car park).
Have the aerial checked by a CITROËN dealer.
Cutting of sound for 1 to 2 seconds in radio mode.
The RDS system during this brief sound cut-off is searching for a better frequency that might offer improved reception of the station.
Deactivate the RDS function if the phe-nomenon occurs too frequently and always on the same journey.
When the engine is not running, the radio stops after a few minutes.
When the engine is switched off, the work-ing time for the radio depends on the battery charge. The interruption is normal: the radio goes into economy mode, cutting off in order to save the vehicle’s battery.
You have to start the engine so as to increase the battery charge.
The message “the audio system is overheating” appears on the screen.
In order to protect the audio equipment in excessive ambient temperatures, the radio goes into an automatic thermic protection mode which results in a reduction in sound volume or stopping of the CD player.
Switch off the audio system for a few minutes in order to allow the system to cool down.
Page 134 of 231
138
V
A
B
B O N N E T R E L E A S E
Bonnet
This operation should only be performed while the vehicle is stationary.
Open the door.
To unlock, pull release lever A.
Lift up lever B, then raise the bon-net.Note: The panel may be hot after the vehicle has been in use.
Check that the bonnet is properly secured.
Do not operate the bonnet in strong winds.
Bonnet stay
Unclip the stay and pivot to lodge it in the notch.
To eliminate any risk of burns, only handle the bonnet stay using the protective foam.
To close
Check that nothing has been left on top of the engine and that any component that was moved has been correctly repositioned.
Return the bonnet stay to its initial position.
Lower the bonnet carefully, then let it drop shut.
Page 135 of 231
139
V
A

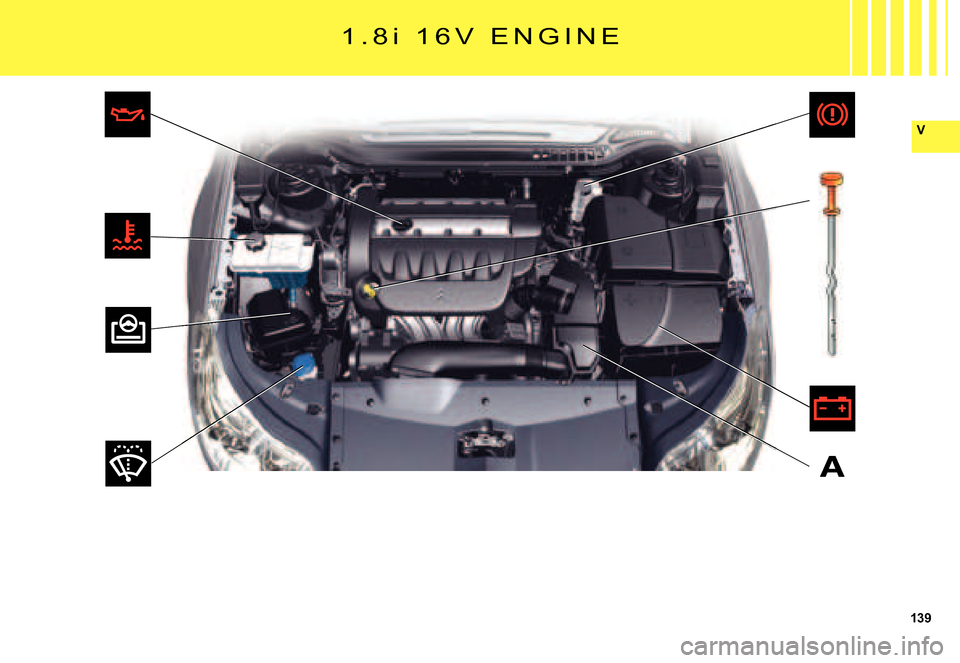

1 . 8i 1 6 V E N G I N E
Page 136 of 231
140
V
A
2 . 0i 1 6 V E N G I N E
Vehicles with this engine may be fi t t e d w i t h m e t a l l i c s u s p e n s i o n . In this case, the power steering oil reservoir is different.
Page 137 of 231
141
V
A

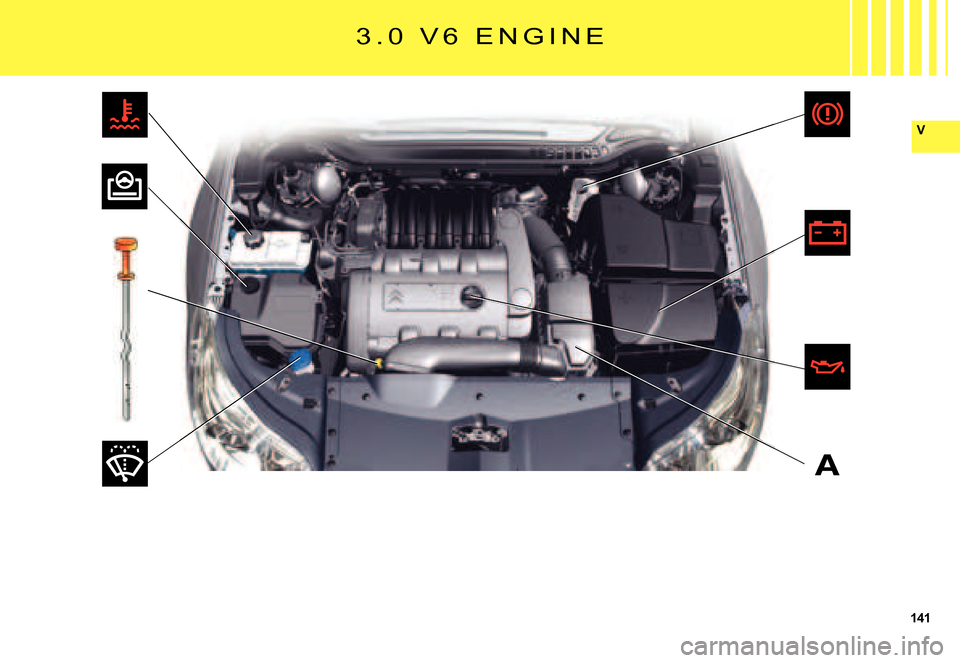

3 . 0 V 6 E N G I N E
Page 138 of 231
142
VA
H D I 1 1 0 E N G I N E
W I T H P A R T I C L E F I L T E R
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
Page 139 of 231
143
V
A
H D I 1 3 8 E N G I N E
W I T H P A R T I C L E F I L T E R
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
Vehicles with this engine may be fi t t e d w i t h m e t a l l i c s u s p e n s i o n . In this case, the power steering oil reservoir is different.
The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
Page 140 of 231
144
V
A
H D I 1 7 3 E N G I N E
W I T H P A R T I C L E F I L T E R
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a The diesel fuel circuit being under high pressure:
ANY INTERVENTION ON THE CIRCUIT IS PROHIBITED.
