Page 171 of 231
175
VII
F U E L C O N S U M P T I O N
( I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N ) )
T h e s e c o n s u m p t i o n fi g u r e s a r e e s t a b l i s h e d a c c o r d i n g t o D i r e c t i v e 8 0 / 1 2 6 8 / C E E . F u e l c o n s u m p t i o n c a n v a r y d e p e n d - i n g o n s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , v e h i c l e l o a d , h o w t h e v e h i c l e h a s b e e n m a i n t a i n e d a n d on use of accessories.
T h e f u e l c o n s u m p t i o n fi g u r e s q u o t e d a r e c o r r e c t a t t i m e o f going to press.
FAP: D i e s e l p a r t i c u l a t e fi l t e r s y s t e m .
BVM: Manual gearbox.
BVA: Automatic gearbox.
Engine type1.8i 16V2.0i 16V3.0 V6HDi 110FAPHDi 138FAPHDi 173FAPV6 HDi 208FAP
SaloonBVMBVMBVABVABVMBVMBVABVMBVA
Urban10.81212.715.67.37.99.98.811.8
CO2 emissions (g/km)257285303371193209262234315
Extra urban6.26.36.77.54.74.95.55.26.4
CO2 emissions (g/km)148151160180125129146138171
Combined7.98.48.910.55.667.16.58.4
CO2 emissions (g/km)188198212248149157189172223
Page 172 of 231
176
VII
G E N E R A L
ENGINE TYPE1.8i 16VBVM2.0i 16VBVM2.0i 16VBVA3.0 V6BVA
Fuel tank capacityApproximately 71 litres
Fuels to be usedUnleaded petrol RON 95 - RON 98
F r e n c h fi s c a l r a t i n g----
Power (kW)92103103155
Turning circle between walls (in metres)12121212,2
Calculated maximum speed in km/h (mph) (In the highest gear)----
Weights (kg)
Unladen weight1510152115831725
Gross vehicle weight (MTAC)2015206320902230
Maximum weight on rear axle9609609601010
Gross train weight (MTRA)(1)3315356335903630
Gross trailer weight (within the Gross Train Weight limit)
8% < incline ≤ 12% 1300
(1530*)
1500
(1720*)
1500
(1720*)
1400
(1650*)
incline ≤ 8%1700180018001400
Gross trailer weight (without brakes)750
Trailer nose weight62696966
Maximum roof rack load80
Page 173 of 231
177
VII
HDi 110BVM FAPHDi 138BVM FAPHDi 138BVA FAPHDi 173BVM FAPV6 HDi 208BVA FAP
Approximately 71 litres
Diesel fuel
-----
80100100125150
12121212,212,2
-----
15031608165817291766
20402155219022162310
9609709709801045
31403755349038163710
1100
(1370*)
1600
(1820*)
1300
(1560*)
1600
(1820*)
1400
(1690*)
11001800130018001400
750
5573637368
80
G E N E R A L
MTAC: Gross vehicle weight.
MTRA: Gross train weight.
Weights: Refer to the manufacturer's plate.
( * ) W e i g h t t r a n s f e r : The braked tow-ing weight can be increased.
It is possible, when the towing vehi-cle is within the gross vehicle weight, to transfer weight allowance from the trailer.
In all cases, do not exceed the trailer and Gross Train Weight values indi-cated.
(1) In the case of a towing vehicle, the maximum speed is limited to 100 km/h (62 mph).
Observe your vehicle's towing lim-its. It is essential to comply with the max. Gross Trailer Weights and speed l i m i t s a s s p e c i fi e d b y l e g i s l a t i o n i n e a c h country.
Chainable tyres: All tyres are chain-able, except 18” or 19”.
For Belgium and Switzerland: See homologation documents.
Page 174 of 231
178
VII
A
D
BC
F
I
D I M E N S I O N S
( I N M E T R E S )
Saloon
A2 815
B1 054
C910
D4 779
E1 586
F2 096
G1 557
H1 860
I*1 451
*Without roof bars.
Page 175 of 231
179
VII
B
A
FECD
D I M E N S I O N S
( I N M E T R E S )
Berline
A1 030
B1 115
C504
D566
E 1 040
F 1 705
Page 176 of 231
180
VII
C
A
D
B
E
123456
A
V E H I C L E I D E N T I F I C A T I O N
A Chassis number plateOn the left hand door centre pil-lar.
1. EU type approval number.2. V e h i c l e i d e n t i fi c a t i o n N o . ( V I N ) .3. Gross vehicle weight.4. Gross train weight.5. Maximum weight on front axle.6. Maximum weight on rear axle.B Body serial numberC Serial number on dashboardD Paint colour codeOn front pillar.
E Tyre referenceTyre pressuresOn the left hand door centre pillar.
T h e v e h i c l e t y p e a n d t h e i d e n t i fi c a t i o n n u m b e r a r e a l s o i n d i c a t e d o n t h e r e g i s t r a t i o n d o c u m e n t .
All CITROËN original replacement parts are available exclusively w ithin the dealer network.
For your safety and in order to remain within the terms of the guarantee, you are advised to use only CITROËN replacement parts.
Page 177 of 231
11
1
CONTENTS
What is NaviDrive ? .................................................. .................1
Description of the controls .........................................................2
Voice commands ........................................................................7
Main Menu................................................... ...............................9
Navigation - Guidance .............................................................10
Map .................................................. ........................................19
T r a f fi c i n f o r m a t i o n ....................................................................23
Audio system (Radio, CD player, CD changer, MP3) ..............26
Telephone................................................... .............................43
Telematic services ...................................................................49
C o n fi g u r a t i o n ............................................................................51
Video .................................................. .....................................53
Frequently-asked questions ....................................................54
Index NaviDrive .................................................. .....................56
W H A T I S N A V I D R I V E ?
NAVI DRIVE IS A SYSTEM WHICH ENABLES YOU :
To navigate to the destination of your choice (Euro pean map on hard disc) including journeys to your Centres of interest (cinema, hotel, restaurant...) a n d t a k i n g a c c o u n t o f t r a f fi c c o n d i t i o n s .To listen to the radio.To listen to CDs / MP3 CDs.To copy CDs into your Jukebox source (10 Go's avail able on the hard disc).To telephone hands-free.To enjoy access to CITROËN services according to the country you are in (Citroën Emergency, Citroën Assistance, Citroën On line and NaviDrive services).To connect a nomad audio/video device.
Page 178 of 231
22
1
9
11
53
8
6724
10
D E S C R I P T I O N O F T H E C O N T R O L S
It is recommended that you do not use the NaviDrive controls while your vehicle is moving. In some countries, certain commands may be deactivated to comply with national regulations.
1CD eject.
2Call in progress:Shor t press: End a call.
3Shor t press: Answer call.Display of telephone menu.
4Shor t press: Access to the CITROËN ser vices menu.Long press: Direct call to the CITROËN assistance ser vice.
5CD aper ture.
6
Shor t press:Cancellation of the current operation.Deletion of a superimposed display.Long press:Close main menu and return to the welcome screen.
Page 179 of 231
33
1314 15 16 12

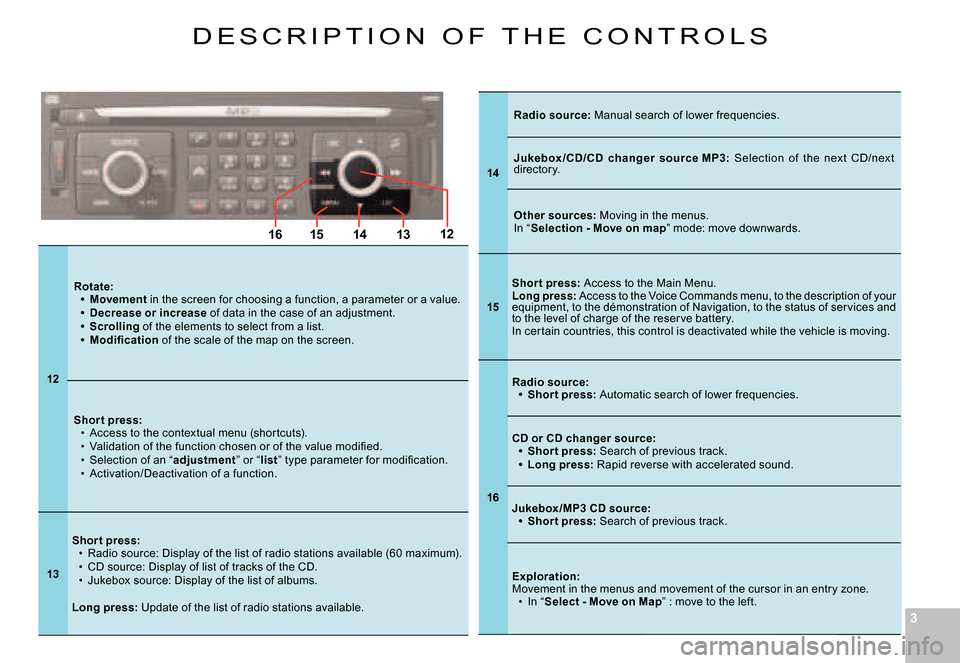

D E S C R I P T I O N O F T H E C O N T R O L S
12
Rotate:Movement in the screen for choosing a function, a parameter or a value.Decrease or increase of data in the case of an adjustment.Scrolling of the elements to select from a list. M o d i fi c a t i o n of the scale of the map on the screen.
Page 180 of 231
44
21
192018
2223
24
17

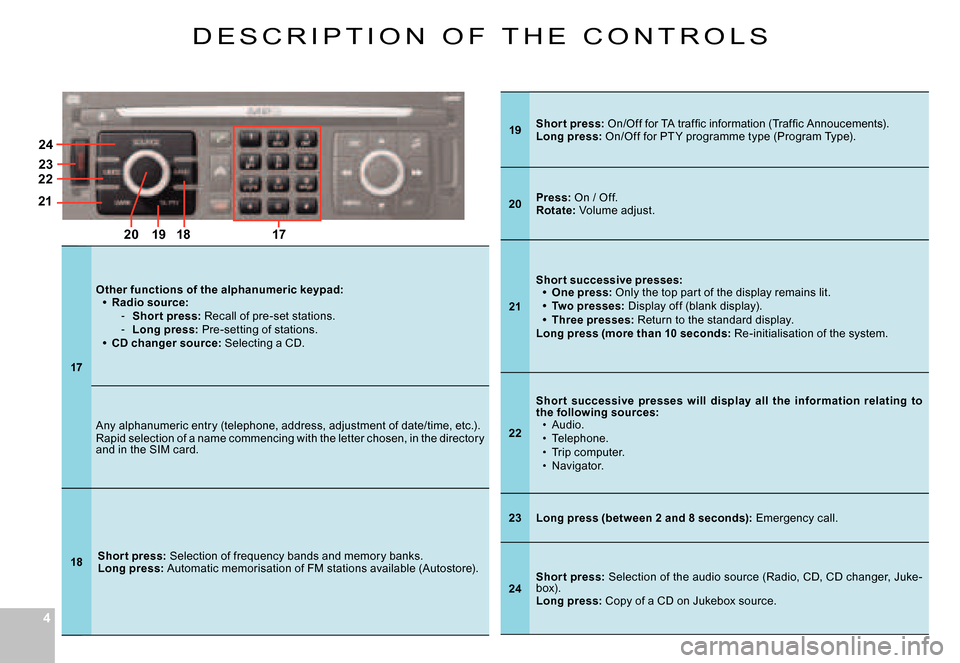

D E S C R I P T I O N O F T H E C O N T R O L S
19Shor t press: O n / O f f f o r T A t r a f fi c i n f o r m a t i o n ( T r a f fi c A n n o u c e m e n t s ) .Long press: On/Off for PT Y programme type (Program Type).
20Press: On / Off.Rotate: Volume adjust.
21
Shor t successive presses:One press: Only the top par t of the display remains lit.Two presses: Display off (blank display).Three presses: Return to the standard display.Long press (more than 10 seconds: Re-initialisation of the system.
