Citroen C5 DAG 2007.5 (DC/DE) / 1.G Owner's Manual

115
III
C
B
A
I N T E R I O R C O M F O R T

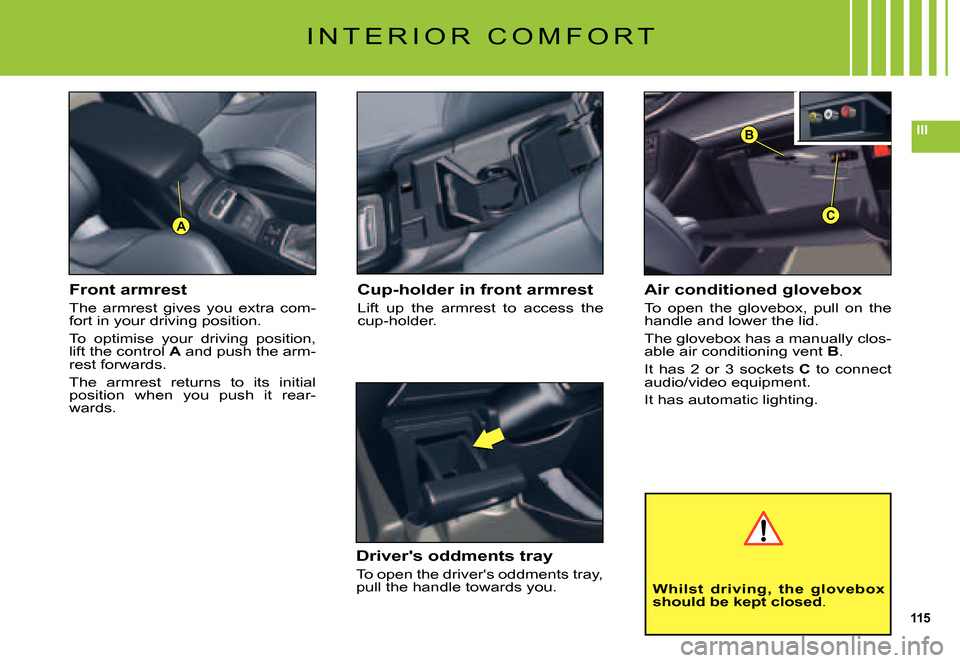

Air conditioned glovebox
To open the glovebox, pull on the handle and lower the lid.
The glovebox has a manually clos-able air conditioning vent B.
It has 2 or 3 sockets C to connect audio/video equipment.
It has automatic lighting.
Driver's oddments tray
To open the driver's oddments tray, pull the handle towards you.Whilst driving, the glovebox should be kept closed.
Front armrest
The armrest gives you extra com-fort in your driving position.
To optimise your driving position, lift the control A and push the arm-rest forwards.
The armrest returns to its initial position when you push it rear-wards.
Cup-holder in front armrest
Lift up the armrest to access the cup-holder.

116
III
B
A
I N T E R I O R C O M F O R T
To avoid your feet becoming jammed under the pedals:Only use mats which are suitable for the fi xings already present in the vehicle. The use of these fi xings is essential.
Never stack up more than 1 mat.
The use of a mat not approved by CITROËN may obstruct acc ess to the accelerator pedal and hinder the speed limiter function.
Floor mats approved by CITROËN are fi tted with a 3rd fi xing located in the pedal area to avoid any risk of interference with the pedals.

117
IIIA
BDCD

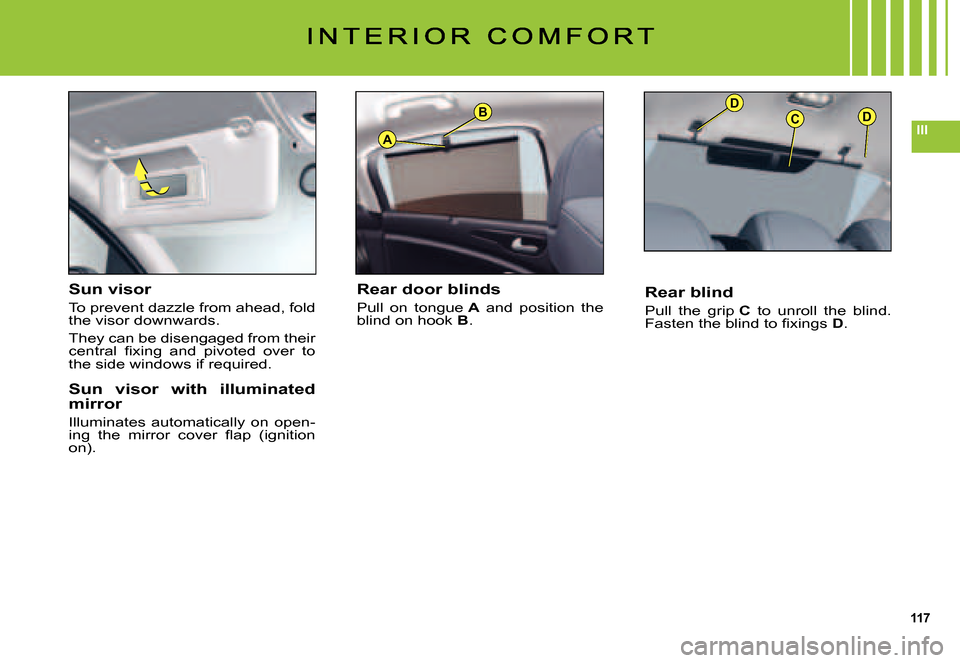

Sun visor
To prevent dazzle from ahead, fold the visor downwards.
They can be disengaged from their central fi xing and pivoted over to the side windows if required.
Sun visor with illuminated mirror
Illuminates automatically on open-ing the mirror cover fl ap (ignition on).
Rear door blinds
Pull on tongue A and position the blind on hook B.
Rear blind
Pull the grip C to unroll the blind. Fasten the blind to fi xings D.

118
III
2
1
43
B O O T
1 Battery for vehicles with V6 HDi engine.2 Pull strap (spare wheel stowage).3 Boot lamp.4 6 CD changer.
Luggage securing rings
Use the 4 securing rings on the boot fl oor to secure your luggage.
For safety reasons, in case of the need for sharp braking, you are advised to place heavy objects as far forward in the boot as possible.

119
IIIA
B
S U N R O O F
Glass sun roof
Sun roof closedPress B to fi rst notch: tilting.Press B to second notch: auto-matic complete tilting.
Press A to fi rst notch: sliding towards rear.Press A to second notch: auto-matic total sliding towards rear.
Sun roof openPress B to fi rst notch: closure.
Press B to second notch: auto-matic total closure.
Tilted sun roofPress A to fi rst notch: closure.
Press A to second notch: auto-matic total closure.

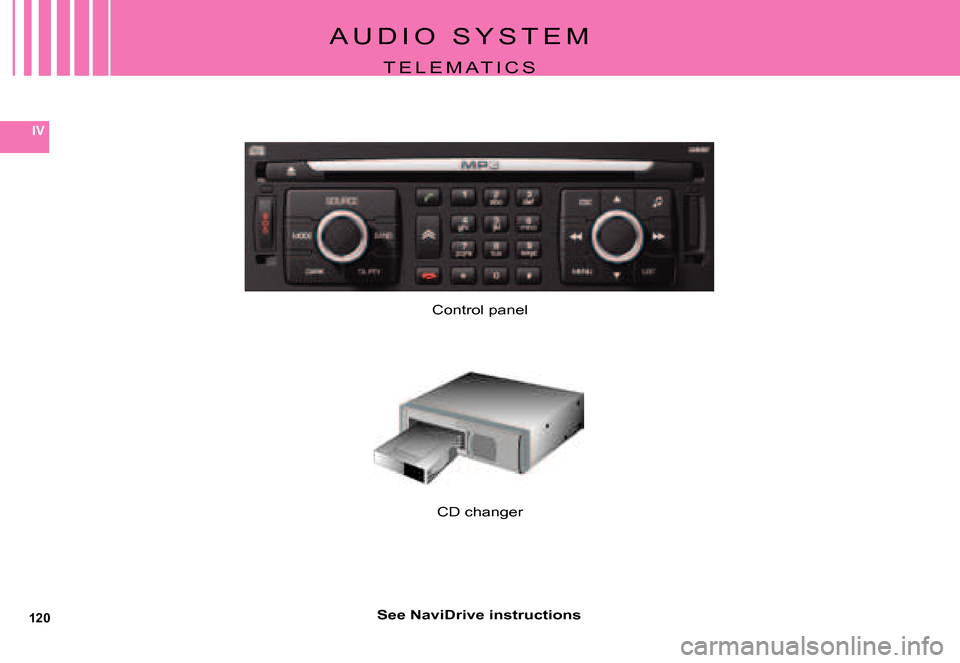

120
IV
A U D I O S Y S T E M
T E L E M A T I C S
See NaviDrive instructions
Control panel
CD changer

121
IV
S
11
10
9
1
4
5
6
7
8
3
2
ABCDEFGHIJK
NPMROQL
R D S A U D I O C O M P A C T D I S C S Y S T E M
Multifunction display
Technical specifi cations
Your Bluetooth® compatible radio possesses:®
3 wavebands (MW/LW/FM).
Dual tuner with RDS EON PTY, display of the PS name, RDS programme search, TA traffi c informa-tion, 24 pre-selections (18 FM - 6 MW/LW), auto-matic memorisation of the AST strongest stations.
An MP3- compatible CD reader.
Audio power of 4x35 W.

122
IV
B U T T O N C O N T R O L S
AOn / Off.Volume adjustment.
BCD eject.
CCD aperture.
DSOURCESelection of source (CD/MP3 CD and CD changer source).
EBAND/AST
Short press: Selection of frequency bands and memory banks.Long press: Automatic pre-set function (Autostore).
FCall-up of audio adjustments:Sound ambiences, bass, treble, loudness, fade, balance, speed-sensitive volume.
GLIST
Radio source:Short press: Display of the list of radio stations available (30 maximum).Long press: Update of list of stations.CD source: Display of list of tracks of the CD.
HESCShort press: Cancel the current operation or delete a super-imposed display.Long press: Return to the permanent display.
ITA /PT YShort press: TA function (road information).Long press: PTY function (eélection of programme type).
J
Radio source: Manual search of higher frequencies.CD/MP3 changer source: Selection of previous CD / previous CD-cover.Other sources: Scrolling in the Main Menu.
K
Radio source: Automatic search of higher frequencies.CD source, CD changer source and MP3 source:Short press: Forward search for tracks.Long press: Fast forward with accelerated sound.Other sources: In the menus, choice of your adjustments.
If your vehicle has the Bluetooth® system:® Selection of characters.
LOK
Button for validation and activation/deactivation of certain functions.If your vehicle has the Bluetooth® system: Answer call, end call.
M
Radio source: Manual search of lower frequencies.CD/MP3 changer source: Selection of the next CD / next CD-cover.Other sources: Scrolling in the Main Menu.
N
Radio source: Automatic search of lower frequencies.CD source, CD changer source and MP3 source:Short press: Reverse search for tracks.Long press: Rapid reverse with accelerated sound.Other sources: In the menus, choice of your adjustments.If your vehicle has the Bluetooth® system:® Selection of characters.
OMENUDisplay of the Main Menu.In certain countries, this control is deactivated while the ve-hicle is moving.
P1- 6
Radio source:Short press: Recall of pre-set stations.Long press: Memorisation.CD changer source: Selecting a CD.
QDARK
Short successive presses:
One press: Display of radio, time and temperature only.Two presses: Display off (blank display).Three presses: Return to the standard display.
RMODESelection of the type of information shown on multifunction display.
SCD changer.

123
IV
C O N T R O L S A T T H E S T E E R I N G W H E E L
The controls at the steering wheel give you access to certain functions, without you needing to use the radio-CD control panel.
1
Shor t press- Cancel the current operation and return to the previous multifunction display screen.- For an incoming call: Refuse the call.
Long pressRetur n to the or iginal multifunc tion dis -play.
2MOLETTE DROITE
Rotate
- Radio mode: Scroll through pre-set sta-tions.- CD/ M P3 CD and CD changer sourc e: Scroll through CDs or chapters.- In the multifunction display menus: Move around and increase/decrease.
Shor t press
- In the multifunction display menus: Vali-dation.- Open shor tcut menus.- For an incoming call: Answer call.
Long pressOpen the multifunction display main menu.
3MENUShor t pressA c c e s s t h e m u l t i f u n c t i o n d i s p l ay m a i n menu.
4VOL +S h o r t p r e s s / Press and holdIncrease volume.
5VOL -S h o r t p r e s s / Press and holdDecrease volume.
6MUTEShor t press- First press: mute.- Second press: cancel mute.
7
Shor t press
- Radio source: Automatic search of higher frequencies.- CD/MP3 CD and CD changer source: Search of the next track.
Long press- CD/MP3 CD and CD changer source: Fast forward with accelerated sound.
8
Shor t press
- Radio source: Automatic search of low-er frequencies.- CD/MP3 CD and CD changer source: Search of previous track.
Long press- CD/MP3 CD and CD changer source: Rapid reverse with accelerated sound.
9LISTShor t press
- Radio source: Display of the list of radio stations available.- CD/MP3 CD and CD changer source: Display of list of tracks of the CD.
Long pressUpdate of list of stations.
10COM GShort pressActivation of voice recognition.
Long pressNavigation instructions.
11COM DPressScroll through the multifunction display screen.

124
IV

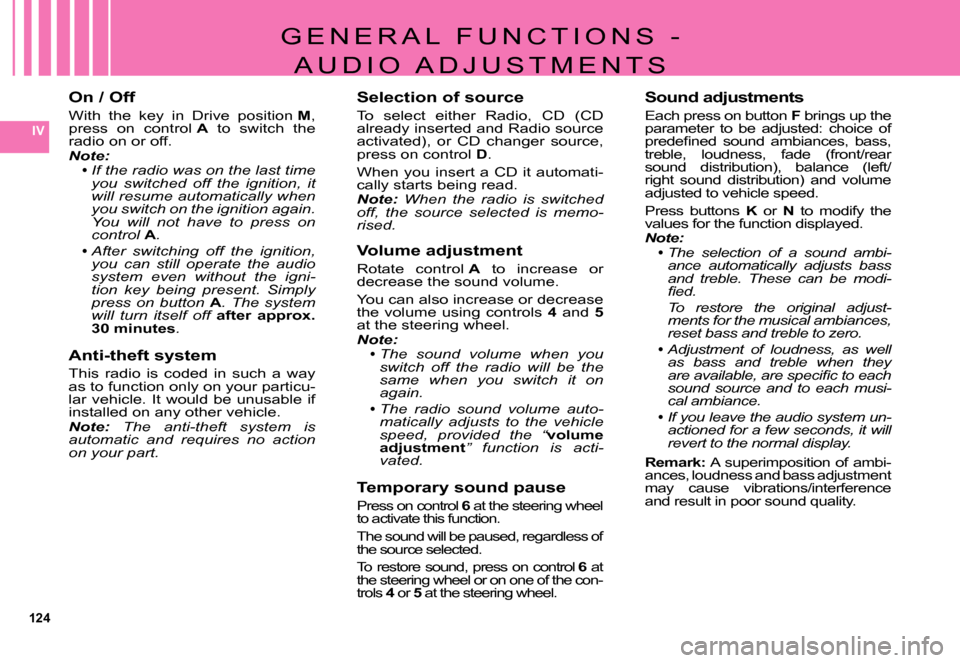

On / Off
With the key in Drive position M, press on control A to switch the radio on or off.Note:If the radio was on the last time you switched off the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.
After switching off the ignition, you can still operate the audio system even without the igni-tion key being present. Simply press on button A. The system will turn itself off after approx.30minutes.
Anti-theft system
This radio is coded in such a way as to function only on your particu-lar vehicle. It would be unusable if installed on any other vehicle.Note: The anti-theft system is automatic and requires no action on your part.
