MATS
Removing

 Slide the seat back as far as pos-
sible,

 unclip the fi xings,

 remove the fi xings, then the mat.
Refi tting

 Position the mat correctly,

 clip the fi xings,

 check that the mat is held is
place correctly. To avoid your feet becoming jammed
under the pedals:
- only use mats which are suit-
able for the fi xings already
present in the vehicle. The use
of these fi xings is essential,
- never stack up more than 1 mat.
The use of a mat not approved by
CITROËN may obstruct access to
the pedals and hinder the cruise
control/speed limiter function.
Floor mats approved by CITROËN
are fi tted with a 3rd fi xing located in
the pedal area to avoid any risk of
interference with the pedals.
FRONT ARMREST
Comfort and storage system for the
driver and front passenger. Adjustment
To optimise your driving position:

 lift the control A ,

 push the armrest forwards.
The armrest returns to its initial posi-
tion when you push it rearwards.

 Lift the armrest to access the cup
holder.
Equipment available for the driver
and front passenger.
Cup-holder

97
6
L A Y O U T
REAR ARMREST
Comfort and storage system for the
rear passengers. Cup-holder
The rear cup-holder
A is located in
the rear central armrest.

 Lower the rear armrest.

 Pull forwards to extract the cup-
holder.
Storage

 Lift up the upper part of the rear
central armrest to access storage
space B .
12 V ACCESSORIES SOCKET
SIDE BLINDS

 Pull on the tab A and position the
blind on the hook B .
REAR BLIND (SALOON)

 pull on the tab C to unroll the
blind,

 position the blind on the hooks D .
This is located in the rear ashtray.
Max power: 100 W.
Driver's oddments tray

 Pull the handle towards you.

97
6
L A Y O U T
REAR ARMREST
Comfort and storage system for the
rear passengers. Cup-holder
The rear cup-holder
A is located in
the rear central armrest.

 Lower the rear armrest.

 Pull forwards to extract the cup-
holder.
Storage

 Lift up the upper part of the rear
central armrest to access storage
space B .
12 V ACCESSORIES SOCKET
SIDE BLINDS

 Pull on the tab A and position the
blind on the hook B .
REAR BLIND (SALOON)

 pull on the tab C to unroll the
blind,

 position the blind on the hooks D .
This is located in the rear ashtray.
Max power: 100 W.
Driver's oddments tray

 Pull the handle towards you.

98
6
L A Y O U T
BOOT LAYOUT (SALOON)

1. Battery for vehicles with V6 HDi
engine.

2. Pull strap (spare wheel storage).
3. Boot lamp.

4. 6 CD changer. Luggage securing rings

 Use the 4 securing rings on the
boot fl oor to secure your luggage.
For safety reasons, in case of the
need for sharp braking, you are
advised to place heavy objects as
far forward in the boot as possible.

99
6
L A Y O U T
BOOT LAYOUT (TOURER)

1. Hook

Allows you to hook shopping bags.

2. Torch
To recharge, return it to its stor- age position.

3.

Storage net or Battery compart-
ment (for vehicles with V6 2.7 HDi
engine).
This provides access to the battery.

1. Luggage-cover blind
(see details on following page)

2. Luggage securing rings
Use the 4 stowing rings provided on the boot fl oor to secure your
loads.
For safety reasons in the event of sharp braking, you are ad-
vised to place heavy objects as
far forwards as possible.

3. Hooks
These allow a cargo net to be fi tted (see details on following page).
1. Boot lamp

2. 12 V accessories socket
(100 W maximum)
Cigar-lighter type 12 volts socket. It is located on the rear right-hand
trim, and is supplied from the igni-
tion position.

3. Loading assistance
You can change the height of the vehicle in order to make loading
or unloading easier.

4. Hook

Allows you to hook shopping bags.

5. Storage net or 6 CD changer

100
6
L A Y O U T

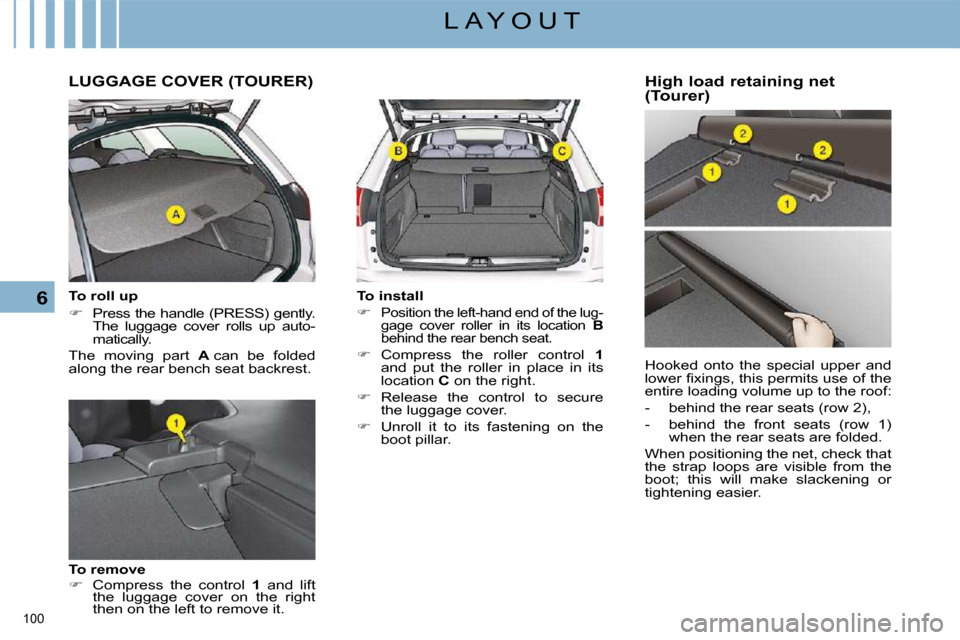

LUGGAGE COVER (TOURER)
To roll up

 Press the handle (PRESS) gently.
The luggage cover rolls up auto-
matically.
The moving part A can be folded
along the rear bench seat backrest.
To remove

 Compress the control 1 and lift
the luggage cover on the right
then on the left to remove it.
To install


Position the left-hand end of the lug-
gage cover roller in its location B
behind the rear bench seat.


 Compress the roller control 1
and put the roller in place in its
location C on the right.

 Release the control to secure
the luggage cover.

 Unroll it to its fastening on the
boot pillar. High load retaining net
(Tourer)
Hooked onto the special upper and
lower fi xings, this permits use of the
entire loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1)
when the rear seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier.

101
6
L A Y O U T
Installation

 fold down the backs of the rear
seats,

 position the high load retaining net
roller above the two rails 1 located
behind the rear seats (2/3 bench
seat). The two notches 2 must be
placed above the two rails,

 slide the two rails 1 into the
notches 2 and push the roller
(lengthways) from right to left to
secure it,

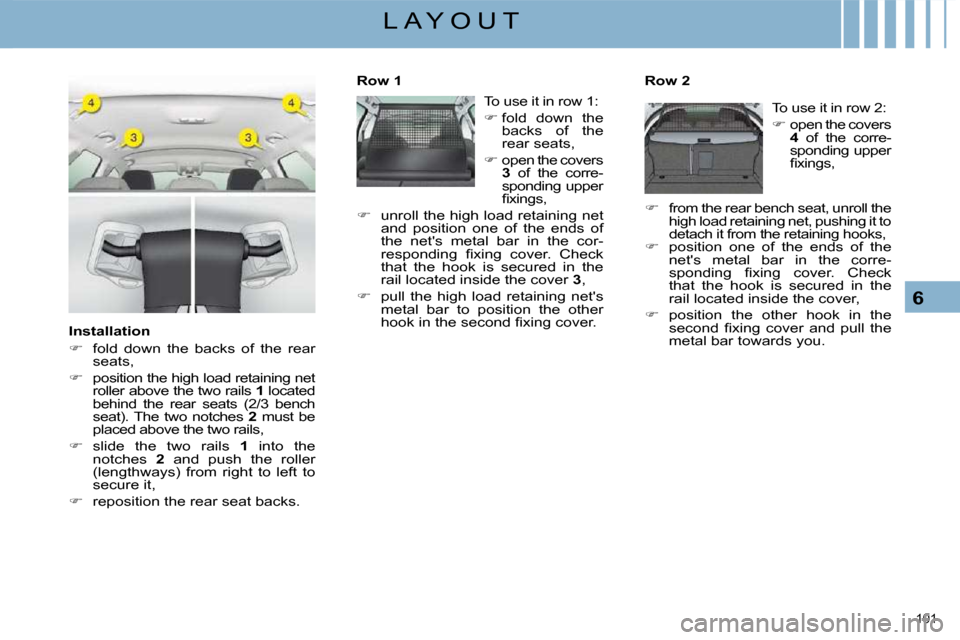

 reposition the rear seat backs. Row 1 Row 2
To use it in row 1:

 fold down the
backs of the
rear seats,

 open the covers

3 of the corre-
sponding upper
fi xings,

 unroll the high load retaining net
and position one of the ends of
the net's metal bar in the cor-
responding fi xing cover. Check
that the hook is secured in the
rail located inside the cover 3 ,

 pull the high load retaining net's
metal bar to position the other
hook in the second fi xing cover. To use it in row 2:

 open the covers

4 of the corre-
sponding upper
fi xings,

 from the rear bench seat, unroll the
high load retaining net, pushing it to
detach it from the retaining hooks,

 position one of the ends of the
net's metal bar in the corre-
sponding fi xing cover. Check
that the hook is secured in the
rail located inside the cover,

 position the other hook in the
second fi xing cover and pull the
metal bar towards you.

102
7
C H I L D S A F E T Y
* The rules for transporting children are specifi c to each country. Consult the
current legislation in your country.
GENERAL POINTS RELATING TO CHILD SEATS
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also
depends on you.
For maximum safety, please follow
these precautions:
- in accordance with European regu- lations, all children under the age
of 12 or less than one metre fi fty
tall must travel in approved child
seats suited to their weight ,
on seats fi tted with a seat belt or
ISOFIX
* mountings ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.

CITROËN recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.

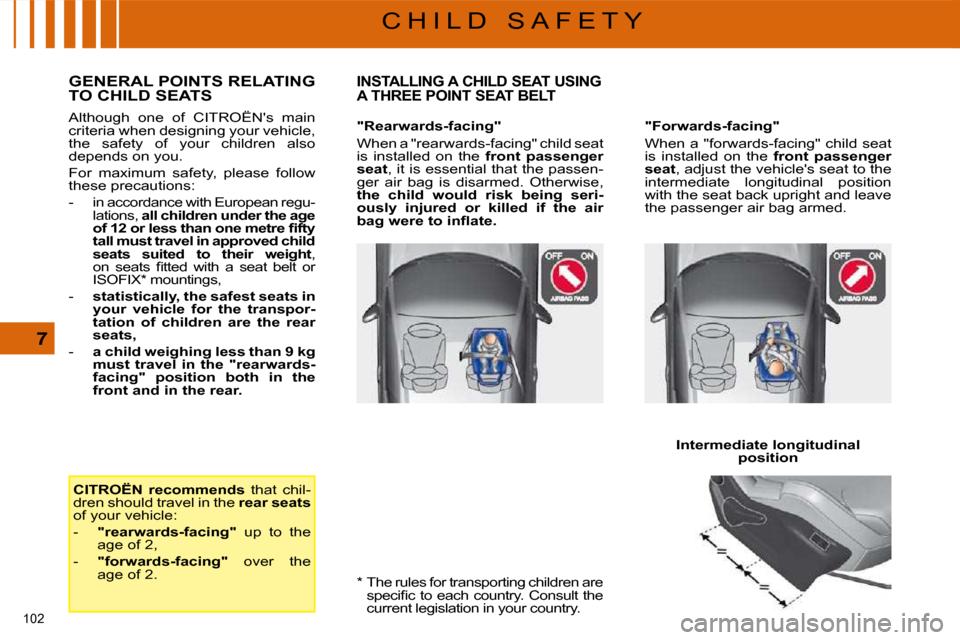

INSTALLING A CHILD SEAT USING
A THREE POINT SEAT BELT
"Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the front passenger
seat , it is essential that the passen-
ger air bag is disarmed. Otherwise,

the child would risk being seri-
ously injured or killed if the air
bag were to infl ate. "Forwards-facing"
When a "forwards-facing" child seat
is installed on the
front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
Intermediate longitudinal position

103
C H I L D S A F E T Y
Passenger air bag OFF

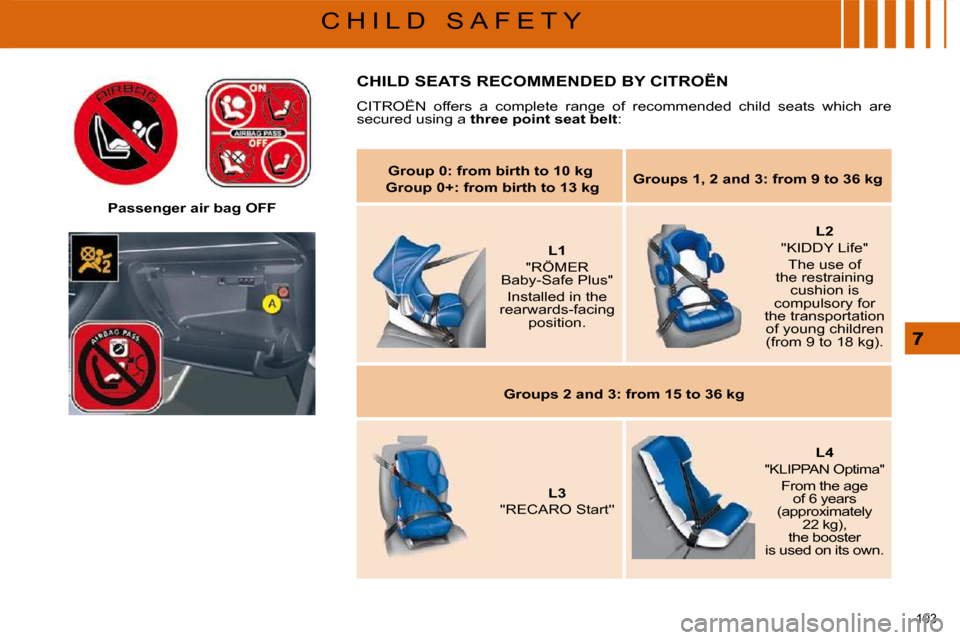

CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg

L1
"RÖMER
Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life" The use of
the restraining cushion is
compulsory for
the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster
is used on its own.

104
7
C H I L D S A F E T Y

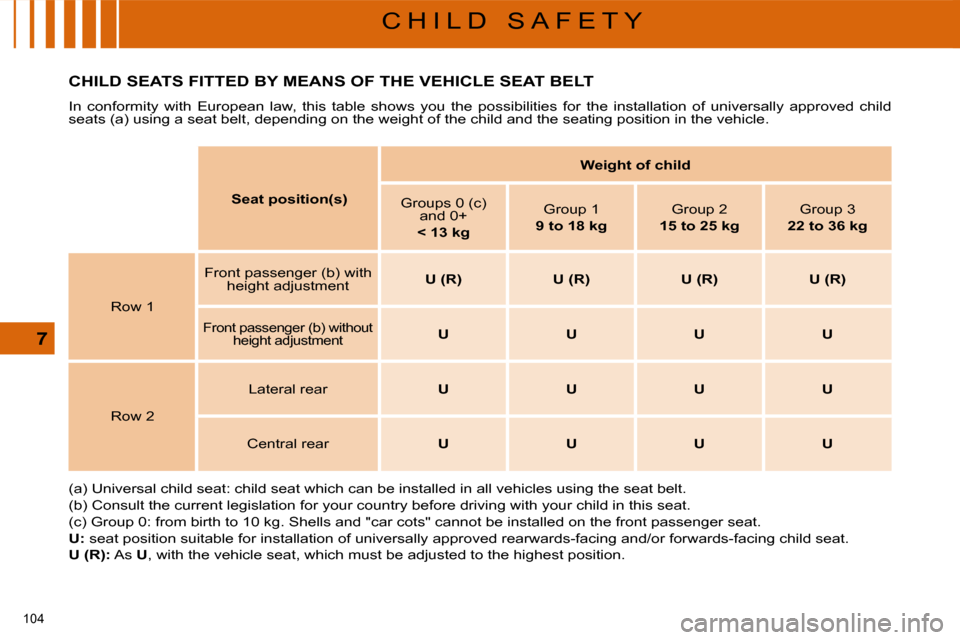

CHILD SEATS FITTED BY MEANS OF THE VEHICLE SEAT BELT
In conformity with European law, this table shows you the possibilities for the installation of universally approved child
seats (a) using a seat belt, depending on the weight of t he child and the seating position in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Consult the current legislation for your country before drivi ng with your child in this seat.
(c) Group 0: from birth to 10 kg. Shells and "car cots" cannot be i nstalled on the front passenger seat.

U: seat position suitable for installation of universally appro ved rearwards-facing and/or forwards-facing child seat.

U (R): As U , with the vehicle seat, which must be adjusted to the hi ghest position.

Seat position(s)
Weight of child
Groups 0 (c) and 0+
< 13 kg Group 1
9 to 18 kg Group 2
15 to 25 kg Group 3
22 to 36 kg
Row 1 Front passenger (b) with
height adjustment U (R) U (R) U (R) U (R)
Front passenger (b) without
height adjustment U U U U
Row 2 Lateral rear
U U U U
Central rear U U U U
