Page 204 of 306
201
12
T E C H N I C A L D A T A
T h e G T W a n d t o w e d l o a d v a l u e s i n d i c a t e d a p p l y u p t o a m a x i m u m a l t i t u d e o f 1 , 0 0 0 m e t r e s ; t h e t o w e d l o a d m e n t i o n e d
m u s t b e r e d u c e d b y 1 0 % f o r e a c h a d d i t i o n a l 1 , 0 0 0 m e t r e s o f a l t i t u d e .
T h e s p e e d o f a t o w i n g v e h i c l e m u s t n o t e x c e e d 1 0 0 k m / h ( a p p r o x . 6 0 m p h ) ( c o m p l y w i t h t h e l e g i s l a t i o n i n f o r c e i n y o u r
country).
H i g h e x t e r i o r t e m p e r a t u r e s m a y r e s u l t i n a r e d u c t i o n i n t h e p e r f o r m a n c e o f t h e v e h i c l e i n o r d e r t o p r o t e c t t h e e n g i n e ; w h e n
t h e e x t e r i o r t e m p e r a t u r e i s h i g h e r t h a n 3 7 ° C , l i m i t t h e w e i g h t t o w e d .
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
1.6 l. HDi
110 bhp
2 l. HDi
140 bhp
2 l. HDi
138 bhp
2 l. HDi
173 bhp
V6 HDi
208 bhp
G e a r b o x e s Manual Manual Auto. Manual Auto.
Model codes:
RW...
9HZC
9HZC/1
RHF8 RHRJ 4HTH UHZJ
- Unladen weight 1 537 1 655 1 695 1 765 1 802
- Kerb weight 1 612 1 730 1 770 1 840 1 877
- Payload 641 621 631 587 571
- G r o s s v e h i c l e w e i g h t ( G V W ) 2 178 2 276 2 326 2 352 2 373
- Gross train weight (GTW) 3 178 3 776 3 526 3 952 3 676
- Braked trailer (within GTW limit)
o n a 1 0 % o r 1 2 % g r a d i e n t 1 000 1 500 1 200 1 600 1 300
- Braked trailer * (with load t r a n s f e r w i t h i n G T W l i m i t ) 1 300 1 800 1 500 1 900 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 52 72 60 77 64
Page 258 of 306
36
SOLUTION RESPONSE
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
Press RADIO, select RADIO MENU then AM/FM WAVEBAND to return to the waveband on which the stations are stored.
Activate the RDS function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge. The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
Page 295 of 306
156
10
C H E C K S HDi 173 -
V6 HDi 240 engines
(with particle filter)
1. Screen wash and headlamp
wash reservoir.
2. Power steering and suspension
fl u i d r e s e r v o i r .
3. Engine coolant reservoir.
4. Engine oil dipstick.
5. E n g i n e o i l fi l l e r c a p .
6. A i r fi l t e r .
7. B r a k e fl u i d r e s e r v o i r .
8. Battery.
9. "+" and "-" terminals for starting
with a slave battery.
The diesel fuel system
being under high pres-
sure:
- Any intervention on the system
is prohibited.
- HDi engines are the result of advanced technology.
Any intervention requires spe-
c i a l q u a l i fi c a t i o n s w h i c h o n l y a
CITROËN dealer can guarantee.
HDi 173
V6 HDi 240
Page 298 of 306
50
3
C O M F O R T
5 . A i r fl o w a d j u s t m e n t
Press the control:
- to increase the air fl o w ,
-
t o r e d u c e t h e a i r fl o w .
T h e a i r fl o w l e v e l i s i n d i c a t -
ed by the progressive light-
ing of the fan blade indicator lamps.
R e d u c i n g t h e fl o w t o m i n i m u m
s w i t c h e s t h e a i r c o n d i t i o n i n g O F F .
To prevent condensation and dete-
rioration of the quality of the air in
the passenger compartment, ensure
t h a t a n a d e q u a t e fl o w o f a i r i s m a i n -
tained.
6. Air conditioning
The air conditioning will
only operate when the
engine is running. The air
b l o w e r c o n t r o l ( a i r fl o w a d -
justment) must be active in
order to obtain air conditioning.
Press control 6 . The indicator
lamp comes on.
In order to be effective, the air
conditioning must be used with the
windows closed. 7. Air recirculation - intake of
exterior air
Automatic air intake
mode
It is activated by default
in automatic comfort
regulation.
A u t o m a t i c m o d e i s a c t i v a t e d w i t h
reverse gear or operation of the
s c r e e n w a s h .
This function permits recircula-
tion of the air and isolation the
passenger compartment from
exterior fumes and odours. It is
i n a c t i v e w h e n t h e a m b i e n t t e m -
p e r a t u r e i s b e l o w + 5 ° C t o a v o i d
the risk of misting inside the ve-
hicle.
Closing the air intake
Press control 7 to
close the exterior air
intake.
It must be cancelled as soon as pos-
sible to permit renewal of the air in
the passenger compartment and
demisting.
Intake of exterior air
Press control 7 once
to open the exterior air
intake.
While retaining the other settings,
this position allows the driver to iso-
late the passenger compartment at
any time from unpleasant exterior
odours and fumes.
Page 299 of 306
98
6
F I T T I N G S
BOOT FITTINGS (SALOON)
1. Battery for vehicles with V6 HDi
engine.
2. B o o t fl o o r ( s p a r e w h e e l s t o r -
a g e ) .
3. Boot lamp.
4. Location for 6 CD changer. L u g g a g e s e c u r i n g r i n g s
U s e t h e 4 s e c u r i n g r i n g s o n
t h e b o o t fl o o r t o s e c u r e y o u r
l u g g a g e .
For safety reasons in the event of
sharp braking, you are advised to
place heavy objects as far forward
in the boot as possible.
Page 302 of 306
197
12
T E C H N I C A L D A T A
MODELS:
ENGINES AND GEARBOXES
Model codes:
RD... RW....
9HZC
9HZC/1
RHF8 RHRJ
4HTH
4HPH
X8ZA
DIESEL ENGINES
1.6 litre HDi 110 hp
2 litre HDi
140 hp
2 litre HDi
138 hp
2.2 litre HDi 173 hp
3 litre V6 HDi 240 hp
Cubic capacity (cc) 1 560 1 997 2 179 2 992
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 96 84 x 90
EU standard maximum power (kW) 80 103 100 125 177
Maximum power engine speed (rpm) 4 000 4 000 4 000 3 800
EU standard maximum torque (Nm) 240 320 370 450
Maximum torque engine speed (rpm) 1 750 2 000 1 500 1 600
Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r ( P E F ) Yes Yes Yes Yes
GEARBOXES Manual (5-speed) Manual
(6-speed) Auto.
(6-speed) Manual
(6-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 5.25 5.25
-
Gearbox - Final drive 1.9 - - - -
During the year.
Page 303 of 306
198
12
T E C H N I C A L D A T A
FUEL CONSUMPTION (SALOON) In accordance with directive 80/1268/CEE
Diesel engines Gearboxes
Model codes:
RD...
Urban
Litres/100 km (mpg)
Extra-urban
Litres/100 km (mpg)
Combined
Litres/100 km (mpg)
CO
2
emmisions (g/km)
1.6 litre HDi
110 hp Airdream
Manual 9HZC/1 6.6 (42.8) 4.6 (61.4) 5.3 (53.3) 140
1.6 litre HDi 110 hp
Manual 9HZC 7.3 (38.7) 4.7 (60.1) 5.6 (50.4) 149
2 litre HDi 140 hp
Manual RHF8 7.5 (37.7) 4.8 (58.9) 5.8 (48.7) 153
2 litre HDi 138 hp
Auto. RHRJ 9.9 (28.5) 5.5 (51.4) 7.1 (39.8) 189
2.2 litre HDi 173 hp
Manual
4HTH
4HPH 8.8 (32.1) 5.2 (54.3) 6.5 (43.5) 172
3 litre V6 HDi 240 hp
Auto.
X8ZA 10.2 (27.7) 5.8 (48.7) 7.4 (38.2) 195
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e
vehicle and the use of vehicle systems.
During the year.
Page 304 of 306
199
12
T E C H N I C A L D A T A
FUEL CONSUMPTION (TOURER) In accordance with directive 80/1268/CEE
Diesel engines Gearboxes
Model codes:
RW...
Urban
Litres/100 km (mpg)
Inter-urban
Litres/100 km (mpg)
Combined
Litres/100 km (mpg)
CO
2
emissions (g/km)
1.6 litre HDi
110 hp Airdream
Manual 9HZC/1 6.6 (42.8) 4.6 (61.4) 5.3 (53.3) 140
1.6 litre HDi 110 hp
Manual 9HZC 7.4 (38.2) 4.8 (58.9) 5.7 (49.6) 150
2 litre HDi 140 hp
Manual RHF8 7.6 (37.2) 4.9 (57.6) 5.9 (47.9) 155
2 litre HDi 138 hp
Auto. RHRJ 10.0 (28.2) 5.6 (50.4) 7.2 (39.2) 191
2.2 litre HDi 173 hp
Manual
4HTH
4HPH 8.9 (31.7) 5.3 (53.3) 6.6 (42.8) 175
3 litre V6 HDi
240 hp
Auto.
X8ZA 10.2 (27.7) 5.8 (48.7) 7.4 (38.2) 195
T h e f u e l c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
T h e s e f u e l c o n s u m p t i o n v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h D i r e c t i v e 8 0 / 1 2 6 8 / C E E . They may vary depending
o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e
vehicle and the use of vehicle systems.
During the year.
Page 305 of 306
200
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load
mentioned must be reduced by 10 % for each additional 1 ,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force
in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the
engine; when the exterior temperature is higher than 37 ° C, limit the weight towed.

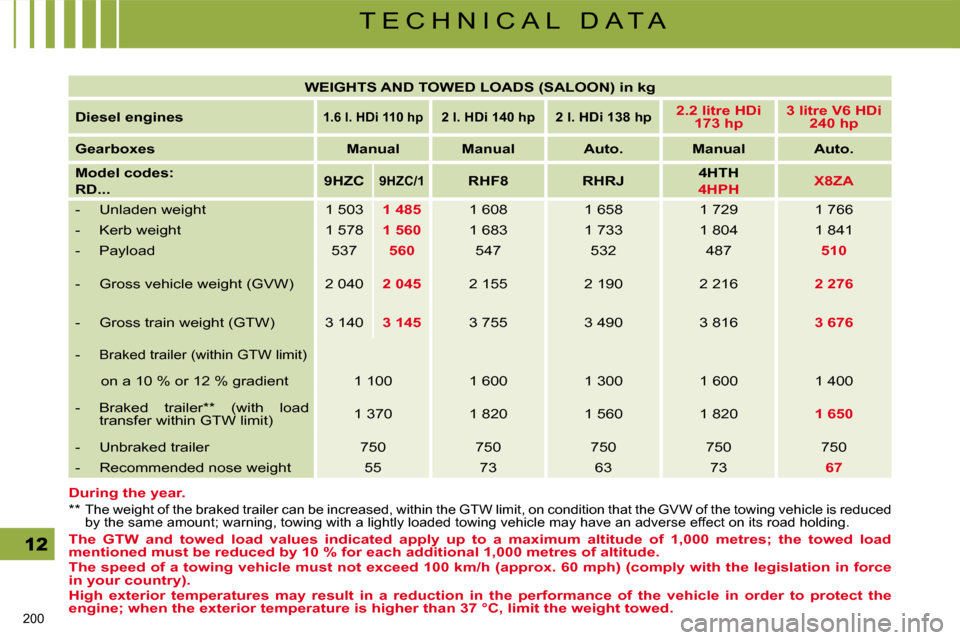

WEIGHTS AND TOWED LOADS (SALOON) in kg
Diesel engines
1.6 l. HDi 110 hp
2 l. HDi 140 hp
2 l. HDi 138 hp
2.2 litre HDi
173 hp
3 litre V6 HDi
240 hp
Gearboxes Manual Manual Auto. Manual Auto.
Model codes:
RD...
9HZC
9HZC/1
RHF8 RHRJ
4HTH
4HPH
X8ZA
- Unladen weight 1 503 1 485 1 608 1 658 1 729 1 766
- Kerb weight 1 578
1 560 1 683 1 733 1 804 1 841
- Payload 537
560 547 532 487 510
- Gross vehicle weight (GVW) 2 040 2 045 2 155 2 190 2 216 2 276
- Gross train weight (GTW) 3 140 3 145 3 755 3 490 3 816 3 676
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 600 1 30 0 1 600 1 400
- Braked trailer ** (with load transfer within GTW limit) 1 370 1 820 1 560 1 820
1 650
- Unbraked trailer 750 750 750 750 75
0
- Recommended nose weight 55 73 63 73
67
During the year.
** The weight of the braked trailer can be increased, within t he GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding .
Page 306 of 306
201
12
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (appro x. 60 mph) (comply with the legislation in force in your
country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
During the year.
** The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towin g
vehicle is reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an
adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (TOURER) in kg
Diesel engines
1.6 litre HDi
110 hp
2 litre HDi
140 hp
2 litre HDi
138 hp
2.2 litre HDi
173 hp
3 litre V6 HDi
240 hp
Gearboxes Manual Manual Auto. Manual Auto.
Model codes:
RW...
9HZC
9HZC/1
RHF8 RHRJ
4HTH
4HPH
X8ZA
- Unladen weight 1 537 1 655 1 695 1 765 1 802
- Kerb weight 1 612 1 730 1 770 1 840 1 877
- Payload 641 621 631 587 571
- Gross vehicle weight (GVW) 2 178 2 276 2 326 2 352 2 373
- Gross train weight (GTW) 3 178 3 776 3 526 3 952 3 676
-
Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 500 1 20 0 1 600 1 300
- Braked trailer ** (with load transfer within GTW limit) 1 300 1 800 1 500 1 900 1 600
- Unbraked trailer 750 750 750 750 75 0
- Recommended nose weight 52 72 60 77 64
