Citroen C5 DAG 2009.5 (RD/TD) / 2.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009.5, Model line: C5 DAG, Model: Citroen C5 DAG 2009.5 (RD/TD) / 2.GPages: 306, PDF Size: 18.91 MB
Page 121 of 306
VIII
1 2 0
S A F E T Y
Front airbags
S y s t e m w h i c h p r o t e c t s t h e h e a d a n d
chest of the driver and front passen-
g e r i n t h e e v e n t o f a f r o n t i m p a c t .
T h e d r i v e r ' s a i r b a g i s i n c o r p o r a t e d
in the centre of the steering wheel;
t h e f r o n t p a s s e n g e r ' s a i r b a g i s i n c o r -
porated in the dashboard above the
g l o v e b o x .
Activation
T h e a i r b a g s a r e t r i g g e r e d s i m u l t a n e -
o u s l y , u n l e s s t h e p a s s e n g e r ' s f r o n t
airbag is deactivated, in the event of
a s e r i o u s f r o n t i m p a c t t o a l l o r p a r t o f
t h e f r o n t i m p a c t z o n e A , in the lon-
g i t u d i n a l c e n t r e l i n e o f t h e v e h i c l e o n
a h o r i z o n t a l p l a n e a n d d i r e c t e d f r o m
the front to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
f r o n t o c c u p a n t o f t h e v e h i c l e a n d t h e
d a s h b o a r d t o c u s h i o n t h e i r f o r w a r d
m o v e m e n t . Deactivation
T h i s w a r n i n g l a m p c o m e s o n
on the roof console display
w h e n t h e i g n i t i o n i s o n a n d u n -
til the air bag is reactivated.
T o g u a r a n t e e t h e s a f e t y o f y o u r
c h i l d , i t i s i m p e r a t i v e t h a t t h e p a s -
senger airbag is deactivated when
y o u i n s t a l l a " r e a r w a r d s - f a c i n g " c h i l d
seat on the front passenger seat.
O t h e r w i s e , t h e c h i l d w o u l d r i s k b e -
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e
airbag were triggered. Activation
W h e n y o u r e m o v e t h e c h i l d s e a t ,
t u r n s w i t c h
1 to the "ON" position to
r e a c t i v a t e t h e a i r b a g a n d s o g u a r a n -
t e e t h e s a f e t y o f y o u r f r o n t p a s s e n -
g e r i n t h e e v e n t o f a n i m p a c t .
Operating fault
I f t h i s s y m b o l a p p e a r s o n
t h e i n s t r u m e n t p a n e l s c r e e n ,
a c c o m p a n i e d b y a n a u d i b l e
w a r n i n g a n d a m e s s a g e ,
c o n t a c t a C I T R O Ë N d e a l e r t o h a v e
t h e s y s t e m c h e c k e d . T h e a i r b a g s
m a y n o l o n g e r b e t r i g g e r e d i n t h e
e v e n t o f a s e r i o u s i m p a c t .
O n l y t h e f r o n t p a s s e n g e r ' s a i r b a g
can be deactivated:
with the ignition off , insert the
key in the passenger airbag de-
activation switch 1 ,
t u r n i t t o t h e "OFF" position,
t h e n , r e m o v e t h e k e y k e e p i n g
the switch in this position. I f t h i s w a r n i n g l a m p fl a s h e s ,
c o n t a c t a C I T R O Ë N d e a l e r .
I f b o t h a i r b a g w a r n i n g l a m p s c o m e
o n c o n t i n u o u s l y , d o n o t i n s t a l l a
"rearwards-facing" child seat on
the front passenger seat.
H a v e i t c h e c k e d b y a C I T R O Ë N
dealer.
Page 122 of 306
VIII
121
S A F E T Y
* A c c o r d i n g t o c o u n t r y .
Lateral airbags *
S y s t e m w h i c h p r o t e c t s t h e d r i v e r
and front passenger in the event of
a s e r i o u s s i d e i m p a c t i n o r d e r t o l i m i t
t h e r i s k o f i n j u r y t o t h e c h e s t .
Each lateral airbag is incorporated
i n t h e f r o n t s e a t b a c k f r a m e , o n t h e
o u t e r s i d e .
Activation
I t i s t r i g g e r e d u n i l a t e r a l l y i n t h e
e v e n t o f a s e r i o u s s i d e i m p a c t a p -
p l i e d t o a l l o r p a r t o f t h e s i d e i m p a c t
zone
B , p e r p e n d i c u l a r t o t h e l o n g i -
t u d i n a l c e n t r e l i n e o f t h e v e h i c l e o n
a h o r i z o n t a l p l a n e a n d d i r e c t e d f r o m
t h e o u t s i d e t o w a r d s t h e i n s i d e o f t h e
vehicle.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
f r o n t o c c u p a n t o f t h e v e h i c l e a n d t h e
c o r r e s p o n d i n g d o o r t r i m p a d . Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
Curtain airbags *
S y s t e m w h i c h p r o t e c t s t h e d r i v e r
a n d p a s s e n g e r s ( w i t h t h e e x c e p t i o n
of the rear centre passenger) in the
e v e n t o f a s e r i o u s s i d e i m p a c t i n o r -
d e r t o l i m i t t h e r i s k o f h e a d i n j u r i e s .
E a c h c u r t a i n a i r b a g i s i n c o r p o r a t e d
i n t h e p i l l a r s a n d t h e u p p e r p a r t o f
t h e p a s s e n g e r c o m p a r t m e n t . Operation
I t i s t r i g g e r e d a t t h e s a m e t i m e a s
the corresponding side airbag in the
e v e n t o f a s e r i o u s s i d e i m p a c t t o a l l
o r p a r t o f t h e s i d e i m p a c t z o n e
B ,
p e r p e n d i c u l a r t o t h e l o n g i t u d i n a l c e n -
treline of the vehicle on a horizontal
p l a n e a n d d i r e c t e d f r o m t h e o u t s i d e
towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n
t h e f r o n t o r r e a r o c c u p a n t o f t h e v e -
hicle and the windows.
Operating fault I n t h e e v e n t o f a m i n o r i m p a c t o r
b u m p o n t h e s i d e o f t h e v e h i c l e o r
if the vehicle rolls over, the airbag
m a y n o t b e t r i g g e r e d .
The airbag is not triggered in the
event of a rear or front collision.
* A c c o r d i n g t o c o u n t r y . I f t h i s s y m b o l a p p e a r s o n
t h e i n s t r u m e n t p a n e l s c r e e n ,
a c c o m p a n i e d b y a n a u d i b l e
s i g n a l a n d a m e s s a g e , c o n -
t a c t a C I T R O Ë N d e a l e r t o h a v e t h e
s y s t e m c h e c k e d . T h e a i r b a g s m a y
no longer be triggered in the event
o f a s e r i o u s i m p a c t .
Page 123 of 306
VIII
122
S A F E T Y
For the airbags to be fully
effective, observe the following
safety rules:
S i t i n a n o r m a l u p r i g h t p o s i t i o n .
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
o c c u p a n t s a n d t h e a i r b a g s ( a c h i l d ,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
o c c u p a n t s .
After an accident or if the vehicle
has been stolen or broken into, have
t h e a i r b a g s y s t e m s c h e c k e d .
A l l w o r k o n t h e a i r b a g s y s t e m i s
s t r i c t l y f o r b i d d e n u n l e s s i t i s c a r r i e d
o u t b y q u a l i fi e d p e r s o n n e l o f t h e
C I T R O Ë N d e a l e r n e t w o r k .
E v e n i f a l l o f t h e p r e c a u t i o n s m e n -
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
o r o f m i n o r b u r n s t o t h e h e a d , c h e s t
o r a r m s w h e n a n a i r b a g i s t r i g g e r e d
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
a l m o s t i n s t a n t l y ( w i t h i n a f e w m i l l i s e c -
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
t i m e d i s c h a r g i n g t h e h o t g a s v i a o p e n -
i n g s p r o v i d e d f o r t h i s p u r p o s e . Front airbags
Do not drive holding the steering
w h e e l b y i t s s p o k e s o r r e s t i n g y o u r
hands on the centre part of the
wheel.
P a s s e n g e r s m u s t n o t p l a c e t h e i r f e e t
on the dashboard.
I f p o s s i b l e , d o n o t s m o k e a s d e p l o y -
m e n t o f t h e a i r b a g s c a n c a u s e b u r n s
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
N e v e r r e m o v e o r p i e r c e t h e s t e e r i n g
wheel or hit it violently.
Lateral airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a -
t i o n o f t h e l a t e r a l a i r b a g s . C o n s u l t a
C I T R O Ë N d e a l e r .
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
s e a t b a c k s ( c l o t h i n g . . . ) . T h i s c o u l d
c a u s e i n j u r y t o t h e c h e s t o r a r m s i f
the lateral airbag is triggered.
D o n o t s i t w i t h t h e u p p e r p a r t o f t h e
body any nearer to the door than
necessary. Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e
h e a d i f t h e c u r t a i n a i r b a g i s t r i g -
gered.
D o n o t r e m o v e t h e g r a b h a n d l e s i n -
stalled on the roof, they play a part
i n s e c u r i n g t h e c u r t a i n a i r b a g s .
Page 124 of 306
IX
!
123
D R I V I N G
MANUAL PARKING BRAKE
Mechanical device for immobilising
the vehicle when stationary. This warning lamp comes
on if the parking brake is en-
gaged or not fully released.
If the parking brake is released,
the lighting of this warning lamp
along with the STOP warning lamp
i n d i c a t e s t h a t t h e b r a k e fl u i d l e v e l
is low or a malfunction of the brake
force distributor.
It is essential to stop the vehicle.
Consult a CITROËN dealer.
Application
Pull the parking brake lever up to
immobilise your vehicle.
To facilitate the action on the lever,
you are recommended to press the
brake pedal at the same time.
In all circumstances, as a pre-
cautionary measure, engage
fi r s t g e a r .
On steep gradients, turn the steer-
ing wheel towards the pavement. Release
Press on the end of the lever
whilst pulling it then lower it fully.
Page 125 of 306
IX!!
124
D R I V I N G
ELECTRIC PARKING BRAKE
The electric parking brake combines
2 operational modes:
- AUTOMATIC
Automatic application when the engine stops and automatic re-
lease on use of the accelerator
(automatic operation by default),
- MANUAL
Manual application/release of the parking brake is always pos-
sible by pulling control A while
pressing the brake pedal. Automatic operation
Application with the engine off
With the vehicle stationary, the park-
ing brake
is automatically applied
when the engine is switched off.
The application of the parking brake
i s c o n fi r m e d b y :
Application with the engine running
With the engine running and the ve-
hicle stationary, in order to immobil-
ise the vehicle you need to manually
apply the parking brake by pulling
on control A .
The application of the parking brake
i s c o n fi r m e d b y :
- the lighting of the warning
lamp on control A and on
the instrument panel,
Before leaving the vehicle,
check that warning lamp P on
the instrument panel is per-
manently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- the display of a message "hand-
brake on" on the instrument pan-
el screen.
T h e n o i s e o f o p e r a t i o n w i l l c o n fi r m
to you the application/release of
your electric parking brake. - the lighting of warning
lamp P on control A and
on the instrument panel,
- the display of a message "hand- brake on" on the instrument pan-
el screen.
When the driver’s door is opened, a
beep is heard and a message dis-
played if the parking brake has not
been applied.
Before leaving the vehicle,
check that warning lamp P on
the instrument panel is per-
manently lit.
Page 126 of 306
IX!
!
125
D R I V I N G
Release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged),
press down fully on the clutch
pedal then press on the acce-le-
rator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the warning lamp P on
control A and on the in-
strument panel going out,
- the display of a message "hand- brake off" on the instrument pan-
el screen.
When stationary, with the engine
running, do not press the accelera-
tor pedal unnecessarily (particularly
when starting the engine, including
in neutral), as you may release the
parking brake. Activation/Deactivation of
the automatic functions *
Automatic application when switch-
ing off the engine and automatic
release when moving off can be de-
activated. The activation/deactiva-
tion is done in the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u . S e l e c t
"Vehicle parameters/Comfort/Auto
handbrake".
Deactivation of these func-
tions is signalled by this
warning lamp in the instru-
ment panel.
With the automatic functions deac-
tivated, the parking brake must be
applied and released manually.
Deactivation of the automatic
functions is recommended
in very cold weather (freezing)
and when towing (recovery, cara-
van...). Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "hand- brake on" on the instrument pan-
el screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
* Depending on country.
Page 127 of 306
IX!
!
125
D R I V I N G
Release
The electric parking brake releases
automatically and progressively
when you press the accelerator:
with a manual gearbox ( fi r s t
gear or reverse gear engaged),
press down fully on the clutch
pedal then press on the acce-le-
rator pedal and move off.
with an automatic gearbox , ac-
celerate with the selector in posi-
tion D , M or R .
Full release of the parking brake is
c o n fi r m e d b y : - the warning lamp P on
control A and on the in-
strument panel going out,
- the display of a message "hand- brake off" on the instrument pan-
el screen.
When stationary, with the engine
running, do not press the accelera-
tor pedal unnecessarily (particularly
when starting the engine, including
in neutral), as you may release the
parking brake. Activation/Deactivation of
the automatic functions *
Automatic application when switch-
ing off the engine and automatic
release when moving off can be de-
activated. The activation/deactiva-
tion is done in the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u . S e l e c t
"Vehicle parameters/Comfort/Auto
handbrake".
Deactivation of these func-
tions is signalled by this
warning lamp in the instru-
ment panel.
With the automatic functions deac-
tivated, the parking brake must be
applied and released manually.
Deactivation of the automatic
functions is recommended
in very cold weather (freezing)
and when towing (recovery, cara-
van...). Manual operation
Manual application/release of the
parking brake is always possible.
Application
With the vehicle stationary, to apply
the parking brake whether the engine
is running or off,
pull on control A .
The application of the parking brake
i s c o n fi r m e d b y : - the lighting of the warning lamp on control A and of
warning lamp P on the in-
strument panel,
- the display of a message "hand- brake on" on the instrument pan-
el screen.
When the driver’s door is
opened with the engine run-
ning, a beep is heard and a
message displayed if the parking
brake has not been applied.
* Depending on country.
Page 128 of 306
IX!
126
D R I V I N G
Release
With the ignition on or the engine
running, to release the parking
brake, press on the brake pedal,
push then release control A .
The full application of the parking
b r a k e i s c o n fi r m e d b y :
- the warning lamp on con- trol A and the warning lamp
P on the instrument panel
going off,
- the display of a message "park- ing brake released" on the instru-
ment panel screen.
If you push control A without pressing
the brake pedal, the parking brake
will not be released and the message
"Apply foot on brake" will be dis-
played on the instrument panel.
When stationary, with the en-
gine running, do not press the
accelerator pedal unneces-
sarily, as you may release the
parking brake. Maximum application
If necessary, you can utilise
maxi-
mum application of the parking
brake. It is obtained by means of a
long pull on control A , until you see
the message "Max application of the
handbrake" and a beep is heard.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the au-
tomatic functions are activated
but you are applying the parking
brake manually,
- when the gradient you are parked on is variable in its effect (e.g. on
a ferry, in a lorry, during towing).
- in the case of towing, a loaded vehicle or parking on a gradient,
turn the front wheels towards the
pavement and engage a gear
when you park.
- after a maximum application, the release time will be longer. Particular situations
In certain situations (starting the en-
gine...), the parking brake can auto-
matically alter its level of application.
This is normal operation.
To advance your vehicle a few cen-
timetres without starting the engine,
but with the ignition on, press on the
brake pedal and release the parking
brake
by pushing then releasing
control A .
The full release of the parking brake
i s c o n fi r m e d b y t h e w a r n i n g l a m p P
(red) on the instrument panel going
off and the display of a message
"handbrake off" on the instrument
panel screen.
If the parking brake malfunctions
while applied o r i f t h e b a t t e r y i s fl a t ,
an emergency release is still pos-
sible.
To ensure correct operation of the
parking brake and therefore your
safety, the number of successive
application/release operations is
limited to eight.
If this number is exceeded, you are
warned by the message "Parking
brake faulty" and a warning lamp
fl a s h e s .
Page 129 of 306
IX
!
127
D R I V I N G
Dynamic emergency braking
In the event of a failure of the vehi-
cle’s main braking system or in an
exceptional situation (e.g. driver tak-
en ill, under instruction, etc) pull and
hold control A to stop the vehicle.
The electronic stability programme
( E S P ) p r o v i d e s s t a b i l i t y d u r i n g d y -
namic emergency braking.
If the dynamic emergency braking
malfunctions, one of the following
messages will be displayed on the
instrument panel display:
- "Parking brake faulty".
- "Parking brake control faulty". I f a f a i l u r e o f t h e E S P s y s -
tem is signalled by the light-
ing of this warning lamp,
then braking stability is not
guaranteed. In this event, stability
must be assured by the driver by
repeating alternate "pull release" ac-
tions on control A .
The dynamic emergency
braking must only be used in
exceptional circumstances. Emergency parking brake
release
In the event of the electric parking
brake failing to release, an emer-
gency device can be used to release
the parking brake manually, provid-
ed that it is possible to immobilise
the vehicle while the procedure is
carried out.
If you can start the vehicle: with
the engine running, immobilise
the vehicle by applying the foot
brake while the operation is be-
ing carried out.
If you are unable to start the ve-
h i c l e ( fl a t b a t t e r y f o r e x a m p l e ) : d o
not use this device and contact
a CITROËN dealer. However, if
y o u a r e o b l i g e d t o p r o c e e d , fi r s t
immobilise your vehicle securely
and then follow the instructions
below.
Page 130 of 306
IX
!
128
D R I V I N G

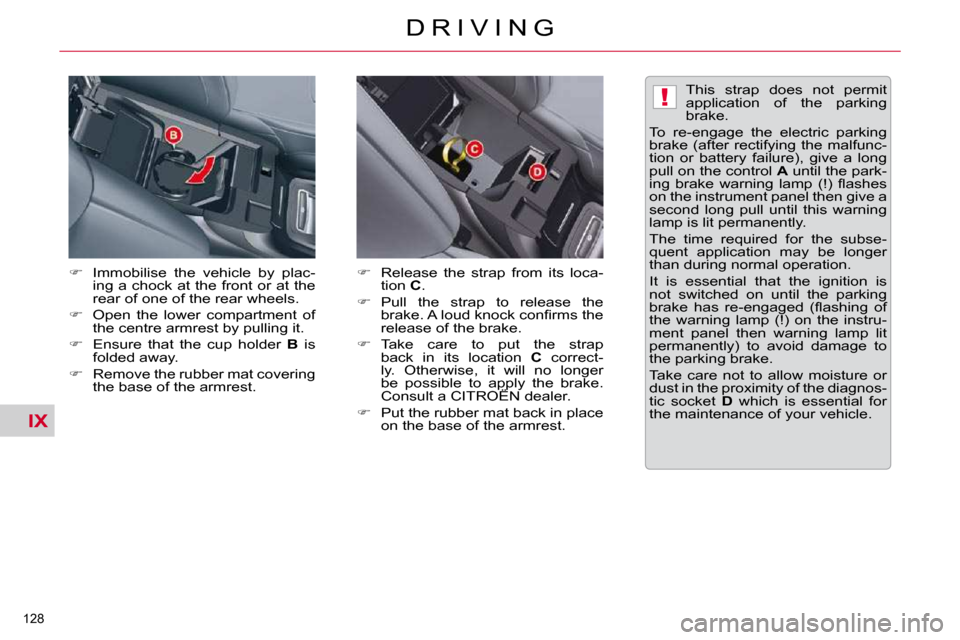

Immobilise the vehicle by plac-
ing a chock at the front or at the
rear of one of the rear wheels.
Open the lower compartment of
the centre armrest by pulling it.
Ensure that the cup holder B is
folded away.
Remove the rubber mat covering
the base of the armrest. This strap does not permit
application of the parking
brake.
To re-engage the electric parking
brake (after rectifying the malfunc-
tion or battery failure), give a long
pull on the control A until the park-
i n g b r a k e w a r n i n g l a m p ( ! ) fl a s h e s
on the instrument panel then give a
second long pull until this warning
lamp is lit permanently.
The time required for the subse-
quent application may be longer
than during normal operation.
It is essential that the ignition is
not switched on until the parking
b r a k e h a s r e - e n g a g e d ( fl a s h i n g o f
the warning lamp (!) on the instru-
ment panel then warning lamp lit
permanently) to avoid damage to
the parking brake.
Take care not to allow moisture or
dust in the proximity of the diagnos-
tic socket D which is essential for
the maintenance of your vehicle.
Release the strap from its loca-
tion C .
Pull the strap to release the
b r a k e . A l o u d k n o c k c o n fi r m s t h e
release of the brake.
Take care to put the strap
back in its location C correct-
ly. Otherwise, it will no longer
be possible to apply the brake.
Consult a CITROËN dealer.
Put the rubber mat back in place
on the base of the armrest.
