Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 82 of 306
V
92
V I S I B I L I T Y
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen. To park the wipers after this has
been done, switch on the ignition
and operate the stalk.
For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
- when the vehicle is unlocked,
- when a door is opened,
- when the key is removed from
the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Page 83 of 306
V
91
V I S I B I L I T Y
Reverse gear
When reverse gear is engaged, the
rear wiper operates if the windscreen
wipers are operating.
Programming
The function is activated or deac-
tivated via the instrument panel
s c r e e n c o n fi g u r a t i o n m e n u .
This function is activated by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation
This is controlled manually by the
driver by moving stalk
A to the
"AUTO" position.
It is accompanied by a message on
the instrument panel screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the instrument panel screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic wiping
when using an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 84 of 306
V
92
V I S I B I L I T Y
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen. To park the wipers after this has
been done, switch on the ignition
and operate the stalk.
For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
- when the vehicle is unlocked,
- when a door is opened,
- when the key is removed from
the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Page 85 of 306
V
92
V I S I B I L I T Y
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful,
in winter, to detach the blades from
the windscreen.
In the moment following switching
off of the ignition, any action on the
stalk positions the wipers vertically
on the windscreen. To park the wipers after this has
been done, switch on the ignition
and operate the stalk.
For maintain the effectiveness of
t h e " fl a t - b l a d e " w i p e r b l a d e s , i t i s
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen.
- r e p l a c e t h e m a t t h e fi r s t s i g n s of wear.
COURTESY LAMPS
1. Front courtesy lamp
2. Map reading lamp s
Front courtesy lamp
Rear courtesy lamp
1. Rear courtesy lamp
2. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Permanently off.
Permanent lighting.
- when the vehicle is unlocked,
- when a door is opened,
- when the key is removed from
the ignition,
- when the remote control locking button is activated, in order to lo-
cate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Page 86 of 306
V
93
V I S I B I L I T Y
In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlimited.
Map reading lamps
With the ignition on, press the
corresponding switch. Panoramic sunroof rear
reading lamps (Tourer)
With the key in position or with the
ignition on:
Press the corresponding switch.
The reading lamp concerned comes
on for ten minutes.
The rear reading lamps come on:
- when the key is removed from the ignition,
- when the vehicle is unlocked.
They switch off gradually:
- when the vehicle is locked,
- when the ignition is switched on.
Page 87 of 306
V
94
V I S I B I L I T Y

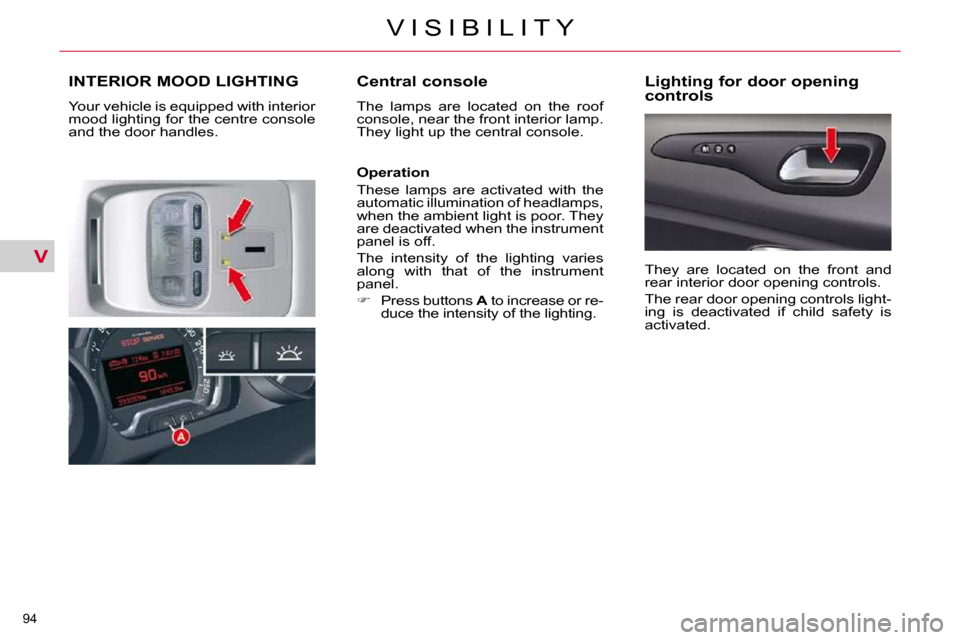

INTERIOR MOOD LIGHTING
Your vehicle is equipped with interior
mood lighting for the centre console
and the door handles. Central console
The lamps are located on the roof
console, near the front interior lamp.
They light up the central console. Lighting for door opening
controls
Operation
These lamps are activated with the
automatic illumination of headlamps,
when the ambient light is poor. They
are deactivated when the instrument
panel is off.
The intensity of the lighting varies
along with that of the instrument
panel.
Press buttons A to increase or re-
duce the intensity of the lighting. They are located on the front and
rear interior door opening controls.
The rear door opening controls light-
ing is deactivated if child safety is
activated.
Page 88 of 306
V
95
V I S I B I L I T Y

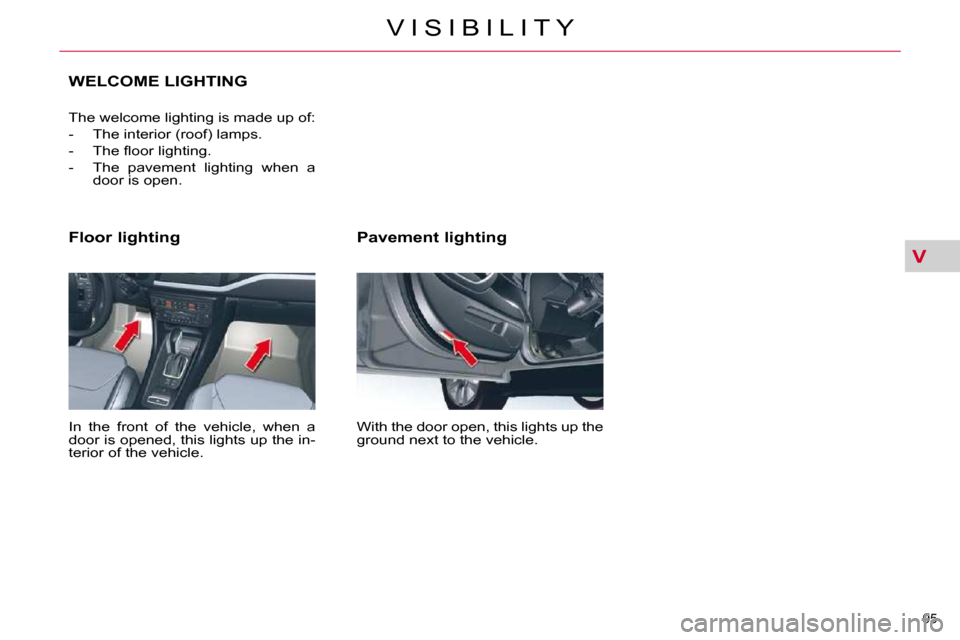

Pavement lighting
With the door open, this lights up the
ground next to the vehicle.
Floor lighting
In the front of the vehicle, when a
door is opened, this lights up the in-
terior of the vehicle.
The welcome lighting is made up of:
- T h e i n t e r i o r ( r o o f ) l a m p s .
- T h e fl o o r l i g h t i n g .
- The pavement lighting when a
door is open.
WELCOME LIGHTING
Page 89 of 306
VI
!
96
F I T T I N G S

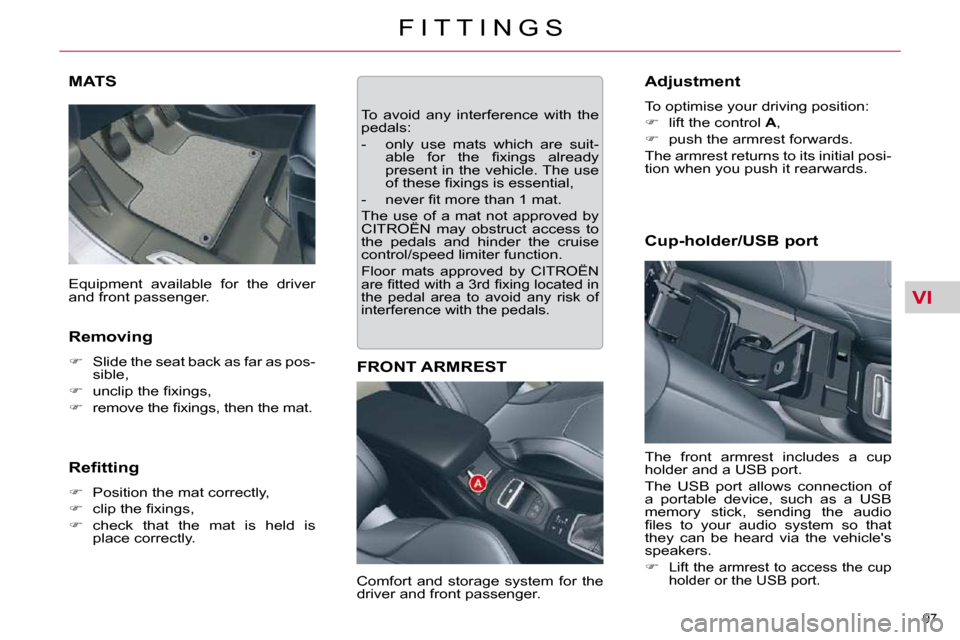

SUN VISOR SKI FLAP
A fl a p i n t h e b a c k r e s t , l o c a t e d t o t h e
r e a r o f t h e a r m r e s t , f a c i l i t a t e s t h e
c a r r y i n g o f l o n g o b j e c t s .
W i t h t h e i g n i t i o n o n , l i f t t h e fl a p ;
t h e m i r r o r i s i l l u m i n a t e d a u t o m a t -
i c a l l y .
T o p r e v e n t d a z z l e f r o m a h e a d , f o l d
t h e v i s o r d o w n w a r d s .
I t c a n b e d i s e n g a g e d f r o m i t s c e n t r a l
fi x i n g a n d p i v o t e d o v e r t o t h e s i d e
w i n d o w s i f r e q u i r e d .
COOLED GLOVE BOX
T o o p e n t h e g l o v e b o x , p u l l o n
t h e h a n d l e a n d l o w e r t h e l i d .
T h e g l o v e b o x h a s a m a n u a l l y c l o s -
a b l e a i r c o n d i t i o n i n g v e n t B .
I t h a s 2 o r 3 s o c k e t s C t o c o n n e c t
a u d i o / v i d e o e q u i p m e n t .
I t h a s a u t o m a t i c i l l u m i n a t i o n . To open
L o w e r t h e r e a r a r m r e s t .
P u l l t h e fl a p h a n d l e d o w n .
L o w e r t h e fl a p .
L o a d t h e o b j e c t s f r o m i n s i d e t h e
b o o t .
E n s u r e t h a t t h e o b j e c t s a r e w e l l s e -
c u r e d a n d t h a t t h e y d o n o t i m p e d e
t h e o p e r a t i o n o f t h e g e a r l e v e r .
Whilst driving, the
glove
box
should be kept closed.
Page 90 of 306
VI
97
F I T T I N G S
MATS
Removing
S l i d e t h e s e a t b a c k a s f a r a s p o s -
s i b l e ,
u n c l i p t h e fi x i n g s ,
r e m o v e t h e fi x i n g s , t h e n t h e m a t .
Refitting
P o s i t i o n t h e m a t c o r r e c t l y ,
c l i p t h e fi x i n g s ,
c h e c k t h a t t h e m a t i s h e l d i s
p l a c e c o r r e c t l y . T o a v o i d a n y i n t e r f e r e n c e w i t h t h e
p e d a l s :
- o n l y u s e m a t s w h i c h a r e s u i t -
a b l e f o r t h e fi x i n g s a l r e a d y
p r e s e n t i n t h e v e h i c l e . T h e u s e
o f t h e s e fi x i n g s i s e s s e n t i a l ,
- n e v e r fi t m o r e t h a n 1 m a t .
T h e u s e o f a m a t n o t a p p r o v e d b y
C I T R O Ë N m a y o b s t r u c t a c c e s s t o
t h e p e d a l s a n d h i n d e r t h e c r u i s e
c o n t r o l / s p e e d l i m i t e r f u n c t i o n .
F l o o r m a t s a p p r o v e d b y C I T R O Ë N
a r e fi t t e d w i t h a 3 r d fi x i n g l o c a t e d i n
t h e p e d a l a r e a t o a v o i d a n y r i s k o f
i n t e r f e r e n c e w i t h t h e p e d a l s .
FRONT ARMREST
C o m f o r t a n d s t o r a g e s y s t e m f o r t h e
d r i v e r a n d f r o n t p a s s e n g e r . Adjustment
T o o p t i m i s e y o u r d r i v i n g p o s i t i o n :
l i f t t h e c o n t r o l A ,
p u s h t h e a r m r e s t f o r w a r d s .
T h e a r m r e s t r e t u r n s t o i t s i n i t i a l p o s i -
t i o n w h e n y o u p u s h i t r e a r w a r d s .
T h e f r o n t a r m r e s t i n c l u d e s a c u p
h o l d e r a n d a U S B p o r t .
T h e U S B p o r t a l l o w s c o n n e c t i o n o f
a p o r t a b l e d e v i c e , s u c h a s a U S B
m e m o r y s t i c k , s e n d i n g t h e a u d i o
fi l e s t o y o u r a u d i o s y s t e m s o t h a t
t h e y c a n b e h e a r d v i a t h e v e h i c l e ' s
s p e a k e r s .
L i f t t h e a r m r e s t t o a c c e s s t h e c u p
h o l d e r o r t h e U S B p o r t .
E q u i p m e n t a v a i l a b l e f o r t h e d r i v e r
a n d f r o n t p a s s e n g e r . Cup-holder/USB port
