Page 191 of 340
XI
189
PRACTICAL INFORMATION

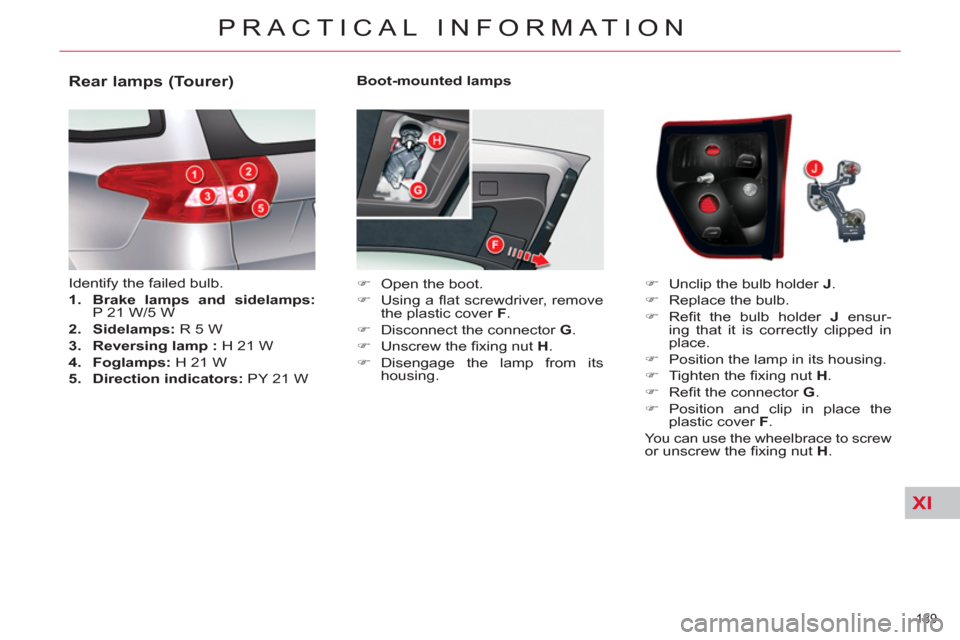

Boot-mounted lamps
)
Open the boot.
)
Using a fl at screwdriver, remove
the plastic cover F
.
)
Disconnect the connector G
.
)
Unscrew the fi xing nut H
.
)
Disengage the lamp from its
housing.
Rear lamps (Tourer)
Identify the failed bulb.
1.
Brake lamps and sidelamps:
P 21 W/5 W
2.
Sidelamps:
R 5 W
3.
Reversing lamp :
H 21 W
4.
Foglamps:
H 21 W
5.
Direction indicators:
PY 21 W
)
Unclip the bulb holder J
.
)
Replace the bulb.
)
Refi t the bulb holder J
ensur-
ing that it is correctly clipped in
place.
)
Position the lamp in its housing.
)
Tighten the fi xing nut H
.
)
Refi t the connector G
.
)
Position and clip in place the
plastic cover F
.
You can use the wheelbrace to screw or unscrew the fi xing nut H
.
Page 192 of 340
XI
190
PRACTICAL INFORMATION
Wing-mounted lamps
Remove the lateral boot trim A
.
To do so:
)
Pull it towards towards the inside
of the boot.
)
Pull it upwards.
)
Disconnect the connector B
.
)
Unscrew the fi xing nut C
.
)
Remove the lamp from its housing.
)
Detach the bulb holder D
.
)
Replace the faulty bulb.
)
Refi t the bulb holder D
.
)
Place the lamp in its housing.
)
Screw in the fi xing nut C
.
)
Refi t the connector B
.
)
Refi t the trim A
.
You can use the wheelbrace to screw or unscrew the fi xing nut C
.
Page 193 of 340
XI
191
PRACTICAL INFORMATION
Number plate lamps (W5W)
)
Insert a thin screwdriver into one
of the external holes of the lens.
)
Push it outwards to unclip it.
Third brake lamp (LEDs)
For the replacement of this type
of LED lamp, contact a CITROËN
dealer or a qualifi ed workshop.
)
Remove the lens.
)
Change the faulty bulb.
Page 194 of 340
XI
192
PRACTICAL INFORMATION
Interior lamps
Roof lamps
)
Unclip the transparent cover of
the roof lamp to reach the bulb.
Bulb:
W 5W
Rear reading lamps (Tourer)
)
Detach the cover of the reading
lamp to access the bulb.
Bulb:
W 5W
Map reading lamp
)
Detach the cover.
)
If necessary, detach the partition
of the affected map reading lamp.
Boot lamp
)
Detach the cover and use a W 5W
bulb.
Pavement lighting
)
Detach the cover and use a W 5W
bulb.
Floor lighting
)
Detach the cover and use a W 5W
bulb.
Glovebox
)
Detach the cover and use a W 5W
bulb.
Page 195 of 340
XI
193
PRACTICAL INFORMATION
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of
the corresponding function.
The 2 fuseboxes are located below
the dashboard and under the bonnet.
Replacing a fuse
Before replacing a fuse, you should
ascertain the cause of the fault and
have it remedied. the numbers of the
fuses are indicated on the fusebox.
Replace the fuse that has blown
with one of the same rating (same
colour).
Use the special tweezer 1
placed on
the fl ap close to the fuseboxes.
Good
Failed
Tweezer 1
Fuses under the dashboard
Access to the fuses
)
open the glove box then unclip
the access cover.
Fusebox A
Fusebox B
Fusebox C
Tweezer 1
Page 196 of 340
XI
194
PRACTICAL INFORMATION
FUSEBOX A
Table of fuses
Fuse N°
Rating
Function
G29
-
Not used
G30
5 A
Heated door mirrors
G31
5 A
Rain and sunshine sensor
G32
5 A
Seat belt not fastened warning lamps
G33
5 A
Electrochromatic rear view mirror
G34
20 A
Sunroof (saloon)
G35
5 A
Passenger door lighting - passenger door mirror adjustment
G36
30 A
Electric tailgate (tourer)
G37
20 A
Heated front seats
G38
30 A
Driver’s electric seat
G39
30 A
Passenger’s electric seat - HIFI amplifi er
G40
3 A
Trailer relay unit supply
FUSEBOX B
Fuse N°
Rating
Function
G36
15 A
6 speed automatic gearbox
5 A
4 speed automatic gearbox
G37
10 A
Daytime running lamps - Diagnostic socket
G38
3 A
ESP
G39
10 A
Hydraulic suspension
G40
3 A
STOP switch
Page 197 of 340
XI
195
PRACTICAL INFORMATION
FUSEBOX C
Fuse N°
Rating
Function
F1
15 A
Rear screen wipe (Tourer)
F2
30 A
Locking and deadlocking relay
F3
5 A
Airbags
F4
10 A
Automatic gearbox - additional heater unit (Diesel) -
electrochrome rear view mirror
F5
30 A
Front window - sunroof - passenger door lighting -
passenger door mirror adjustment
F6
30 A
Rear window
F7
5 A
Vanity mirror lighting - Glove box lighting - interior lamps -
torch (tourer)
F8
20 A
Radio - CD changer - Steering mounted controls - Screen - Under-infl ation detection -
Electric boot ECU
F9
30 A
Cigar lighter - front 12 V socket
F10
15 A
Alarm - Steering mounted controls, signalling and wiper controls
F11
15 A
Low current ignition switch
F12
15 A
Driver’s electric seat - instrument panel - seat belt not fastened warning lamps -
air conditioning controls
F13
5 A
Engine relay unit - Hydraulic suspension pump cut-off relay -
airbag ECU supply
F14
15 A
Rain and sunshine sensor - parking sensors - passenger’s electric seat -
trailer relay unit - HIFI amplifi er ECU - Bluetooth system -
Lane Departure Warning System
F15
30 A
Locking and deadlocking relay
F17
40 A
Heated rear screen - heated door mirrors
FSH
SHUNT
PARK SHUNT
Page 198 of 340
XI
196
PRACTICAL INFORMATION
Fuses under the bonnet
After a repair, carefully refi t the
cover.
Any repairs on the MAXI fuses
(that give additional protection),
located in the fuseboxes, must
be left to a CITROËN dealer or a
qualifi ed workshop.
Access to the fuses
)
Undo each screw by a 1/4 turn.
)
Replace the fuse.
Table of fuses
Fuse N°
Rating
Function
F1
20 A
Engine control unit
F2
15 A
Horn
F3
10 A
Screen wash pump
F4
10 A
Headlamp wash pump
F5
15 A
Starter
F6
10 A
Airfl ow sensor - Directional headlamps -
Diagnostic socket
F7
10 A
Automatic gear lever lock -
Power steering
F8
25 A
Starter motor
F9
10 A
Clutch switch - Stop switch
F10
30 A
Actuator motors
F11
40 A
Air conditioning blower
F12
30 A
Wipers
F13
40 A
BSI supply (ignition on)
F14
30 A
-
F15
10 A
Right-hand main beam
F16
10 A
Left-hand main beam
F17
15 A
Right-hand dipped beam
F18
15 A
Left-hand dipped beam
F19
15 A
Actuator motors
F20
10 A
Actuator motors
F21
5 A
Actuator motors
Page 199 of 340
XI
!
197
PRACTICAL INFORMATION
Table of fuses
Fuse N°
Rating
Function
F6
25 A
Rear 12 V socket (max power: 100 W)
F7
15 A
Foglamps
F8
20 A
Additional burner (Diesel)
F9
30 A
Electric parking brake
Your vehicle’s electrical sys-
tem is designed to operate
with either standard or op-
tional equipment.
Before installing electrical equip-
ment or accessories on your vehi-
cle, consult a CITROËN dealer or a
qualifi ed workshop.
CITROËN declines all responsibil-
ity for the consequences and costs
that are caused by faults or repairs
on your vehicle resulting from the
installation of accessories that
are not supplied and/or not rec-
ommended by CITROËN and not
installed in conformity with its re-
quirements, particularly when the
total consumption of additional de-
vices exceeds 10 milliamperes.
The Maxi fuses give additional pro-
tection to electrical systems. any
work on them must be carried out
by a CITROËN dealer or a quali-
fi ed workshop.
After a repair, carefully refi t the
cover.
If the cover is not correctly po-
sitioned or not properly closed,
this could cause serious prob-
lems on your vehicle. For the
same reason, take care not to
spill any liquid in the fusebox.
Page 200 of 340
XI
!
198
PRACTICAL INFORMATION
BATTERY
Procedure for charging your battery
when it is fl at or for starting the en-
gine using another battery.
Access to the battery
V6 HDi engine
The battery is located under the
bonnet.
For access to it:
)
open the bonnet using the interi-
or release lever, then the exterior
safety catch,
)
secure the bonnet stay,
)
remove the plastic cover to gain
access to the two terminals,
)
unclip the fusebox to remove the
battery, if necessary.
The battery is located in the boot under
the left-hand wing trim.
For access to it:
)
open the boot,
)
open the fl ap and remove the
battery.
The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
12 V lead-acid battery with special
technology and specifi cation; the
involvement of a CITROËN dealer
or a qualifi ed workshop is essential
when replacing or disconnecting
the battery.
Failure to observe this recommen-
dation may cause premature wear
of the battery.
After refi tting the battery, the Stop &
Start system will only be active after
a continuous period of immobilisa-
tion of the vehicle, a period which
depends on the climatic conditions
and the state of charge of the bat-
tery (up to about 8 hours).
